Features

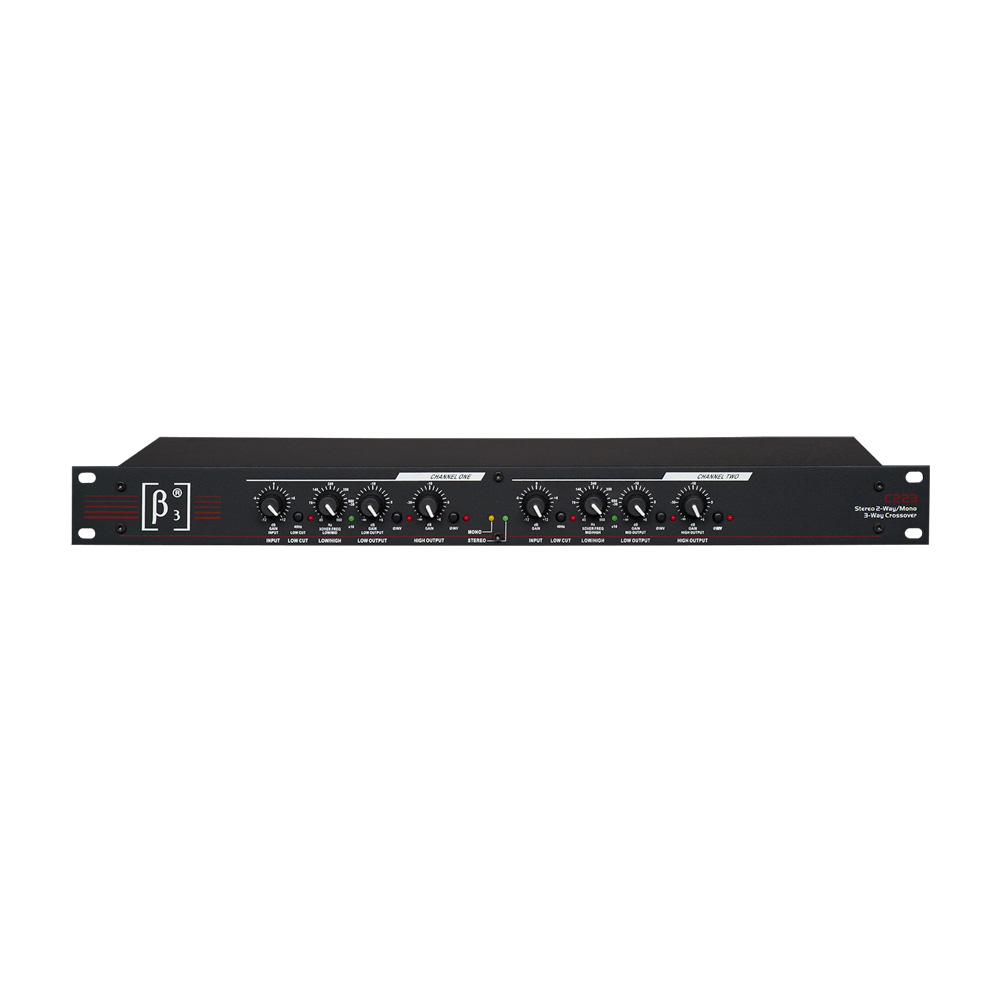

- Front Panel
- 2 x Input gain control
- 2 x Low/high frequency selector
- 2 x Low output gain control
- 2 x High output gain control
- 2 x Phase inversion switch
- 2 x 40Hz low cut switch

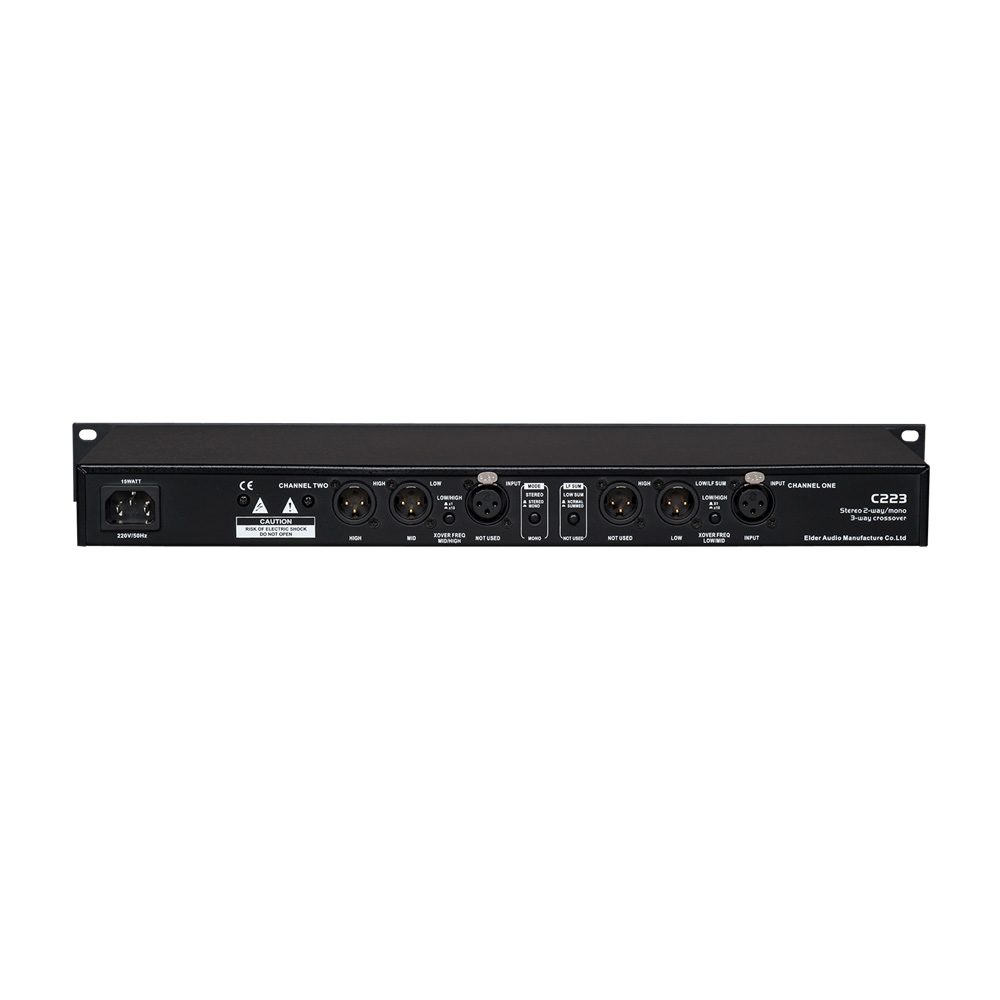

- Rear Panel
- 2 x Balanced XLR input connectors
- 4 x Balanced XLR output connectors
- Two-way stereo or three-way mono crossover via switch
- Switch to select normal or summed low frequency output
- Switch to select between 1x or 10x frequency
Specifications
| Input | |
| Connectors: | XLR |
| Type: | Electronically balanced/unbalanced, RF filtered |
| Impedance: | Balanced>50KΩ,unbalanced>25KΩ |
| Max input level: | +22dBu typical, balanced or unbalanced |
| CMRR: | >40dB, typically >55dB at 1KHz |
| Output | |
| Connectors: | XLR |
| Type: | Electronically balanced/unbalanced, RF filtered |
| Impedance: | Balanced 200Ω, unbalanced 30Ω |
| Max input level: | >+20dBu balanced/unbalanced into 600 Ohm or greater |
| Performance | |
| Bandwidth: | 20Hz to 20KHz, +0/-0.5dB |
| Frequency response: | <3hz to="">90KHz, ±3dB |
| Signal-to-noise: | Ref: +4dBu, 22KHz measurement bandwidth |
| Dynamic range: | >106dB, unweighted, any output |
| THD+noise: | <0.004% at +4 dBu, 1KHz <0.04% at +20 dBu, 1KHz |
| Interchannel crosstalk: | <-80dB, 20Hz to 20KHz |
| Crossover Frequencies | |
| Stereo mode | |
| low/high: | 45 to 960Hz or 450Hz to 9.6KHz(x10 setting) |
| Mono mode | |
| Low/mid: | 45 to 960Hz or 450Hz to 9.6KHz(x10 setting) |
| Mid/high: | 45 to 960Hz or 450Hz to 9.6KHz(x10 setting) |
| Filter type: | Linkwitz-Riley, 24dB/octave, |
| Power Supply | |
| Power consumption: | 220V ±10%/50Hz |
| Mains connection: | 15WATT IEC 320 receptacle |
| Physical | |
| Dimensions: | 483x175x45mm |
| Weight: | 1.7kg |
| Shipping weight: | 2.5kg |
