Features

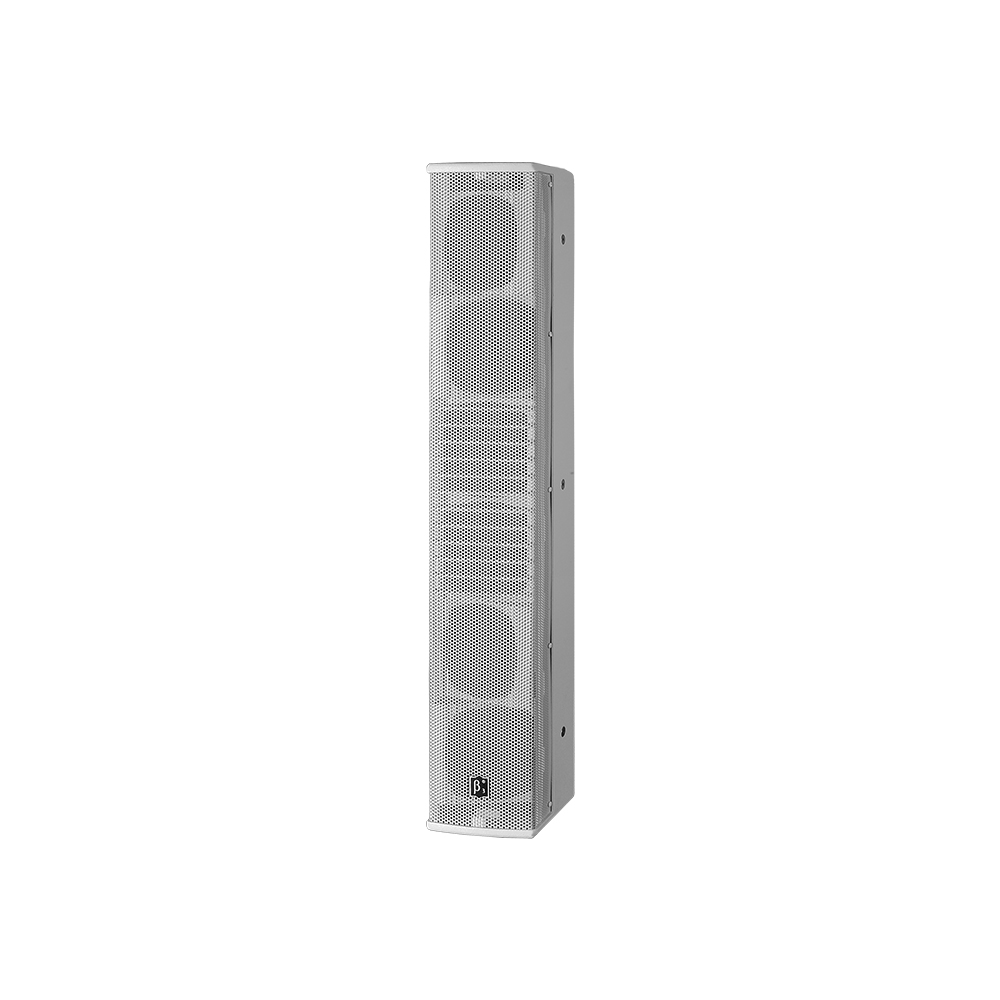

- Vertical line array of 8 x 4” full range transducers
- High fidelity sound
- Passive configuration
- 180º x 30º controlled coverage pattern
- Designed for high speech intelligibility and natural sounding music
- Suitable for use as a main system with or without sub speaker augmentation
- Quick install U bracket included with multiple mounting points provided
- Permanent installation
- Powder coated grill
- Durable Polyurethane textured base paint
- Available in either black or white
- 1 x NL4 conenctor included in packaging
- Optional 100/70V 100W transformer
- Optional mounting hardware for coupling speakers together
- Stackable where additional long throws are required
- Patents for central diffuser plate
Specifications
Acoustical specifications
Frequency Response(-3db):
90Hz-15kHz
Frequency Response(-10db):
80Hz-17kHz
Max SPL @ 1m:
116dB/122dB(PEAK)
Dispersion (H x V):
180° x 30°
Transducers
Transducer Driver:
8 x 4" Full Range Transducers
Input/Output section
Input Connectors:
4-Push terminal and 1 NL4 Speakon
Sensitivity (1W @ 1m):
92dB
Power section
Total Power:
240W(RMS); 480W(MUSIC); 960W(PEAK);
Nominal Impedance (Ohm):
4Ω
Physical specifications
Cabinet/Case Material:
15mm plywood construction
Handles:
Mounting U bracket included and optional mounting points provided.
Grille:
White durable textured finish
Color:
Black
Size
Dimension (W x D x H):
135 x 169 x 1050mm / (5.3 x 6.7 x 41.3in)
Package Dimensions (W x D x H):
240 x 205 x 1150mm / (9.4 x 8.1 x 45.3in)
Weight
Net Weight:
12 kg / 26.5 lb
Gross Weight:
13 kg / 28.7 lb
