Features
- High output SPL and sensitivity
- 2 x 4” high power transducers
- 1 x 1” diaphragm compression driver
- 120º x 120º controlled coverage pattern
- Injection molded 1 x NL4 connector
- Cabinet design for FOH use Suitable for use as a main system with or without sub speaker augmentation
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Powder coated grill with foam backing

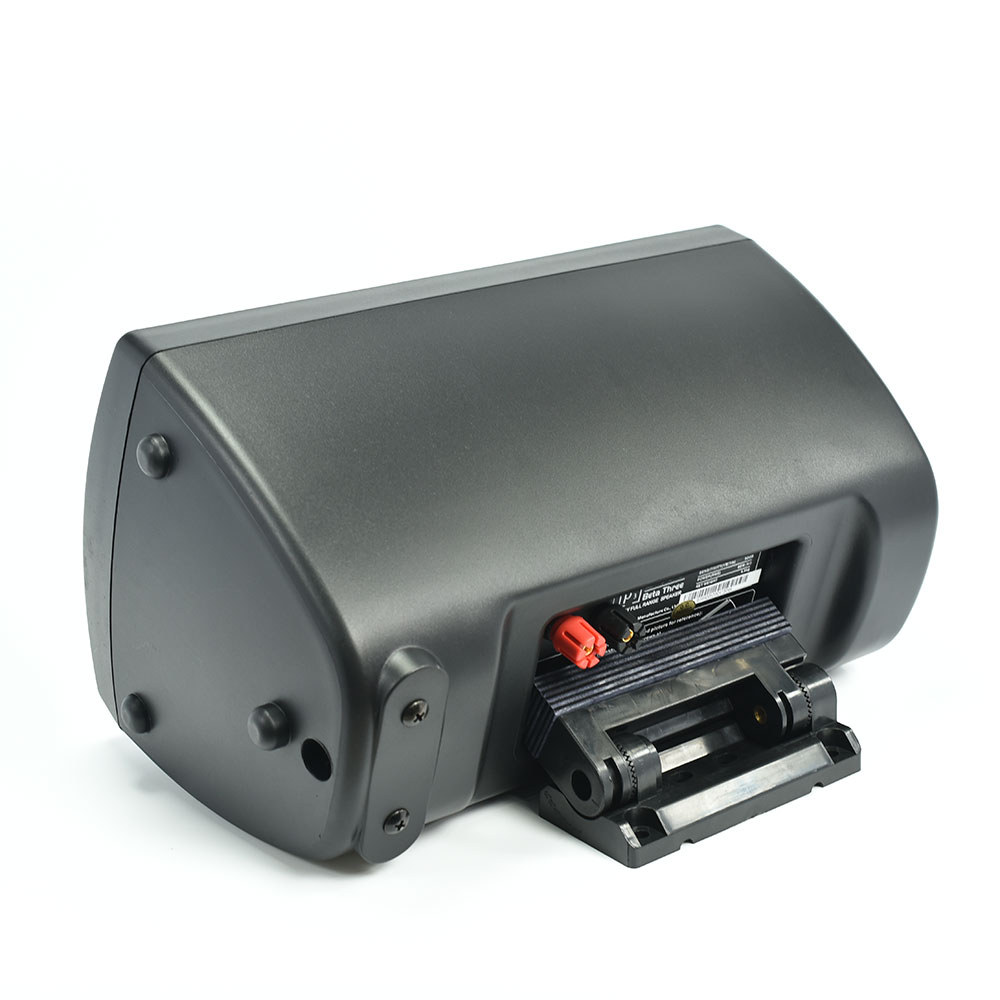

- Comes with convenient mounting bracket
- Available with 70V/100V line transformer
- Available in black or white
Specifications
Acoustical specifications
Frequency Response(-3db):
80Hz-20kHz
Max SPL @ 1m:
111dB/117dB(PEAK)
Dispersion (H x V):
120° x 120°
Transducers
Compression driver:
1 x 1" HF
Woofer:
2 x 4" LF
Input/Output section
Input Connectors:
1 x NL4
Sensitivity (1W @ 1m):
92dB
Processor section
Crossover frequencies:
3kHz
Power section
Total Power:
80W(RMS); 160W(MUSIC); 320W(PEAK);
Nominal Impedance (Ohm):
4Ω
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Grille:
Powered coated grill
Color:
Black
Size
Dimension (W x D x H):
182 x 182 x 320mm / (7.2 x 7.2 x 12.6in)
Package Dimensions (W x D x H):
230 x 230 x 375mm / (9.1 x 9.1 x 14.8in)
Weight
Net Weight:
4.5 kg / 9.9 lb
Gross Weight:
5.5 kg / 12.1 lb
