Features
- High output SPL and sensitivity
- 2 x 12” high power transducers
- 1 x 1.7” diaphragm compression coaxial driver
- 60º x 60º controlled coverage pattern
- Injection molded

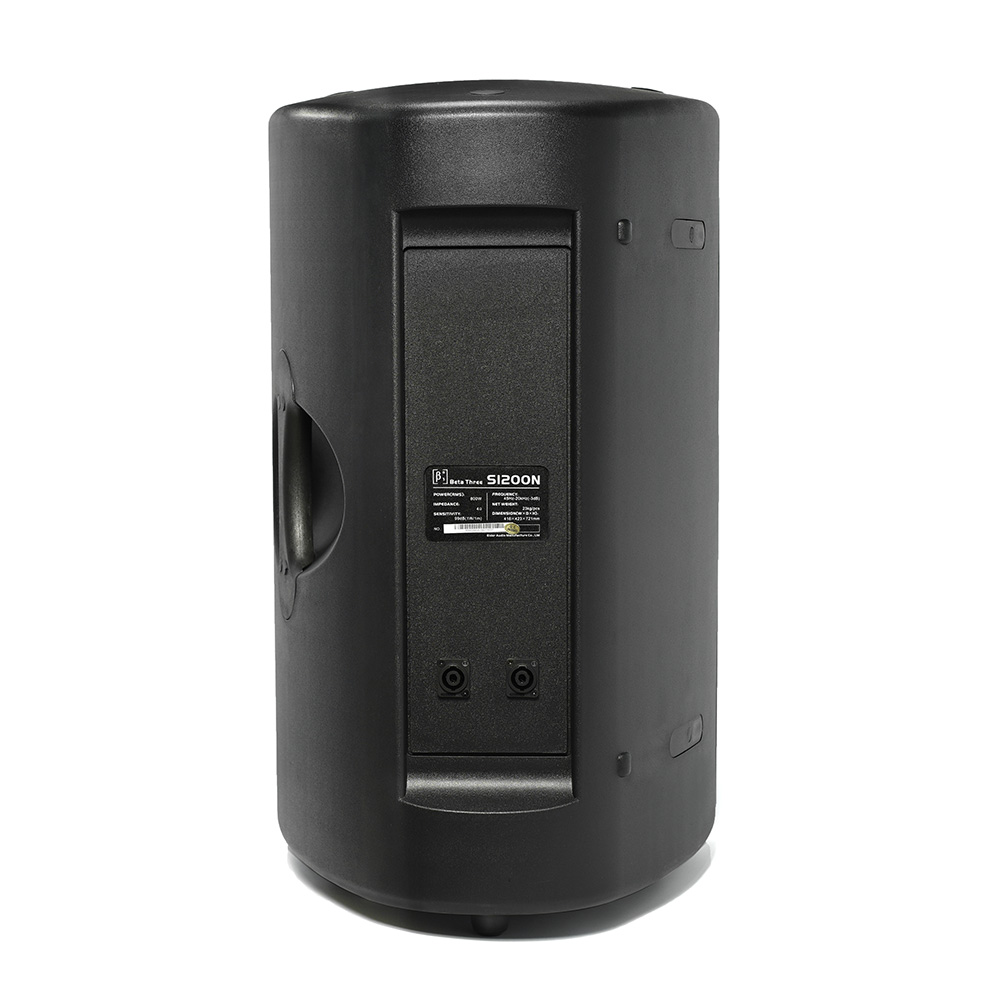

- 2 x NL4 connector
- Cabinet design for FOH and Monitor use
- Suitable for use as a main system with or without sub speaker augmentation

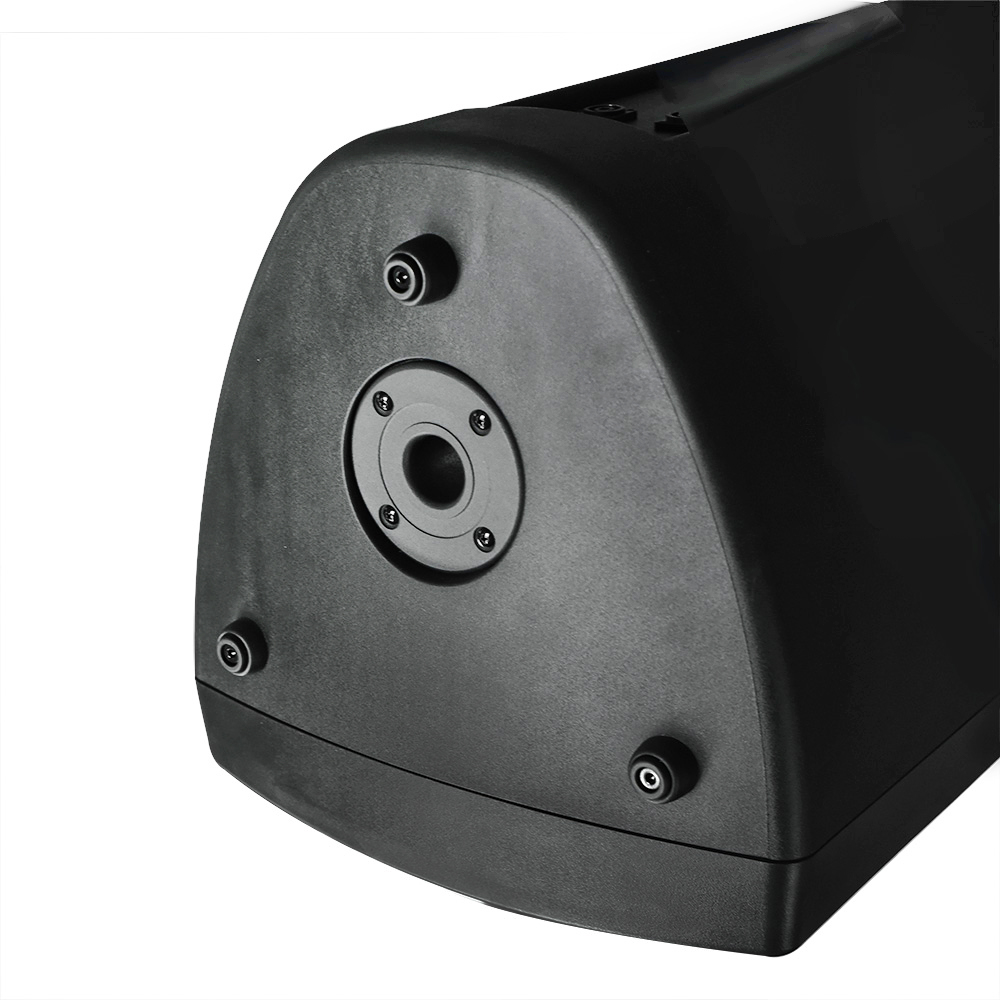

- Portable system (stand), or permanent installation (wall, ceiling, under balcony)

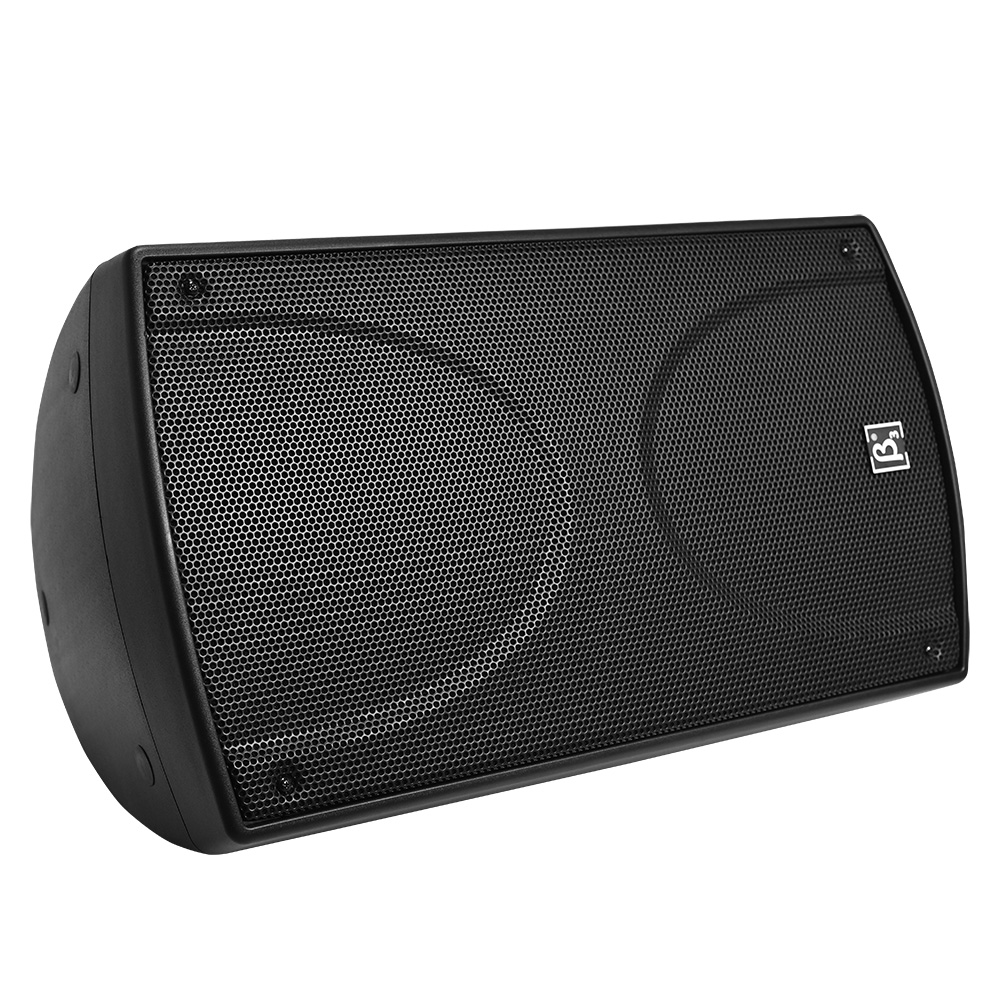

- Powder coated grill with foam backing
- Available with 70V/100V line transformer
- Available in black or white
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-20kHz
Max SPL @ 1m:
128dB/134dB(PEAK)
Dispersion (H x V):
60° x 60°
Transducers
Compression driver:
1 x 1.7" HF
Midrange:
1 x 12" MF
Woofer:
1 x 12" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
99dB
Processor section
Crossover frequencies:
2.2kHz
Power section
Total Power:
800W(RMS); 1600W(MUSIC); 3200W(PEAK);
Nominal Impedance (Ohm):
4Ω
Physical specifications
Cabinet/Case Material:
Polypropylene Cabinet, ABS baffle, metal grille

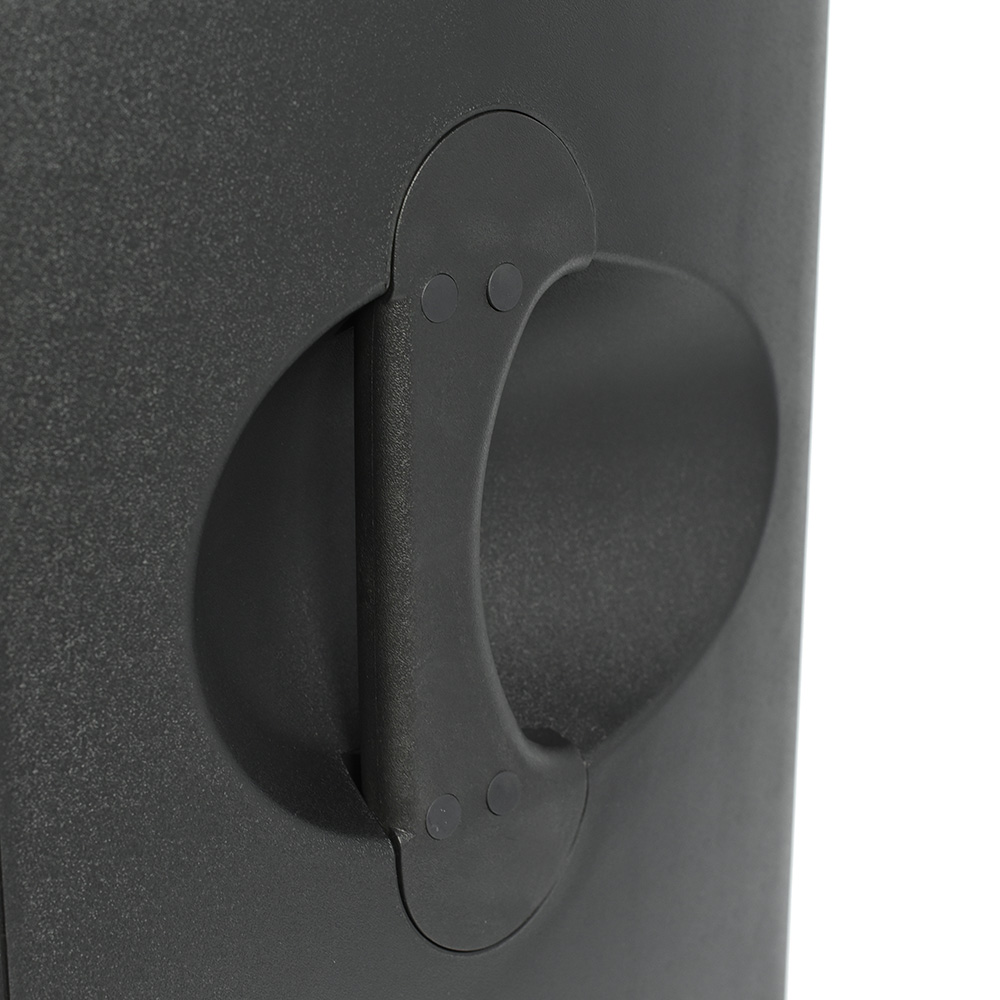

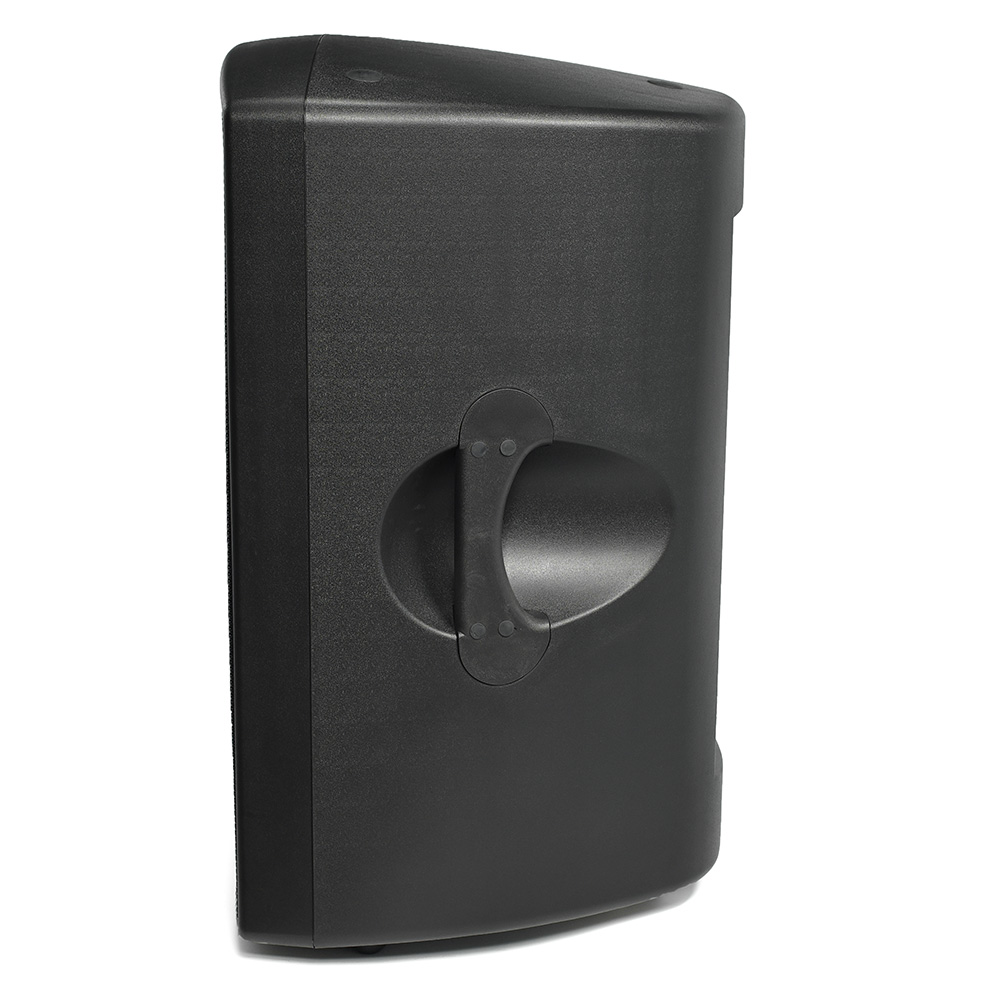

Handles:
1 x Plastic Handles
Grille:
Powder Coated Steel with Grille Cloth
Color:
Black
Size
Dimension (W x D x H):
416 x 423 x 721mm / (16.4 x 16.7 x 28.4in)
Package Dimensions (W x D x H):
485 x 485 x 792mm / (19.1 x 19.1 x 31.2in)
Weight
Net Weight:
23 kg / 50.7 lb
Gross Weight:
27 kg / 59.5 lb
