Features
- High output SPL and sensitivity

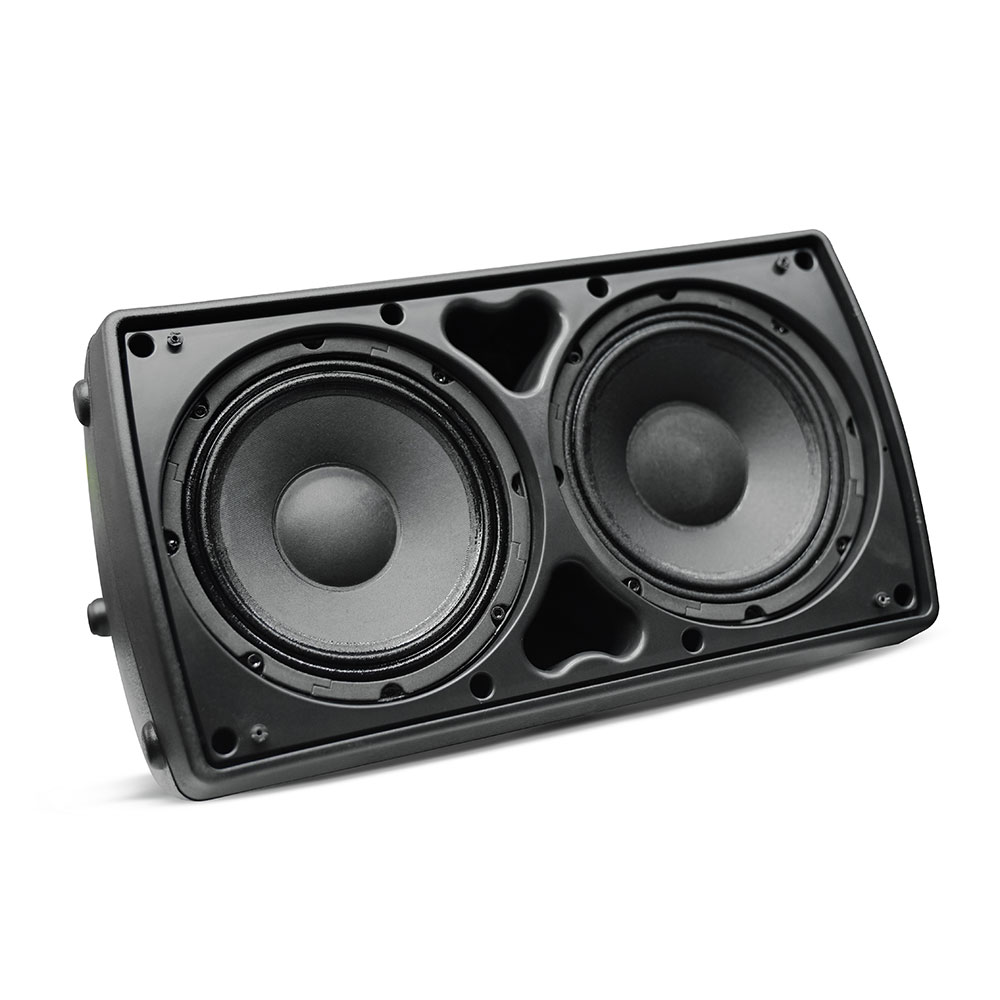

- 2 x 8” high power transducers
- 1 x 1.3” diaphragm compression coaxial driver
- 90º x 90º controlled coverage pattern
- Built-in power amplifier module
- Master volume control

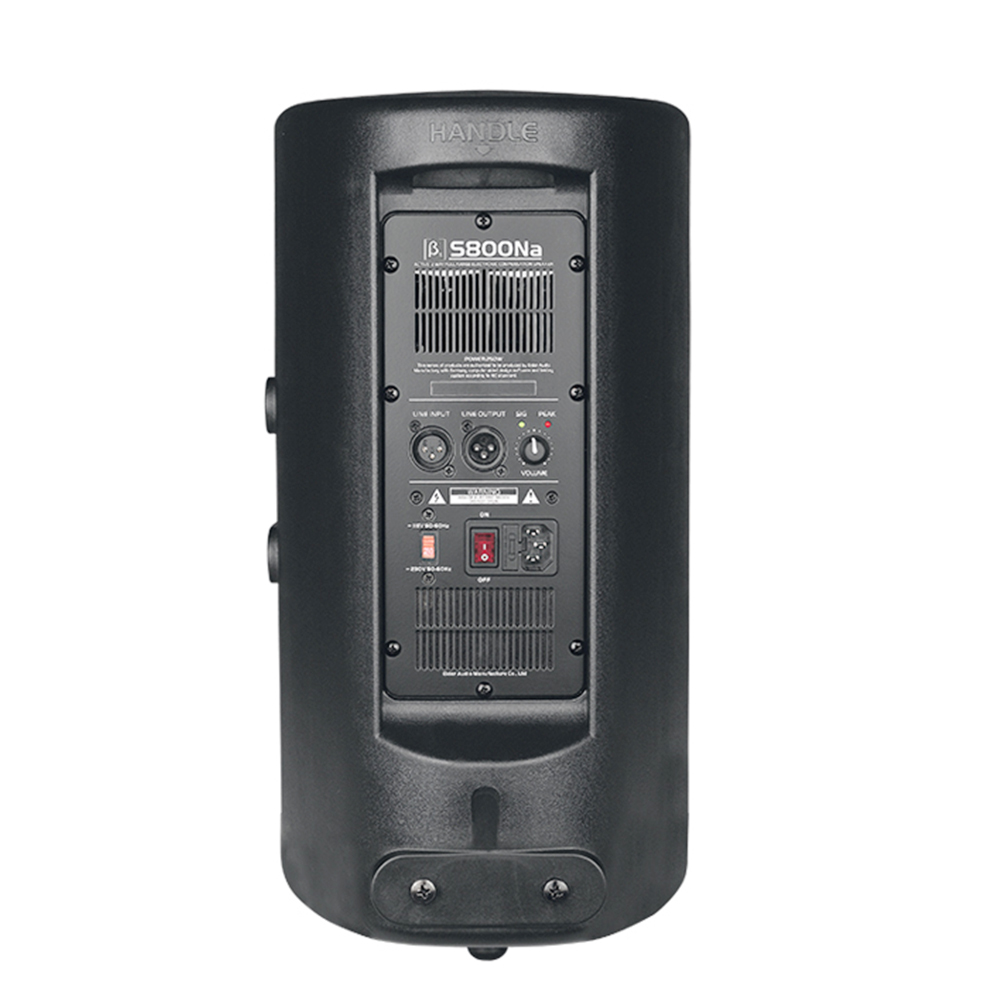

- 2 x XLR connectors
- Injection molded
- Cabinet design for FOH use
- Suitable for use as a main system with or without sub speaker augmentation
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Powder coated grill with foam backing
- Available in black or white
Specifications
Acoustical specifications
Frequency Response(-3db):
80Hz-20kHz
Max SPL @ 1m:
120dB/126dB(PEAK)
Dispersion (H x V):
90° x 90°
Transducers
Compression driver:
1 x 1.3" HF
Midrange:
1 x 8" MF
Woofer:
1 x 8" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
2 x XLR
Processor section
Crossover frequencies:
2kHz
Power section
Total Power:
250W(RMS); 500W(MUSIC); 1000W(PEAK);
Nominal Impedance (Ohm):
4Ω
Voltage range:
AC 115V/230V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Grille:
Powered coated grill
Color:
Black
Size
Dimension (W x D x H):
265 x 292 x 480mm / (10.4 x 11.5 x 18.9in)
Package Dimensions (W x D x H):
353 x 325 x 550mm / (13.9 x 12.8 x 21.7in)
Weight
Net Weight:
15 kg / 33.1 lb
Gross Weight:
18 kg / 39.7 lb
