Features
- High output SPL and sensitivity
- 1 x 10” high power transducers
- 1 x 3” diaphragm compression driver
- 60º x 40º controlled coverage pattern
- 2 x NL4 connectors
- Injection molded
- Cabinet design for FOH use
- Suitable for use as a main system where a long throw is required
- Can augmented with sub speaker
- Portable system (stand), or permanent installation (wall, ceiling)
- Powder coated grill with foam backing
- Available in black or white
Specifications
Acoustical specifications
Frequency Response(-3db):
400Hz-17kHz
Max SPL @ 1m:
130dB/136dB(PEAK)
Dispersion (H x V):
60° x 40°
Transducers
Compression driver:
1 x 3" HF
Midrange:
1 x 10" MF
Input/Output section

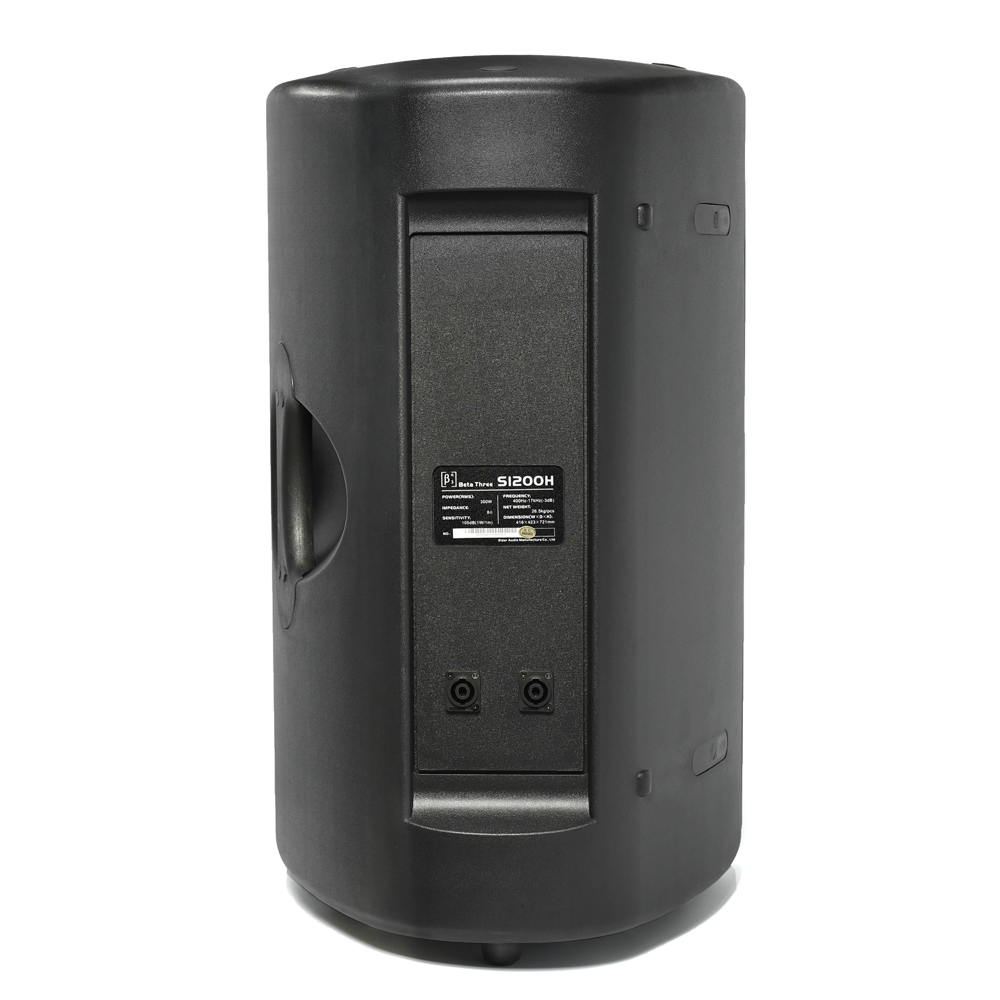

Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
105dB
Processor section
Crossover frequencies:
1.8kHz
Power section
Total Power:
300W(RMS); 600W(MUSIC); 1200W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
Polypropylene Cabinet, ABS baffle, metal grille

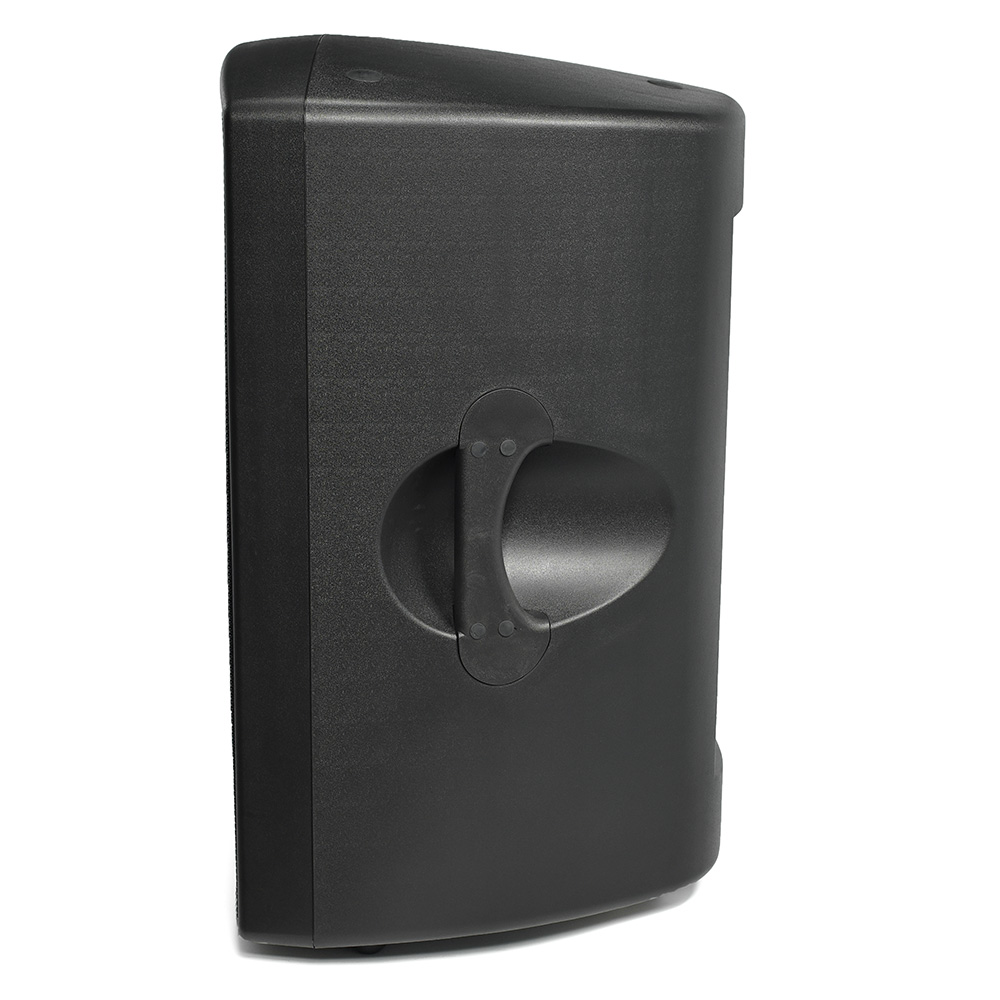

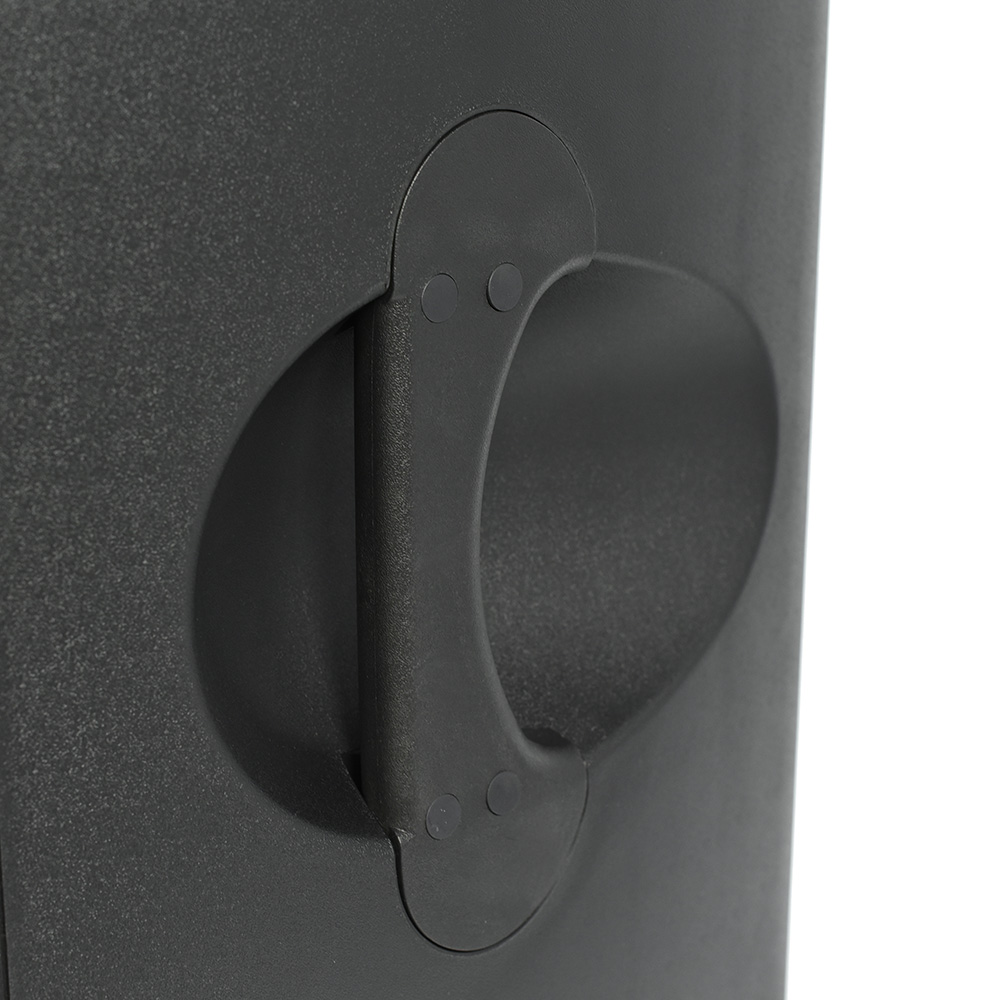

Handles:
1 x Plastic Handles
Grille:
Powder Coated Steel with Grille Cloth
Color:
Black
Size
Dimension (W x D x H):
416 x 423 x 721mm / (16.4 x 16.7 x 28.4in)
Package Dimensions (W x D x H):
485 x 485 x 792mm / (19.1 x 19.1 x 31.2in)
Weight
Net Weight:
26.5 kg / 58.4 lb
Gross Weight:
30.5 kg / 67.2 lb

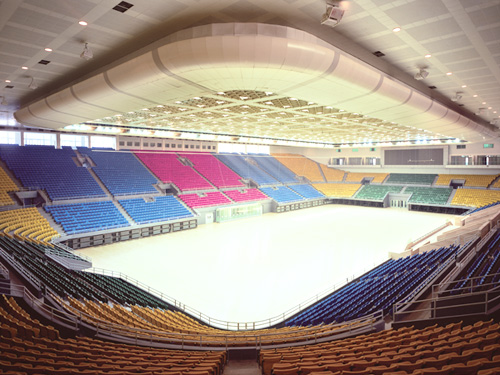

S1200H Application
