Features
- High output SPL and sensitivity
- 1 x 10” high power transducer with 50mm voice coil
- 1 x 1.3” diaphragm compression driver
- 90º x 60º controlled coverage pattern
- Rotatable Horn

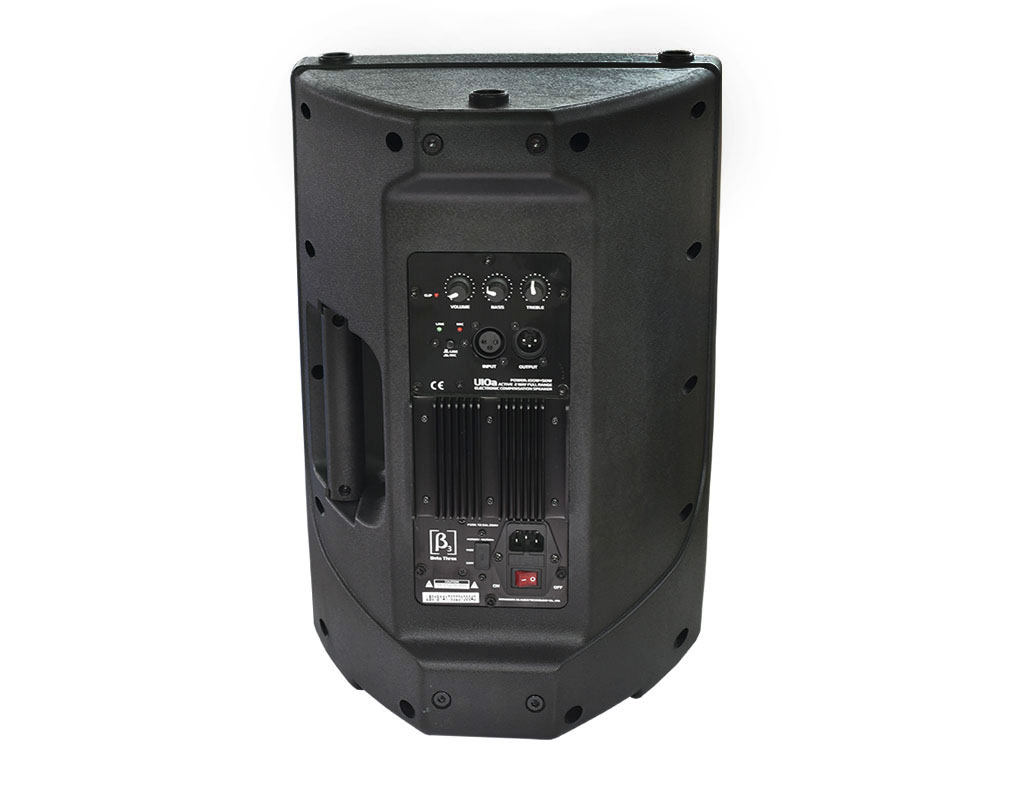

- Built-in Bi-amp power amplifier module
- Master volume control
- Bass and Treble control
- XLR input and output connectors
- Switchable between Mic and Line input
- Heavy duty protective grill
- Injection molded
- 2 x XLR connector
- Cabinet design for FOH and Monitor use
- Suitable for use as a main system with or without sub speaker augmentation Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction
- Monitor kit - optional
Specifications
Acoustical specifications
Frequency Response(-3db):
55Hz-18kHz
Max SPL @ 1m:
111dB/117dB(PEAK)
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 1.3" HF
Woofer:
1 x 10" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
2 x XLR
Power section
Total Power:
50W HF; 100W LF(RMS);
Nominal Impedance (Ohm):
8Ω
Cooling:
Internal horn vibration auxiliary air cooling + convective radiation outside the back plate
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:
8 x M8 hanging point, SMART pole mount system
Handles:

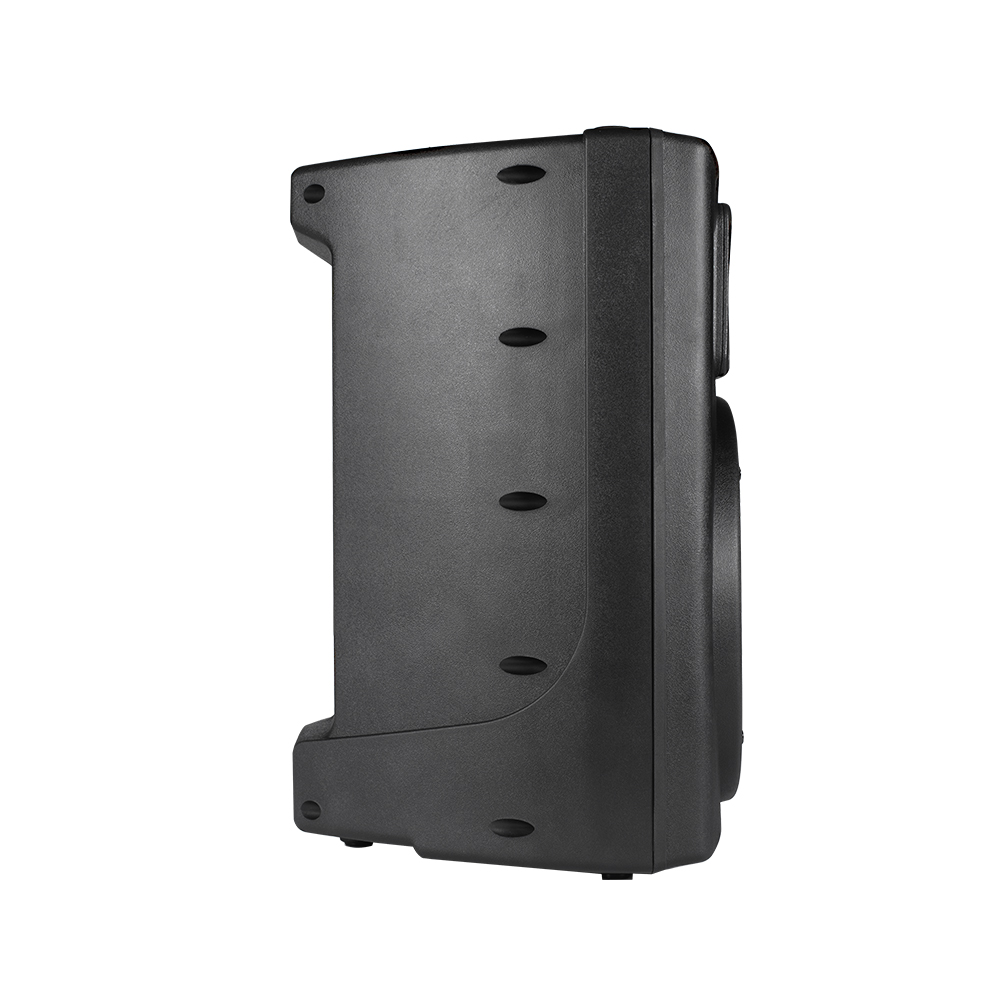

Two side, one rear
Grille:
Powered coated grill
Color:
Black
Size
Dimension (W x D x H):
321 x 321 x 464mm / (12.6 x 12.6 x 18.3in)
Package Dimensions (W x D x H):
375 x 355 x 535mm / (14.8 x 14 x 21.1in)
Weight
Net Weight:
10.5 kg / 23.1 lb
Gross Weight:
11.8 kg / 26 lb
