Features
- High output SPL and sensitivity
- 1 x 15” high power transducer with 50mm voice coil
- 1 x 1.7” diaphragm compression driver
- Rotatable Horn: 50º-100º x 55º controlled coverage pattern
- Built-in Bi-amp power amplifier module
- Master volume control
- Bass and Treble control

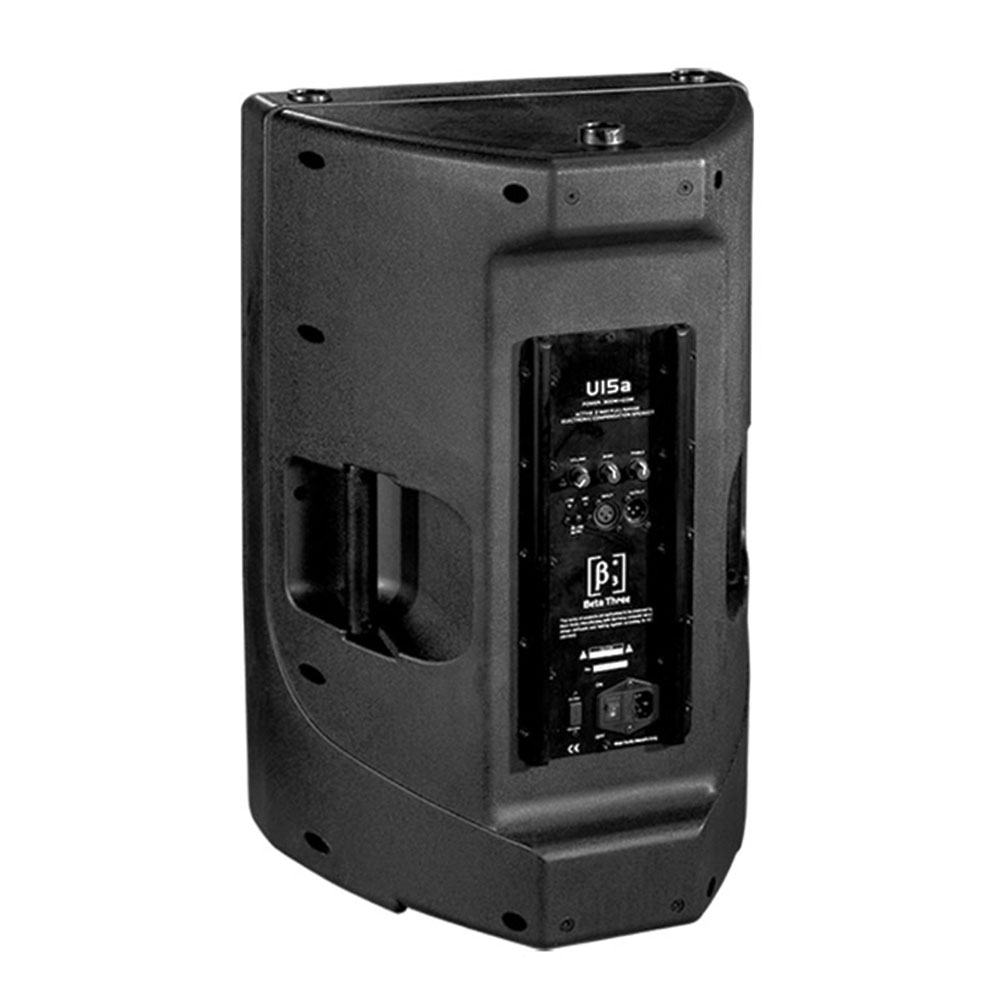

- XLR input and output connectors
- Switchable between Mic and Line input
- Heavy duty protective grill
- Injection molded
- 2 x XLR connector
- Cabinet design for FOH and Monitor use
- Suitable for use as a main system with or without sub speaker augmentation
- Portable system (stand), or permanent installation (wall, ceiling)
- Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction
- Monitor kit - optional
Specifications
Acoustical specifications
Frequency Response(-3db):
40Hz-18kHz
Max SPL @ 1m:
114dB/120dB(PEAK)
Dispersion (H x V):
100° x 55°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 15" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
2 x XLR
Power section
Total Power:
400W(RMS); 800W(MUSIC); 1600W(PEAK);
Nominal Impedance (Ohm):
8Ω
Cooling:
Internal horn vibration auxiliary air cooling + convective radiation outside the back plate
Power consumption(static):
22W
Power consumption(rated):
70W
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:

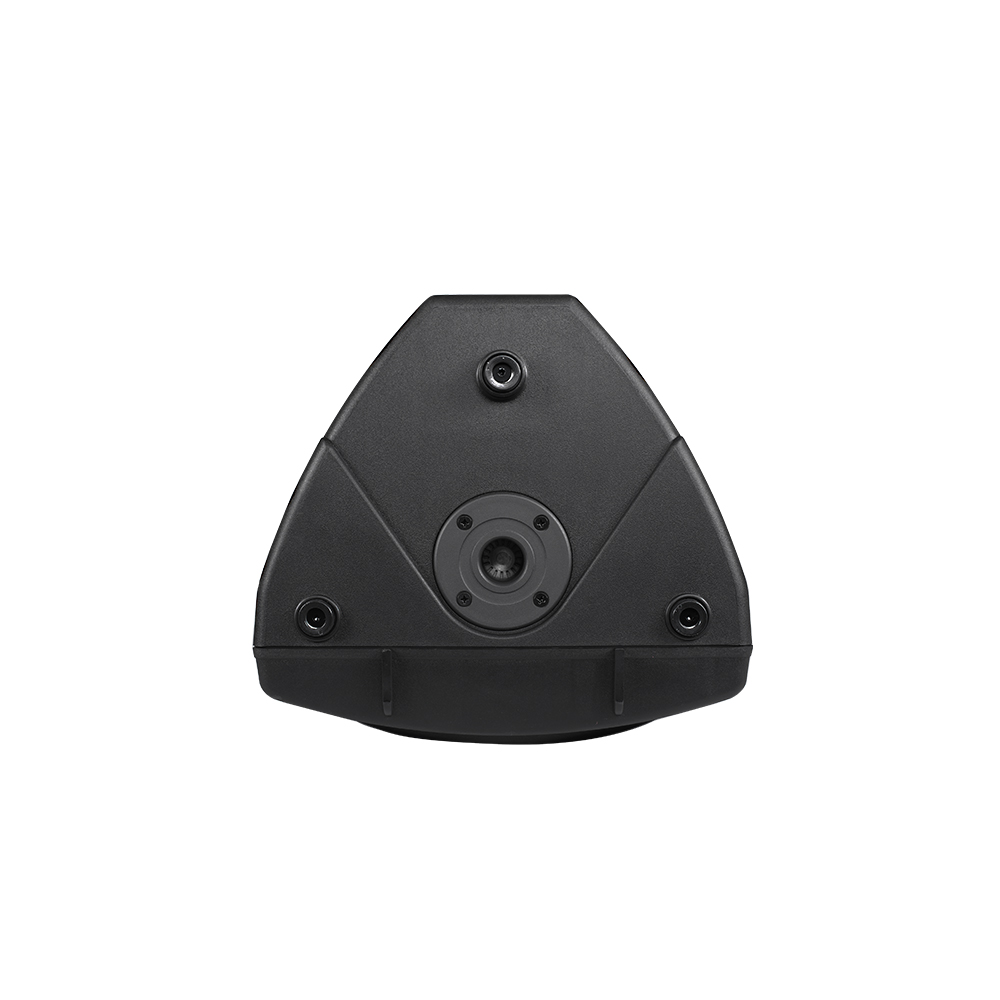

8 x M8 hanging point, SMART pole mount system

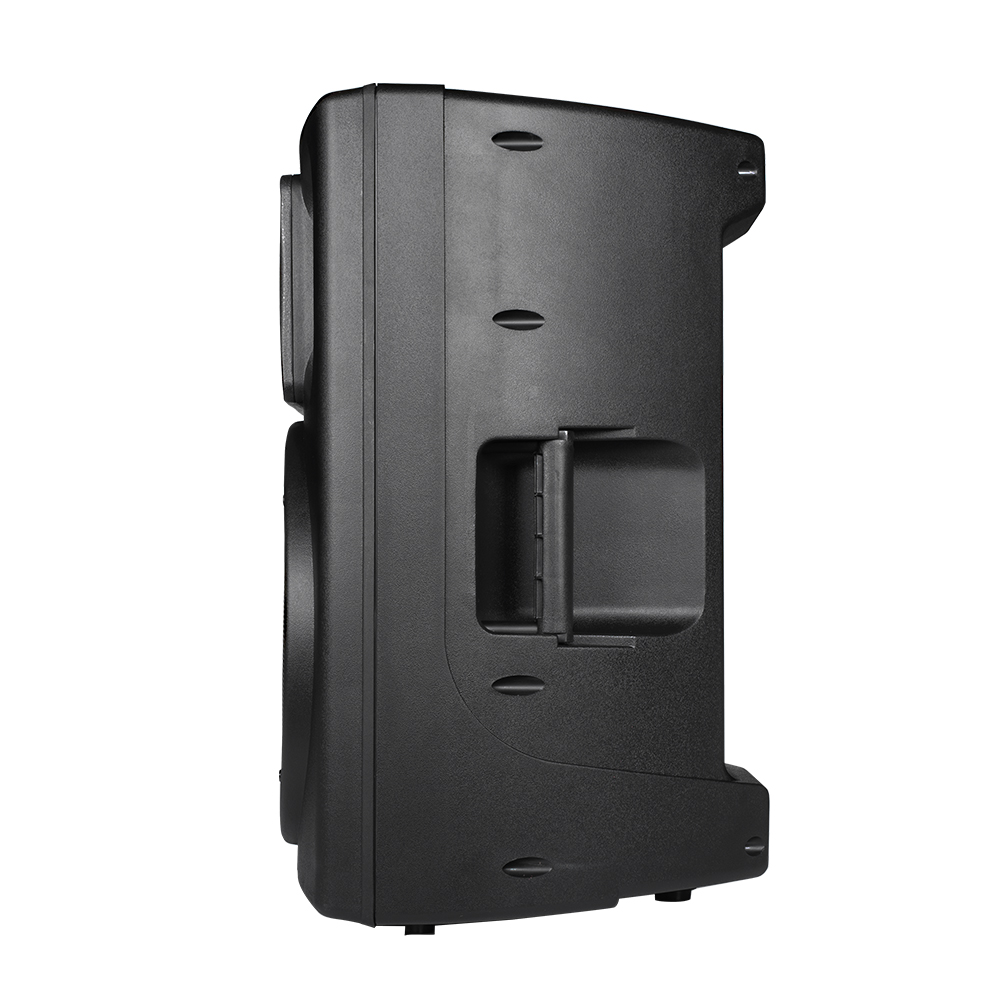

Handles:
Two side, one rear
Grille:
Powered coated grill
Color:
Black
Size
Dimension (W x D x H):
485 x 460 x 700mm / (19.1 x 18.1 x 27.6in)
Package Dimensions (W x D x H):
545 x 515 x 800mm / (21.5 x 20.3 x 31.5in)
Weight
Net Weight:
30.5 kg / 67.2 lb
Gross Weight:
33.7 kg / 74.3 lb
