Features
- Compact and light weight design, unique appearance
- Heavy duty protective grill

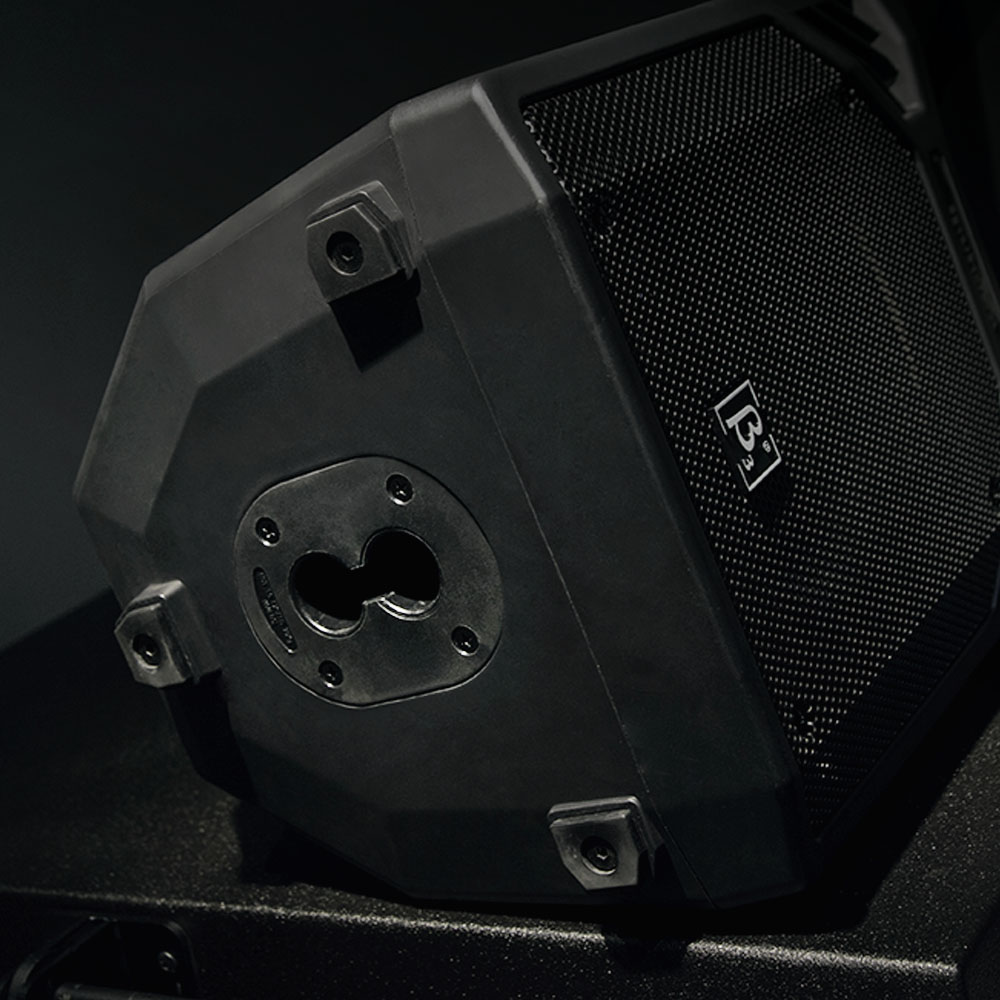

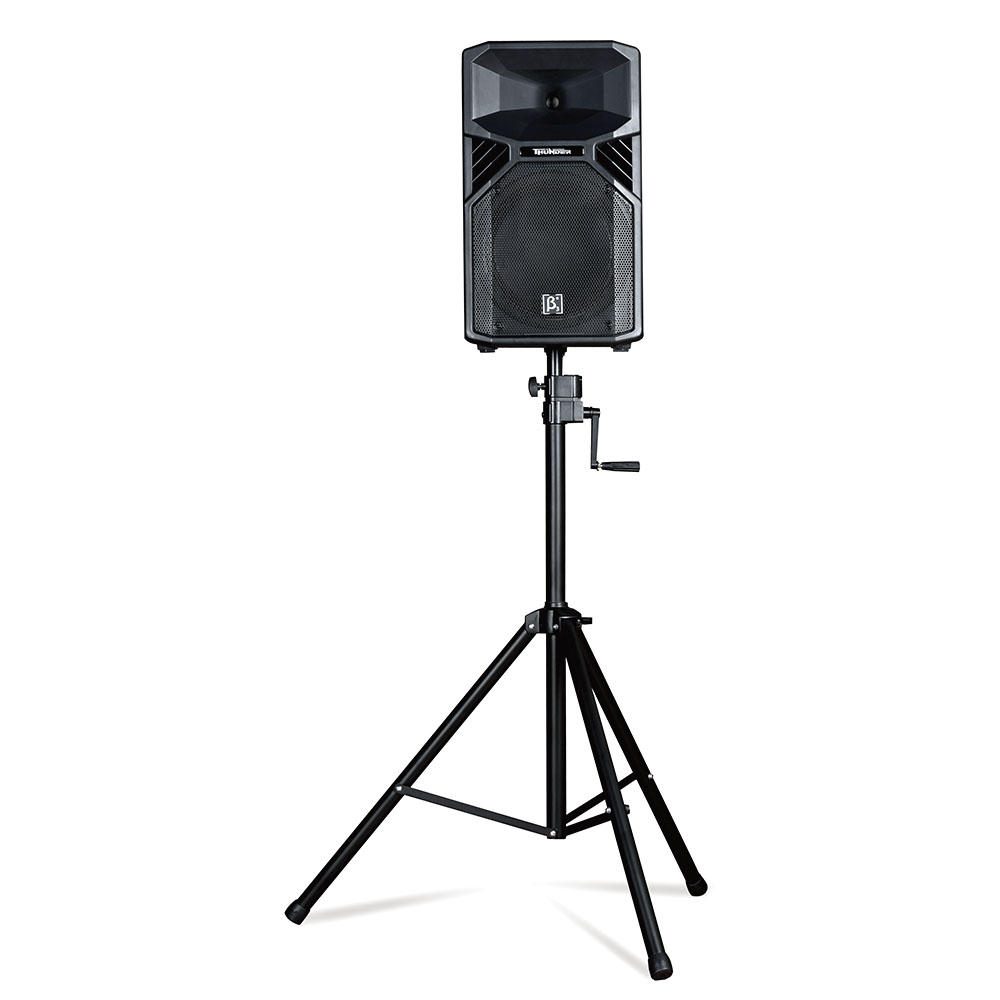

- 35mm pole adaptor system allow vertical application or dispersion 5 degree downward

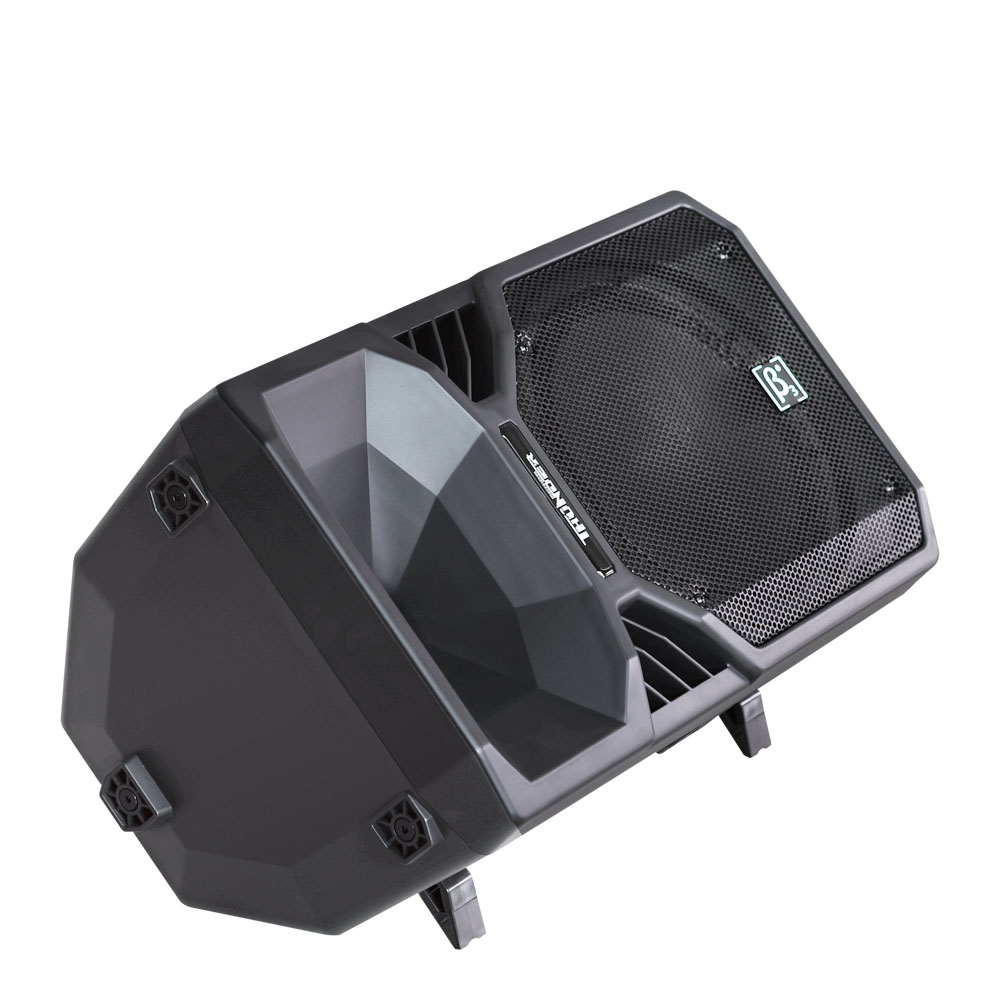

- Integrated Monitor free feet allow the easy stage monitor application

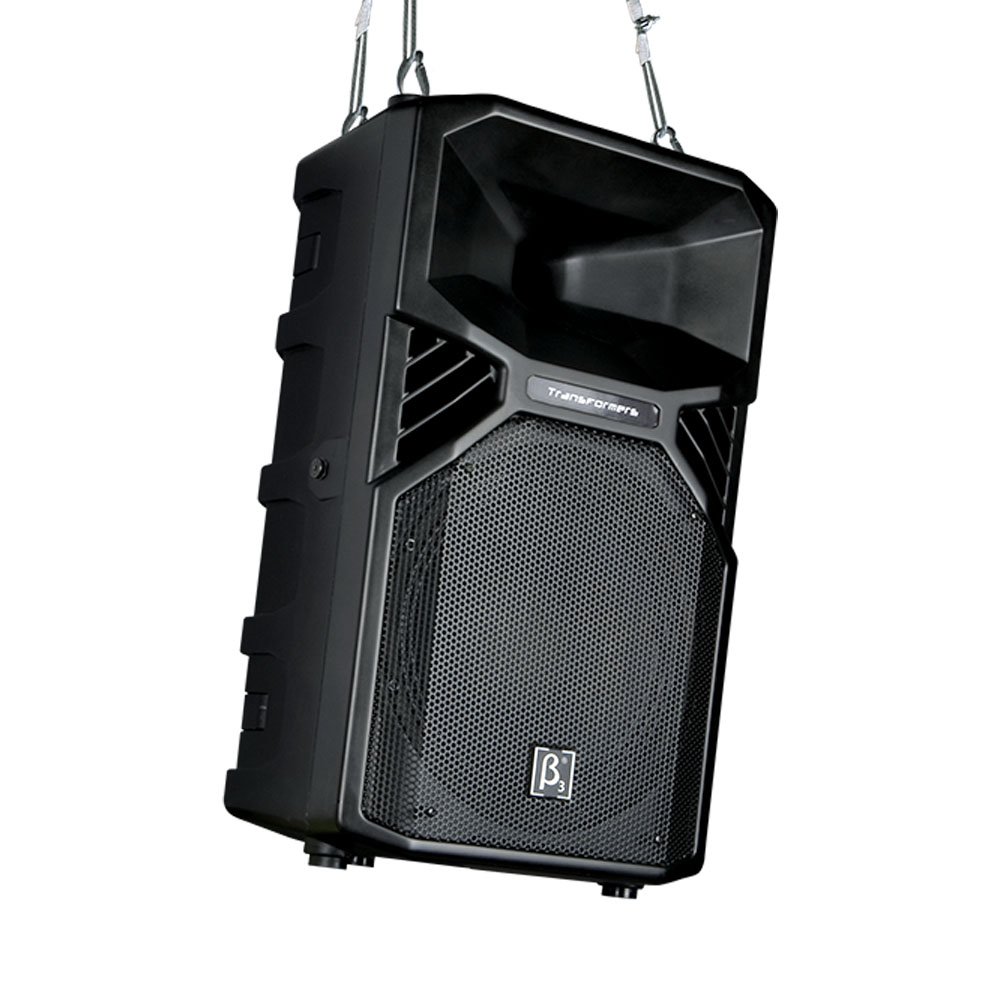

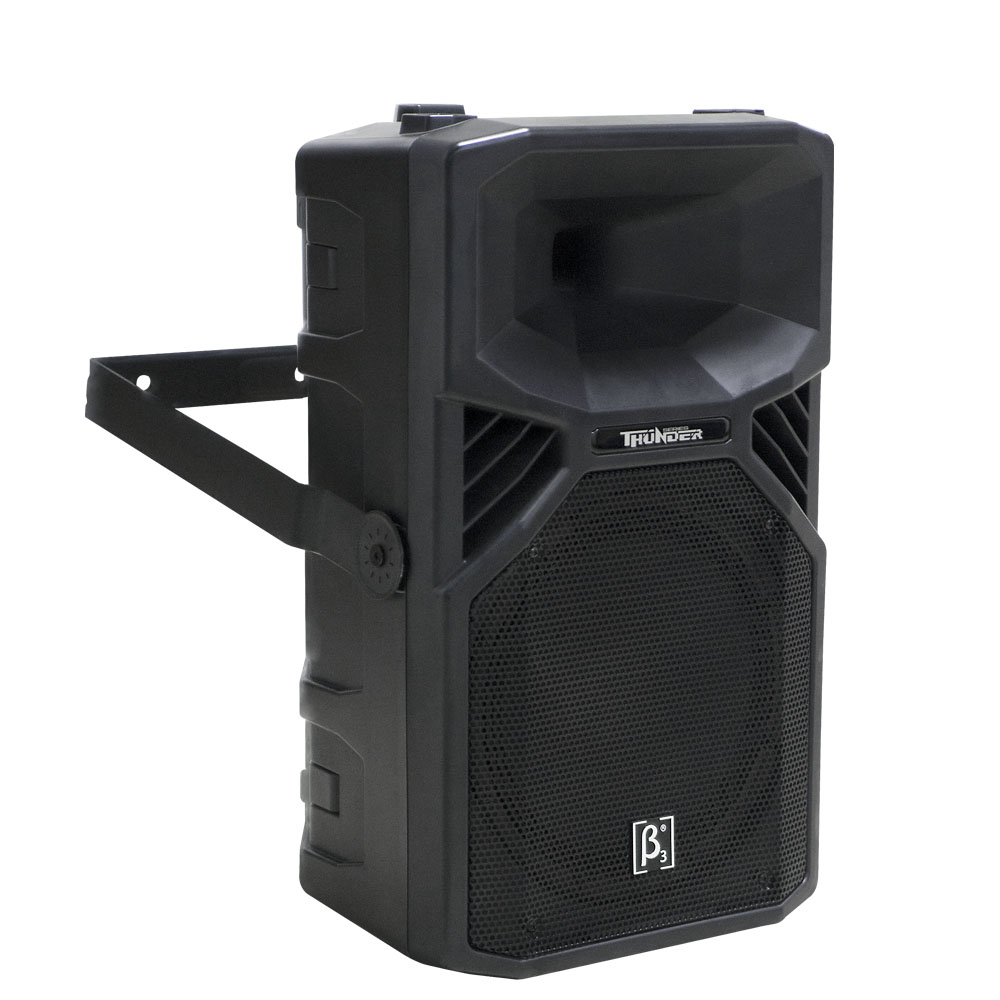

- M8 rigging points(available for full range models) are very convenient for different installation
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-19kHz
Max SPL @ 1m:
113dB/119dB(PEAK)
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 1.3" HF
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
90dB
Power section
Total Power:
200W(RMS); 400W(MUSIC); 800W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:
8 x M8 hanging point, SMART pole mount system

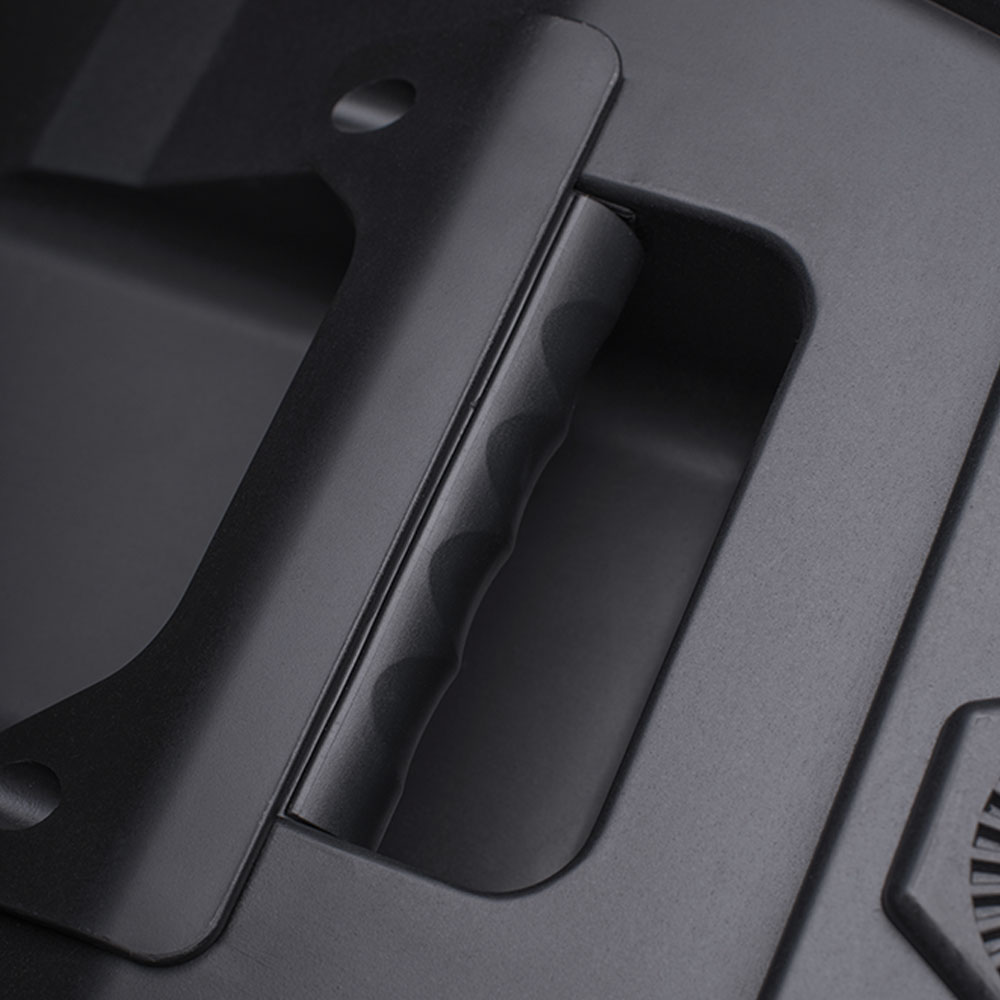

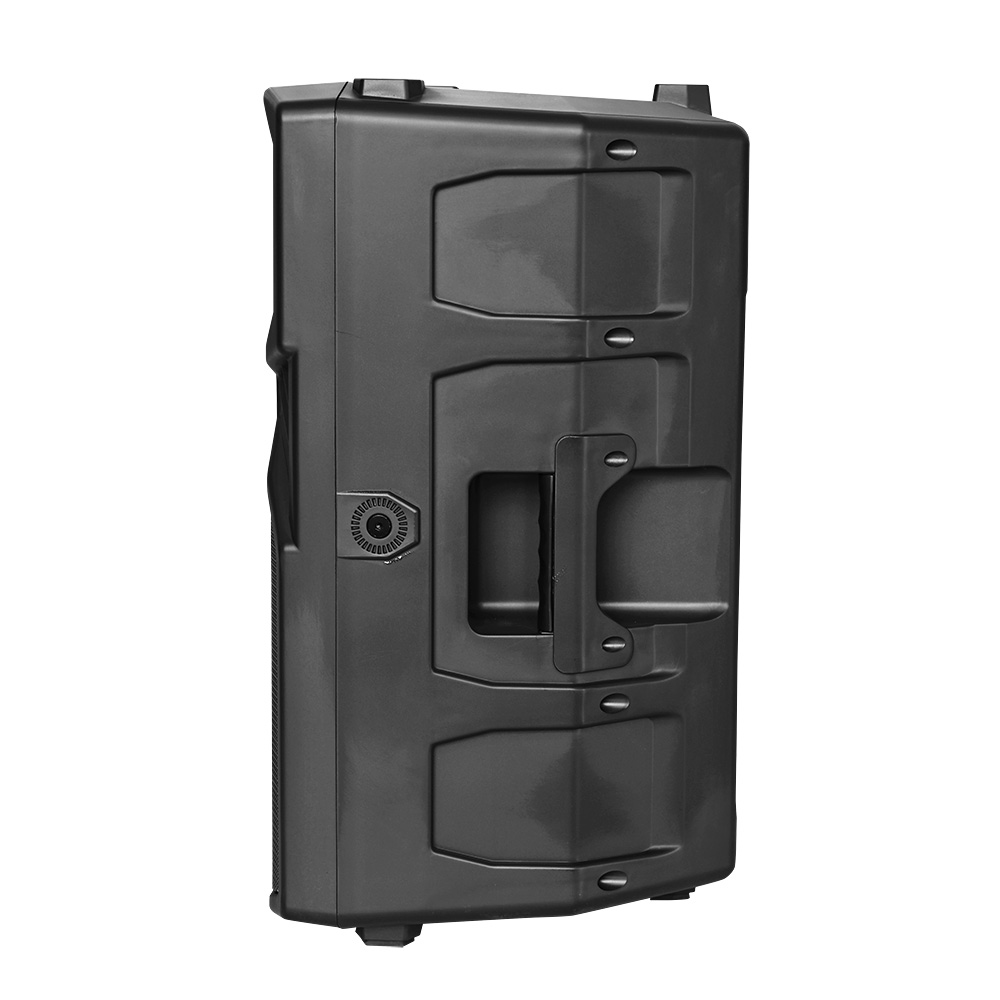

Handles:
One side, one rear
Grille:
Powered coated grill
Color:
Black
Size
Dimension (W x D x H):
306 x 238 x 516mm / (12 x 9.4 x 20.3in)
Package Dimensions (W x D x H):
355 x 355 x 602mm / (14 x 14 x 23.7in)
Weight
Net Weight:
13.2 kg / 29.1 lb
Gross Weight:
14.7 kg / 32.4 lb
