Features
- Compact and light weight design, unique appearance
- Heavy duty protective grill

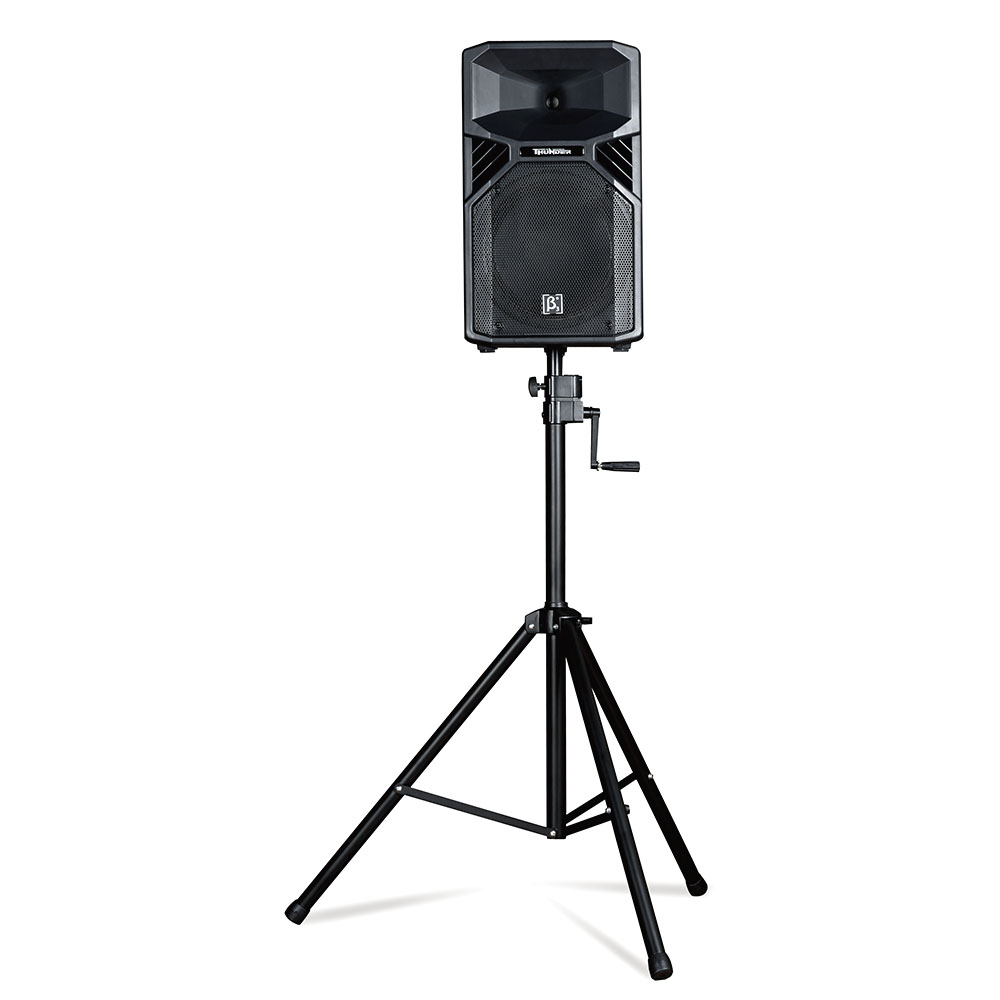

- 35mm pole adaptor system allow vertical application or dispersion 5 degree ownward

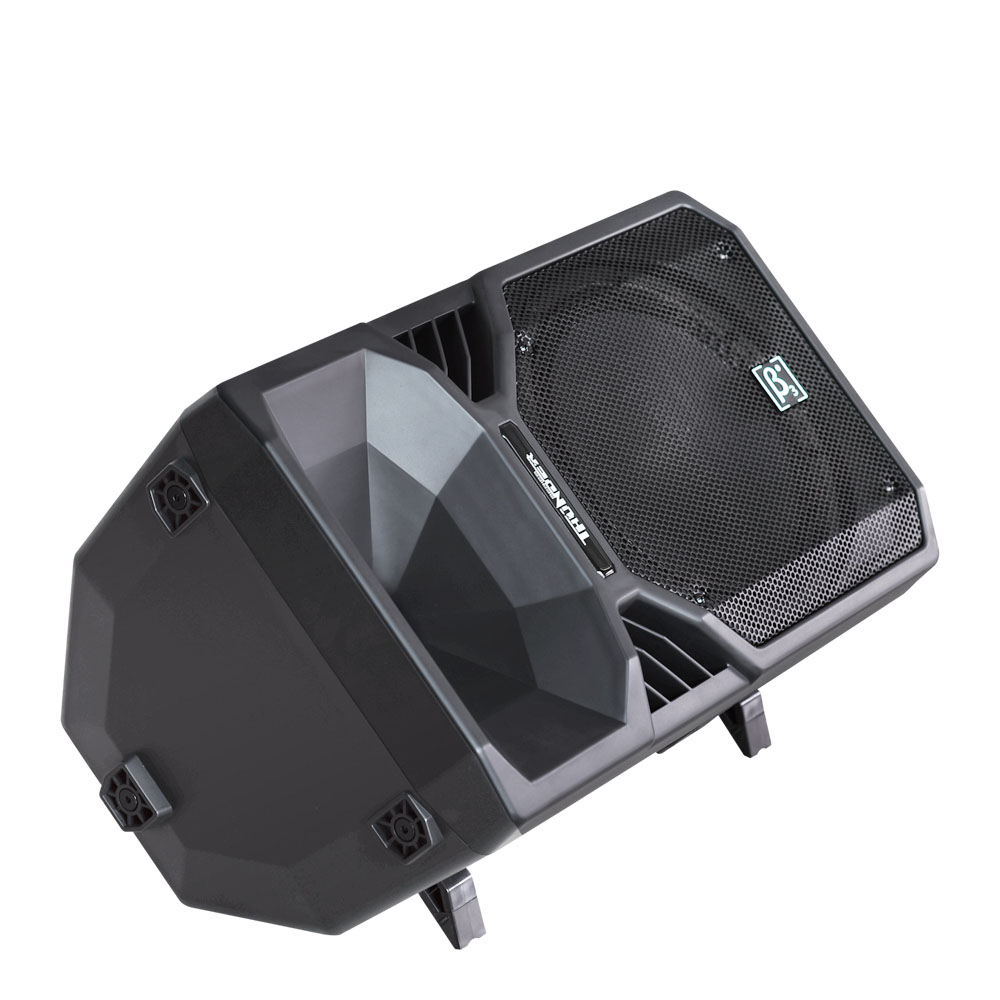

- Integrated Monitor free feet allow the easy stage monitor application

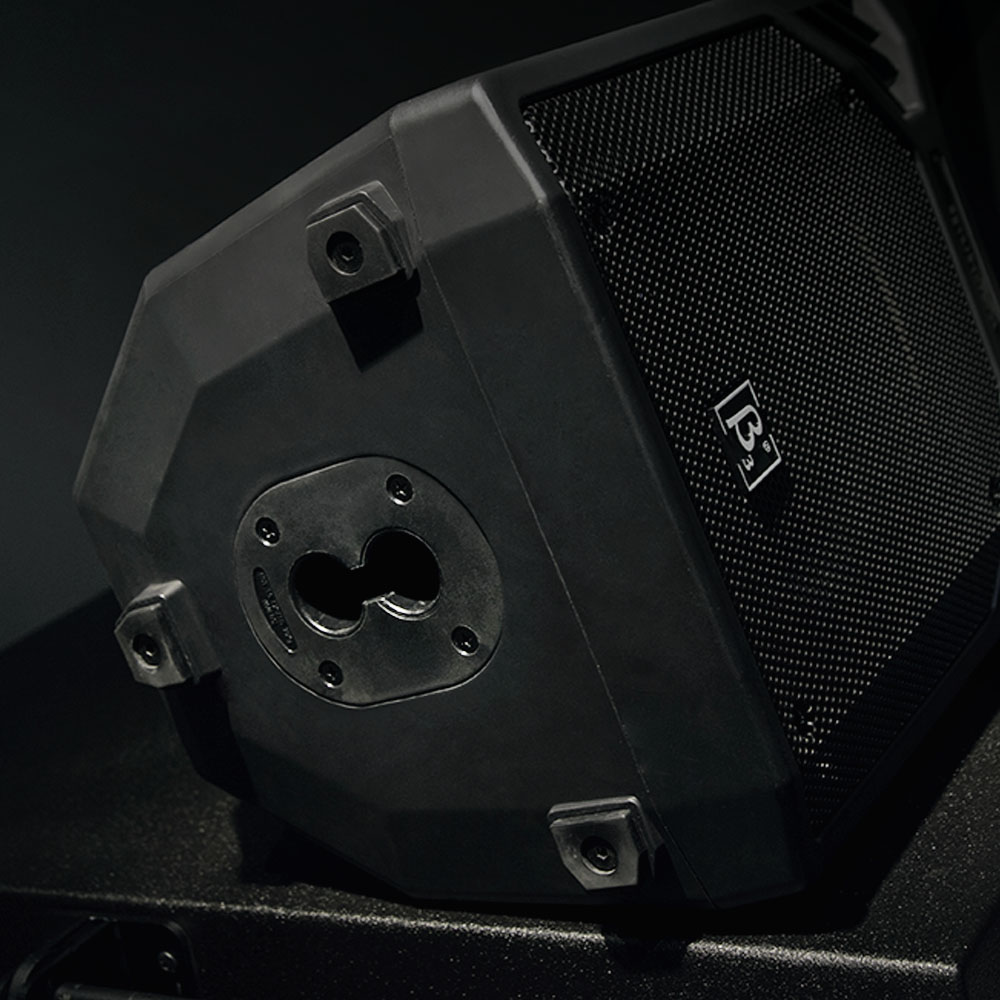

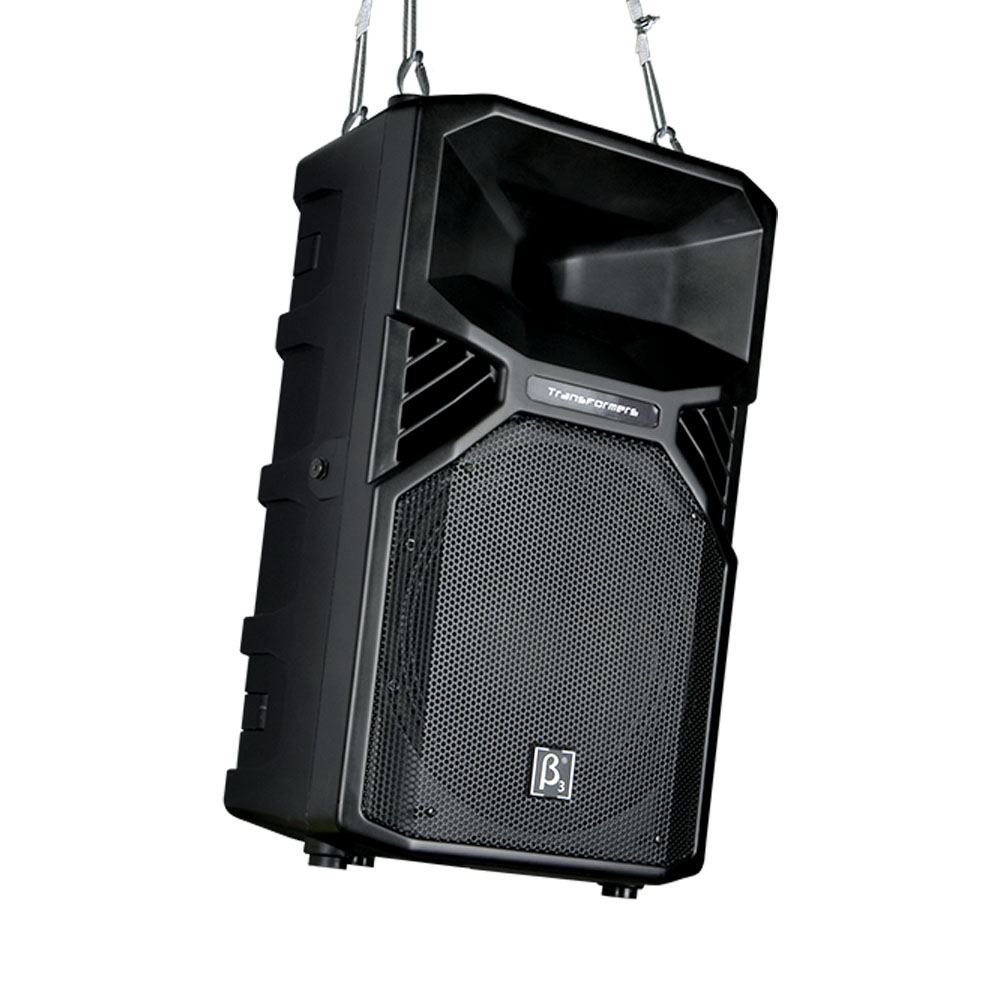

- M8 rigging points(available for full range models) are very convenient for ifferent installation
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-19kHz
Max SPL @ 1m:
115dB/121dB(PEAK)
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 12" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
95dB
Power section
Total Power:
250W(RMS); 500W(MUSIC); 1000W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:
8 x M8 hanging point, SMART pole mount system

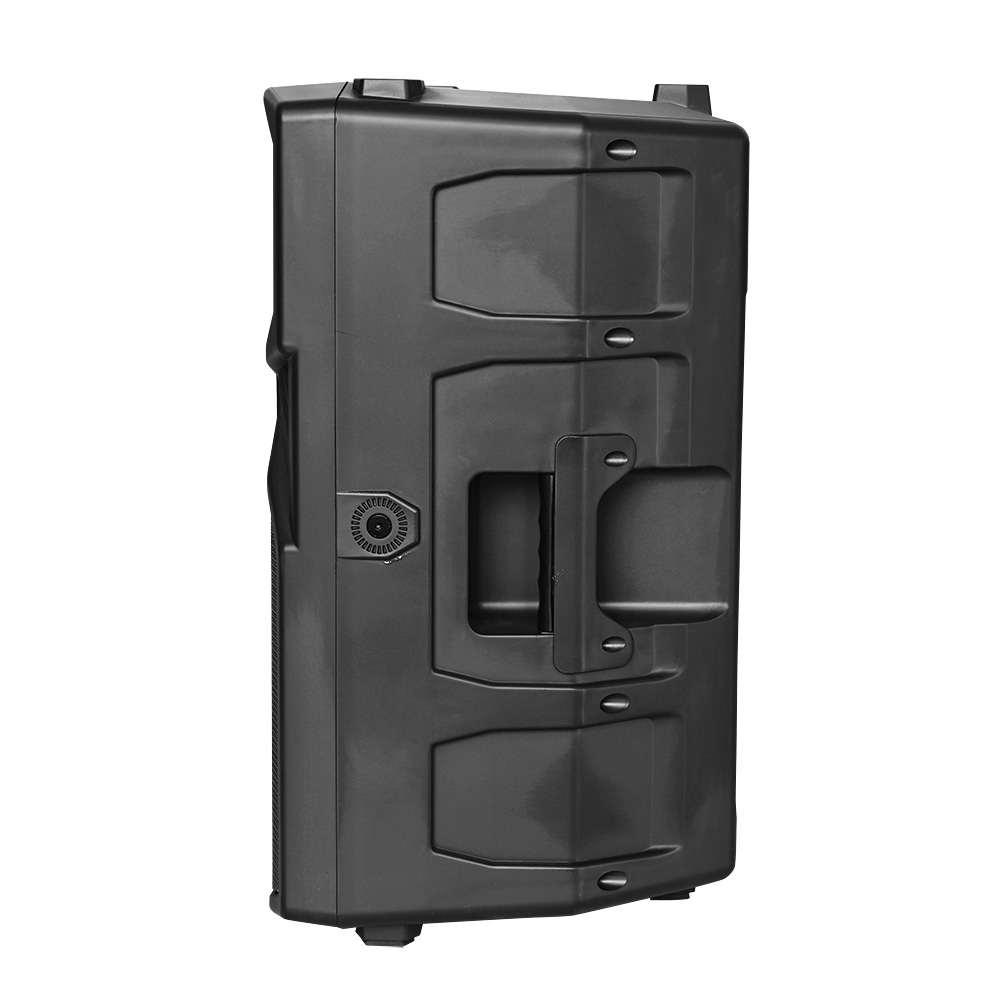

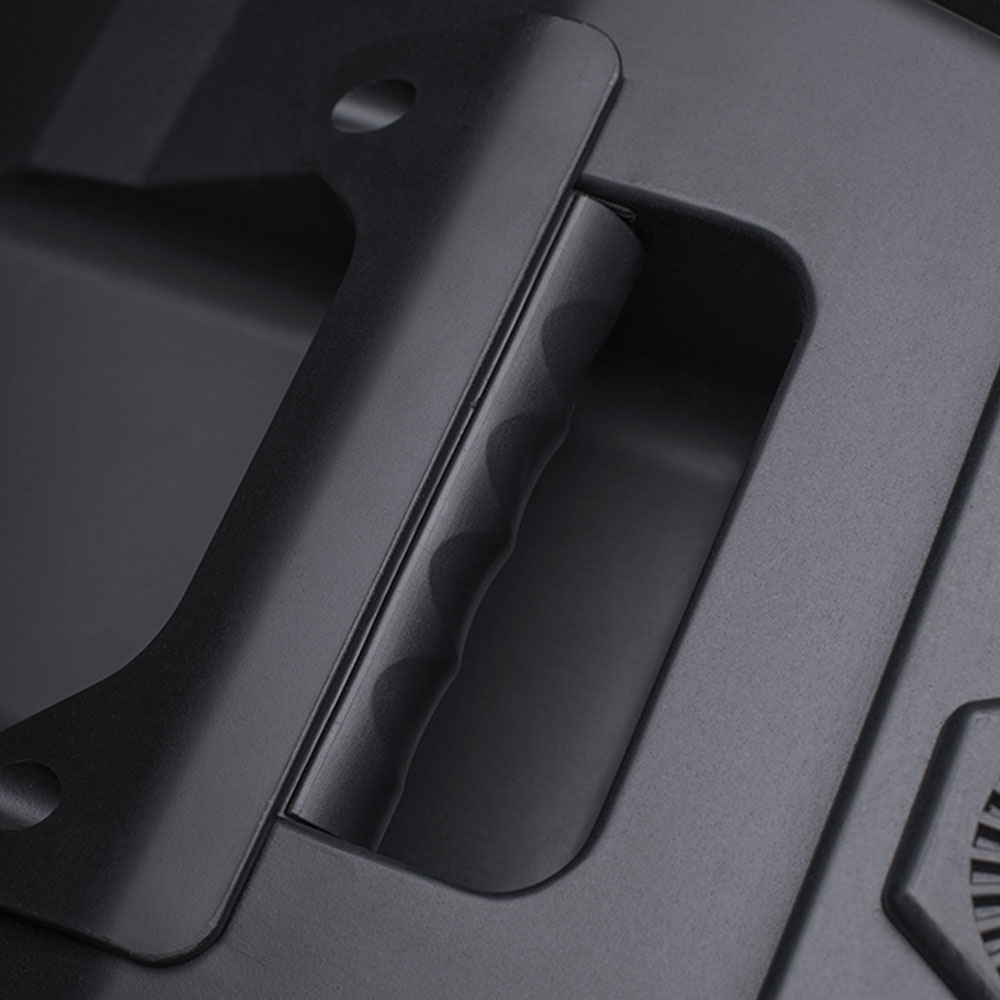

Handles:
One side, one rear
Grille:
Powered coated grill
Color:
Black
Size
Dimension (W x D x H):
368 x 349 x 630mm / (14.5 x 13.7 x 24.8in)
Package Dimensions (W x D x H):
420 x 410 x 720mm / (16.5 x 16.1 x 28.3in)
Weight
Net Weight:
20 kg / 44.1 lb
Gross Weight:
22 kg / 48.5 lb
