Features
- Light weight portable powered speakers
- 550 watt continuous Class D power modules
- Extensive DSP enhances system performance
- Rugged ABS enclosures
- Heavy duty protective grill

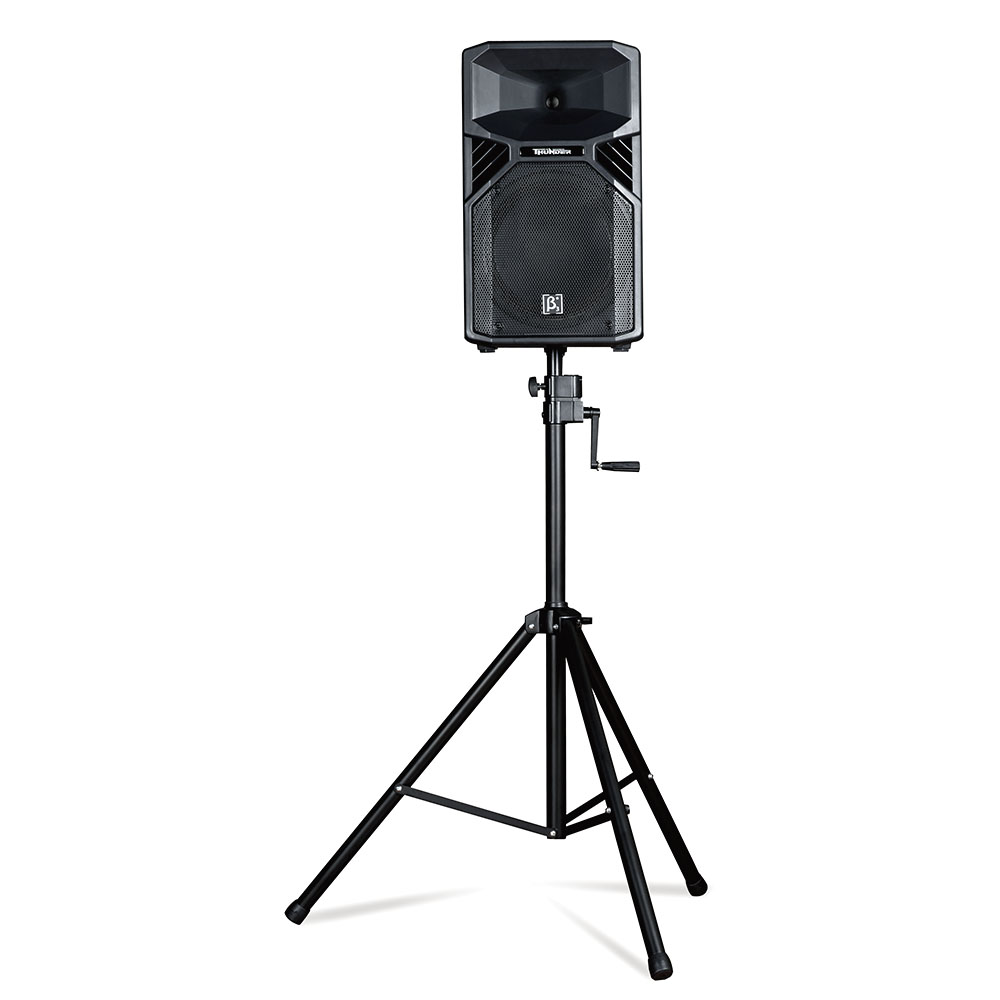

- 35mm pole adaptor system allow vertical application or dispersion 5 degree downward

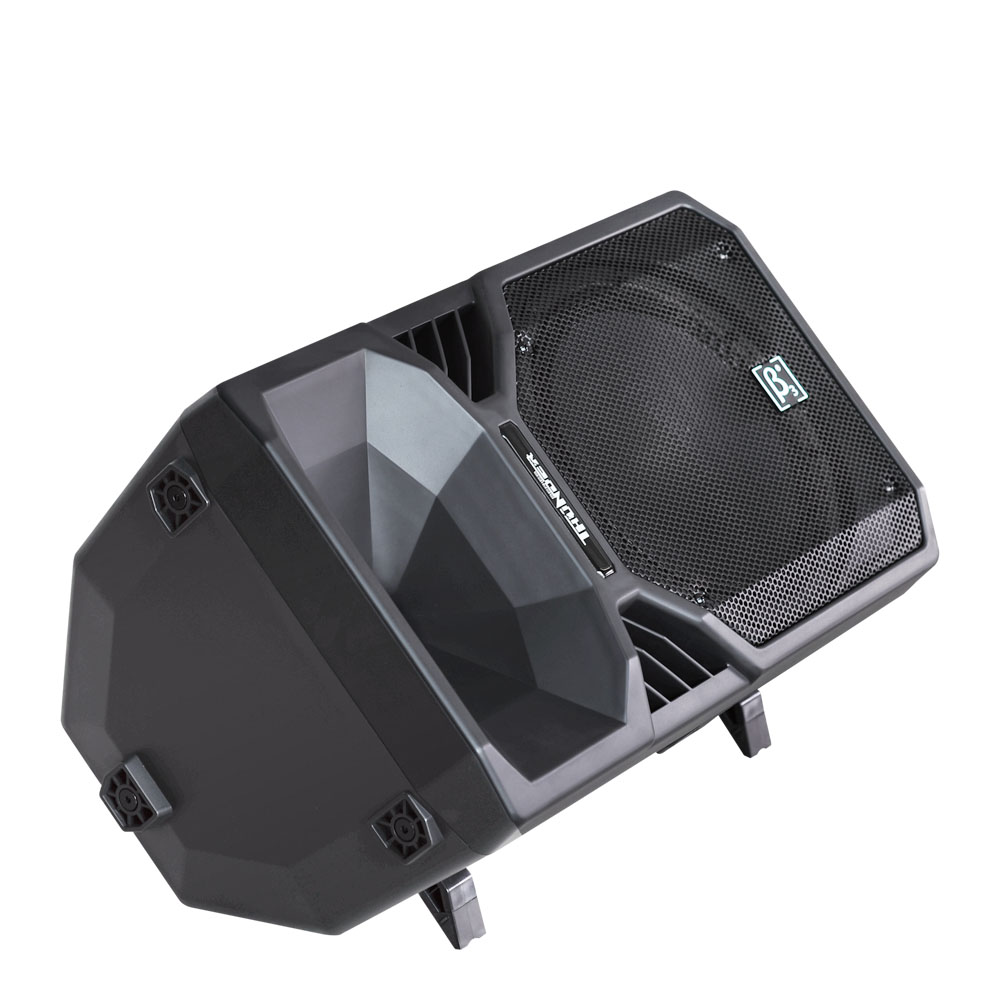

- Integrated Monitor feet allow the easy stage monitor application

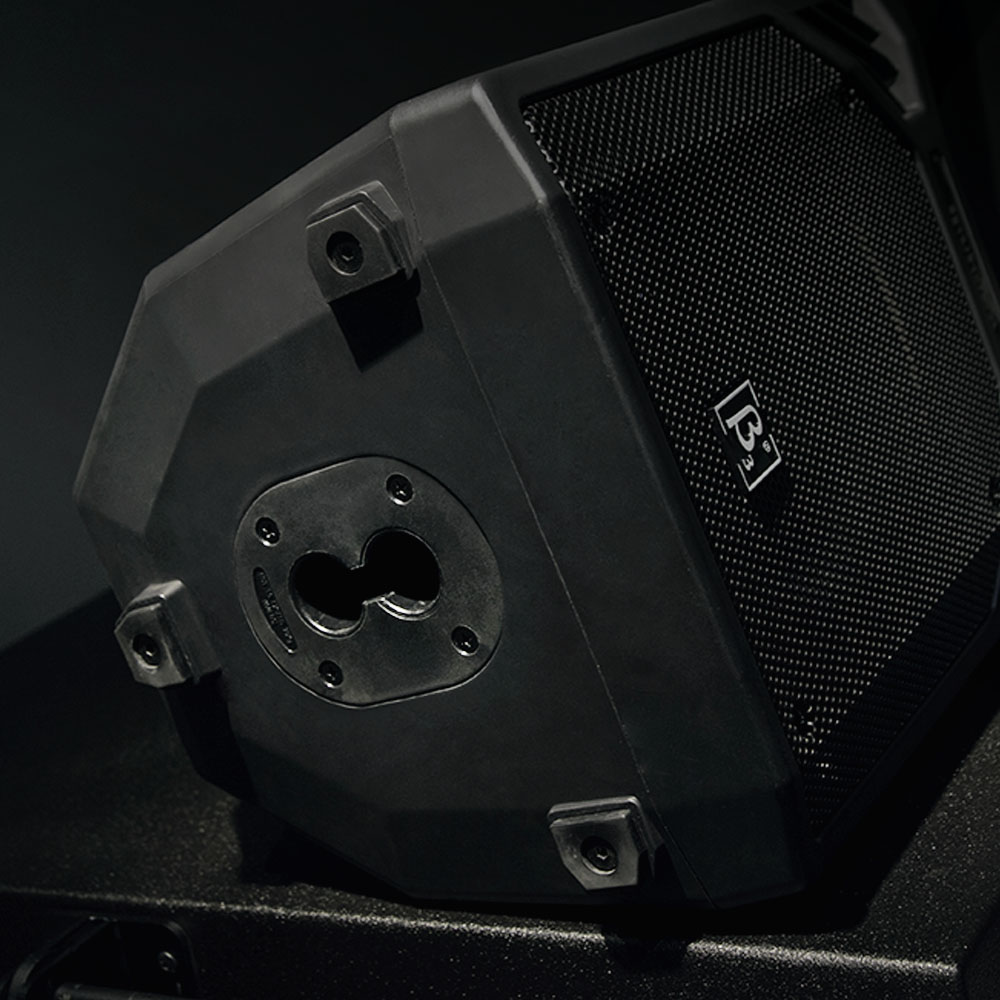

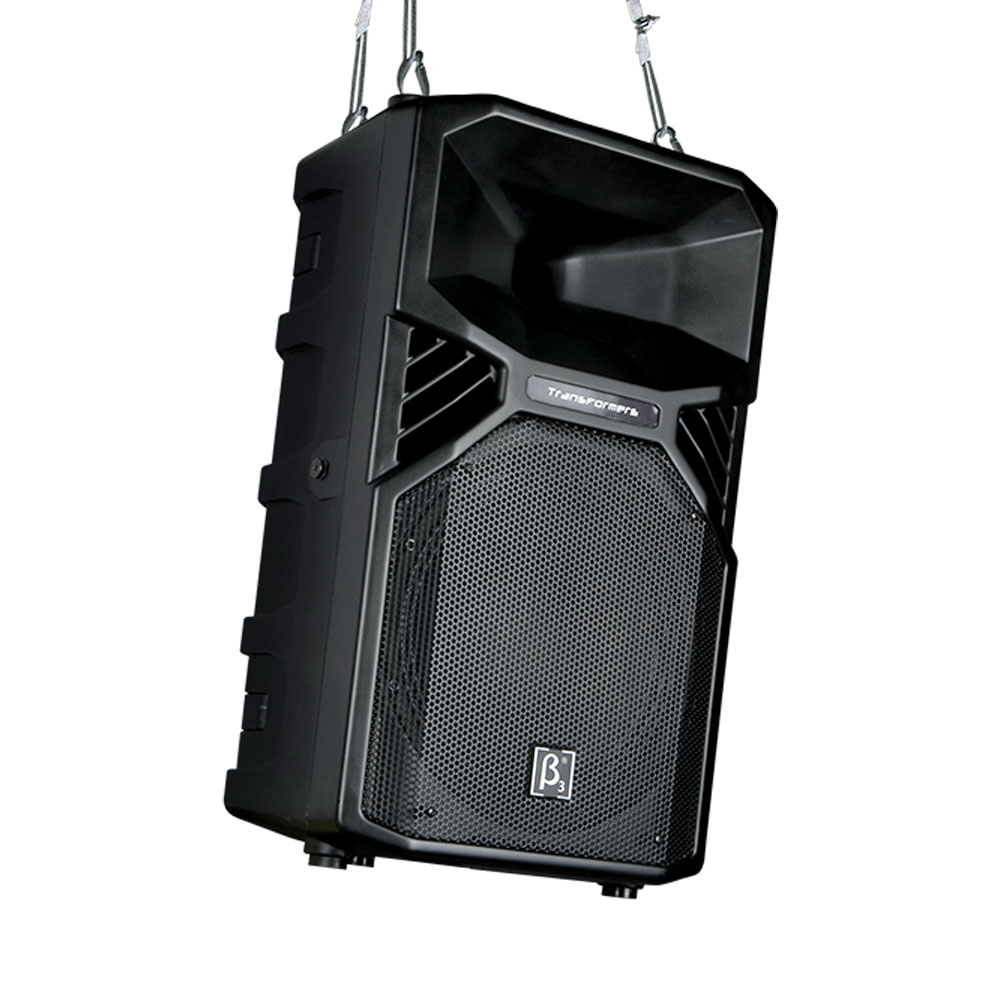

- M8 rigging points are convenient for different installation
Specifications
Acoustical specifications
Frequency Response(-3db):
55Hz-20kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 1.3" HF
Woofer:
1 x 10" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ

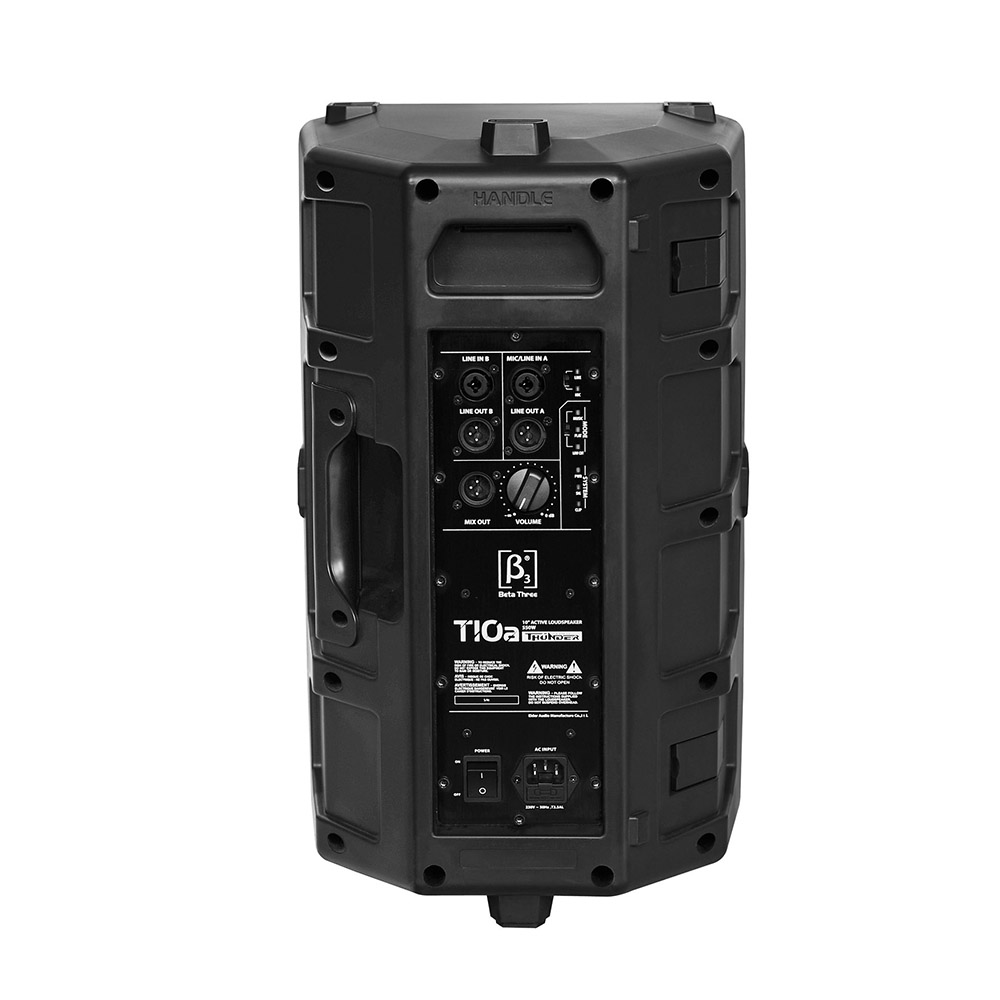

Input Connectors:
2 x Combo input,2 x XLR output, 1 x XLR mix output
Power section
Total Power:
450W(RMS); 900W(MUSIC); 1800W(PEAK);
Nominal Impedance (Ohm):
8Ω
Cooling:
Speed controlled fan
Power consumption(static):
16W
Power consumption(rated):
450W
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:
3 x M8 hanging point, SMART pole mount system

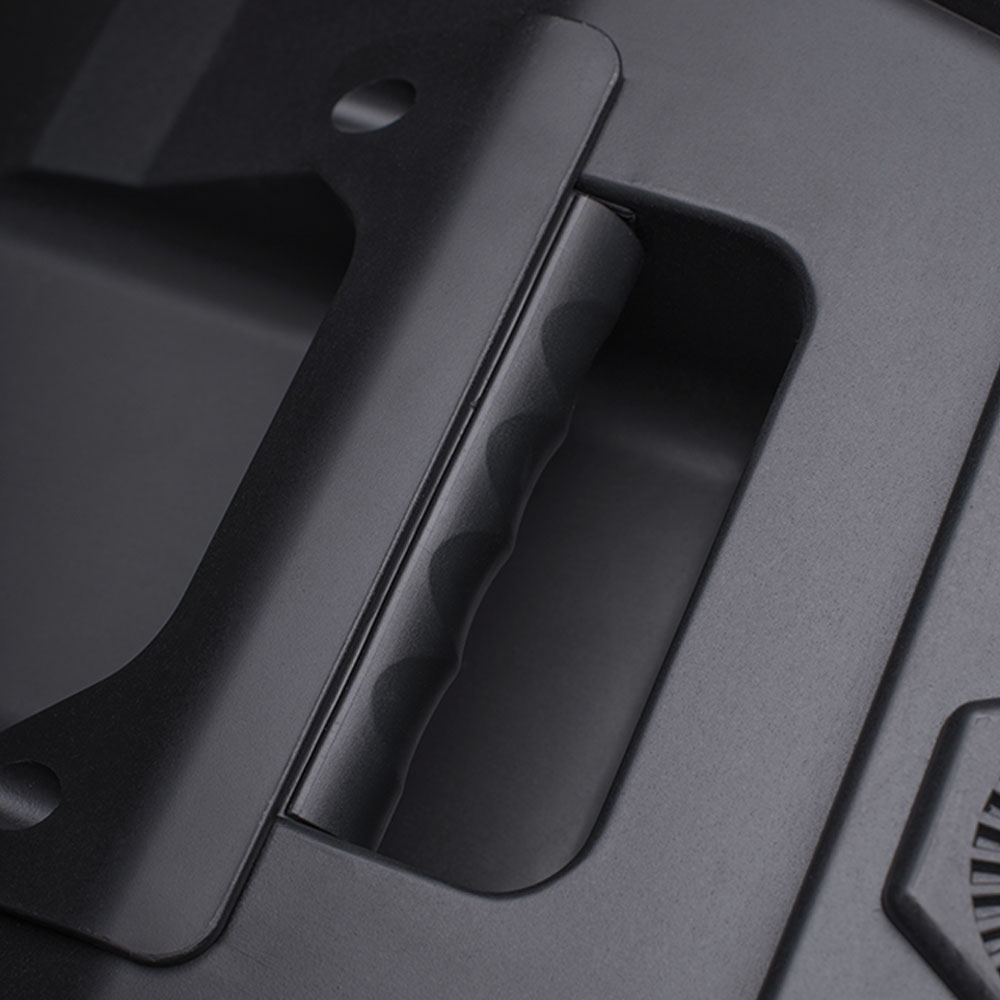

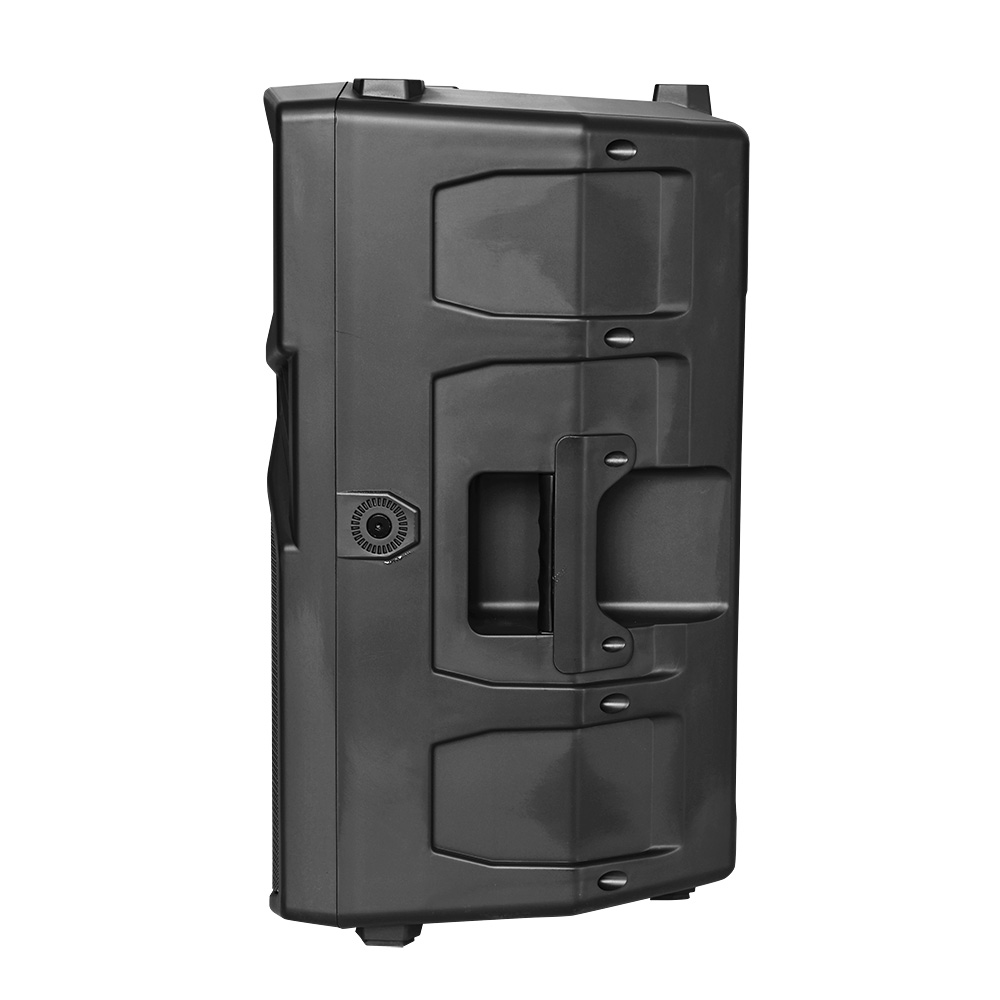

Handles:
One side, one rear
Grille:
Powered coated grill
Color:
Black
Size
Dimension (W x D x H):
306 x 238 x 516mm / (12 x 9.4 x 20.3in)
Package Dimensions (W x D x H):
355 x 355 x 602mm / (14 x 14 x 23.7in)
Weight
Net Weight:
13.8 kg / 30.4 lb
Gross Weight:
15.3 kg / 33.7 lb
