Features
- Light weight portable powered speakers
- 1100 watt continuous Class D power modules
- Extensive DSP enhances system performance
- Rugged ABS enclosures
- Heavy duty protective grill

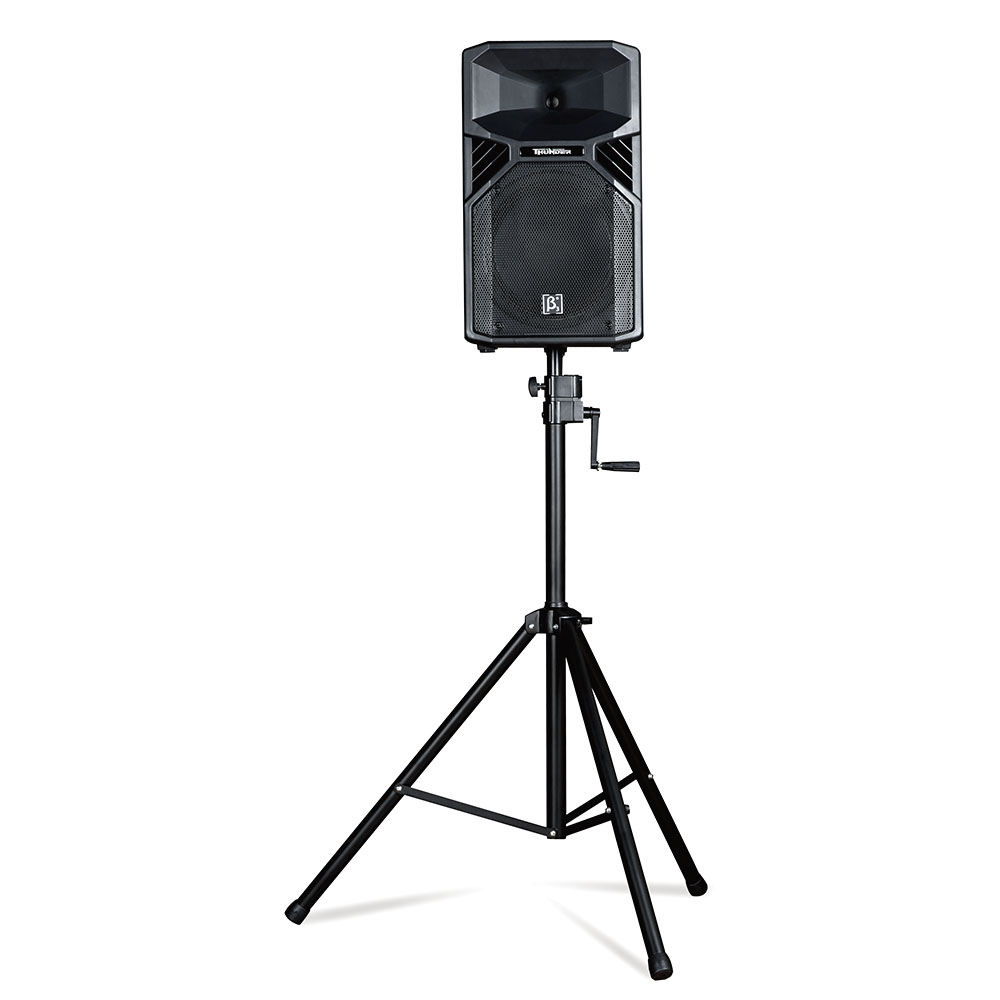

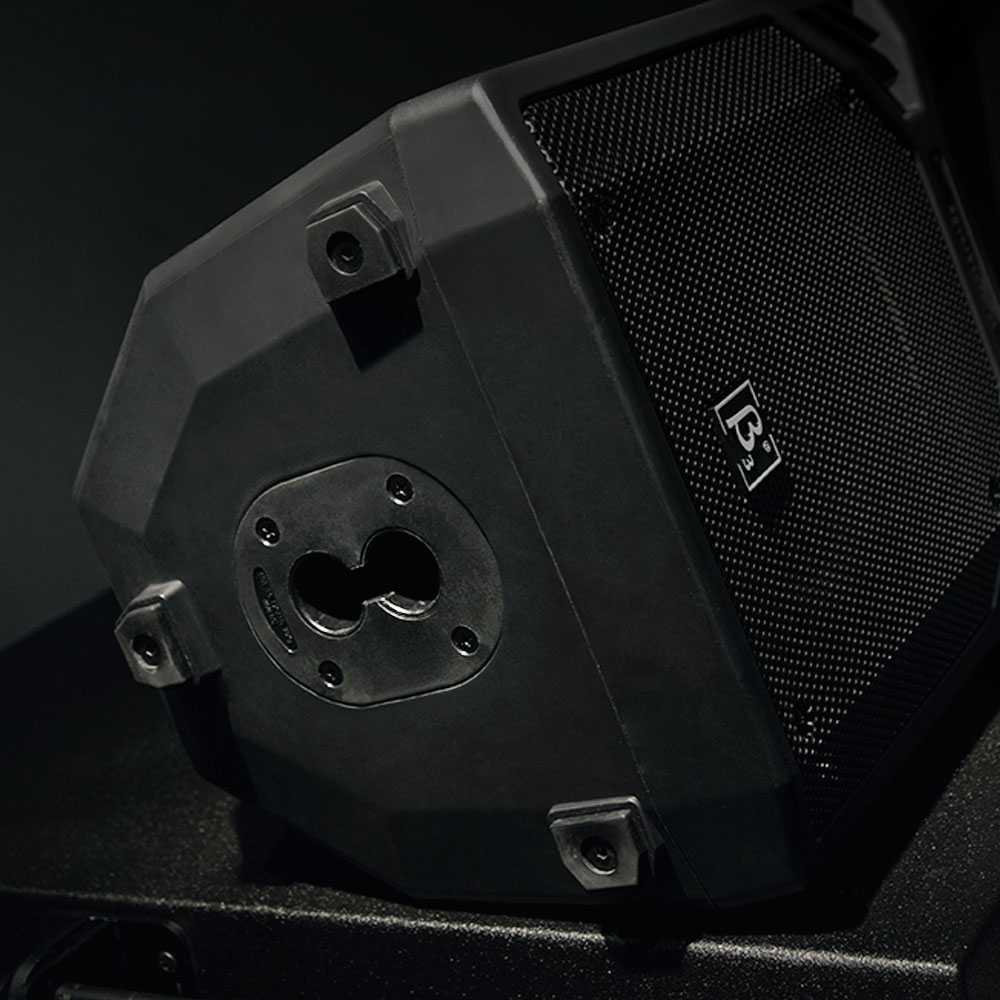

- 35mm pole adaptor system allow vertical application or dispersion 5 degree downward

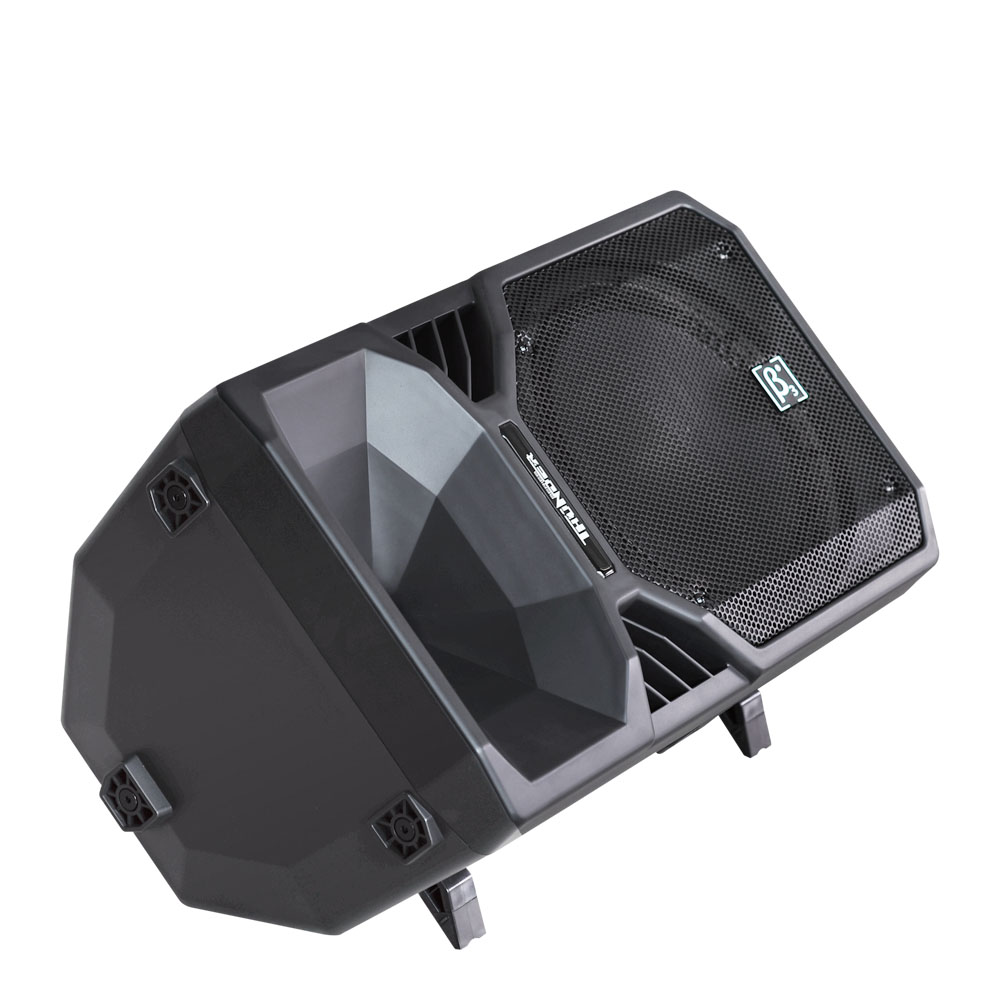

- Integrated Monitor feet allow the easy stage monitor application

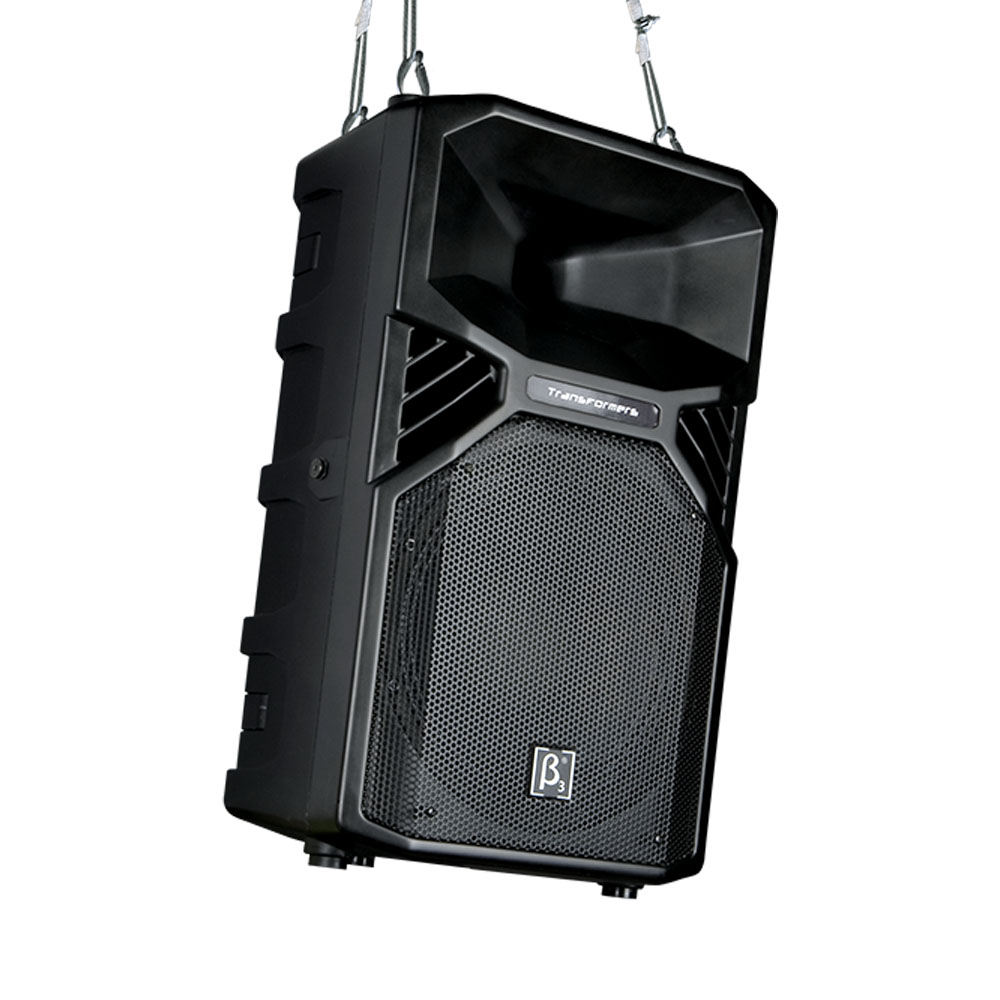

- M8 rigging points are convenient for different installation
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-20kHz
Max SPL @ 1m:
119dB/125dB(PEAK)
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 12" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ

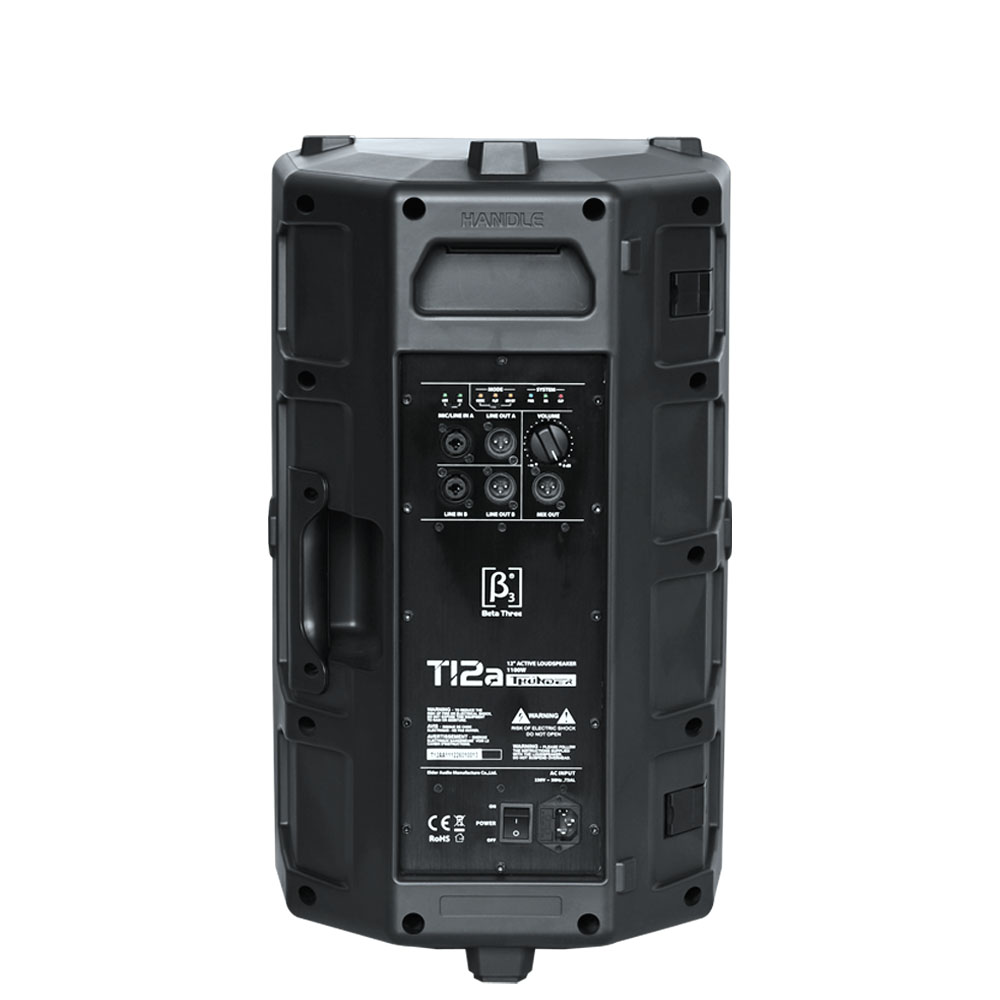

Input Connectors:
2 x Combo input, 2 x XLR output, 1 x XLR mix output
Power section
Total Power:
1100W(RMS); 2200W(MUSIC); 4400W(PEAK);
Nominal Impedance (Ohm):
8Ω
Cooling:
Speed controlled fan
Power consumption(static):
27W
Power consumption(rated):
1100W
Voltage range:
AC 220V-240V~, 50/60Hz
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:
8 x M8 hanging point, SMART pole mount system

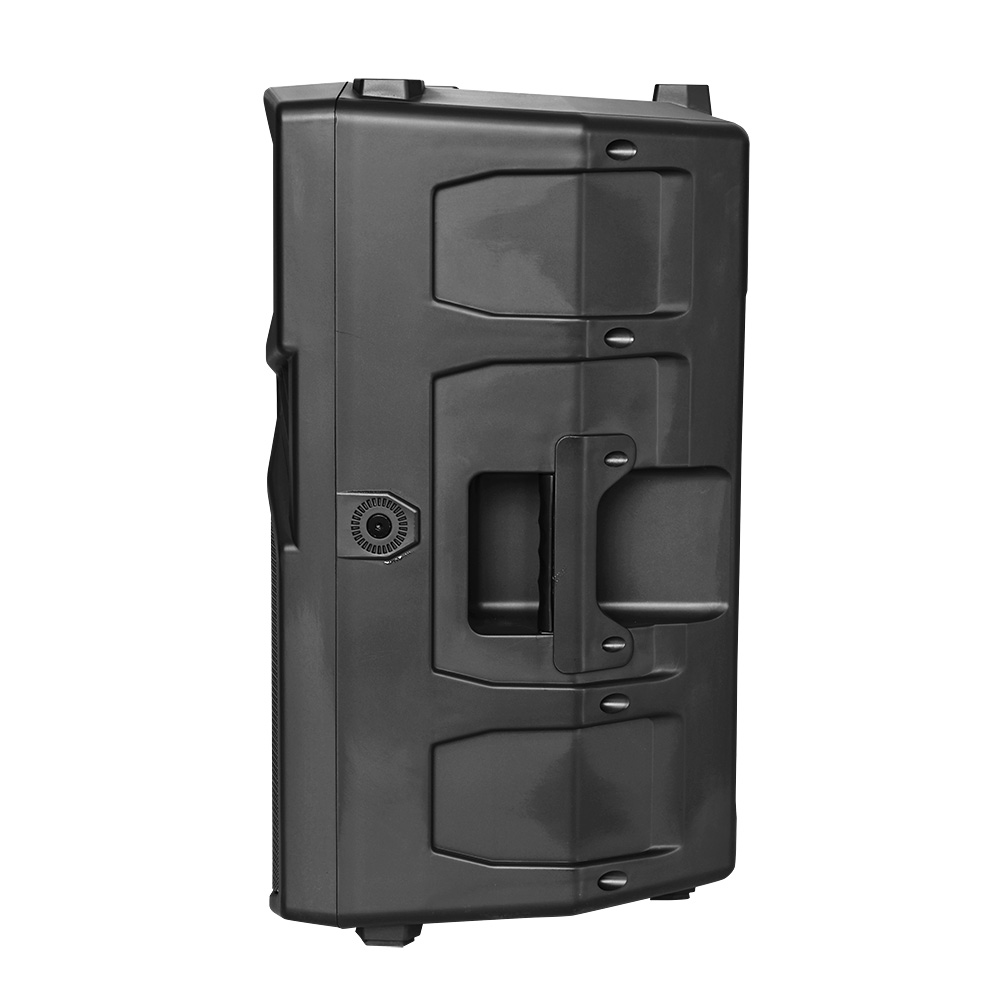

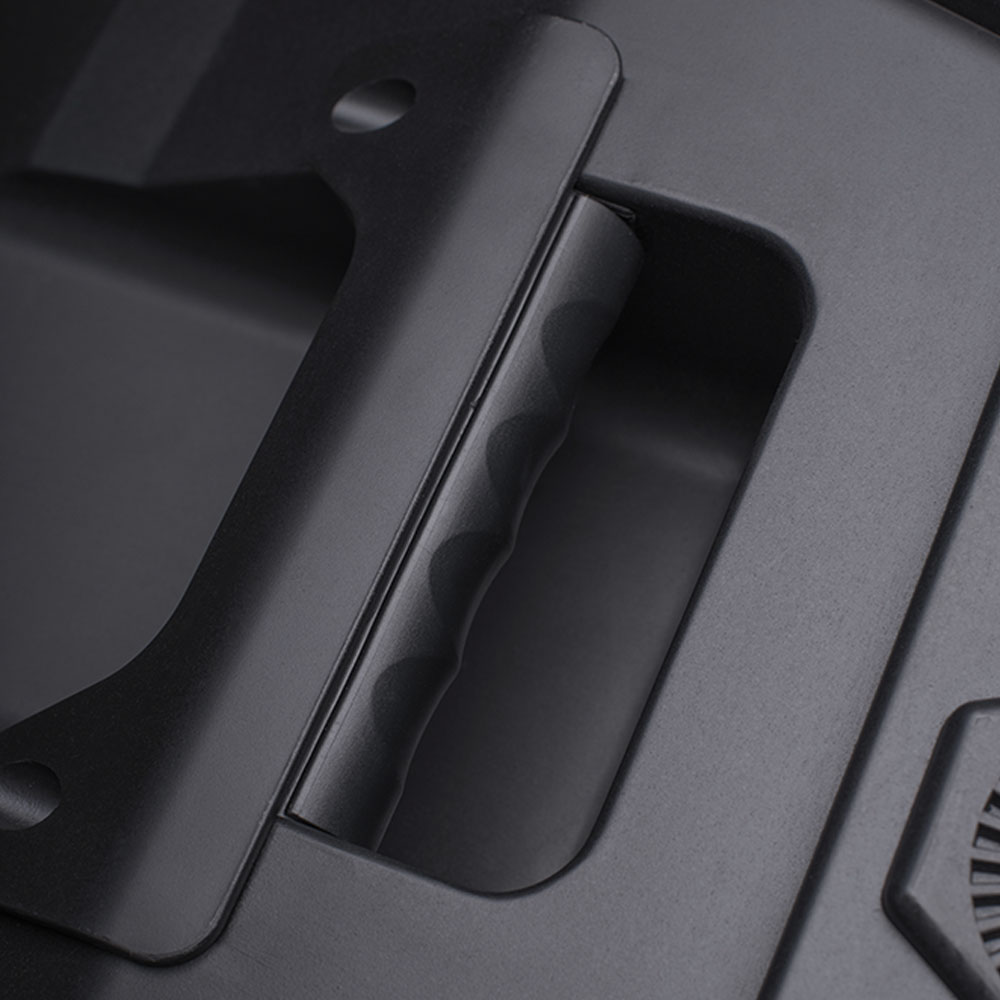

Handles:
One side, one rear
Grille:
Powered coated grill
Color:
Black
Size
Dimension (W x D x H):
368 x 349 x 630mm / (14.5 x 13.7 x 24.8in)
Package Dimensions (W x D x H):
420 x 410 x 710mm / (16.5 x 16.1 x 28in)
Weight
Net Weight:
21.5 kg / 47.4 lb
Gross Weight:
23.5 kg / 51.8 lb
