Features
- Light weight portable powered speakers
- 1100 watt continuous Class D power modules
- Extensive DSP enhances system performance
- Rugged ABS enclosures
- Heavy duty protective grill

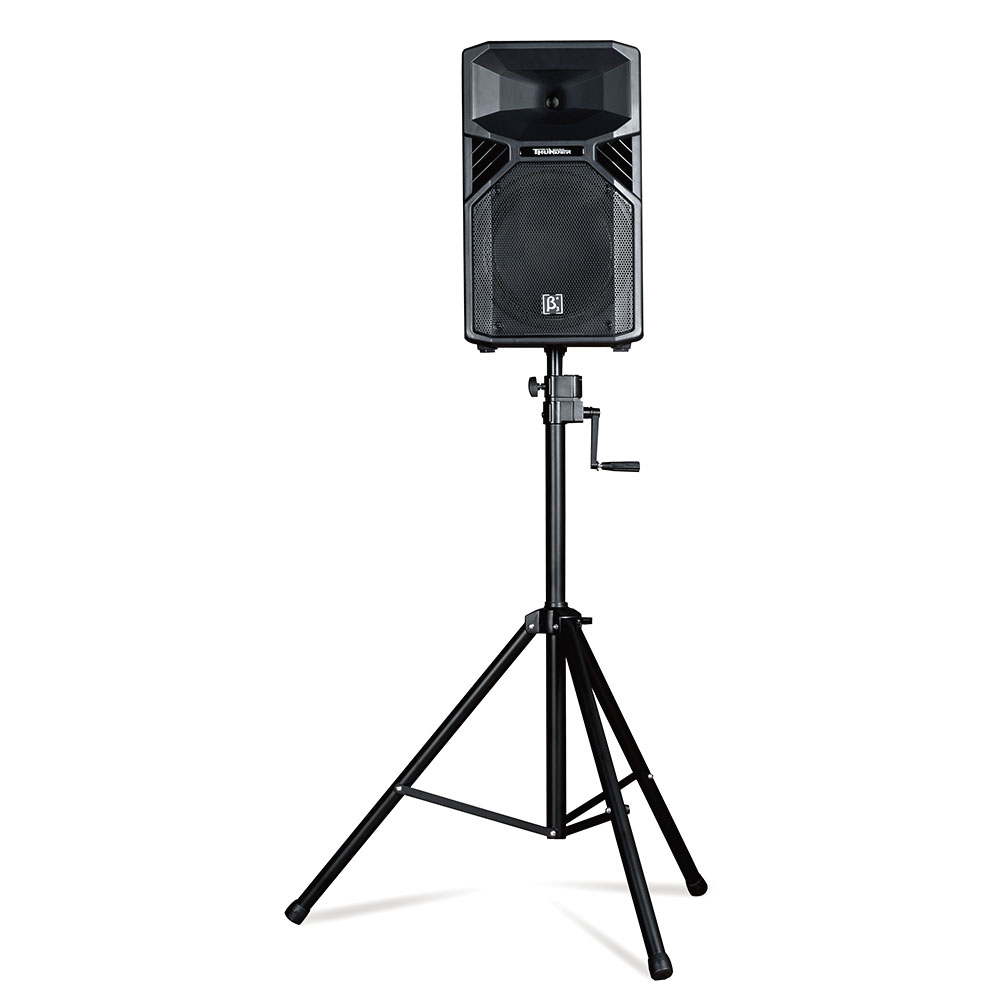

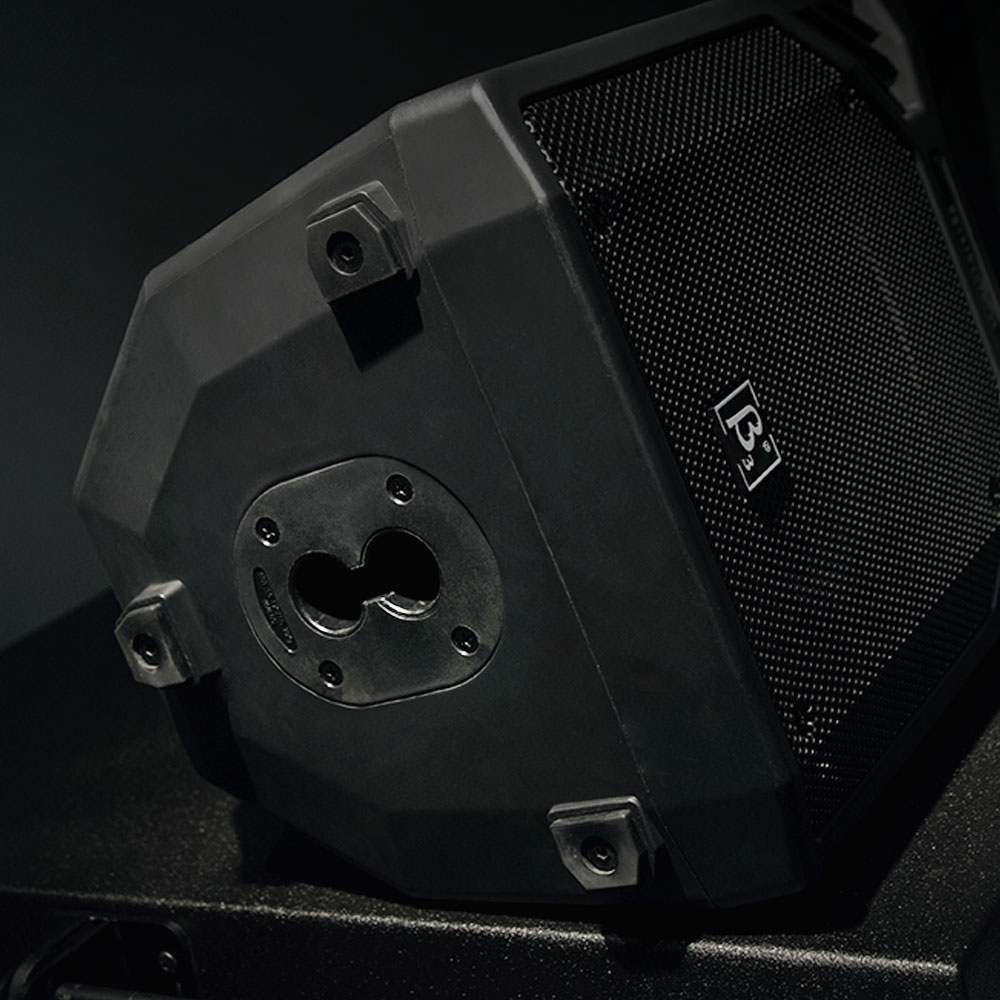

- 35mm pole adaptor system allow vertical application or dispersion 5 degree downward

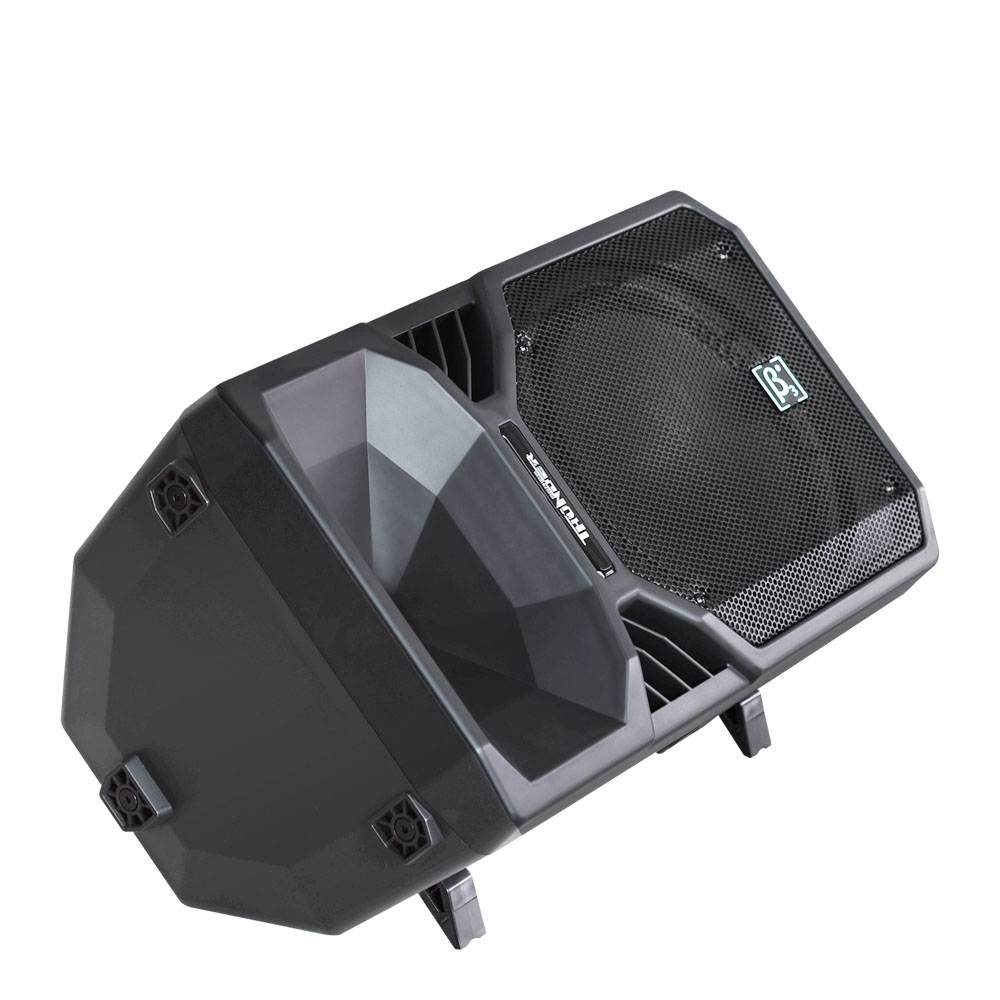

- Integrated Monitor feet allow the easy stage monitor application

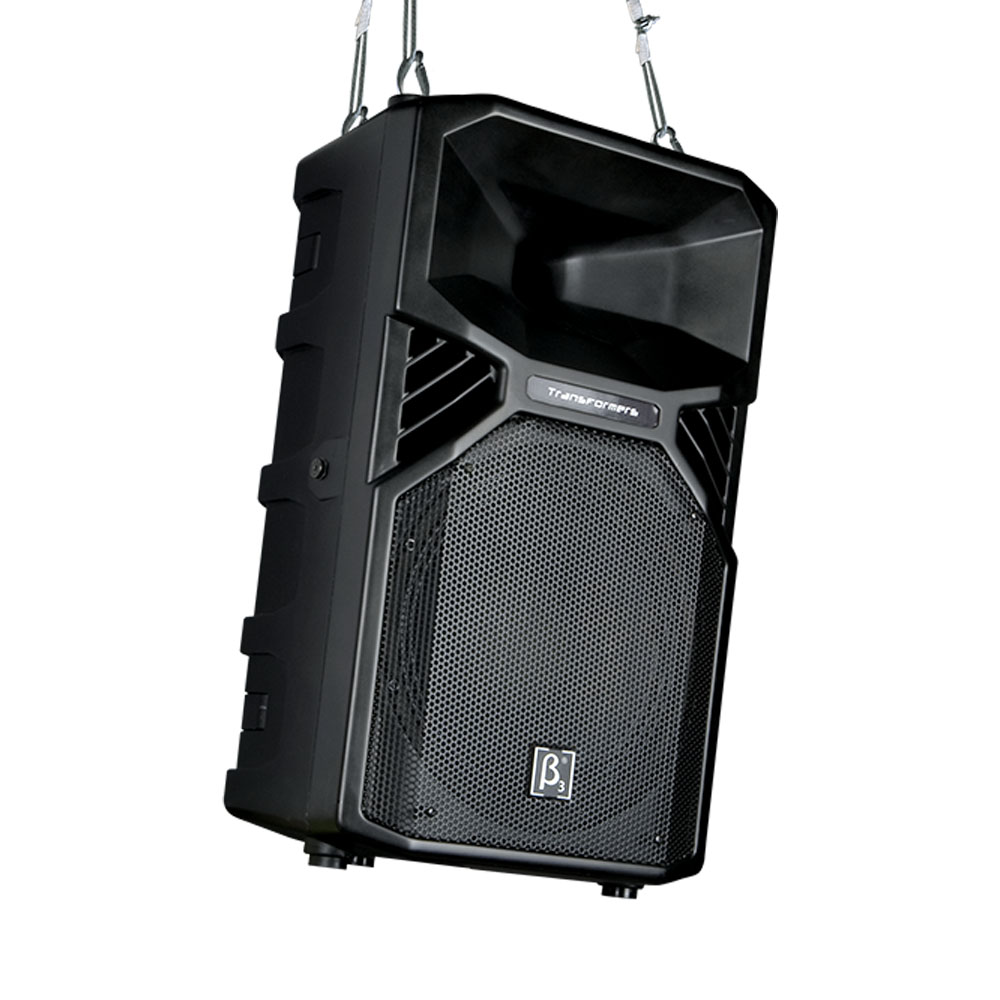

- M8 rigging points are convenient for different installation
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-20kHz
Max SPL @ 1m:
121dB/127dB(PEAK)
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 15" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
2 x Combo input, 2 x XLR output, 1 x XLR mix output
Power section
Total Power:
1100W(RMS); 2200W(MUSIC); 4400W(PEAK);
Nominal Impedance (Ohm):
8Ω
Cooling:
Speed controlled fan
Power consumption(static):
27W
Power consumption(rated):
1100W
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:
8 x M8 hanging point, SMART pole mount system

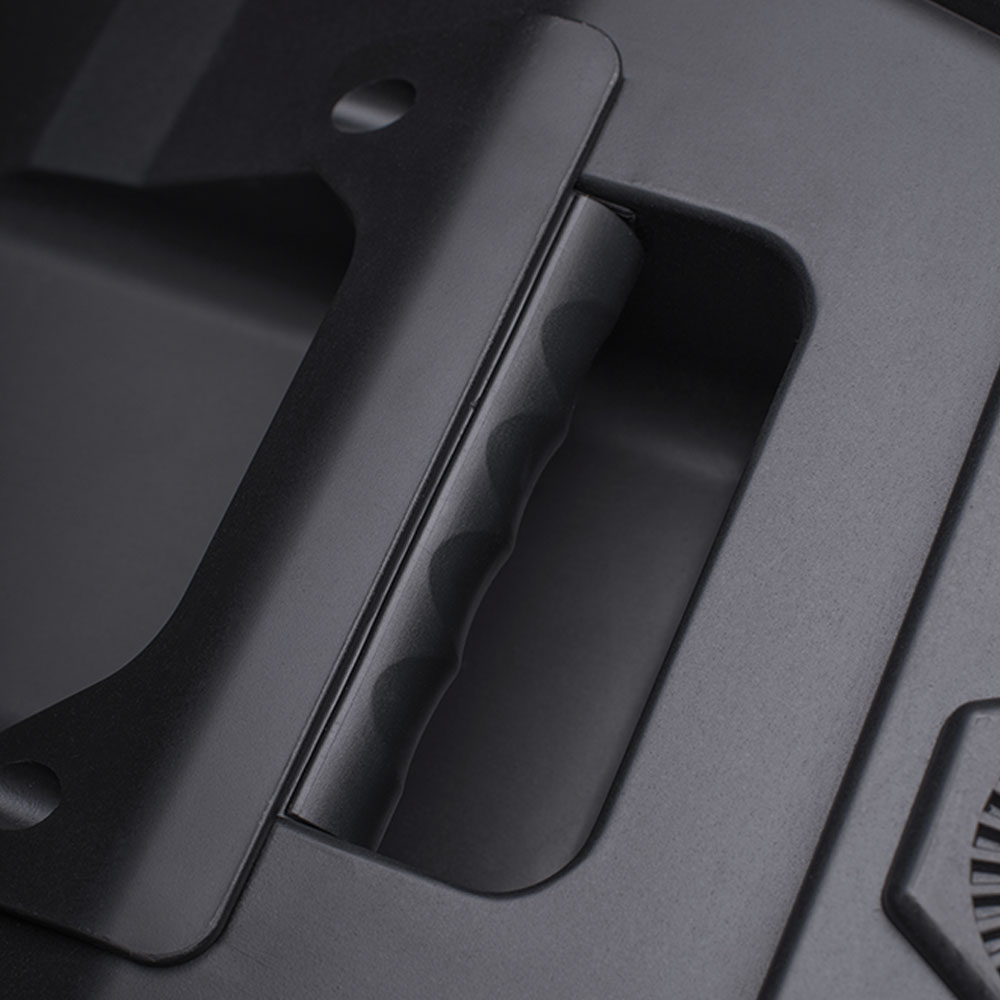

Handles:
One side, one rear
Grille:
Powered coated grill
Color:
Black
Size
Dimension (W x D x H):
460 x 396 x 780mm / (18.1 x 15.6 x 30.7in)
Package Dimensions (W x D x H):
528 x 480 x 865mm / (20.8 x 18.9 x 34.1in)
Weight
Net Weight:
28.7 kg / 63.3 lb
Gross Weight:
32 kg / 70.5 lb
