Features
- 32bit high performance floating point DSP and 24bit 192K sampling rate AD/DA chip for better dynamic processing and high-fidelity restore capability
- Parametric EQ ( 5-band for input, 7-band for output)
- Maximum delay is 2.6s for each signal
- 4-way balanced analog signal input, 8-way balanced analog signal output
- Crossover: Bessel/Butterworth 12/18/24/30/36dB per octave and Linkwitz-Riley 12/18/24dB per octave
- Peak limit
- Both input mute and output mute available
- Store maximum 50 set of customized programs
- USB/RS485 connectors for cascade of multiple processors
Specifications

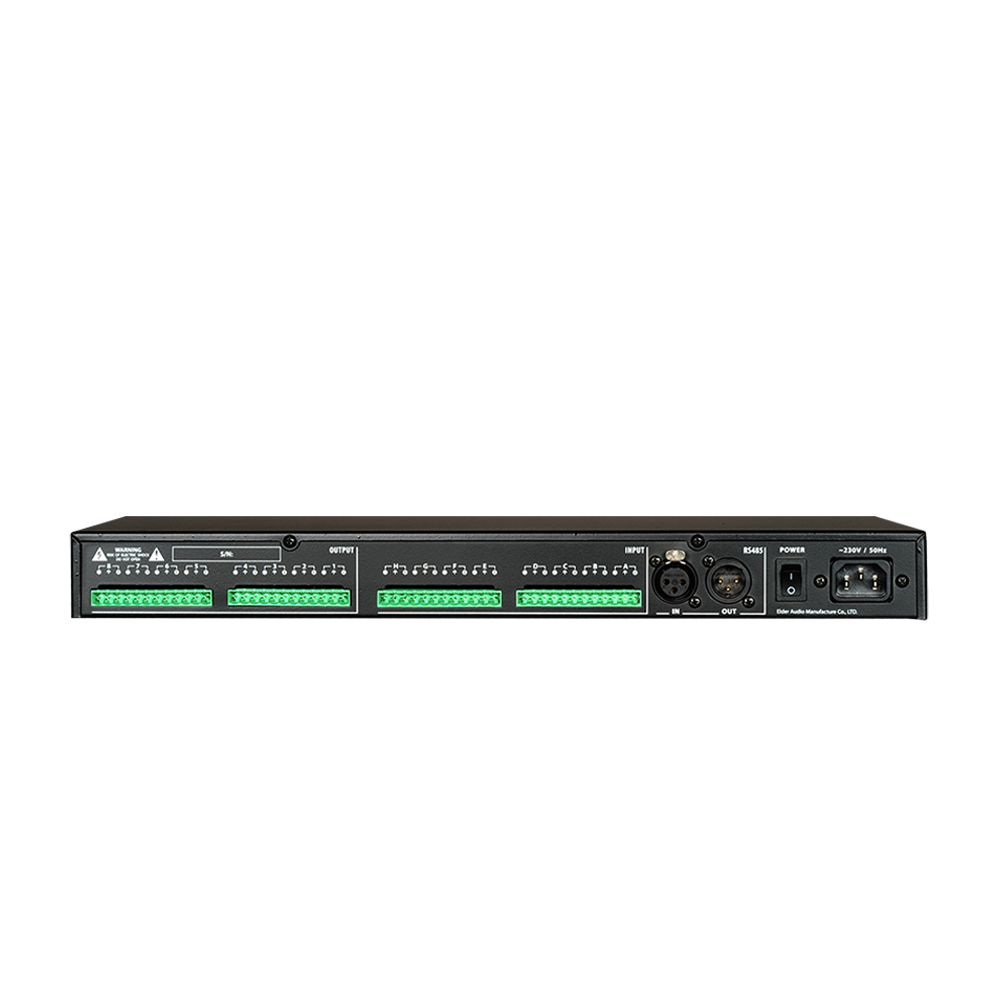

| Input Connector | 4-way phoenix |
| Output Connector | 8-way phoenix |
| Input Impedance | >10kΩ |
| Maximum Output Levels | ≥20dBu |
| A/D Sampling Rate | 48kHz |
| Frequency Response | 20Hz-20kHz(+0.5/-3dB) |
| THD + N | <0.006% |
| S/N Ratio (A weight) | 110dB |
| Power Supply | 200V-240V/50-60Hz |
| Dimensions (W x D x H) | 482mm x 228mm x 44mm |
| Net Weight | 5.7kg |
| Gross Weight (1 piece/pack) | 6.5kg |
ΣC4800 Application
ΣC4800 Installation
ΣC4800 Parts
ΣC4800 Cases
ΣC4800 Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 ΣC4800 Datasheet | 1.0 |  | 200KB | 2024-11-21 16:46:05 |
| β3_∑C4800_Digtial_speaker_controller_Chinese_Manual | 1 |  | 4261.08KB | 2018-07-12 02:25:39 |
| β3_∑C4800_Digtial_speaker_controller_English_Manual | 1 | | 3820.19KB | 2018-07-12 02:25:39 |
