Features
- Integrated speaker management processor
- Three-way stereo or six-way mono crossover
- 32 bit floating point DSP and digital filter

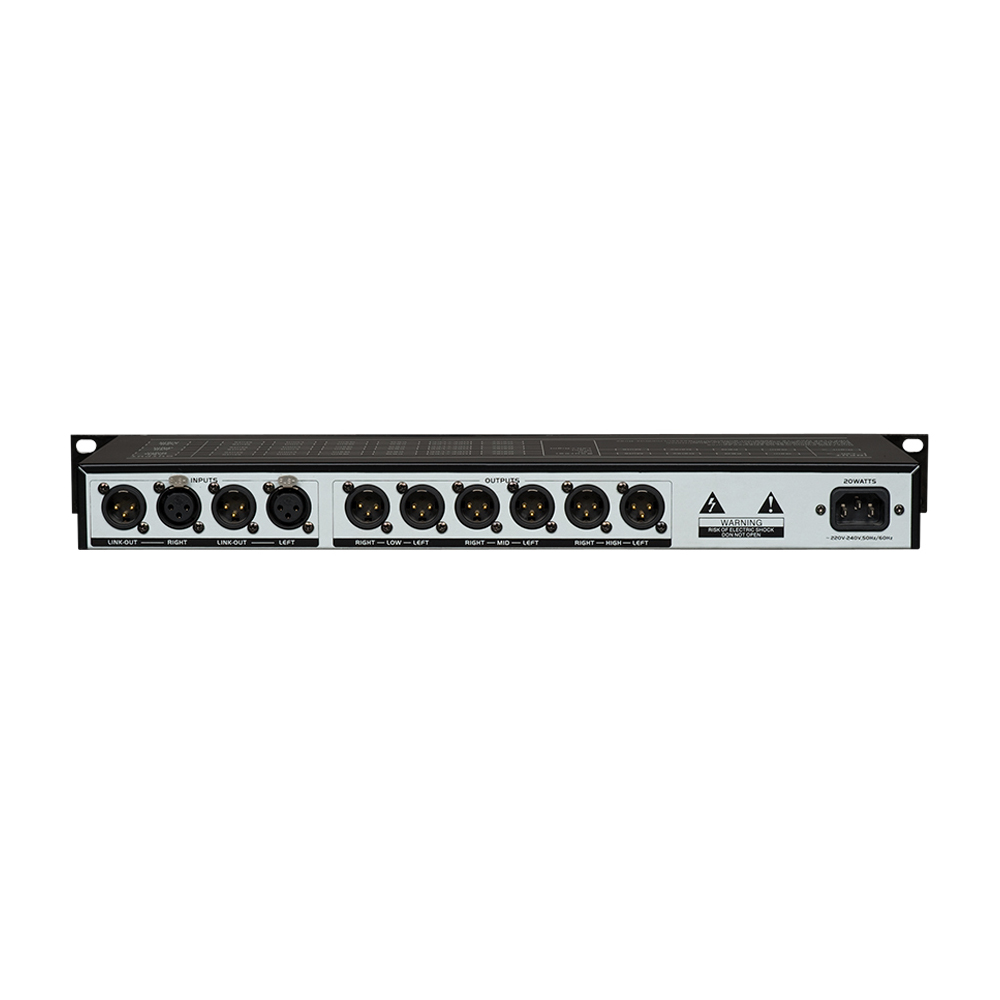

- 2 x input XLRs + 6 x Output XLRs

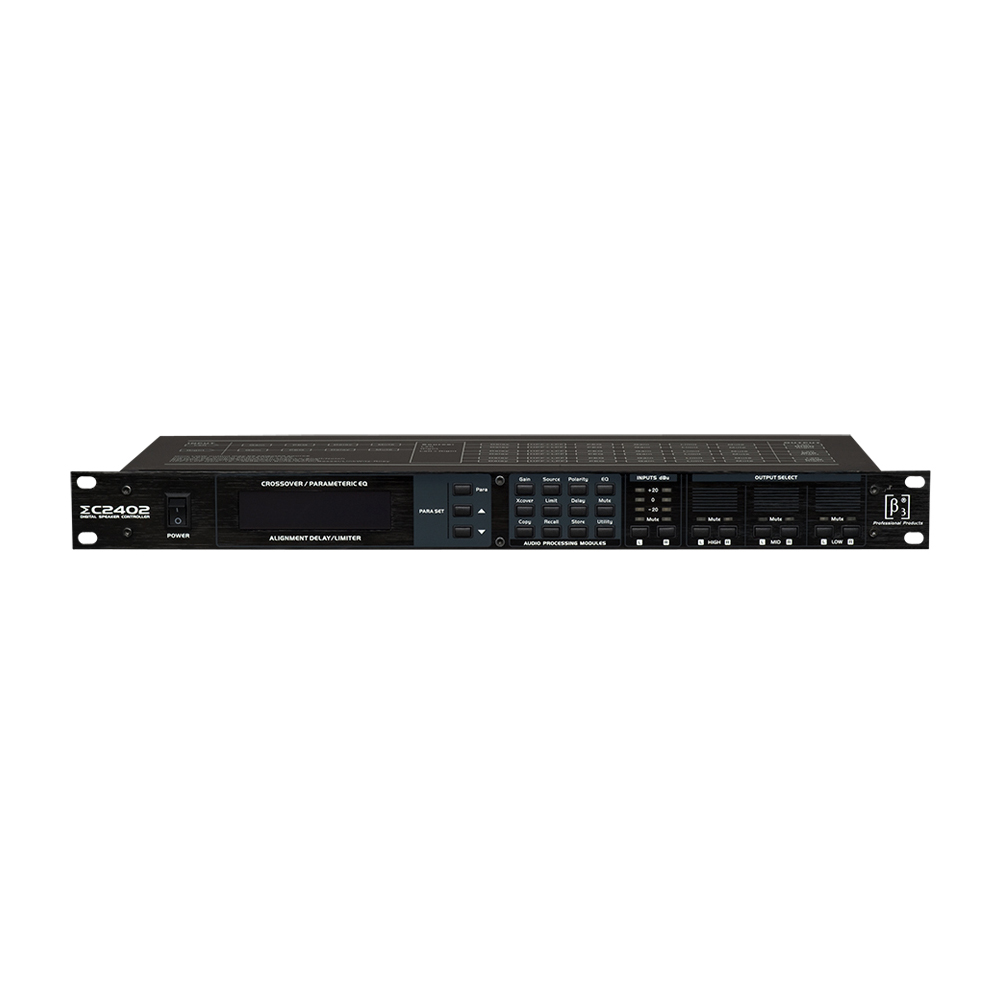

- Front panel programmable
- Provides input selection, gain control, delay, crossover, equalization and limiter functions
- DSP - 48kHz sample rate with 24bit AD/DA processing
- Front panel input and output LED indicators
- Store up to 20 presets
Specifications
| Input Connector | 2 x Balanced XLR |
| Output Connector | 6 x Balanced XLR |
| Input Impedance | Balanced10kΩ |
| Maximum Output Levels | ≥ + 20dBu |
| A/D Sampling Frequency | 48kHz-24bit linear |
| Dynamic Range (A weight) | ≥105dB |
| Power Supply | 220V/50Hz |
| Dimensions (W x D x H) | 483mm (19”) x 172mm (6.8”) x 45mm (1.8”) |
| Net Weight (1 piece/pack) | 3kg (6.6lb) |
| Gross Weight (1 piece/pack) | 4.5kg (9.9lb) |
ΣC2402 Application
ΣC2402 Installation
ΣC2402 Parts
ΣC2402 Cases
ΣC2402 Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 ΣC2402 Datasheet | 1.0 |  | 200KB | 2024-11-21 13:02:11 |
| β3_∑C2402_Digtial_speaker_controller_Chinese_Manual | 1 |  | 708.14KB | 2018-07-12 02:25:39 |
| β3_∑C2402_Digtial_speaker_controller_English_Manual | 1 | | 552.19KB | 2018-07-12 02:25:39 |
