Features

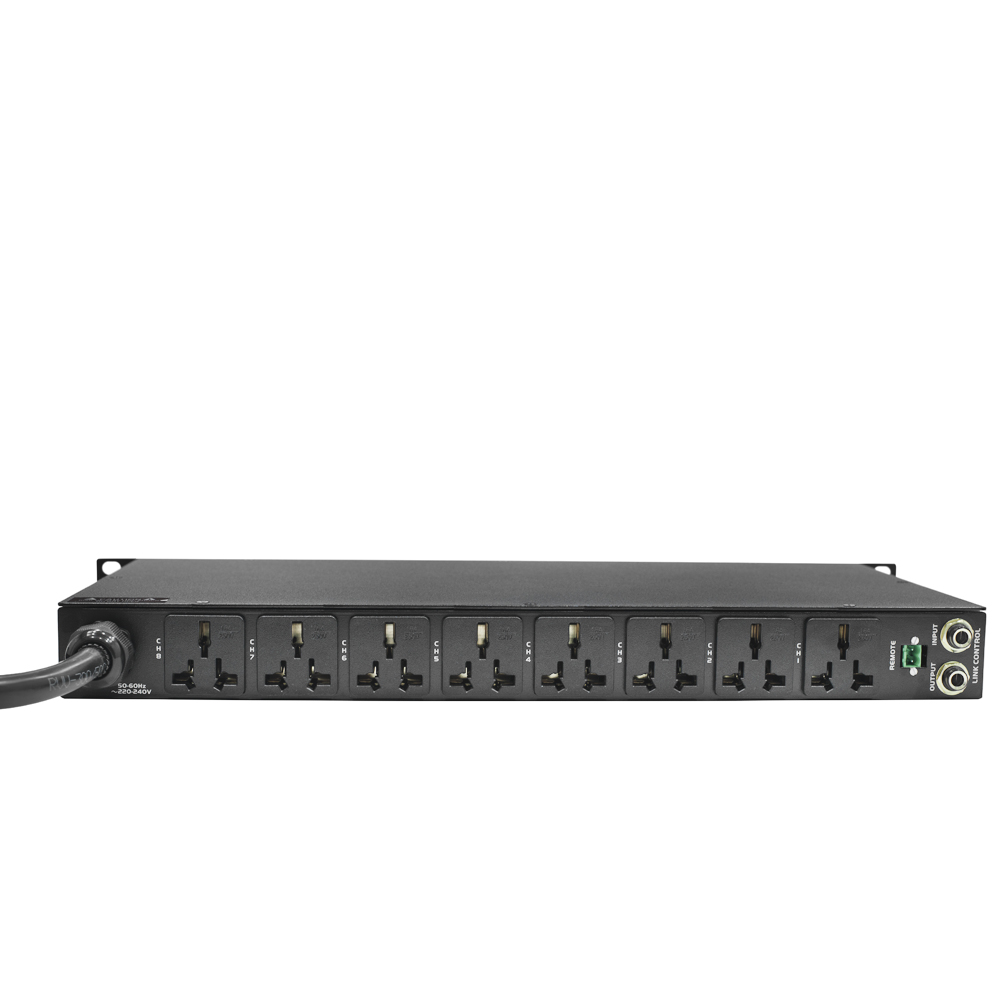

- One main power input, six or eight controlled power output
- Built-in processor, turn on clockwise, turn off anti-clockwise, available for
- network connection, easy operation.

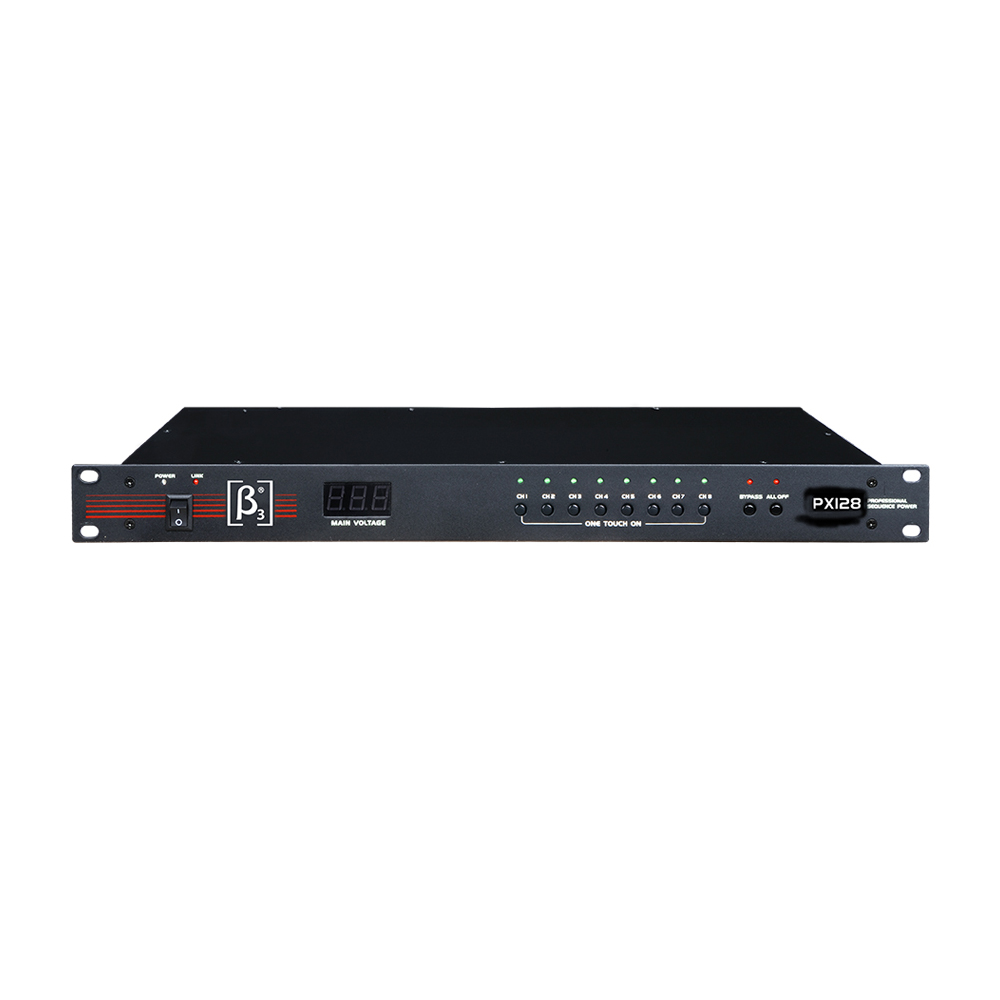

- LED indication for each channel turn on/off
- BYPASS switch and independent switch control for every channel, flexible usage
- Cute and solid shape
Specifications
| Total Max. Output (RMS) | 16KW |
| Per Channel Max. Output (RMS) | 2KW |
| Sequence Delay Time | 1s |
| Parallel Connection | available |
| Bypass Function | available |
| Voltage | 220V 50Hz/60Hz |
| N.W. | 5Kg |
| G.W. | 6Kg |
| Dimension (WxHxD) | 484*222*44.5 mm |
| Packing (WxHxD) | 555*310*78mm |
PX128 Application
PX128 Installation
PX128 Parts
PX128 Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 PX128 Datasheet | 1.0 |  | 200KB | 2024-11-06 06:23:47 |
| β3_PX128_PX128B_PX136_Electronic_Periphery_Chinese_Manual | 1 |  | 580KB | 2018-07-12 02:25:39 |
| β3_PX128B PX128_PX136_Electronic_Periphery_English_Manual | 1 | | 218.51KB | 2018-07-12 02:25:39 |
