Features

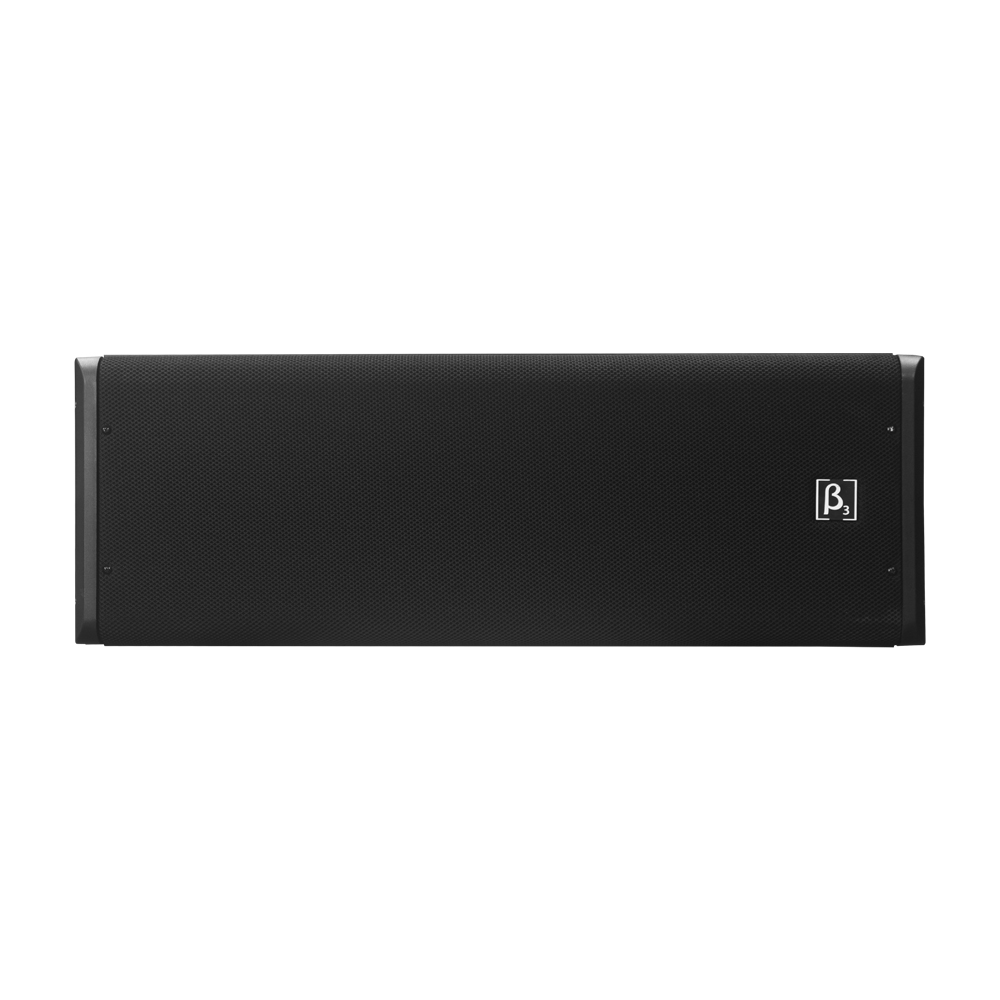

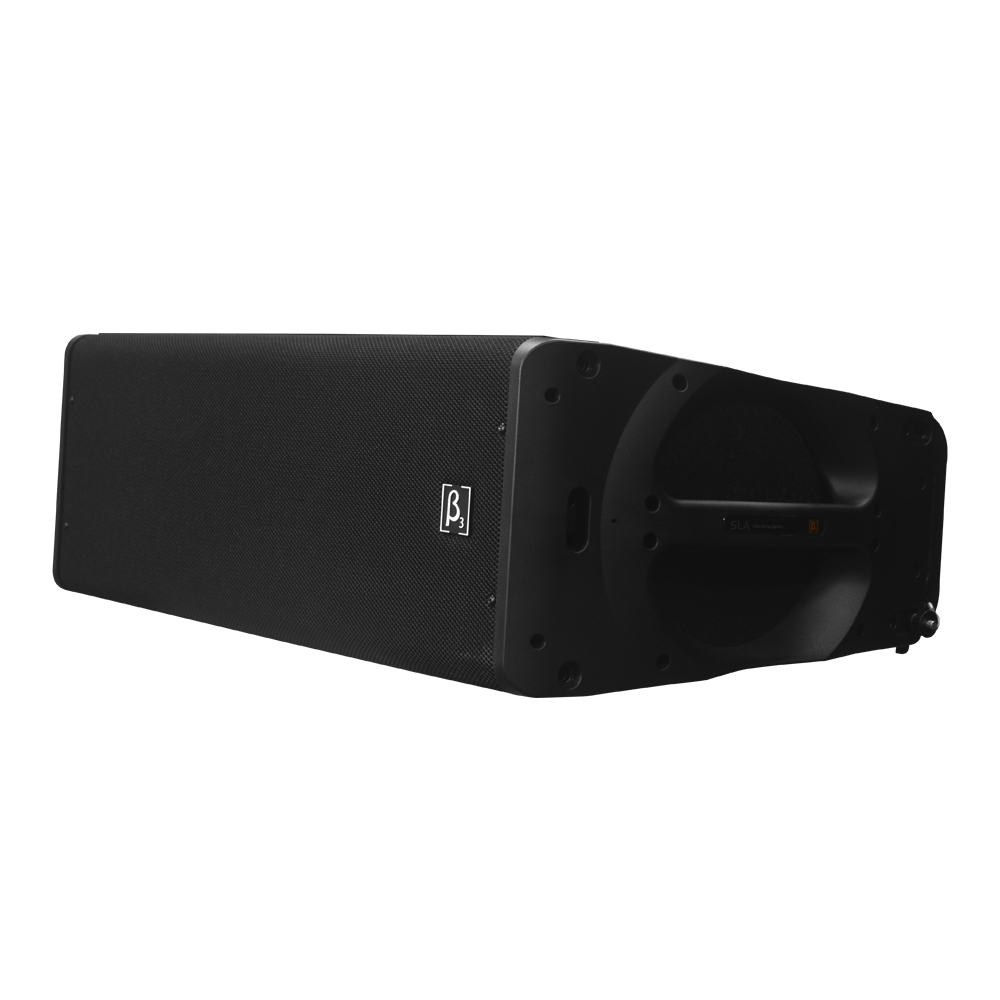

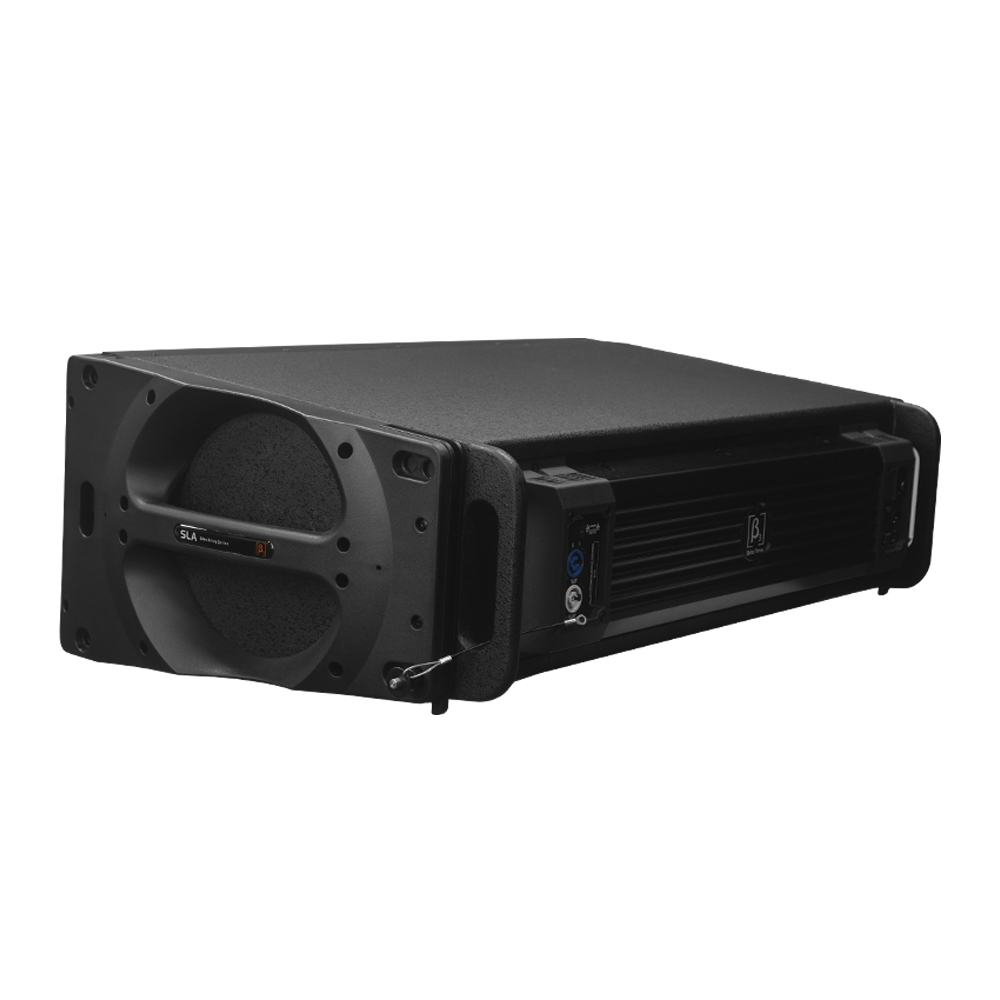

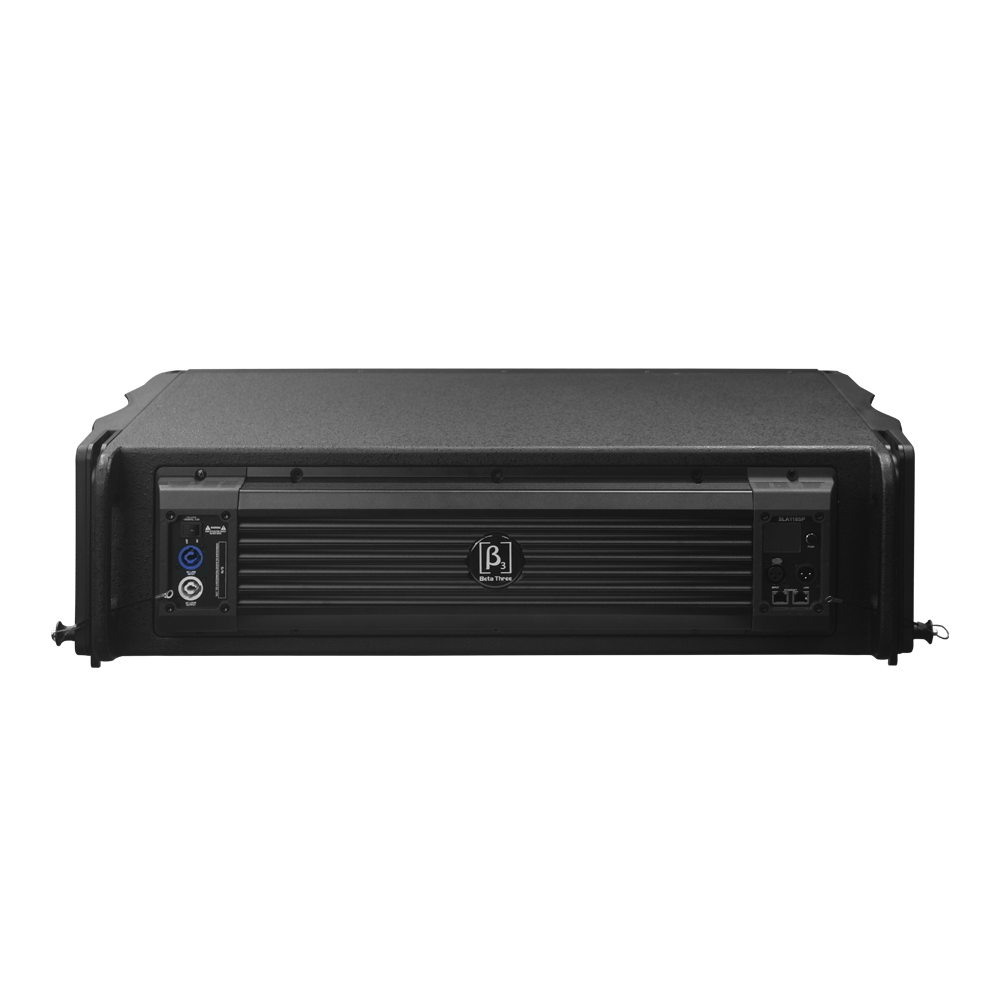

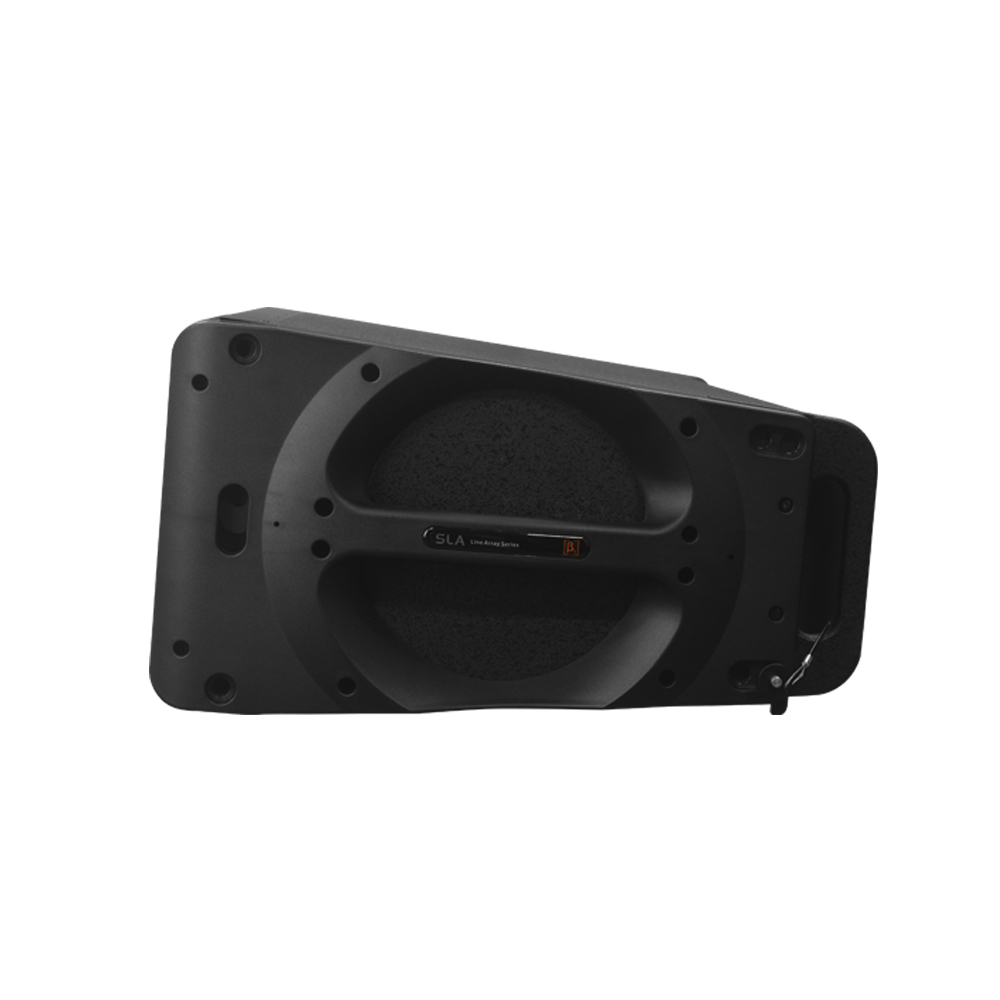

- ■ The SLA210P speaker is a full range speaker of medium-size line array system. It comprises dual 10"sub units, dual Neodymium compression drivers with its diaphragm diameter of 44mm and a professional amplifier module.
- ■ The enclosure adopts a T-shaped structure, making installation and removal extremely convenient with quick-release pins. The adjustable cabinet angle range is 10° .
- ■ When used together with 8 SLA210P and 4 subwoofers,it forms a high-quality point source system,enhancing natural,detailed and pleasant sound quality.
- ■ The dedicated suspension bracket allows for both hanging and ground placement,with fast installation and removal.
- ■ Two Channels,Total Output Power>3600W.
- ■ 1 In 2 Out High-performance Audio DSP.
- ■ One Network Cable For Power Amplifier Debugging And Monitoring.
- ■ 1.8-inch TFT Color Display, Showing Various States(output Voltage,Current,Temperature,Protection,Load Overload,Load Open Circuit,Fault,Output Signal).
- ■ Perfect Protection Function (Overheating,Voltage Limit,Overload,Output DcProtection)
- ■ 16 Scene Modes Can Be Stored InThe DSP,Including 8 Factory Presets,Parameter Saving/retrieval Between Machines Saving And Calling Data To The Computer,One Key Factory Reset,Device Data Mirroring.
- ■ Sound quality characteristics:clear,full,and without losing weight.
Specifications
Acoustical specifications
Frequency Response(-3db):
60Hz-18kHz
Max SPL @ 1m:
124dB/130dB(PEAK)
Transducers
Compression driver:
2 x T44-II
Woofer:
2 x 10" LF
Input/Output section
Input signal:
≥20kQ(Balance),10kΩ(Unbalance)
Input Connectors:
1 x XLR
Power section
Total Power:
2 x 1200W(RMS);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 100V/240V, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
15mm Plywood
Handles:
2 × Iron handles
Grille:
Polyurethane finish, black powder coating for grille.
Color:
Black
Size
Dimension (W x D x H):
884 x 528 x 283mm / (34.8 x 20.8 x 11.1in)
Package Dimensions (W x D x H):
640 x 400 x 975mm / (25.2 x 15.7 x 38.4in)
Weight
Net Weight:
29.5 kg / 65 lb
Gross Weight:
33.5 kg / 73.9 lb
SLA210P Application
SLA210P Installation
SLA210P Parts
SLA210P Cases
SLA210P Collocation
Videos
Downloads
Filename | Version | Language | Size | Updated |
β3 SLA210P Datasheet | 1.0 | 200KB | 2024-12-21 14:40:11 |
