Features

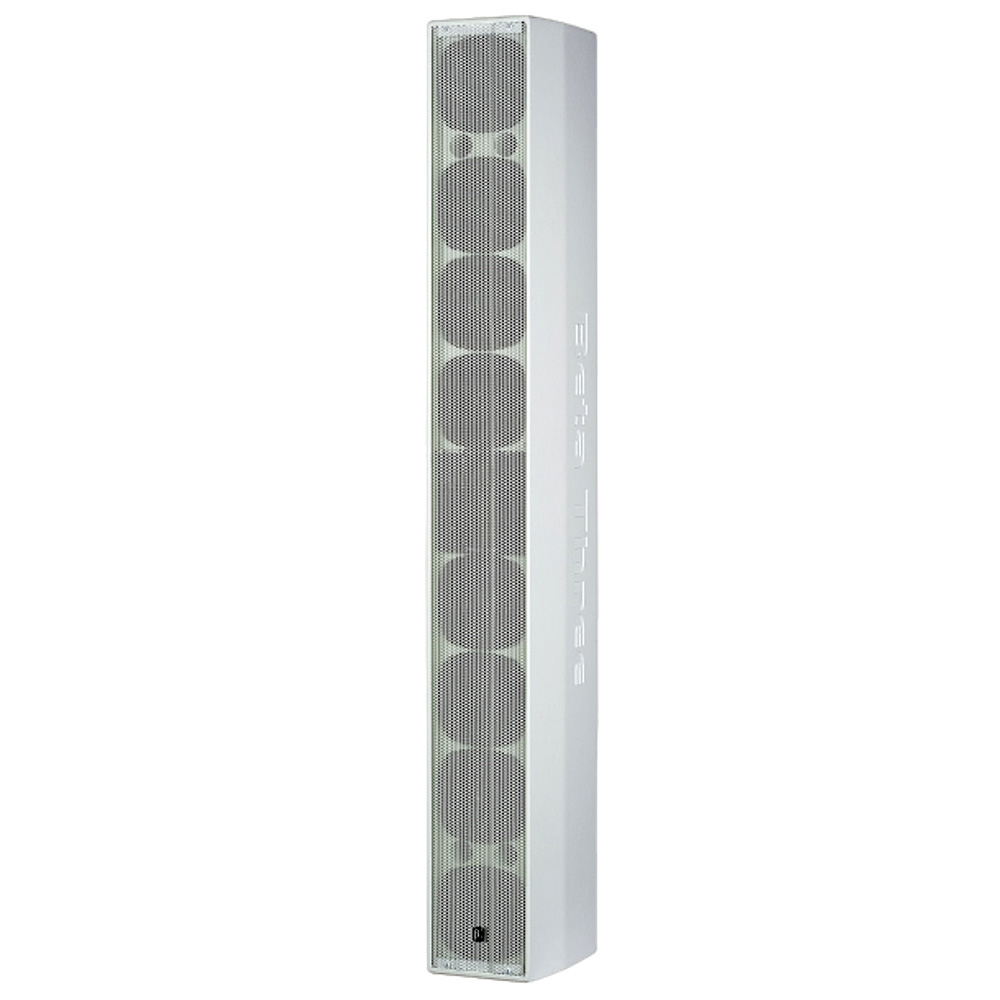

- Vertical line array of 8 x 4" LF driver
- 44mm compression driver loaded with wave guide
- Frequency response 80Hz-18kHz(-3dB)
- Sensitivity 92dB, Max SPL 116dB
- 150x 30 degree controlled coverage pattern
- Birch plywood construction
- Durable Polyurethane textured base paint
- Quick install U bracket included with multiple mounting points provided
- Designed for high speech intelligibility and natural sounding music
- Optional MU408 hanging hardware
Specifications
Acoustical specifications
Frequency Response(-3db):
80Hz-18kHz
Max SPL @ 1m:
116dB/122dB(PEAK)
Dispersion (H x V):
150° x 30°
Transducers
Compression driver:
1 x 44mm HF
Woofer:
8 x 4" LF
Input/Output section
Input Connectors:
4-screw termina, 2 x XLR
Sensitivity (1W @ 1m):
92dB
Processor section
Crossover frequencies:
2kHz
Power section
Total Power:
240W(RMS); 480W(MUSIC); 960W(PEAK);
Physical specifications
Cabinet/Case Material:
15mm birch plywood
Hardware:
6 x M8
Grille:
White Polyurethane painting for cabinet & White Powder coated grille.
Color:
White
Size
Dimension (W x D x H):
164 x 1138 x 233mm / (6.5 x 44.8 x 9.2in)
Package Dimensions (W x D x H):
305 x 1240 x 243mm / (12 x 48.8 x 9.6in)
Weight
Net Weight:
16.7 kg / 36.8 lb
Gross Weight:
18.2 kg / 40.1 lb
