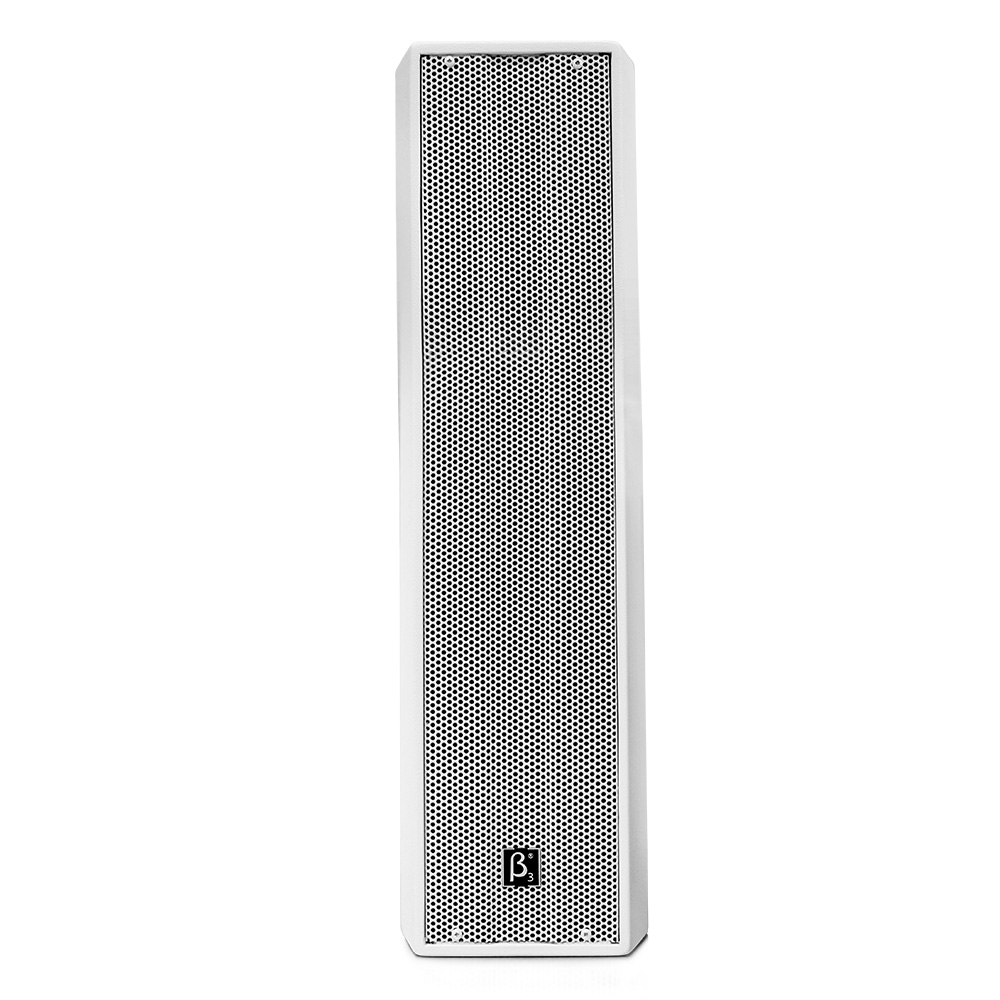

MU404 4" Two Way Full Range Column Speaker

MU404

4" Two Way Full Range Column Speaker

MU404 installed line array column loudspeakers are used in applications including sound reinforcement for Houses of Worship, Events, Theme Parks, Transit Terminals and Shopping Malls etc.The T series delivers extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.

Features

  • Vertical line array of 4 x 4" LF driver
  • 44mm compression driver loaded with wave guide
  • Frequency response 160Hz-20kHz(-3dB)
  • Sensitivity 88dB, MaxSPL 109dB
  • 150 x 30 degree controlled coverage pattern
  • Birch plywood construction
  • Durable Polyurethane textured base paint
  • Quick install U bracket included with multiple mounting points provided
  • Designed for high speech intelligibility and natural sounding music
  • Optional MU404 hanging hardware

Specifications

Acoustical specifications
Frequency Response(-3db):
100Hz-20kHz
Max SPL @ 1m:
109dB/115dB(PEAK)
Dispersion (H x V):
150° x 30°
Transducers
Compression driver:
1 x 44mm HF
Woofer:
4 x 4" LF
Input/Output section
Input Connectors:
4-screw termina, 2 x XLR
Sensitivity (1W @ 1m):
88dB
Processor section
Crossover frequencies:
3kHz
Power section
Total Power:
120W(RMS); 240W(MUSIC); 480W(PEAK);
Physical specifications
Cabinet/Case Material:
15mm birch plywood
Hardware:
6 x M8
Grille:
White Polyurethane painting for cabinet & White Powder coated grille.
Color:
White
Size
Dimension (W x D x H):
144 x 692 x 235mm / (5.7 x 27.2 x 9.3in)
Package Dimensions (W x D x H):
215 x 772 x 235mm / (8.5 x 30.4 x 9.3in)
Weight
Net Weight:
10 kg / 22 lb
Gross Weight:
11 kg / 24.3 lb
