Features
• 15-inch woofers with2.5-inch voice coils
• 1-inch HF compression drivers
• 80° x 120° HF dispersion
• Dual purpose full-range and wedge monitor speaker
• Ultra-clear reproduction throughout the whole audio bandwidth
• Low distortion and high power-handling 12-inch woofers
• An XLR Main In and Link output for easy connection and looping
• Selectable Sub filter (HPF) for connecting a subwoofer
• ABS / Polypropylene cabinet construction
• Tough, full length metal grille
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-16kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
80° x 120°
Transducers
Compression driver:
1 x 1" HF
Woofer:
1 x 15" LF
Input/Output section
Input Connectors:
2 x Speakon, 2 x 1/4"
Processor section
Crossover frequencies:
1.6kHz
Power section
Nominal Impedance (Ohm):
LF: 4Ω，HF: 8Ω
Physical specifications
Cabinet/Case Material:
Polypropylene Cabinet, ABS baffle, metal grille

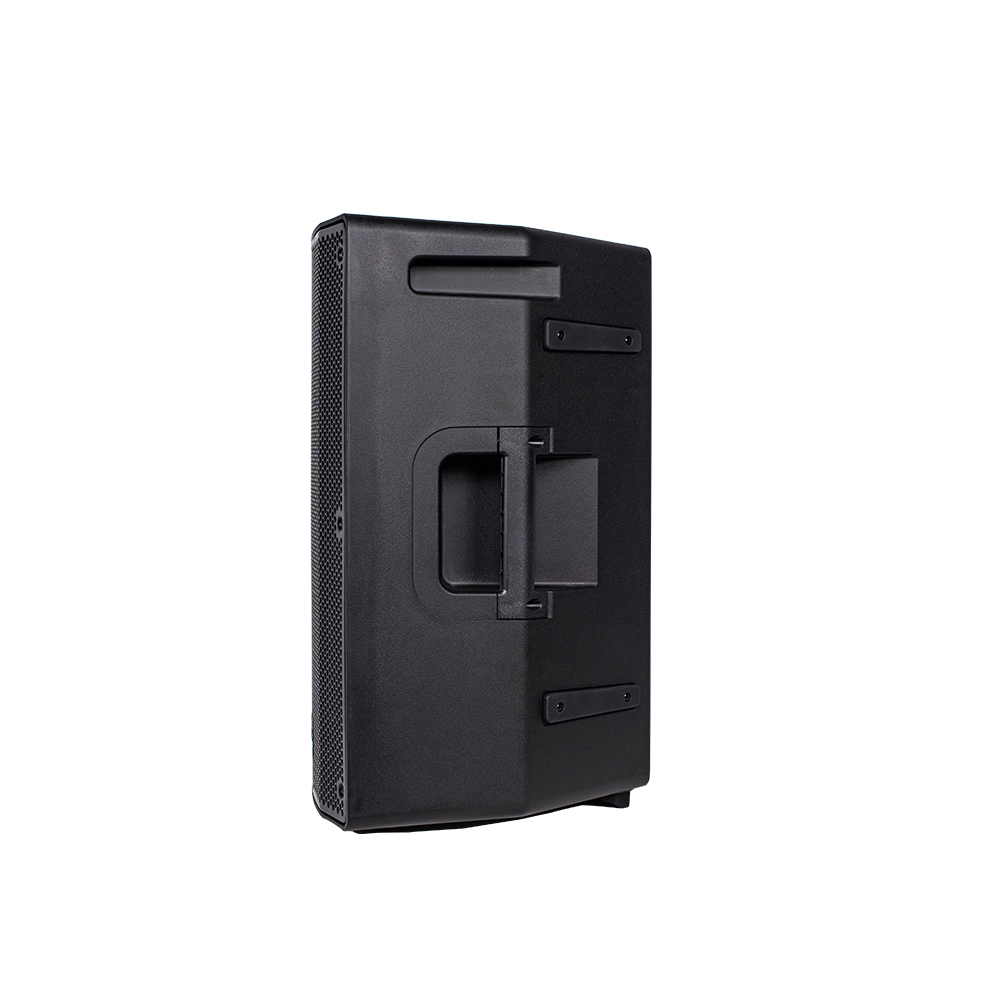

Handles:
2 x Plastic Handles(1 x Side / 1 x Back)
Grille:
Powder Coated Steel with Grille Cloth
Color:
Black
Size
Dimension (W x D x H):
433 x 374 x 685mm / (17 x 14.7 x 27in)
Package Dimensions (W x D x H):
525 x 465 x 790mm / (20.7 x 18.3 x 31.1in)
Weight
Net Weight:
21.3 kg / 47 lb
Gross Weight:
24 kg / 52.9 lb
