Features
- Coaxial full-range active plastic monitor speaker, which adopts a two-unit, two-way design and incorporatescomputer simulation technology.
- Selected 4-inch paper cone woofer and a φ20mm silk dome tweeter driver to ensure clear sound quality.
- The speaker cabinet is made of high-strength polypropylene with precision injection molding, which hashigh strength and ensures stability.
- Built-in high-efficiency bi-amplifier driver ensures good speaker dynamics.
- The frequency response range of the speaker is 70Hz-20kHz (-10dB), which is balanced and broad.
- The tweeter unit of the speaker is assembled coaxially with the woofer to ensure consistent high and lowfrequencies.
- The speaker cabinet has a fully anti-magnetic design to eliminate magnetic field interference and ensureclear and pure sound.
Specifications
Acoustical specifications
Frequency Response(-10db):
70Hz-20kHz
Max SPL @ 1m:
94dB
Transducers
Compression driver:
1Xφ20mm silk dome tweeter driver
Woofer:
1 x 4" woofer, impedance 8Ω/voice coil 25mm
Input/Output section
Input signal:
20kΩ balanced input, 10kΩ unbalanced input

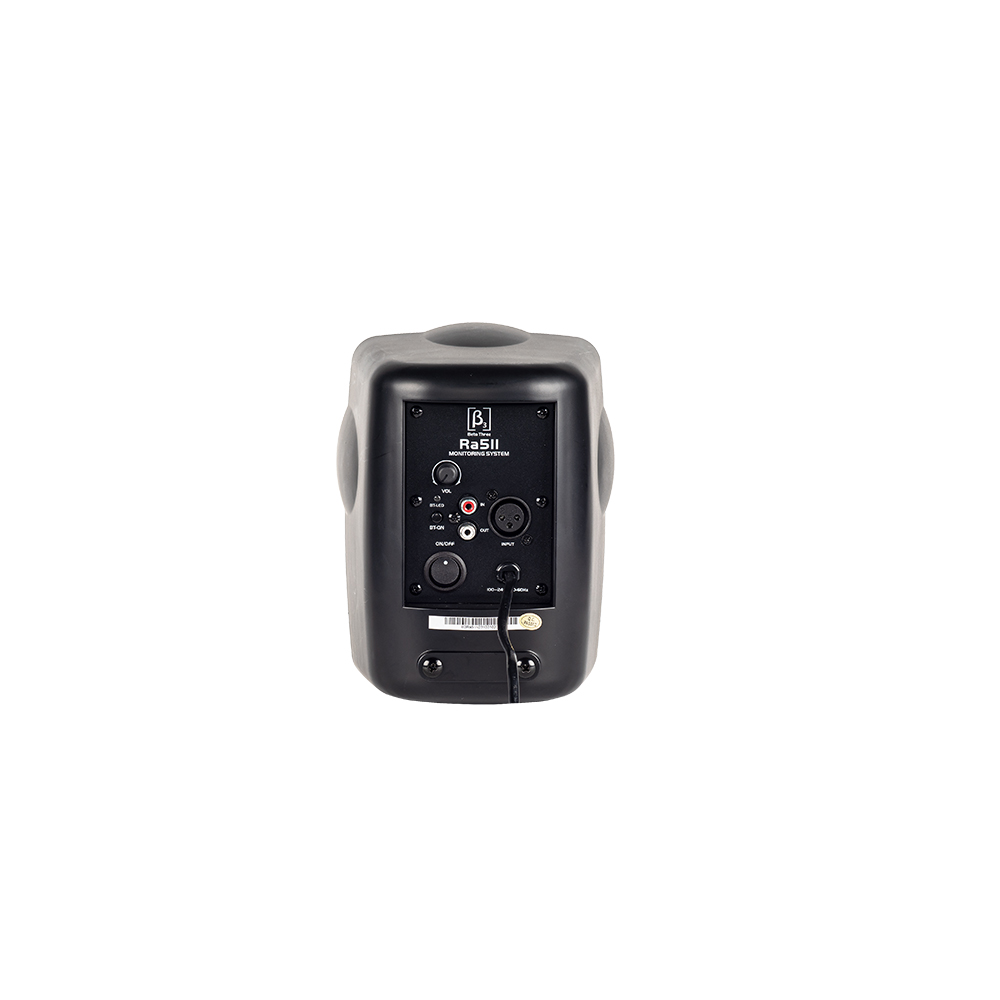

Input Connectors:
XLR Input / RCA Input (RCA AUX Output)
Power section
Total Power:
50W(RMS); 100W(MUSIC); 200W(PEAK);
Cooling:
Natural cooling
Voltage range:
AC 100-230V 50Hz/60Hz
Physical specifications
Grille:
Precision injection molding of polypropylene, matte black surface
Color:
Black
Size
Dimension (W x D x H):
160 x 210 x 162mm / (6.3 x 8.3 x 6.4in)
Package Dimensions (W x D x H):
215 x 215 x 270mm / (8.5 x 8.5 x 10.6in)
Weight
Net Weight:
2.3 kg / 5.1 lb
Gross Weight:
2.8 kg / 6.2 lb
