Features

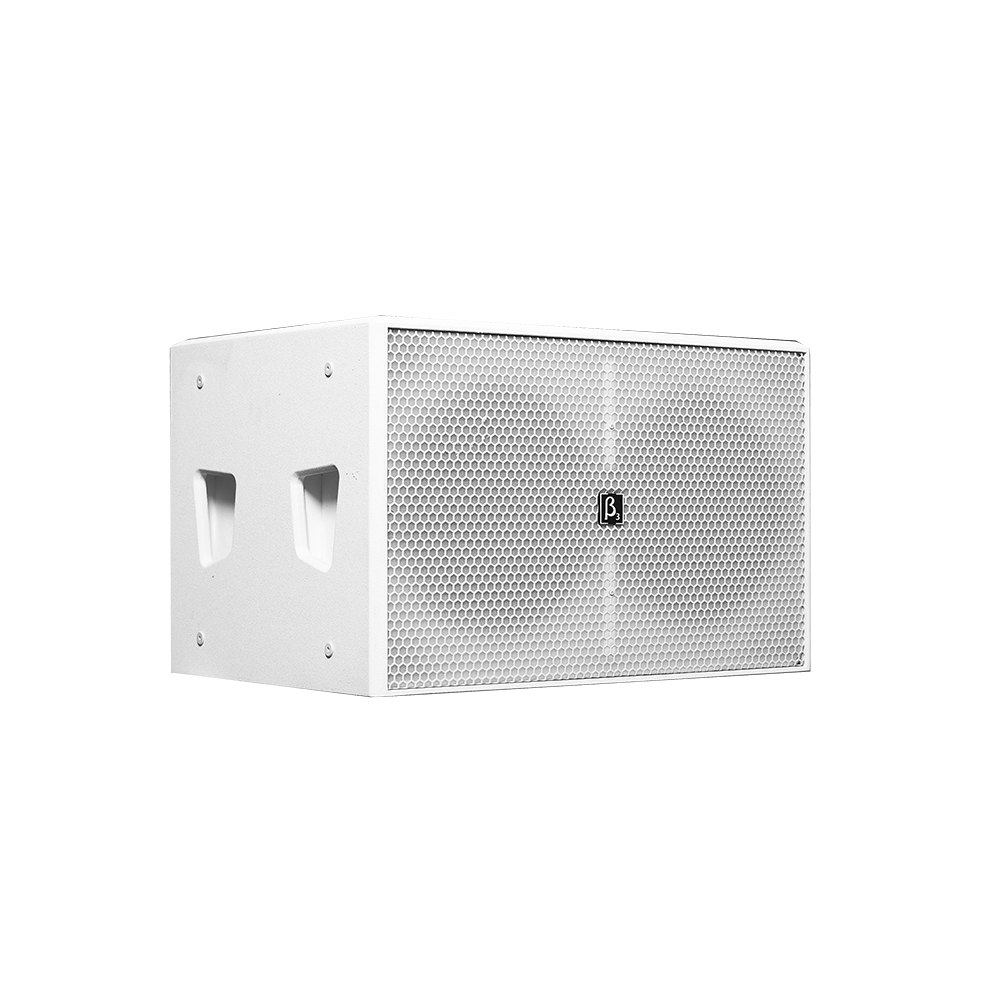

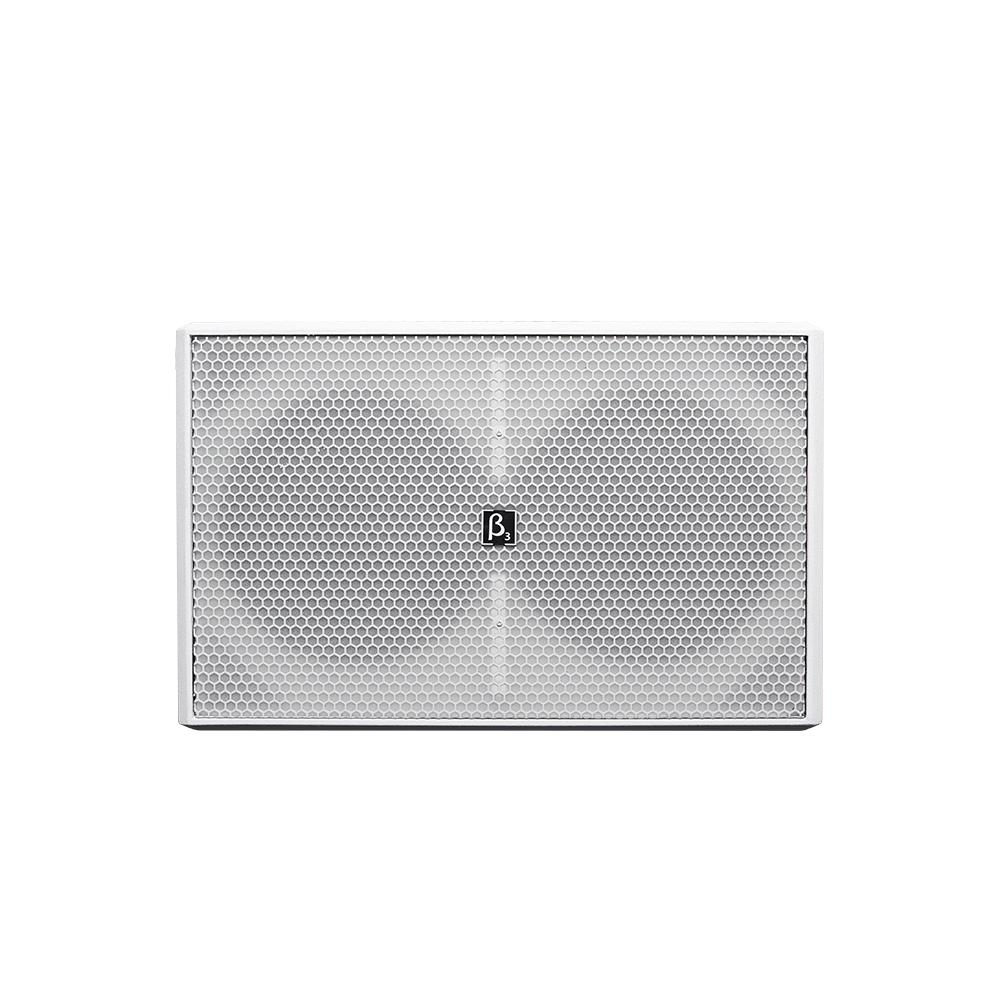

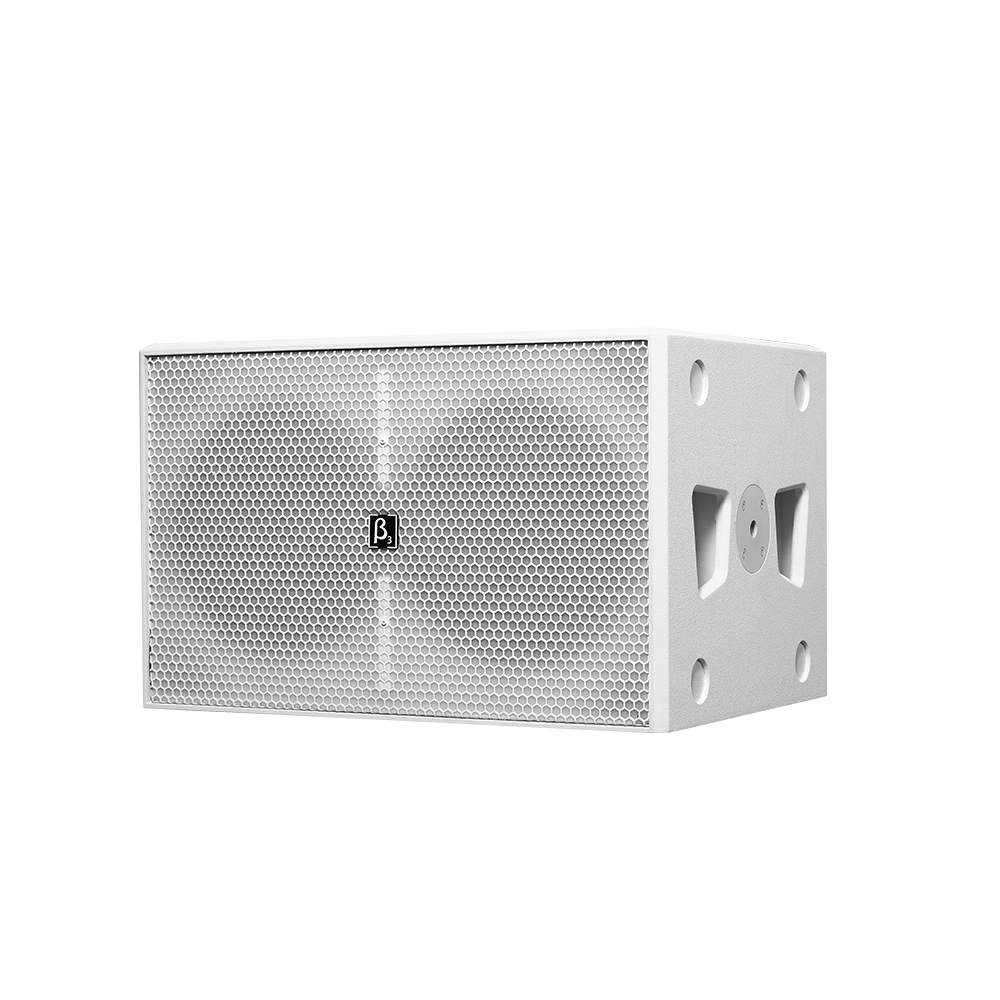

- Dual 12" high power activer subwoofer
- 4" Voice Coil woofers deliver low distortion, high fidelity output
- 800 Watt Class-D Amplifier with universal power supply

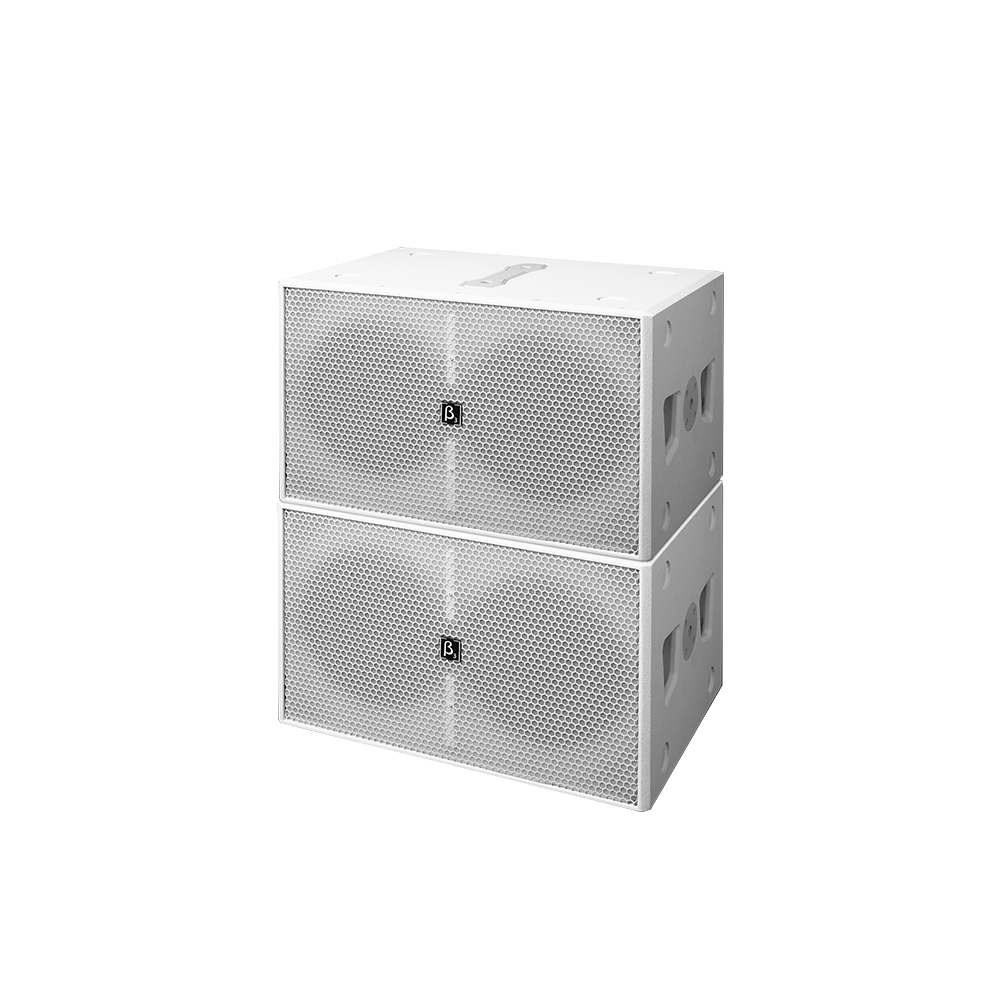

- Low profile design, vertical and horizantal stack with M20
- Easily connect to EX system
Specifications
Acoustical specifications
Frequency Response(-3db):
40Hz-100Hz
Max SPL @ 1m:
114dB/120dB( (PEAK)
Transducers
Woofer:
2 x 12" woofer
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ

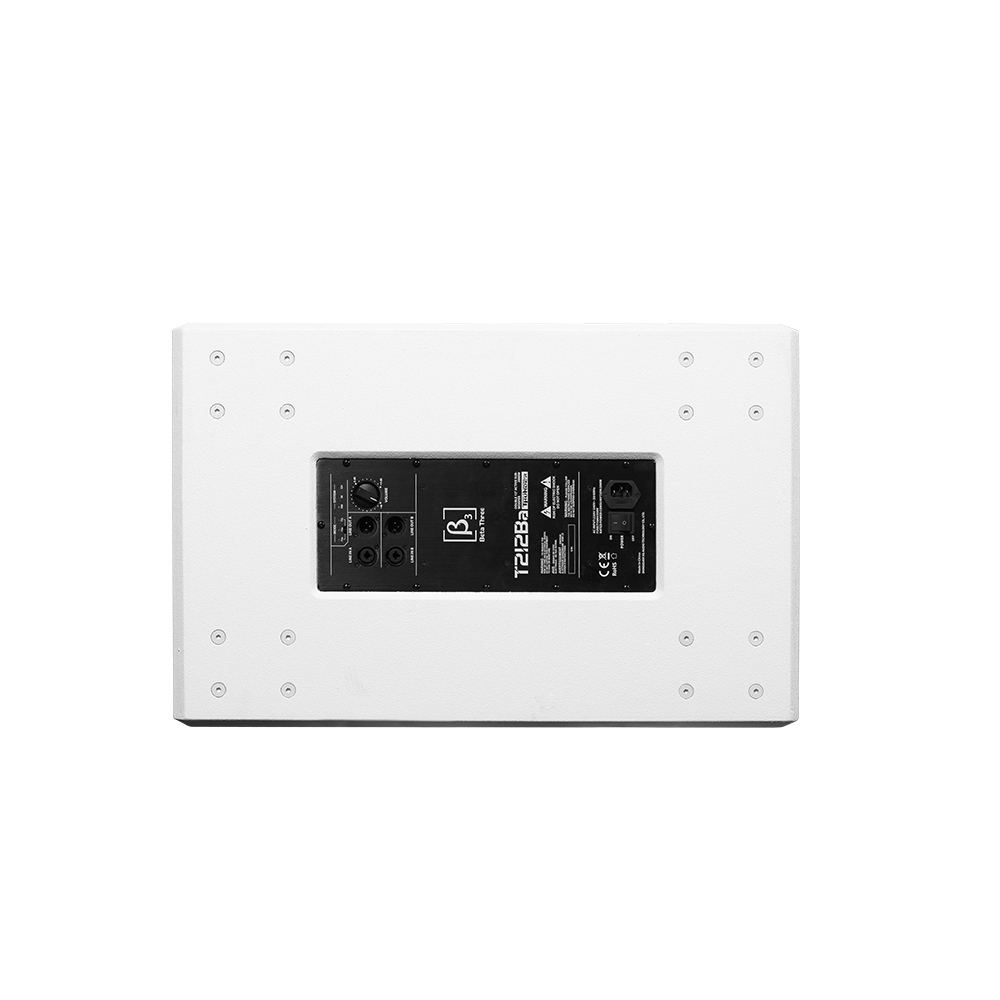

Input Connectors:
2 x Combo input, 2 x XLR output
Power section
Total Power:
800W(RMS); 1600W(MUSIC); 3200W(PEAK);
Nominal Impedance (Ohm):
4Ω
Voltage range:
AC 100V-240V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Plywood
Handles:
4 × Wooden handle
Grille:
White Polyurethane painting for cabinet & White Powder coated grille.
Color:
White
Size
Dimension (W x D x H):
460 x 520 x 720mm / (18.1 x 20.5 x 28.3in)
Package Dimensions (W x D x H):
630 x 580 x 850mm / (24.8 x 22.8 x 33.5in)
Weight
Net Weight:
42 kg / 92.6 lb
Gross Weight:
45 kg / 99.2 lb
