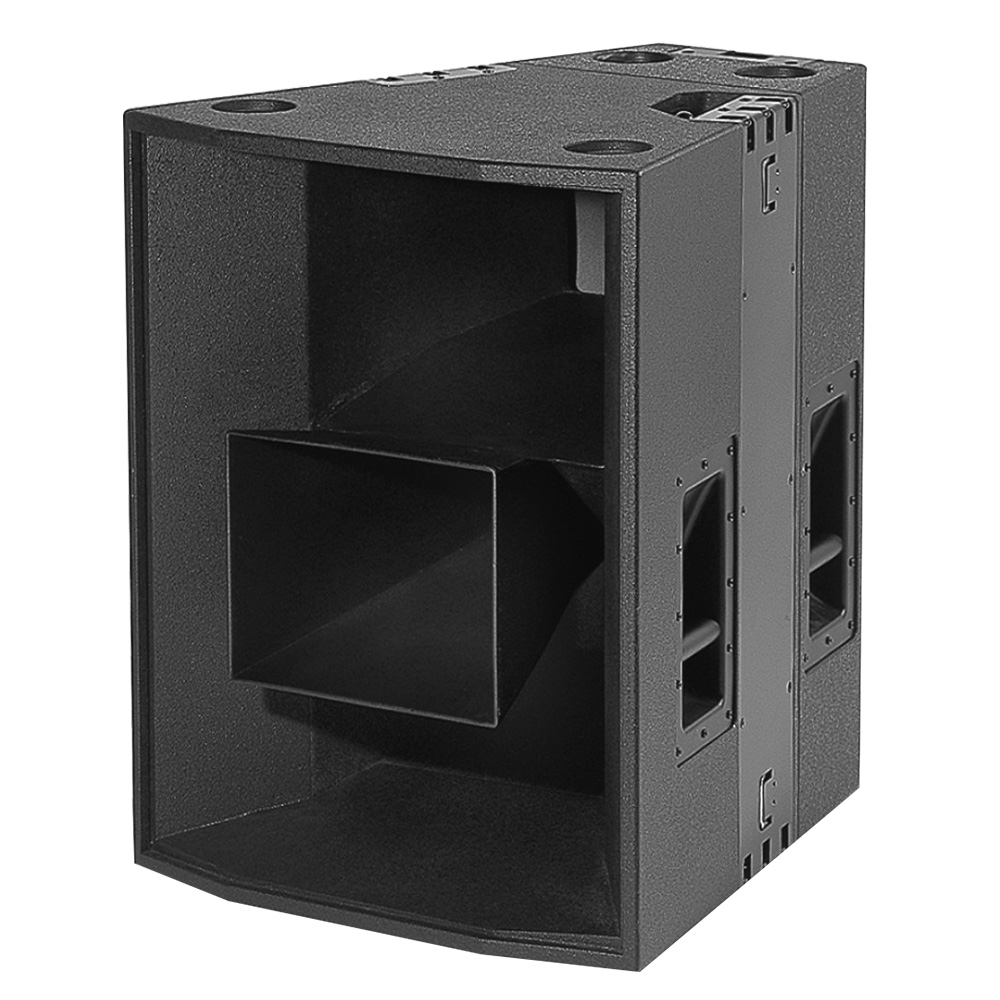

S12L Dual 12" Three Way Full Range Speaker

S12L

Dual 12" Three Way Full Range Speaker

S12L is a long through speaker, it covers 30°horizontally and 20°vertically with 5°tilted down. S12L consists of dual 12” woofers, one mid-high coaxial compression driver and two kinds of special designed horns to achieve a particular dispersion. It can be easily arranged for ground stacking and arraying. S12L can be applied as a full range crossover built-in Passive speaker or Bi-amped speaker.


Features

◇ High sound pressure and high sensitivity three-way full-range speaker system

◇ Two 12-inch low frequency drive units, one 4-inch and one 1.75-inch coaxial and one corner are integrated into one

◇ Equipped with built-in/external crossover mode switch

◇ Built-in passive crossover between mid-high frequency

◇ Three-speaker, three-way, one-tone shaft design, can obtain smooth frequency response and excellent music listening sense and large steady-state high sound pressure

◇ Precisely designed cabinet structure and pointing angle, so that the speaker array will not interfere with each other when combined

◇ It can adapt to the sound reinforcement requirements of medium, far and short distances in complex environments

◇ Suitable for large-scale sound reinforcement systems with long range and high sound pressure, such as stadiums, large-scale performances, etc.

Specifications

Acoustical specifications
Frequency Response(-3db):
150Hz-20kHz
Max SPL @ 1m:
130dB/136dB(PEAK)
Dispersion (H x V):
30° x 20°
Transducers
Compression driver:
1 x 44mm HF
Midrange:
1 x 100mm MF
Woofer:
2 x 12" LF
Input/Output section
Input Connectors:
1 x NL4
Sensitivity (1W @ 1m):
108dB
Power section
Total Power:
600W(RMS); 1200W(MUSIC); 2400W(PEAK);
Nominal Impedance (Ohm):
Physical specifications
Cabinet/Case Material:
18mm Plywood
Handles:
4 x Iron handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
580 x 720 x 660mm / (22.8 x 28.3 x 26in)
Package Dimensions (W x D x H):
770 x 840 x 690mm / (30.3 x 33.1 x 27.2in)
Weight
Net Weight:
46.5 kg / 102.5 lb
Gross Weight:
50.5 kg / 111.3 lb
