MS55/MS15Ba

Dual 5" Line Array System

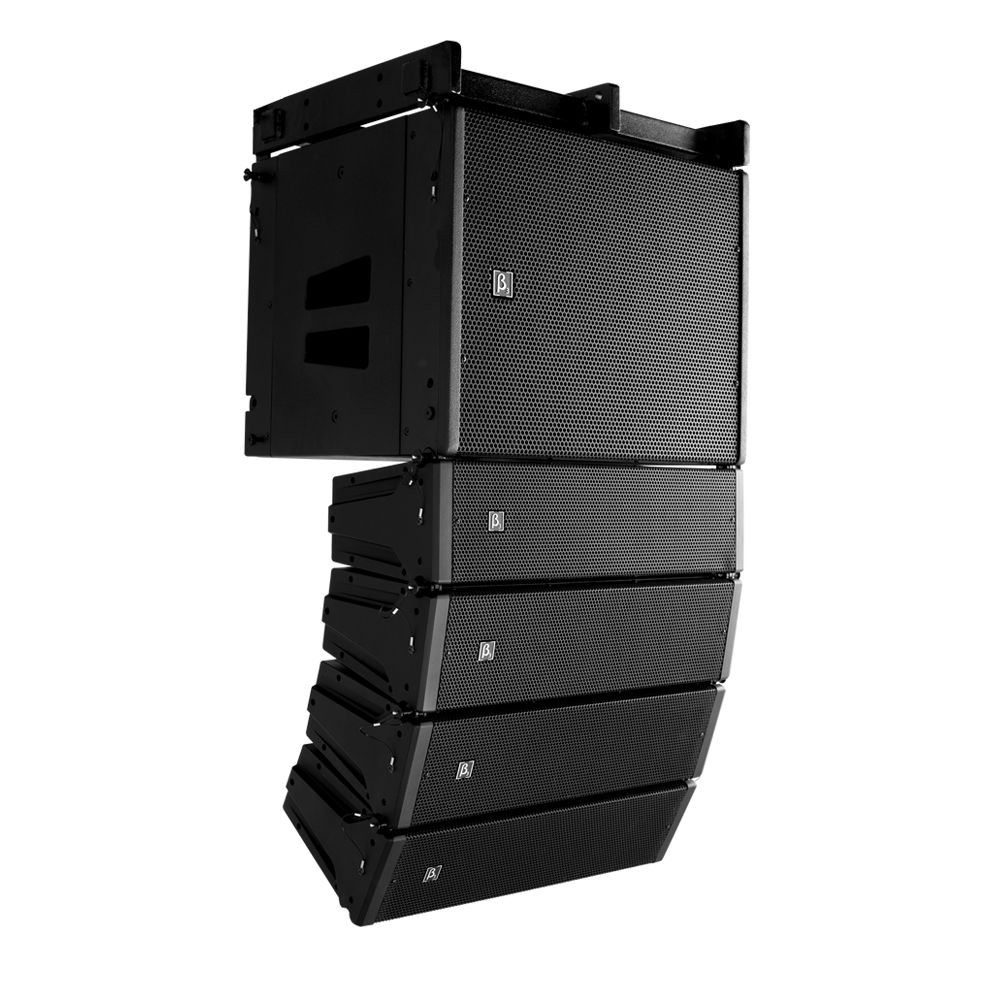

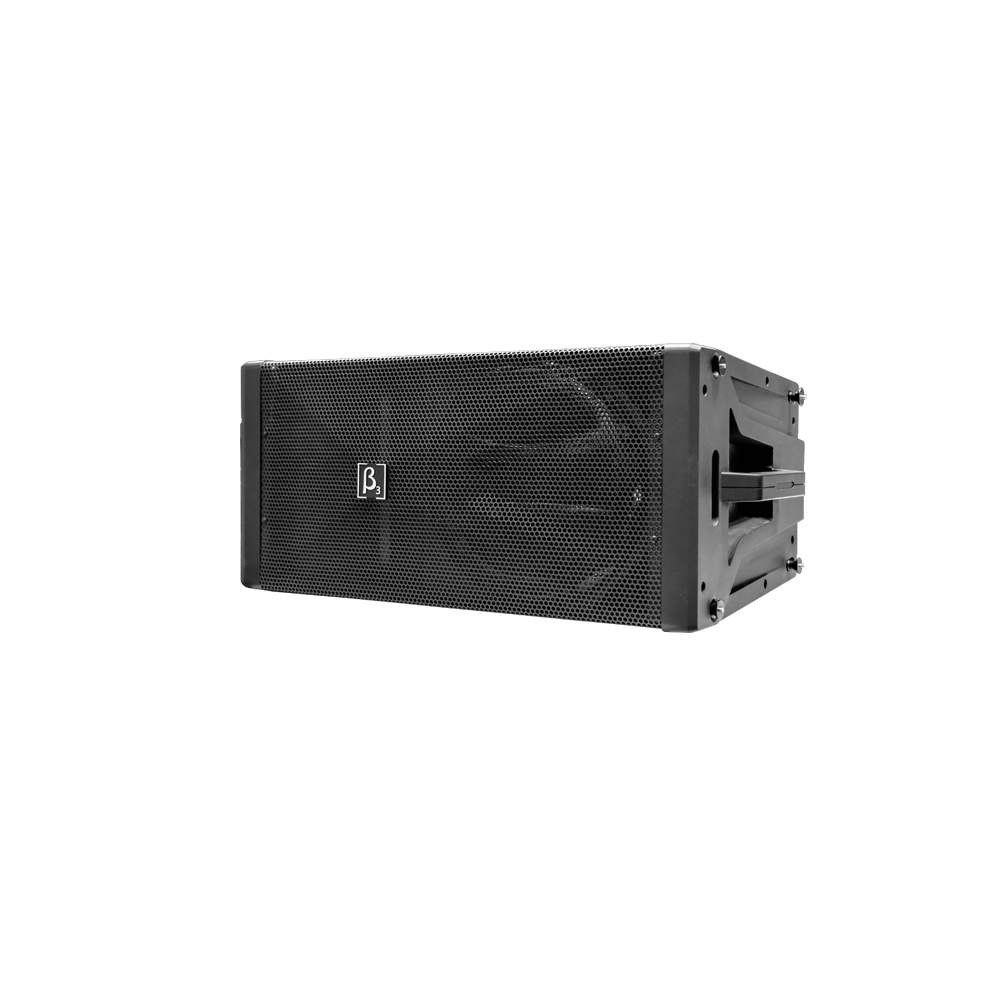

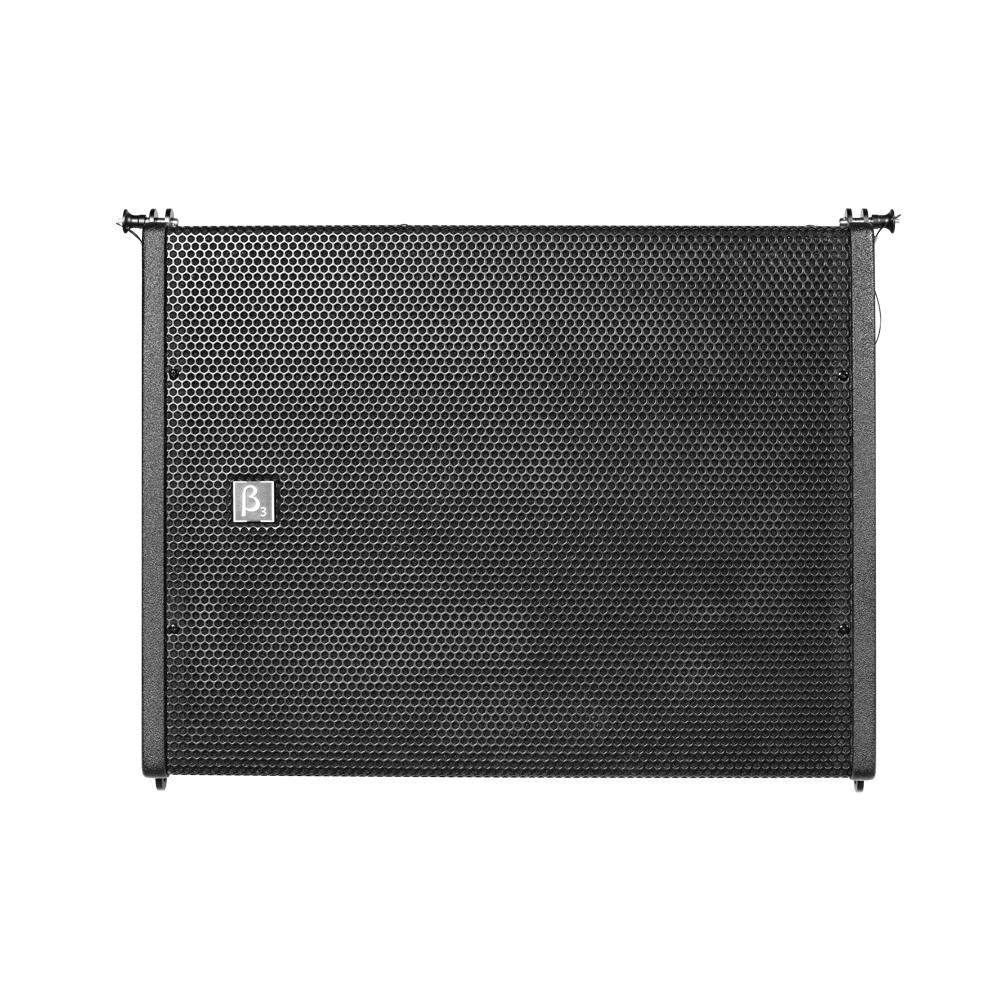

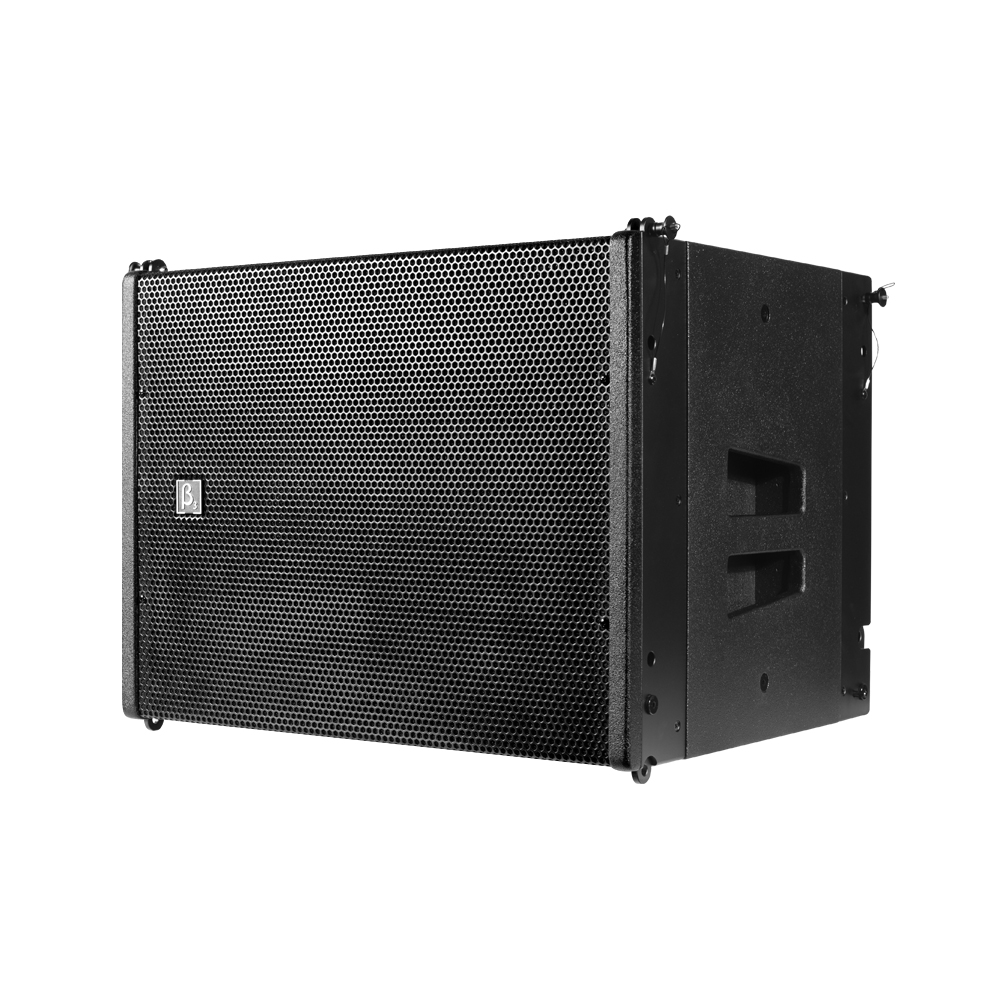

MS55/MS15Ba is mainly used in large conference rooms, multi-purpose halls, churches, auditoriums, small and medium-sized mobile performances and other places. A group of this product includes a total of 1 subwoofer and 4 full-range speakers, which can be used in multiple groups.MS55/MS15Ba is a 3-unit structure, in which 2 5.25-inch low frequency unit and 1.75-inch tweeter are composed of inverted full-range speakers, designed with linear array technology, small size, easy to use, 4 full-range speakers plus 1 Only 15-inch low frequency speakers form a linear array, which can be used in multiple groups. The surface of the speaker's surface mesh adopts the powder spraying process, so that the surface mesh not only has high strength, but also has good resistance to salt spray. Continuous use for 5 years without rust. The inside of the iron mesh is made of cotton, which can prevent the direct entry of external rainwater, and can play a role in preventing rainwater.

Features

◇ Compact and compact, suitable for a variety of environments.

◇ RS232 interface provides full control of the system.

◇ Hanging Considering different environments, the vertical angle can be adjusted at least 1°, and multiple groups can be hung.

◇ The surface of the box adopts new paint and advanced spraying technology, which makes the surface damage resistance three times higher than that of ordinary technology and paint.

◇ MS55/MS15Ba sound quality characteristics: clear, full, and without losing weight.

Specifications

Acoustical specifications
Frequency Response(-3db):
50Hz-20kHz
Max SPL @ 1m:
121dB/127dB(PEAK)
Dispersion (H x V):
90° x 10°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
2 x 5.25" LF
Input/Output section
Input Connectors:
2 x XLR
Power section
Total Power:
800W(RMS); 1600W(MUSIC); 3200W(PEAK);
Nominal Impedance (Ohm):
16Ω
Cooling:
Natural cooling
Power consumption(static):
21W
Power consumption(rated):
500W
Voltage range:
AC 220V-230V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Imported plywood
Grille:
Black plastic power coating, 1.2mm steel
Color:
Black
Size
Dimension (W x D x H):
600 x 1172.5 x 480mm / (23.6 x 46.2 x 18.9in)
Package Dimensions (W x D x H):
690 x 1805 x 725mm / (27.2 x 71.1 x 28.5in)
Weight
Net Weight:
89.7 kg / 197.8 lb
Gross Weight:
100 kg / 220.5 lb
