Features

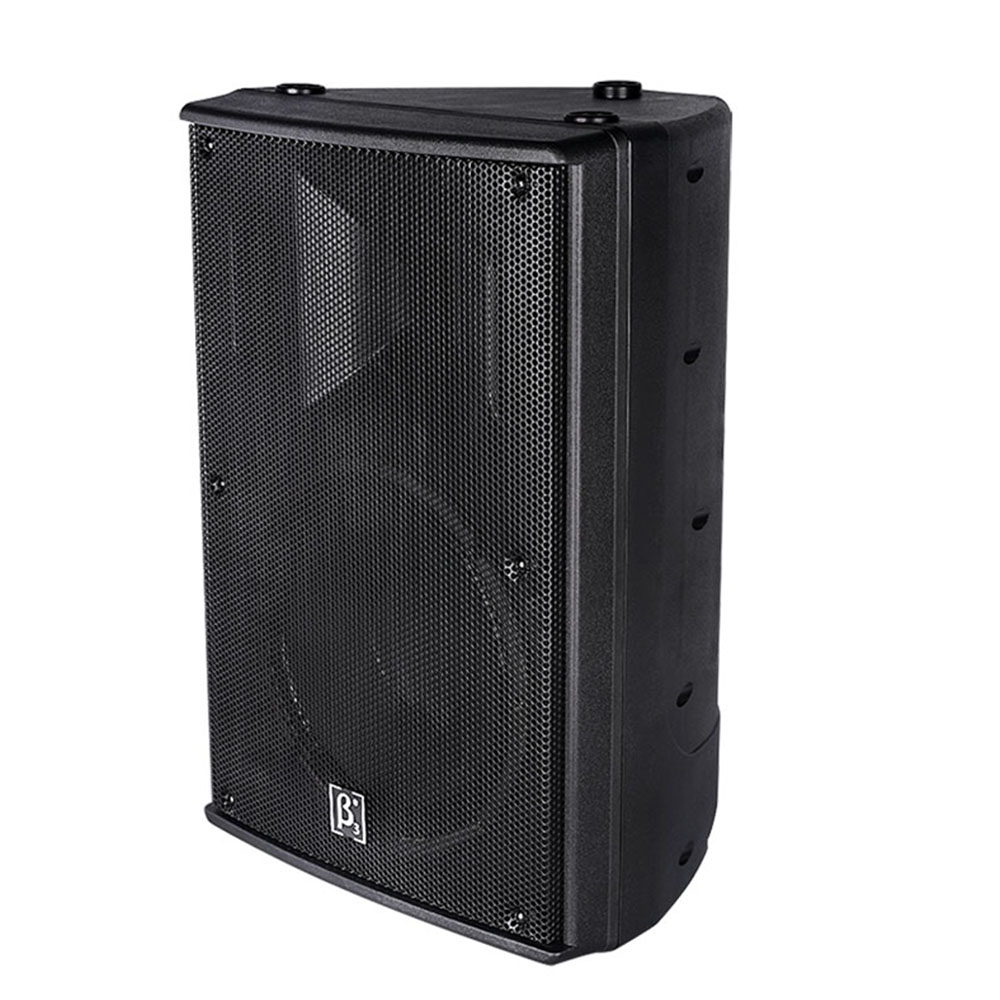

- 2-way small full-range speaker.
- A 8-inch high-sensitivity Cloth edge woofer,
- a φ34mm tweeter titanium diaphragm driver.
- New rotatable tweeter horn. Waterproof case. There are suspension mounting points around the speaker.
- Mid and treble are transparent and clear, with good vocal performance, and can interpret all kinds of music.
- Suitable for cultural tourism, water features, music fountains and other places
Specifications
Acoustical specifications
Frequency Response(-3db):
65Hz-18kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
90° x 90°
Transducers
Compression driver:
1 x 1.5" HF
Woofer:
1 x 8" LF
Input/Output section
Input Connectors:
1 x NL4
Sensitivity (1W @ 1m):
92dB
Power section
Total Power:
100W(RMS); 200W(MUSIC); 400W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
277 x 257 x 400mm / (10.9 x 10.1 x 15.7in)
Package Dimensions (W x D x H):
595 x 310 x 600mm / (23.4 x 12.2 x 23.6in)
Weight
Net Weight:
8.5 kg / 18.7 lb
Gross Weight:
10.5 kg / 23.1 lb
N8F Application
N8F Installation
N8F Parts
N8F Cases
N8F Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 N8F Datasheet | 1.0 |  | 200KB | 2024-11-23 01:47:14 |
