Features
- 2-way small full-range speaker.
- A 6-inch high-sensitivity Cloth edge woofer,
- a φ34mm tweeter titanium diaphragm driver.

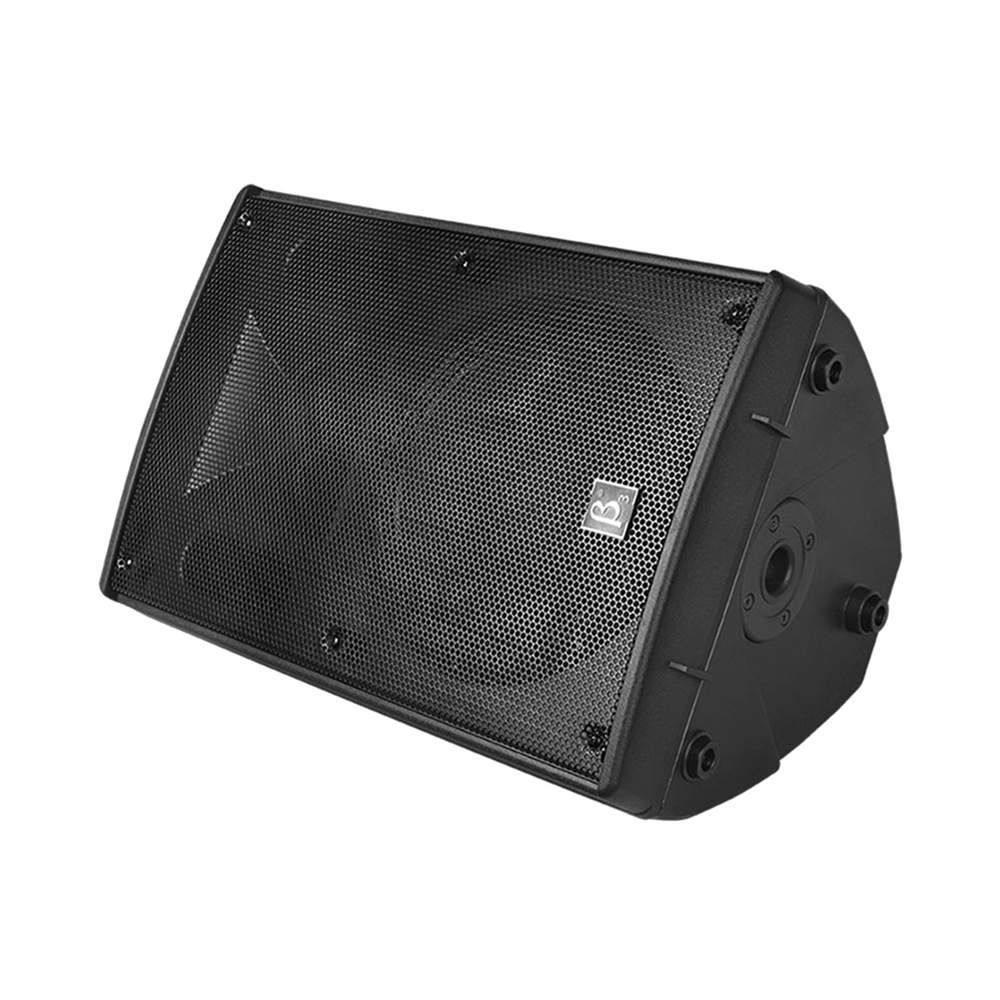

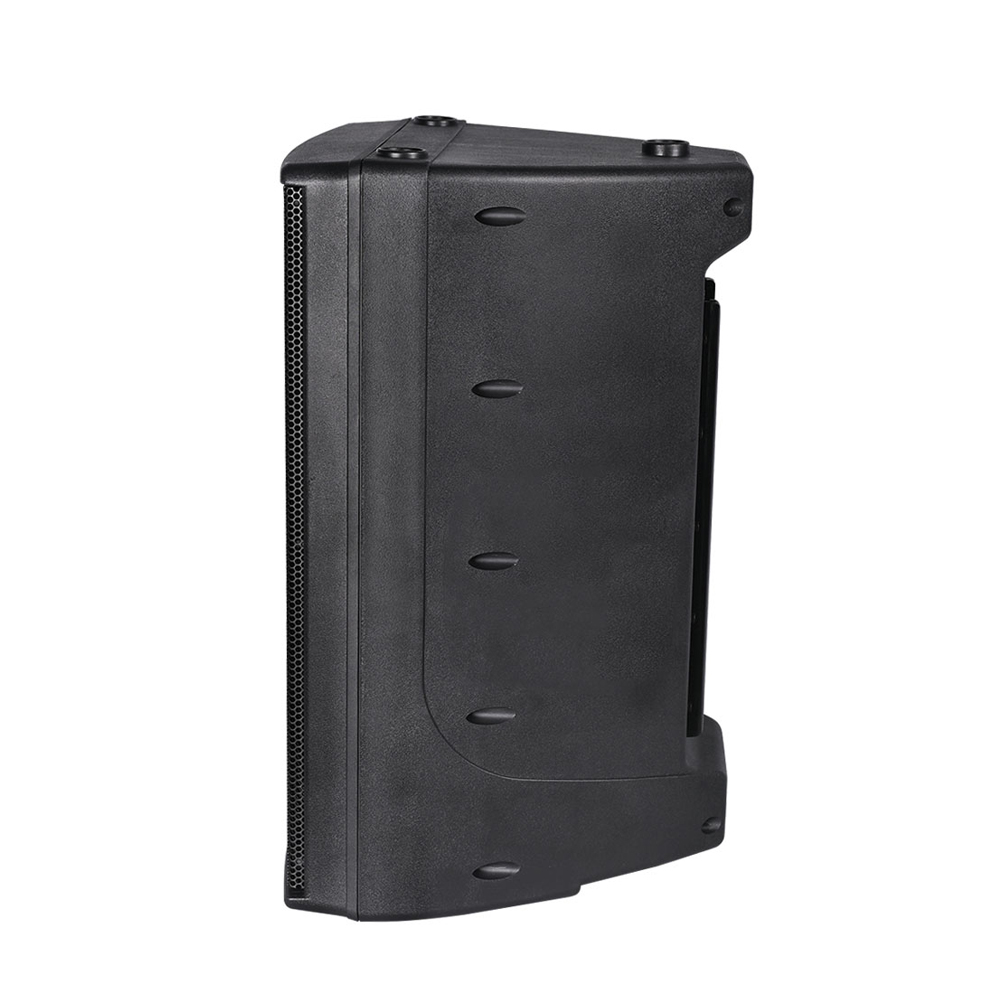

- New rotatable tweeter horn. Waterproof case. There are suspension mounting points around the speaker.
- Mid and treble are transparent and clear, with good vocal performance, and can interpret all kinds of music.
- Suitable for cultural tourism, water features, music fountains and other places
Specifications
Acoustical specifications
Frequency Response(-3db):
60Hz-18kHz
Max SPL @ 1m:
111dB/117dB(PEAK)
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 1" HF
Woofer:
1 x 6" LF
Input/Output section
Input Connectors:
1 x NL4
Sensitivity (1W @ 1m):
92dB
Power section
Total Power:
80W(RMS); 160W(MUSIC); 320W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
225 x 200 x 325mm / (8.9 x 7.9 x 12.8in)
Package Dimensions (W x D x H):
270 x 270 x 405mm / (10.6 x 10.6 x 15.9in)
Weight
Net Weight:
7.0 kg / 15.4 lb
Gross Weight:
8.2 kg / 18.1 lb
