Features

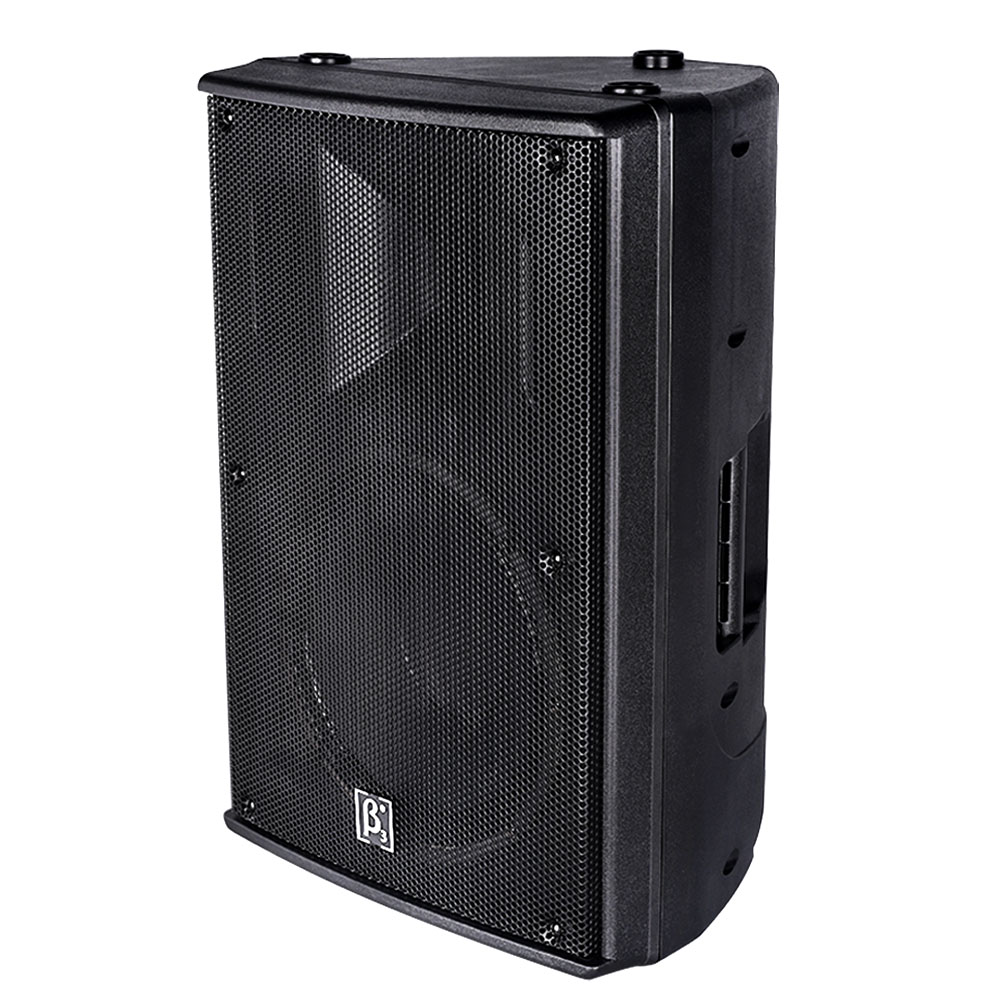

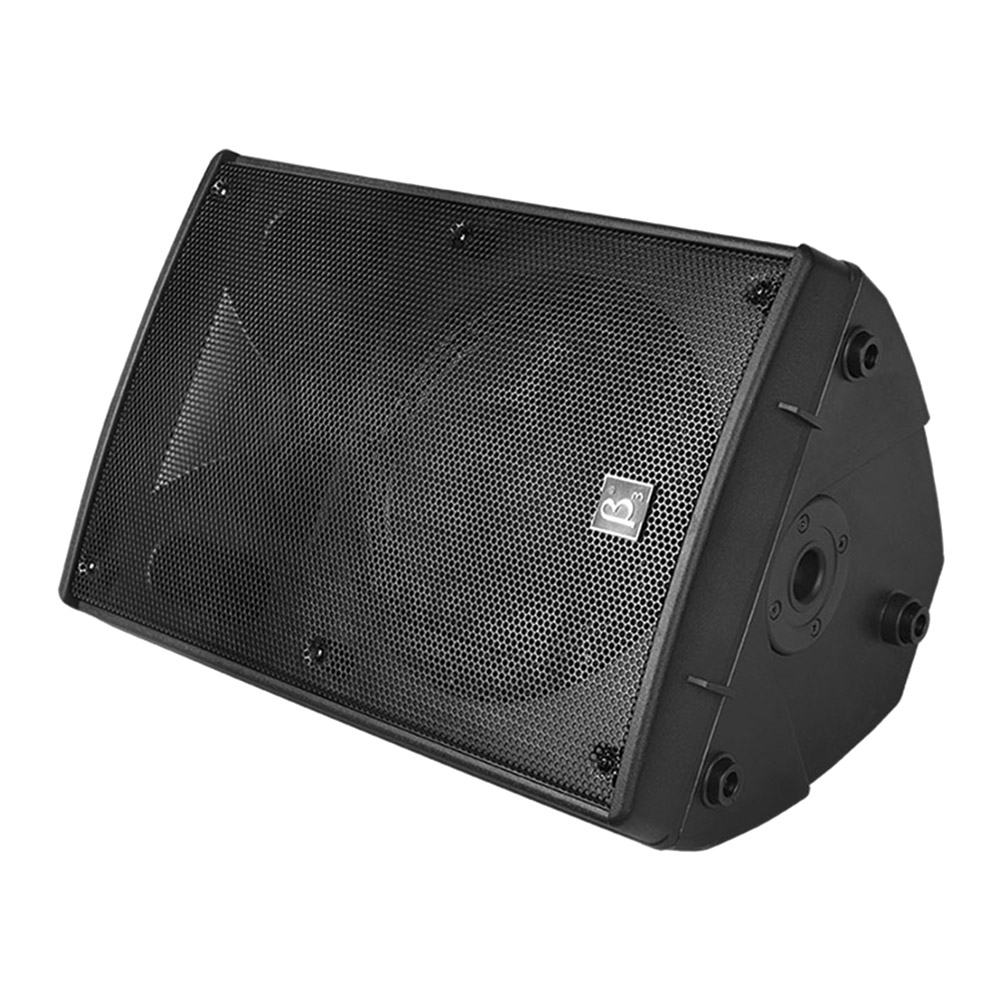

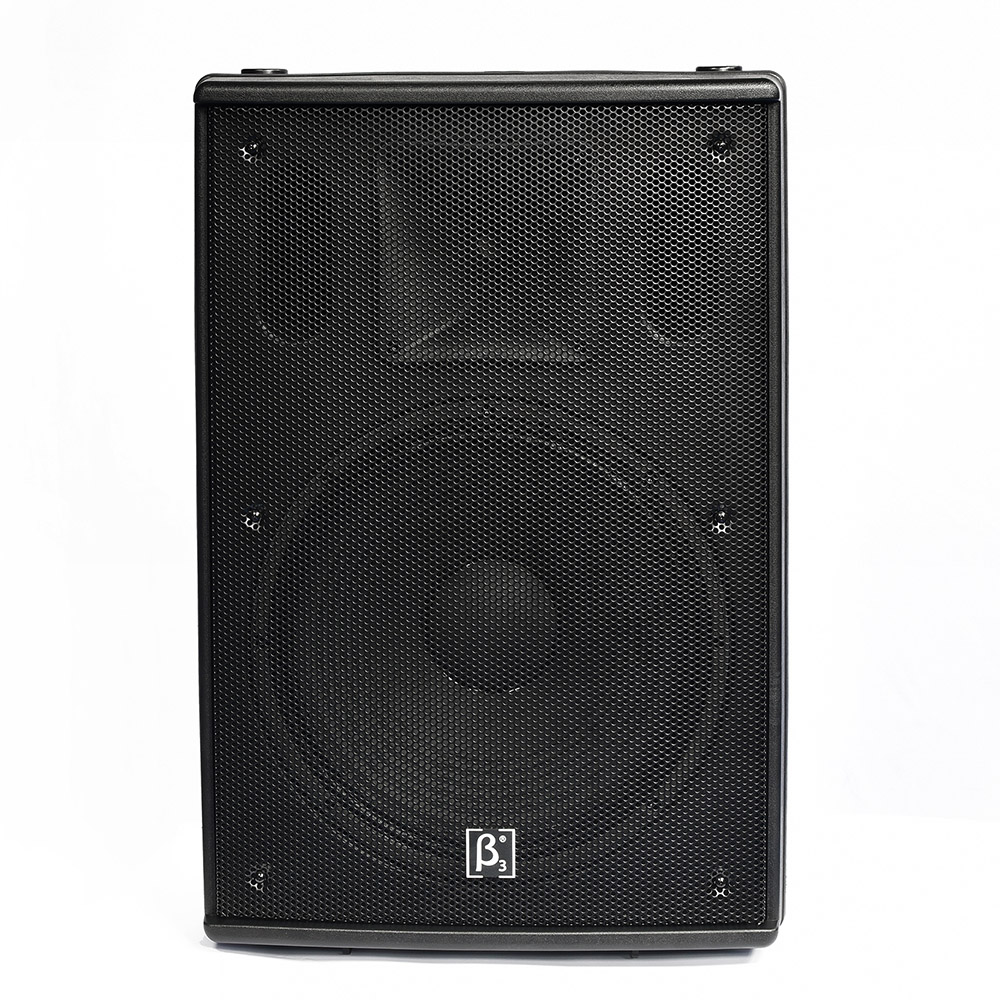

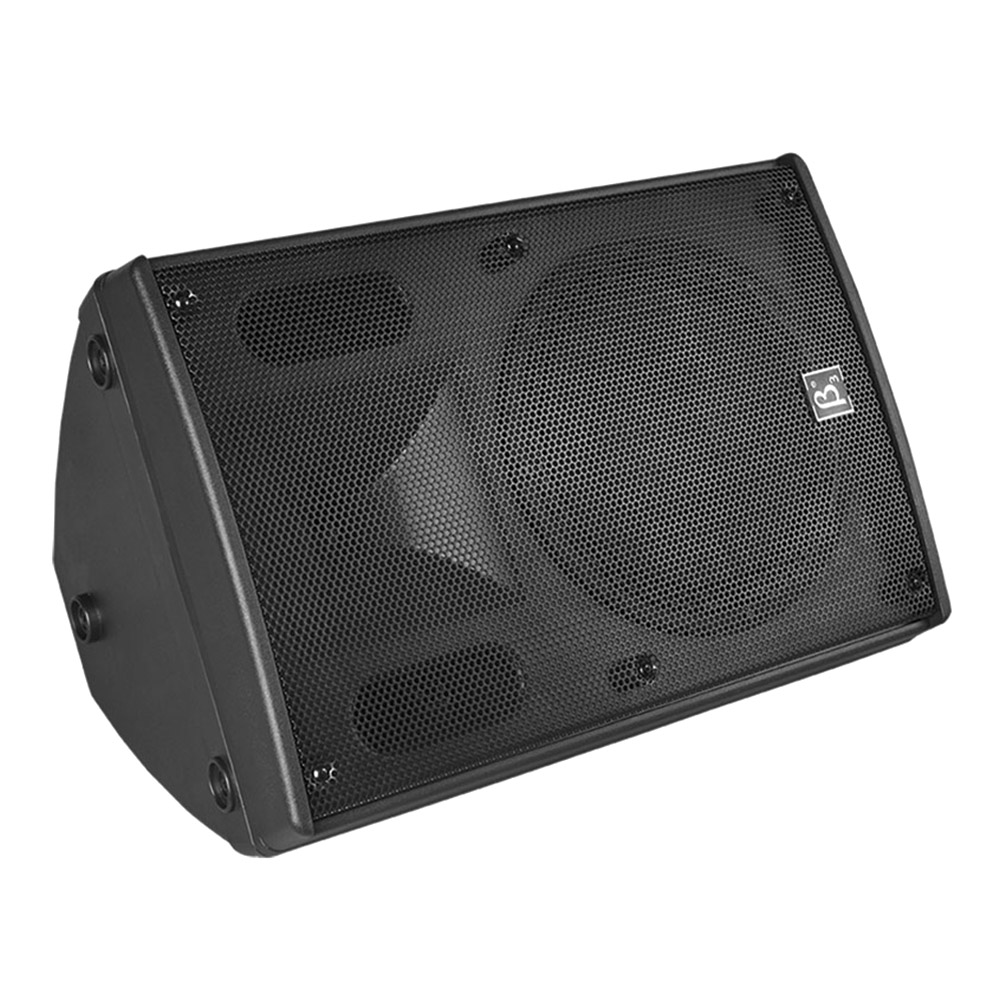

- 2-way small full-range speaker.
- A 15-inch high-sensitivity Cloth edge woofer,
- a φ44mm tweeter titanium diaphragm driver.

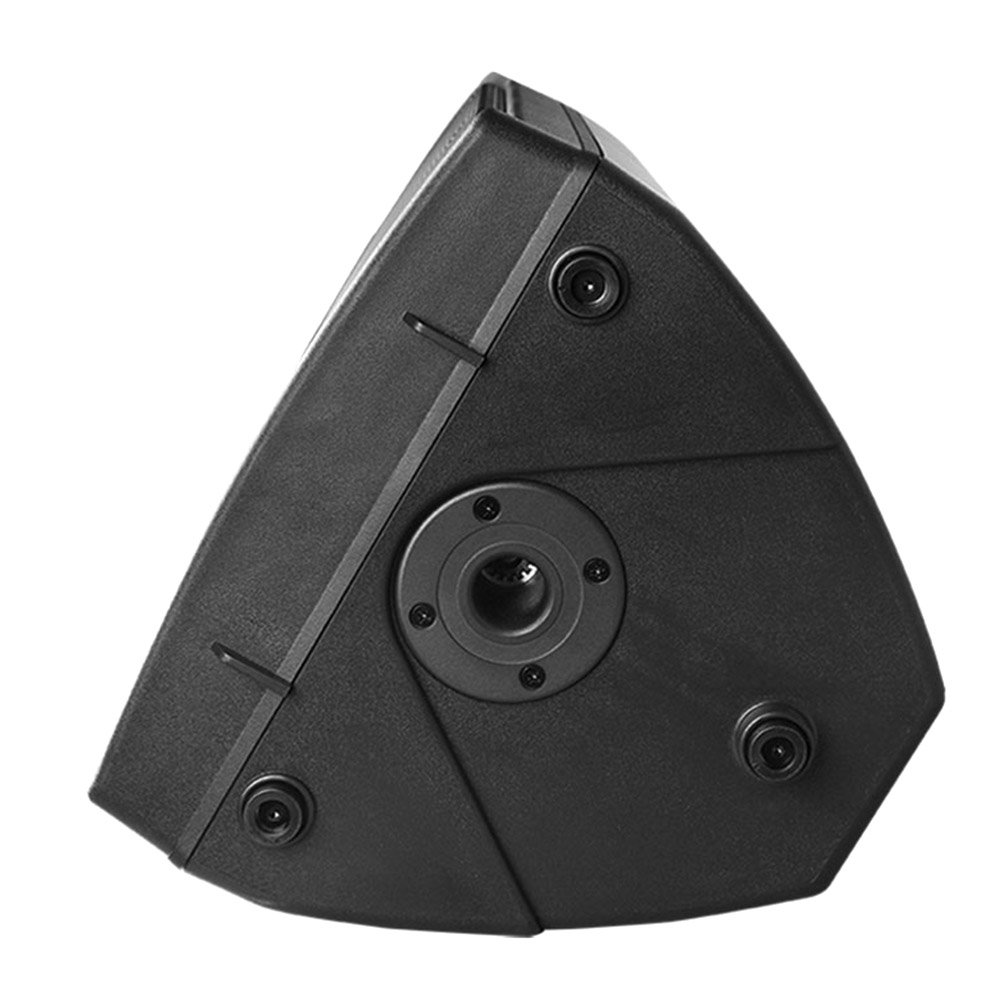

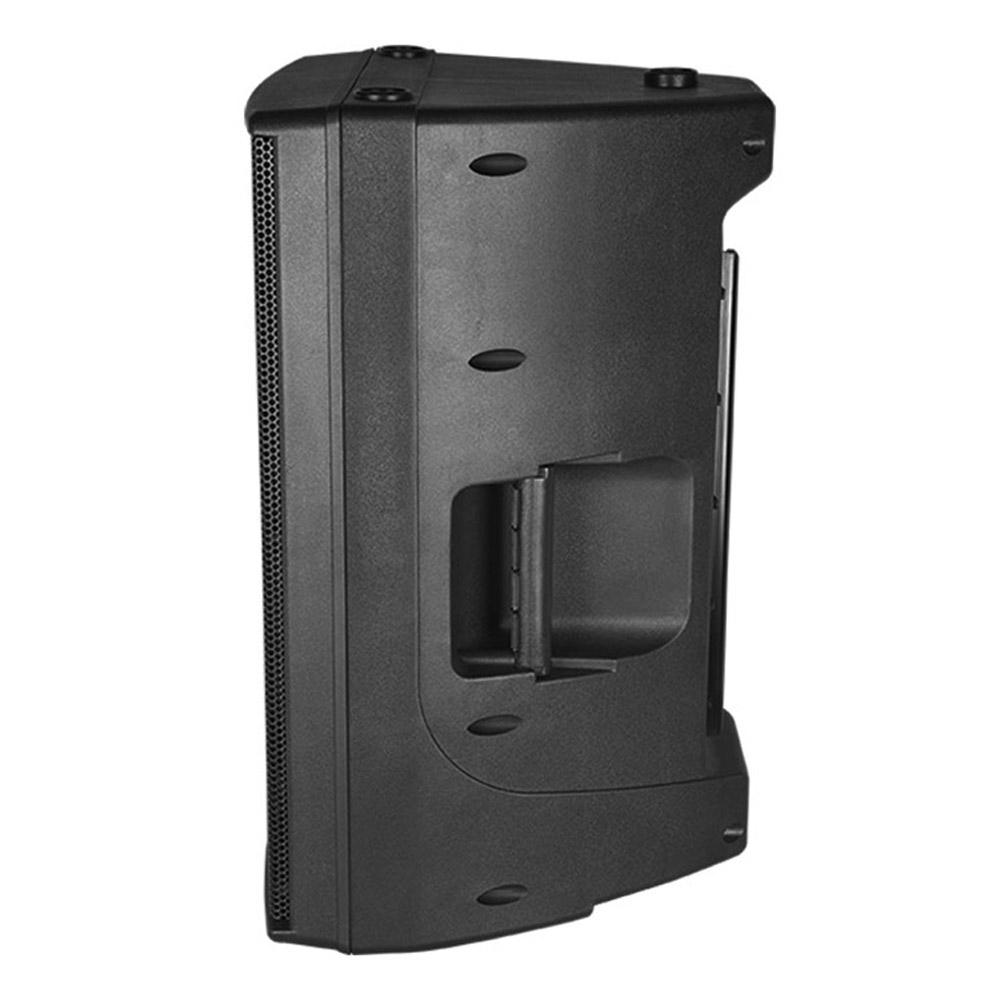

- New rotatable tweeter horn. Waterproof case. There are suspension mounting points around the speaker.
- Mid and treble are transparent and clear, with good vocal performance, and can interpret all kinds of music.
- Suitable for cultural tourism, water features, music fountains and other places
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-18KHz
Max SPL @ 1m:
122dB/128dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
1 x 44mm HF
Woofer:
1 x 15" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
97dB
Processor section
Crossover frequencies:
2kHz
Power section
Total Power:
300W(RMS); 600W(MUSIC); 1200W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
488 x 460 x 700mm / (19.2 x 18.1 x 27.6in)
Package Dimensions (W x D x H):
545 x 515 x 800mm / (21.5 x 20.3 x 31.5in)
Weight
Net Weight:
24.5 kg / 54 lb
Gross Weight:
27 kg / 59.5 lb
