Features
- 2-way small full-range speaker.
- A 12-inch high-sensitivity Cloth edge woofer,
- a φ34mm tweeter titanium diaphragm driver.

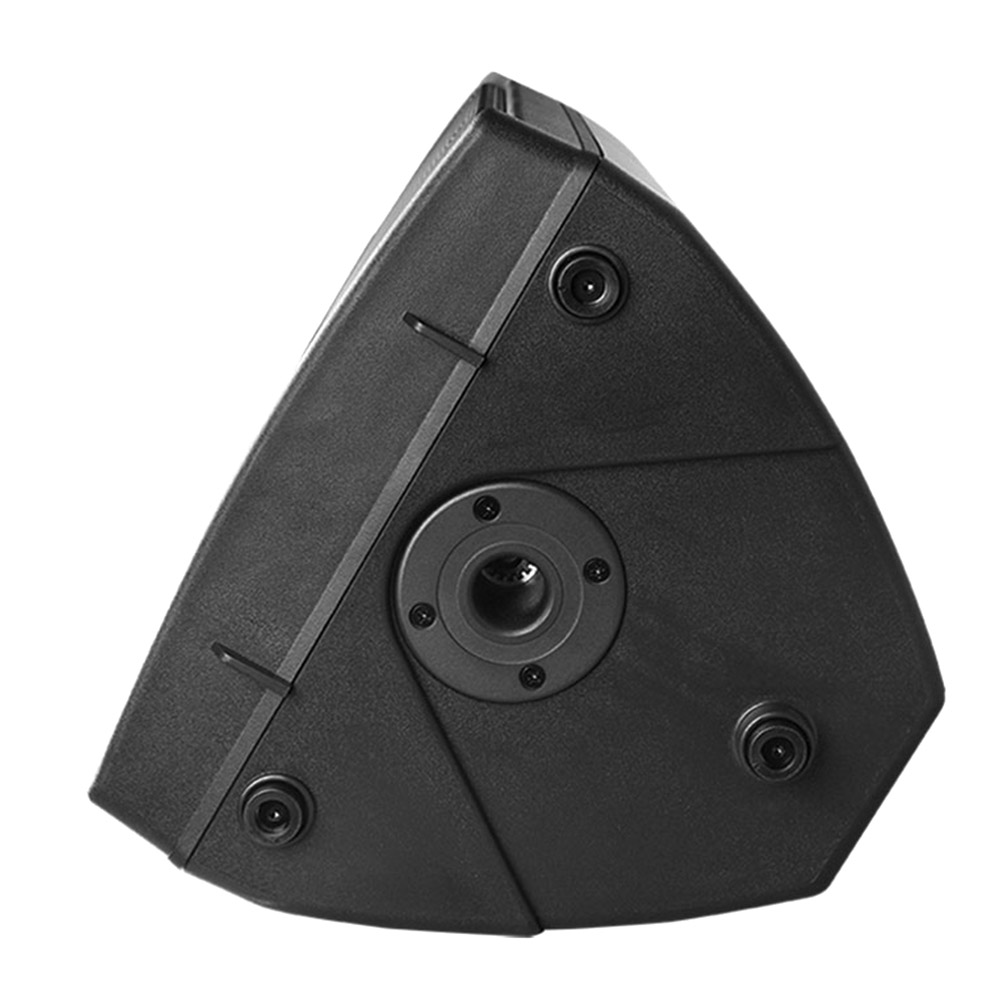

- New rotatable tweeter horn. Waterproof case. There are suspension mounting points around the speaker.
- Mid and treble are transparent and clear, with good vocal performance, and can interpret all kinds of music.
- Suitable for cultural tourism, water features, music fountains and other places
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-18kHz
Max SPL @ 1m:
122dB/128dB(PEAK)
Dispersion (H x V):
90° x 90°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 12" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
97dB
Power section
Total Power:
300W(RMS); 600W(MUSIC); 1200W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
415 x 371 x 609mm / (16.3 x 14.6 x 24in)
Package Dimensions (W x D x H):
465 x 435 x 680mm / (18.3 x 17.1 x 26.8in)
Weight
Net Weight:
18 kg / 39.7 lb
Gross Weight:
20 kg / 44.1 lb
