Features
- Two new 3-inch paper cone mid-high frequency drivers.
- 6-inch paper cone low frequency driver.
- High intensity injection moulding cabinet.
- Dispersion 140° x 160°
- Frequency response 80 Hz-16k Hz (-3dB).
- Sensitivity 88dB, Max SPL 120 dB.

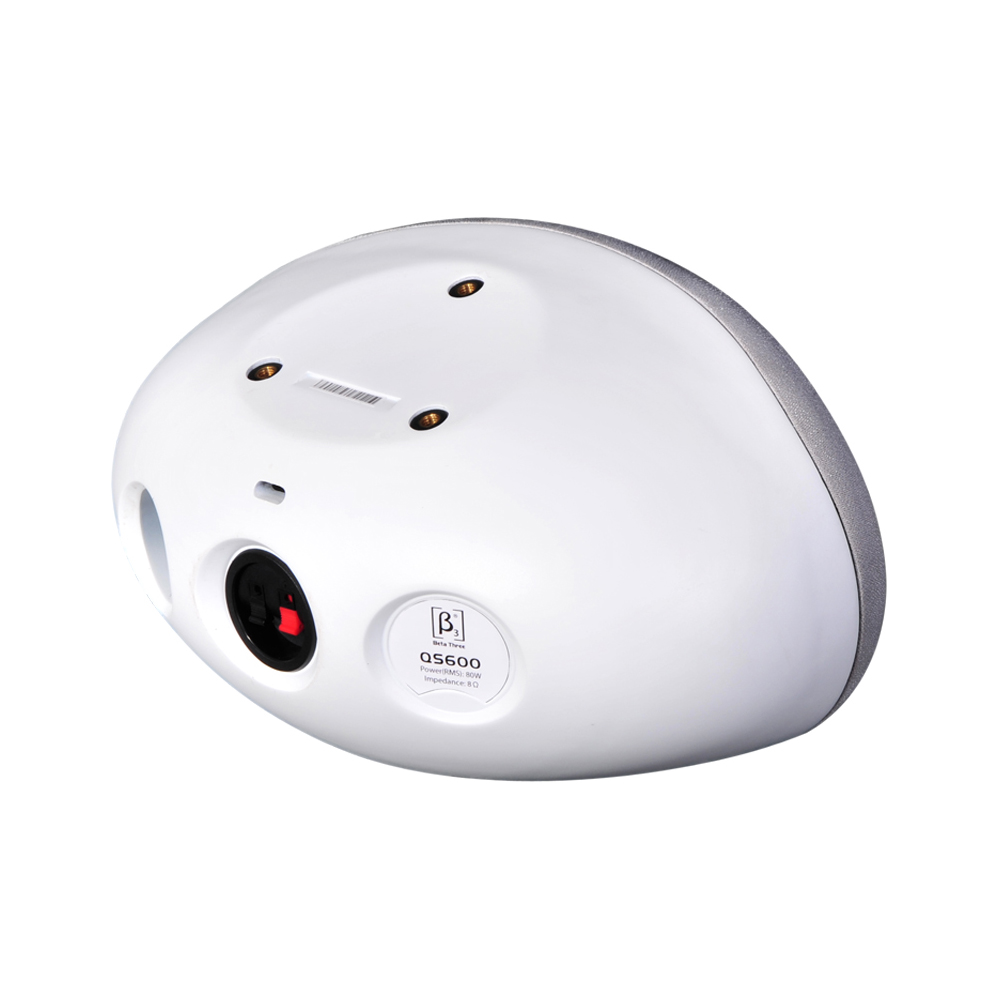

- 3 x M8 hang point.

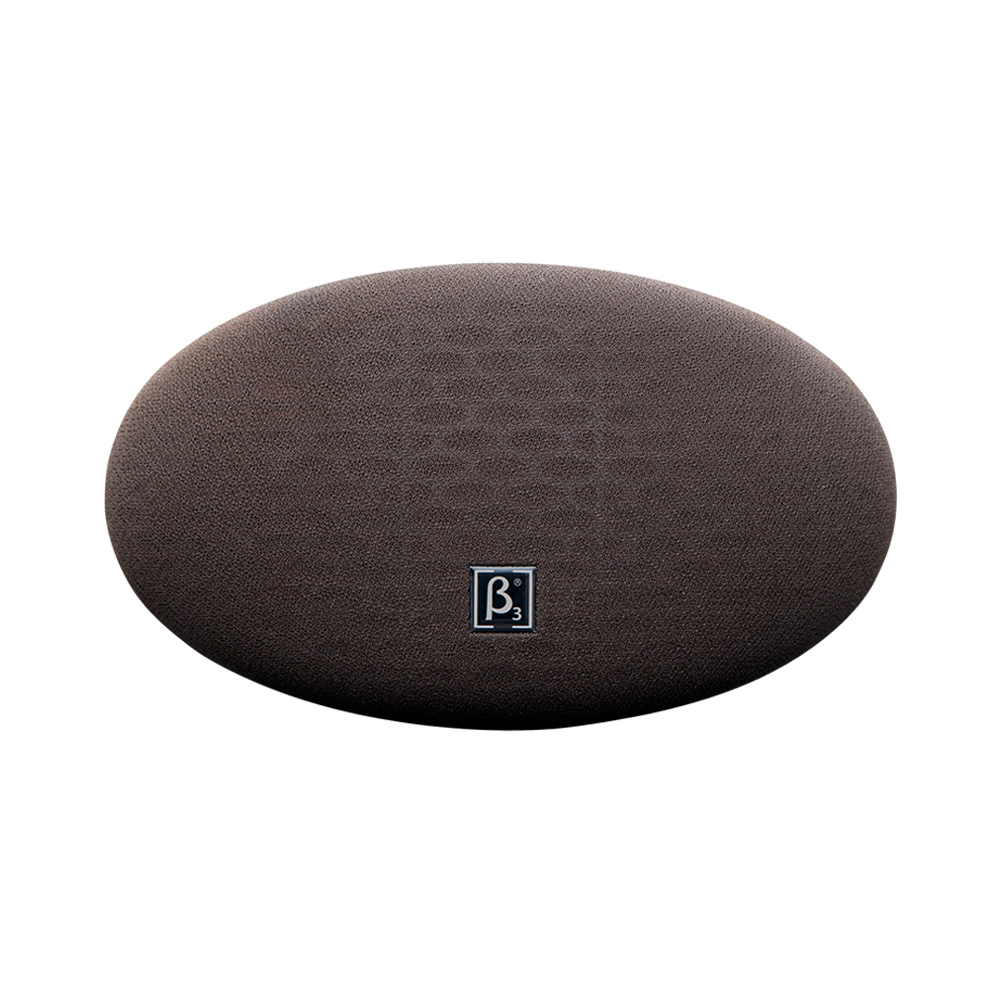

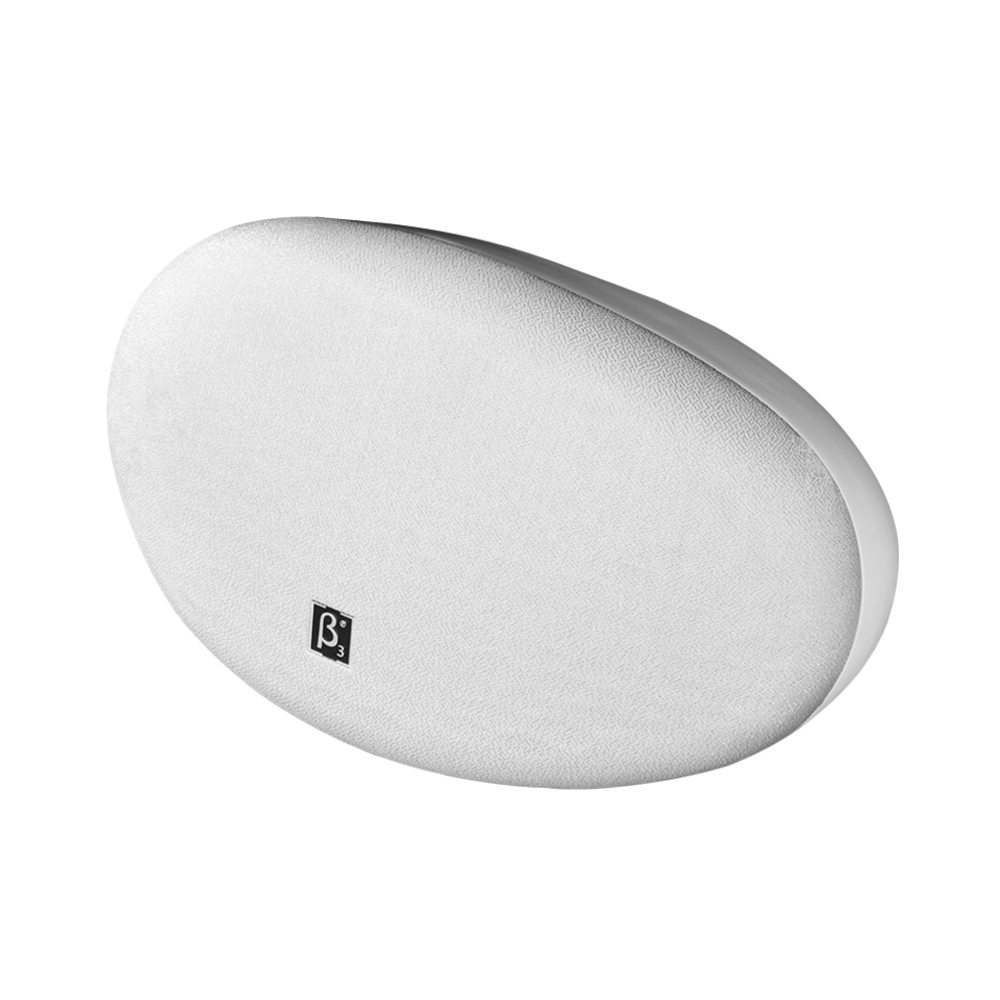

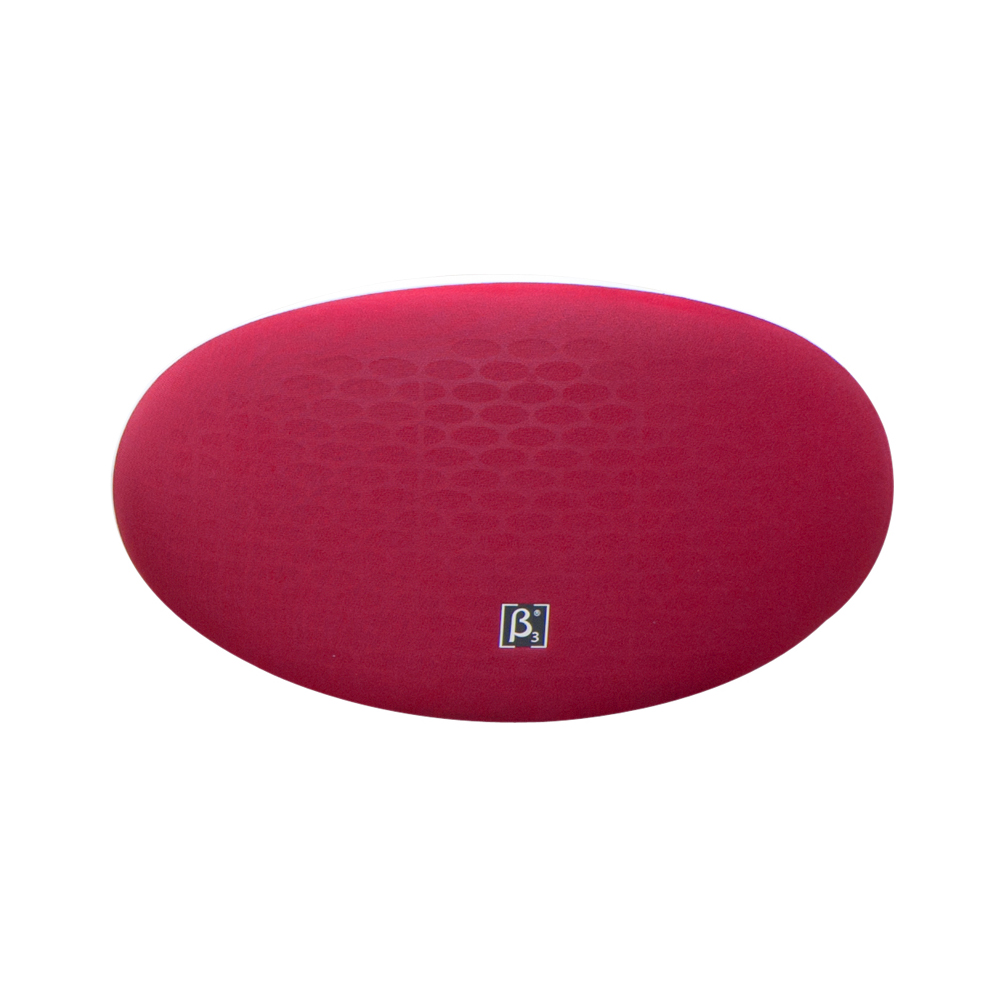

- Customizable grill and cabinet color.
- Optional QS600T with built-in transformer allowing 70v/100v/120v voltage output and diredt 8Ω.

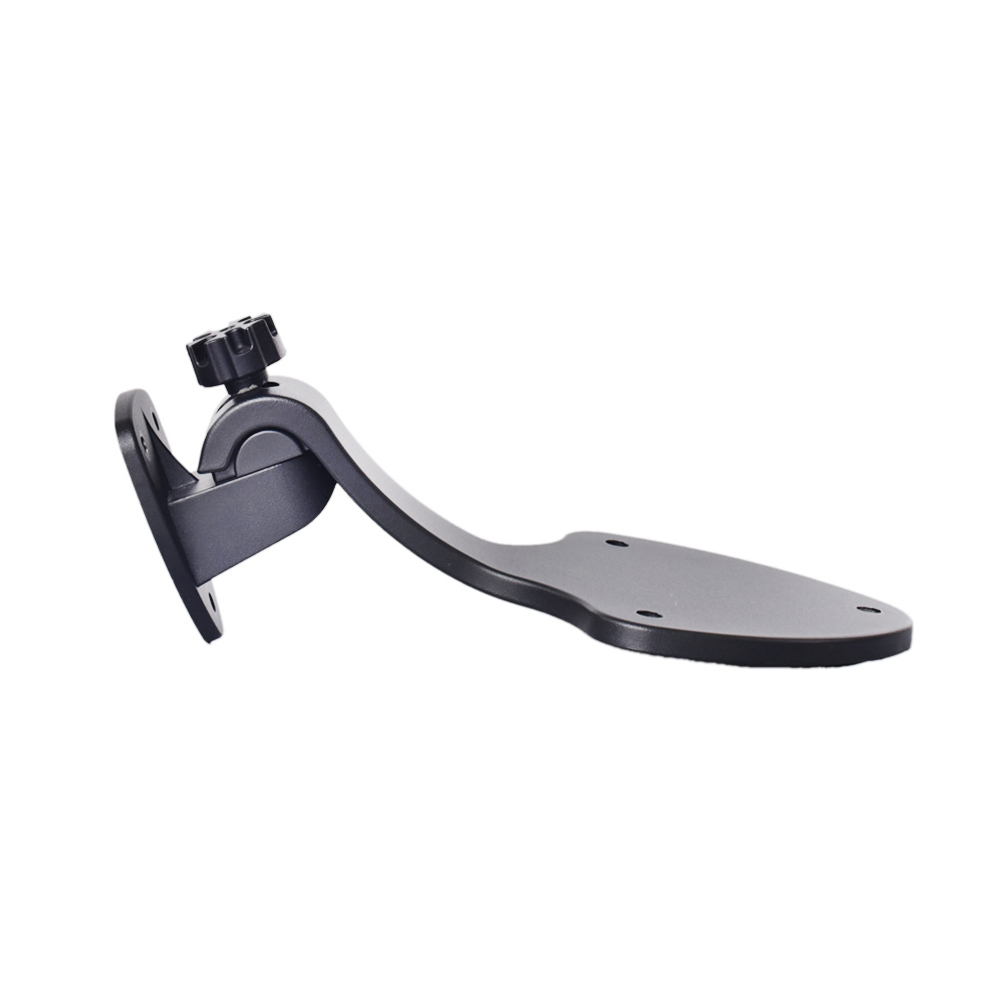

- Built-in mounting bracket
Specifications
Acoustical specifications
Frequency Response(-3db):
80Hz-16kHz
Max SPL @ 1m:
114dB/120dB(PEAK)
Dispersion (H x V):
140° x 160°
Transducers
Compression driver:
2 x 3" HF
Woofer:
1 x 6" LF
Input/Output section
Input Connectors:
Wire clamp
Sensitivity (1W @ 1m):
88dB
Processor section
Crossover frequencies:
2.5kHz
Power section
Total Power:
80W(RMS); 160W(MUSIC); 320W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:
3 x M8 Bracket lifting point
Grille:
Cabinet Exterior with/without polyurethane spraying treatment (depends on colors)Grill with cloth
Color:
Black
Size
Dimension (W x D x H):
399 x 241 x 229mm / (15.7 x 9.5 x 9in)
Package Dimensions (W x D x H):
452 x 310 x 525mm / (17.8 x 12.2 x 20.7in)
Weight
Net Weight:
4.5 kg / 9.9 lb
Gross Weight:
5 kg / 11 lb
