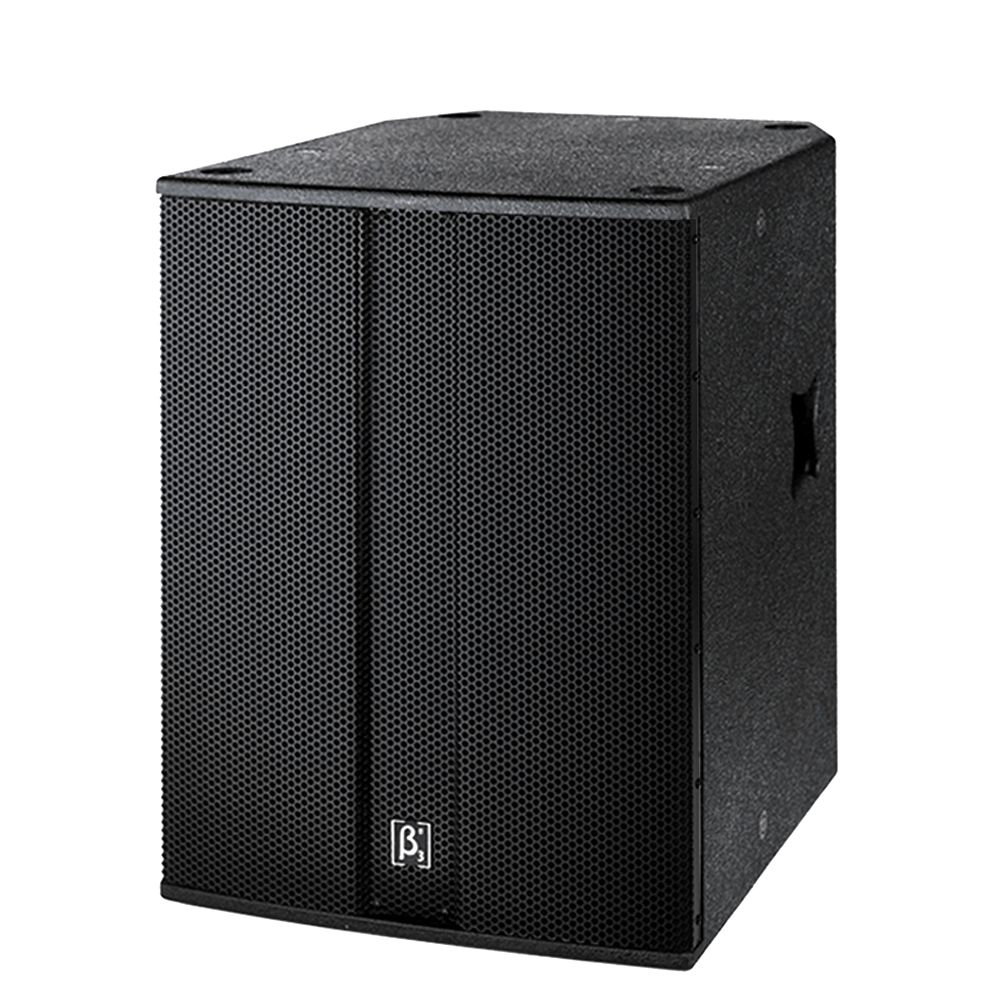

Features
- 15” LF driver with 100mm voice coil
- 220mm big magnet system which enables high power handling and reliability
- 100mm mid range and 44mm HF coaxial driver design which obtain high SPL and big dynamic with RMS power 750W
- High intensity plywood cabinet, LF extension horn design is to improve effective sensitivity
- Coaxial mid-high and low driver horn is non-symmetrical which reduce the sound interference by symmetrical sound wave
- Match with Beta Three ΣH118B bass speaker with ΣC2600 processor for high quality sound reproduction
Specifications
Acoustical specifications
Frequency Response(-3db):
48Hz-20kHz
Max SPL @ 1m:
135dB/141dB(PEAK)
Dispersion (H x V):
40° x 100°
Transducers
Compression driver:
1 x 44mm Coaxial Driver
Midrange:
1 x 100mm MF
Woofer:
1 x 15" LF
Input/Output section

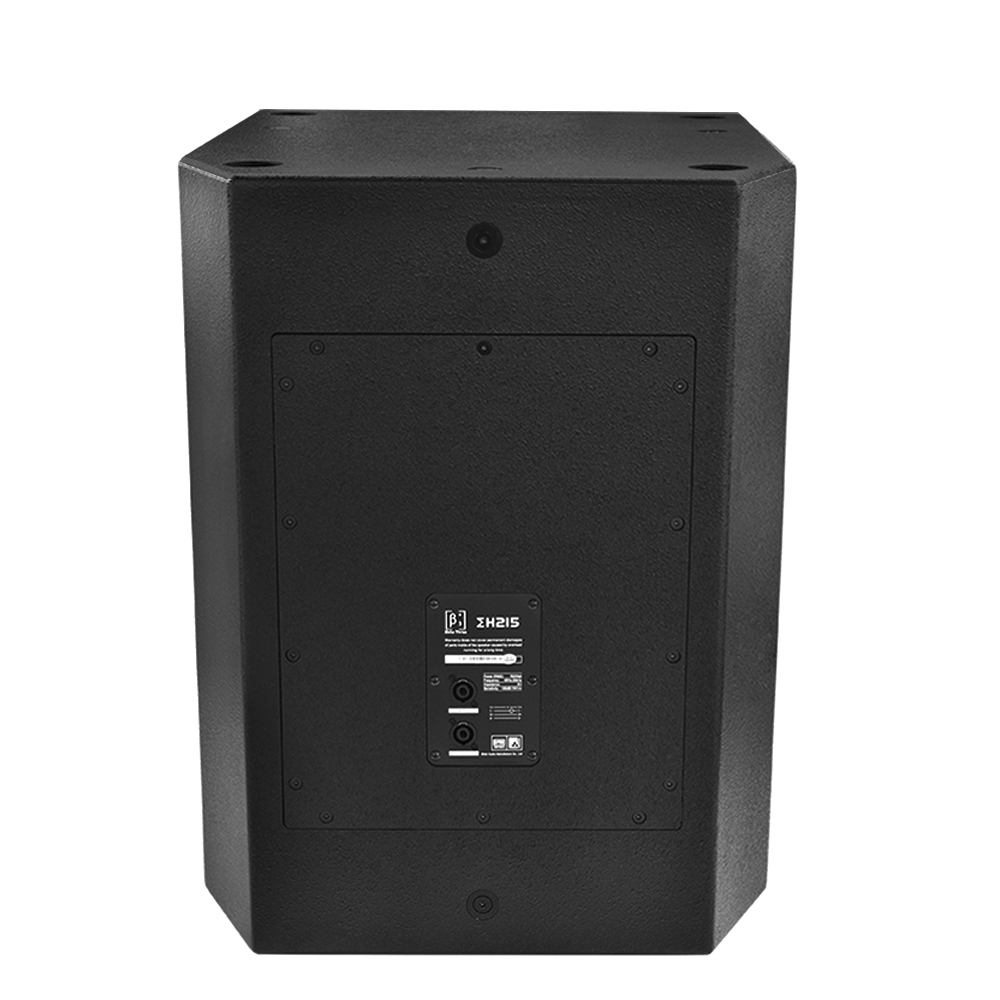

Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
106dB
Power section
Total Power:
750W(RMS); 1500W(MUSIC); 3000W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
550 x 704 x 680mm / (21.7 x 27.7 x 26.8in)
Package Dimensions (W x D x H):
780 x 824 x 660mm / (30.7 x 32.4 x 26in)
Weight
Net Weight:
49 kg / 108 lb
Gross Weight:
53 kg / 116.8 lb
