Features
- Two new 4-inch paper cone mid-high frequency drivers.
- 10-inch paper cone low frequency driver.
- High intensity injection moulding cabinet.
- Dispersion 120° x 120°
- Frequency response 45 Hz 20k Hz (-3dB).
- Sensitivity 90dB, Max SPL 111 dB.
- 3 x M8 hang point.

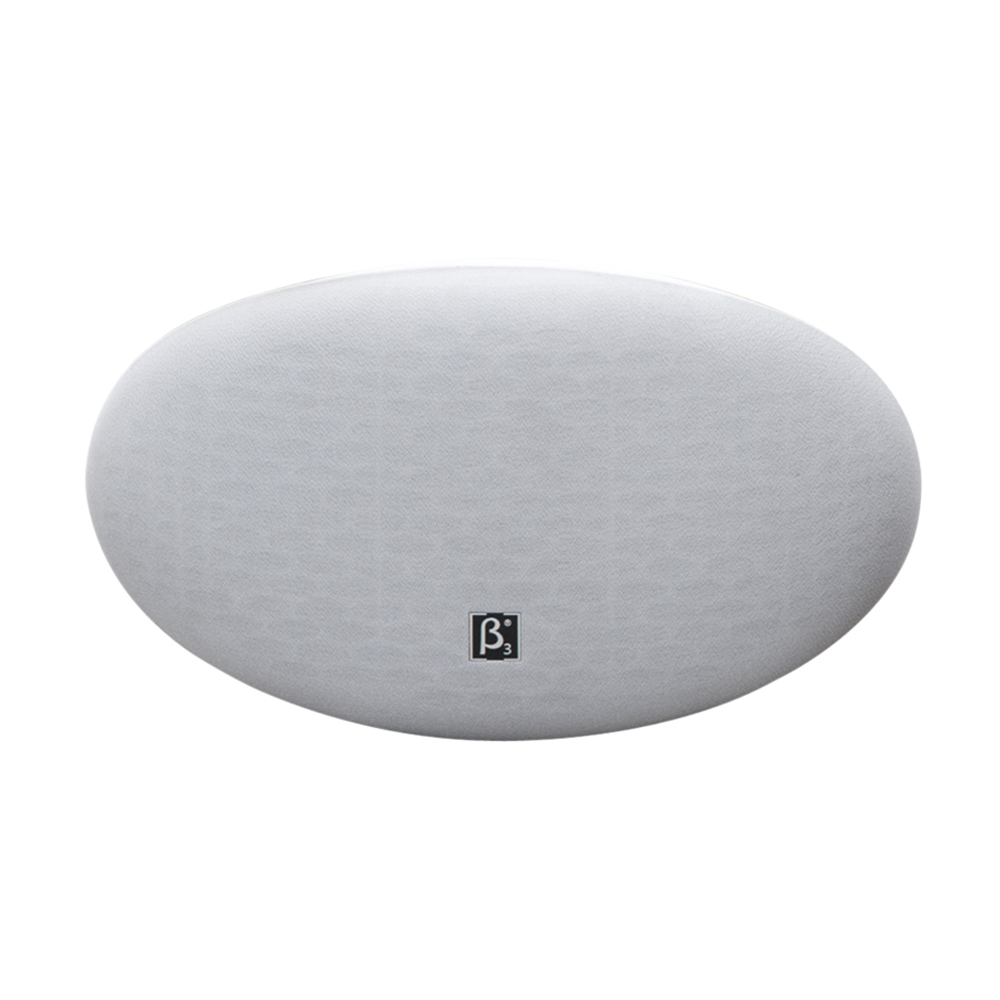

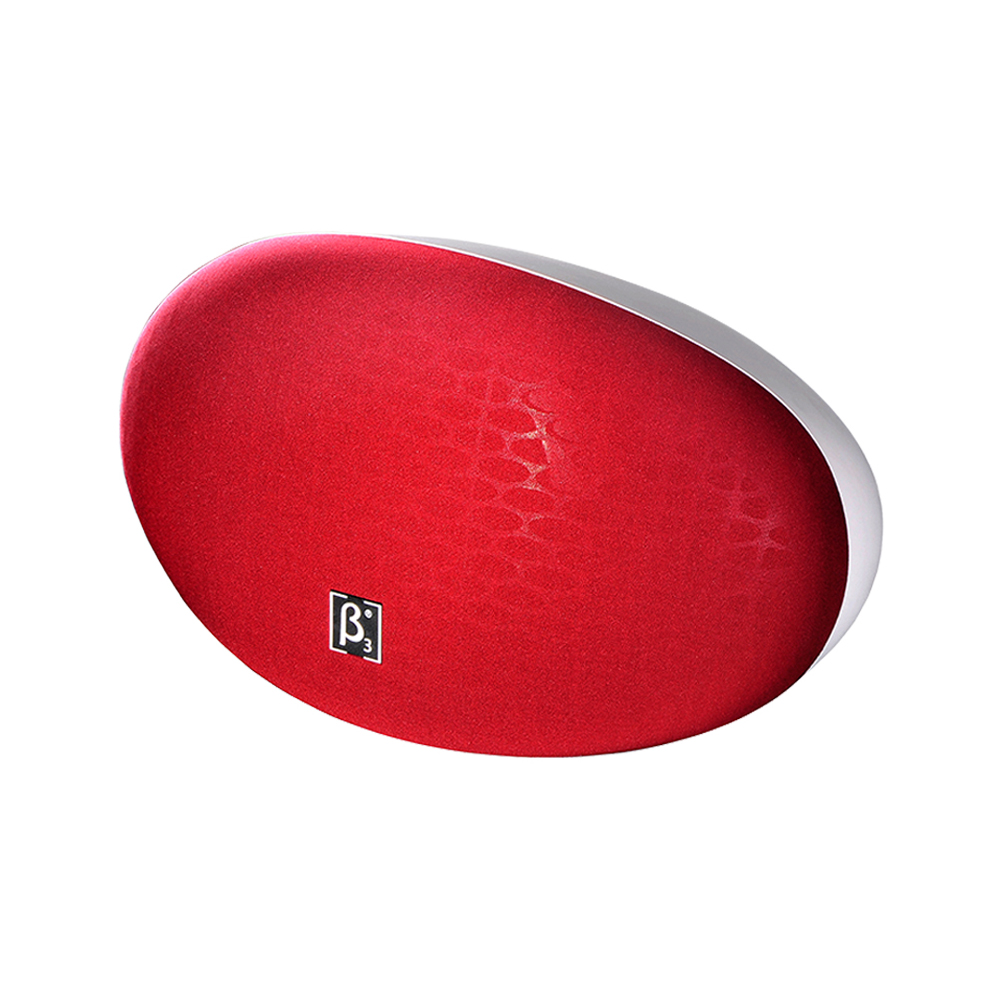

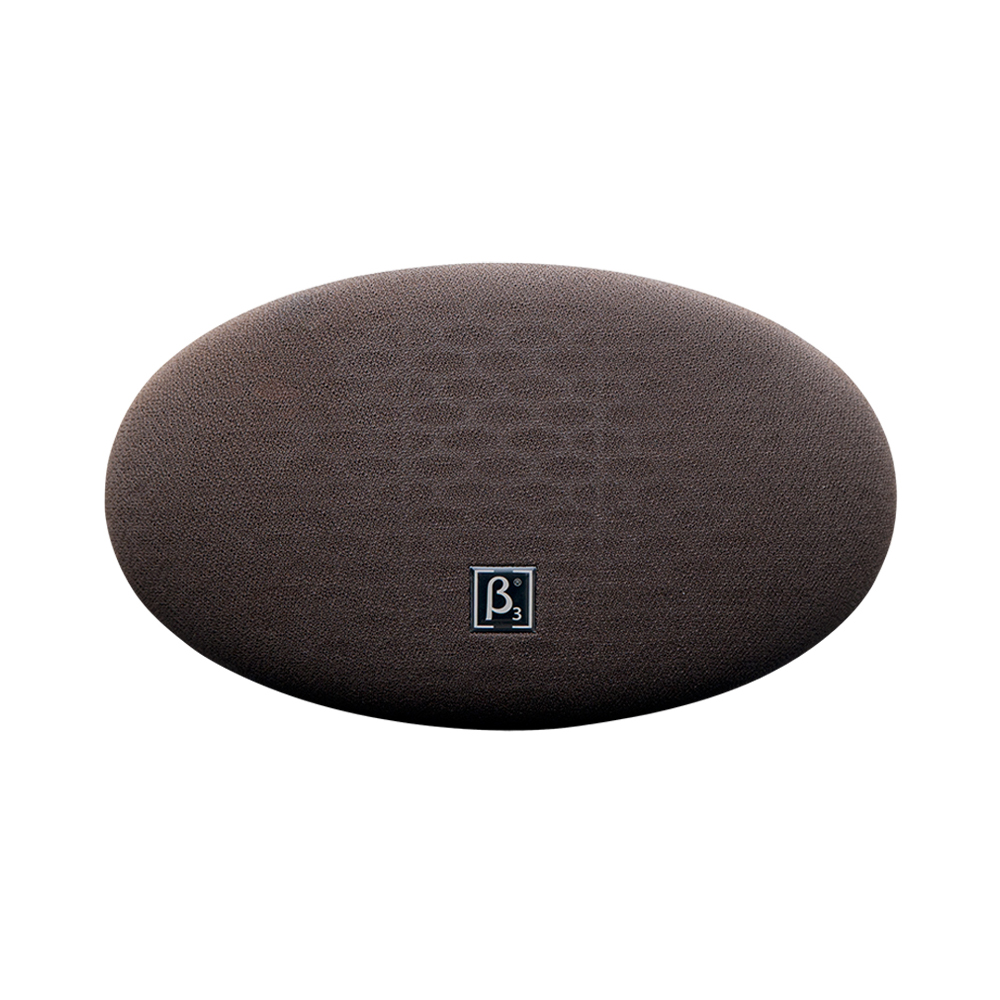

- Customizable grill and cabinet color.
- Optional QS1000T with built-in transformer allowing 70v/100v/120v voltage output and diredt 8Ω.

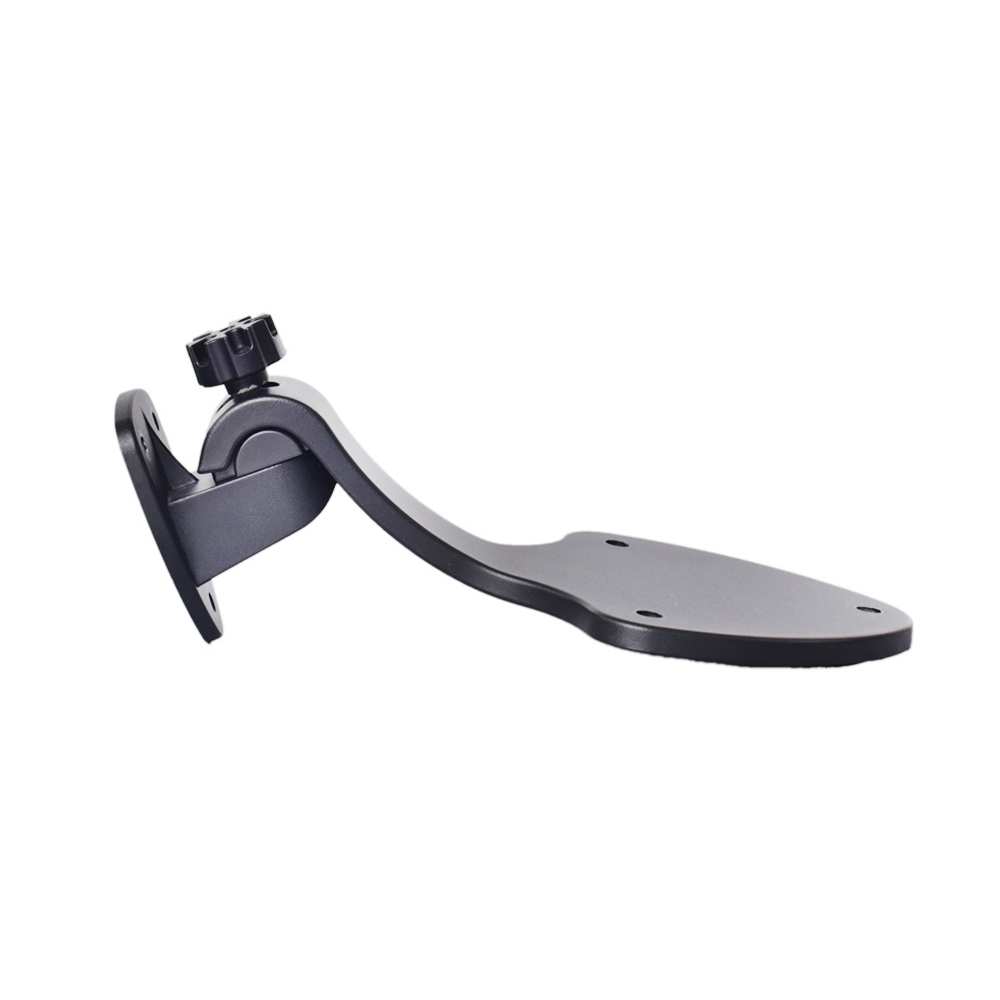

- Built-in mounting bracket
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-22kHz
Max SPL @ 1m:
117dB/123dB(PEAK)
Dispersion (H x V):
120° x 120°
Transducers
Compression driver:
2 x 4" HF
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
Wire clamp
Sensitivity (1W @ 1m):
90dB
Processor section
Crossover frequencies:
1.2kHz
Power section
Total Power:
150W(RMS); 300W(MUSIC); 600W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:
3 x M8 Bracket lifting point
Grille:
Cabinet Exterior with/without polyurethane spraying treatment (depends on colors)Grill with cloth
Color:
Black
Size
Dimension (W x D x H):
550 x 316 x 336mm / (21.7 x 12.4 x 13.2in)
Package Dimensions (W x D x H):
620 x 385 x 425mm / (24.4 x 15.2 x 16.7in)
Weight
Net Weight:
9 kg / 19.8 lb
Gross Weight:
11 kg / 24.3 lb
