Features
- 2 x 15" high power woofers
- High quality birch plywood
- High SPL output and sensitivity
- 3600W peak power output
- Perfect line array solution arrayed with TL212 full-frequency speakers
- Multiple installations ranging from ground-stacked, suspended, or mounted
Specifications
Acoustical specifications
Frequency Response(-3db):
40Hz-1.5kHz
Max SPL @ 1m:
127dB/133dB(PEAK)
Transducers
Woofer:
2 x 15" LF
Input/Output section

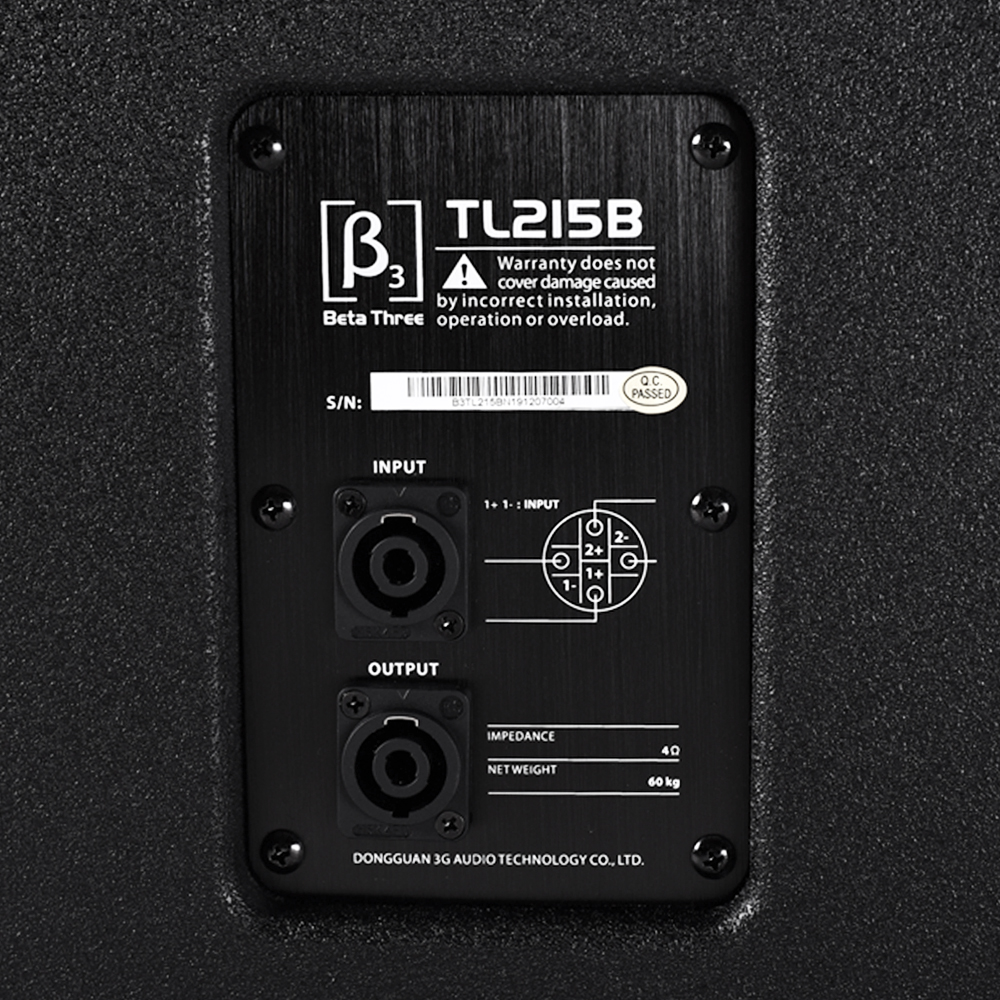

Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
98dB
Power section
Total Power:
900W(RMS); 1800W(MUSIC); 3600W(PEAK);
Nominal Impedance (Ohm):
4Ω
Physical specifications
Cabinet/Case Material:
18mm Plywood
Handles:
4 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
965 x 700 x 488mm / (38 x 27.6 x 19.2in)
Package Dimensions (W x D x H):
835 x 575 x 1110mm / (32.9 x 22.6 x 43.7in)
Weight
Net Weight:
60 kg / 132.3 lb
Gross Weight:
68.4 kg / 150.8 lb
TL215B Application
TL215B Installation
TL215B Parts
TL215B Cases
TL215B Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 TL215B Datasheet | 1.0 |  | 200KB | 2024-12-21 14:16:31 |
| β3_TL215B_PA_Chinese_Manual | 1 |  | 1604KB | 2020-06-10 16:49:11 |
