Features
- High quality birch plywood cabinet
- High SPL output and sensitivity
- 2 x 10" high power LF woofers
- 2 x 1.7" neodymium compression drivers

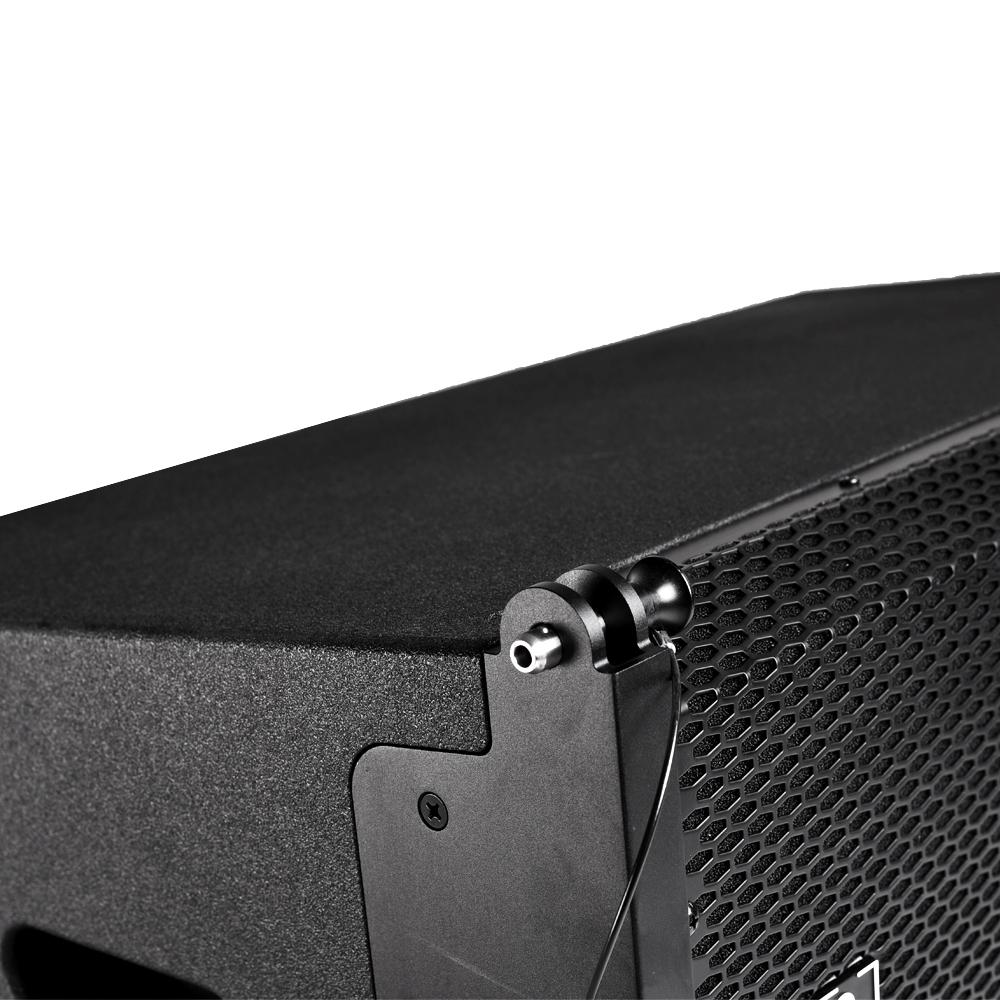

- Adjustable inter-cabinet angle from 0° to 10°
- 1600W peak power output
- Suitable for use as a main system with or without sub speaker augmentation
- Perfect line array solution arrayed with TL212B subwoofer
- Multiple installations ranging from ground-stacked, suspended, or mounted
Specifications
Acoustical specifications
Frequency Response(-3db):
LF:60Hz-4kHz HF:1kHz-16kHz
Max SPL @ 1m:
LF:129dB HF:135dB
Dispersion (H x V):
90° x 30°
Transducers
Compression driver:
2 x 1.7" HF
Woofer:
2 x 10" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
LF:96dB HF:108dB
Processor section
Crossover frequencies:
2kHz-3kHz
Power section
Total Power:
LF: 400W HF: 140W(RMS); LF: 800W HF: 280W(MUSIC); LF: 1600W HF: 560W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
15mm Plywood
Handles:
2 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
800 x 440 x 323mm / (31.5 x 17.3 x 12.7in)
Package Dimensions (W x D x H):
590 x 435 x 925mm / (23.2 x 17.1 x 36.4in)
Weight
Net Weight:
26.5 kg / 58.4 lb
Gross Weight:
29.5 kg / 65 lb
