Features
4 x 3" paper cone driver
1 x 10" powerful woofer
Dispersion:125° x 110°
Crossover point at 1kHz
Frequency Response(-3dB):45Hz-18kHz
Sensitivity: 90dB, Max SPL:119dB
Rated Power: 100W, Peak Power:400W
2 x M8 rigging point
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-18kHz
Frequency Response(-10db):
38Hz-19kHz
Max SPL @ 1m:
113dB/119dB(PEAK)
Dispersion (H x V):
125° x 110°
Transducers
Compression driver:
4 x 3" paper cone driver
Woofer:
1 x 10" LF
Input/Output section

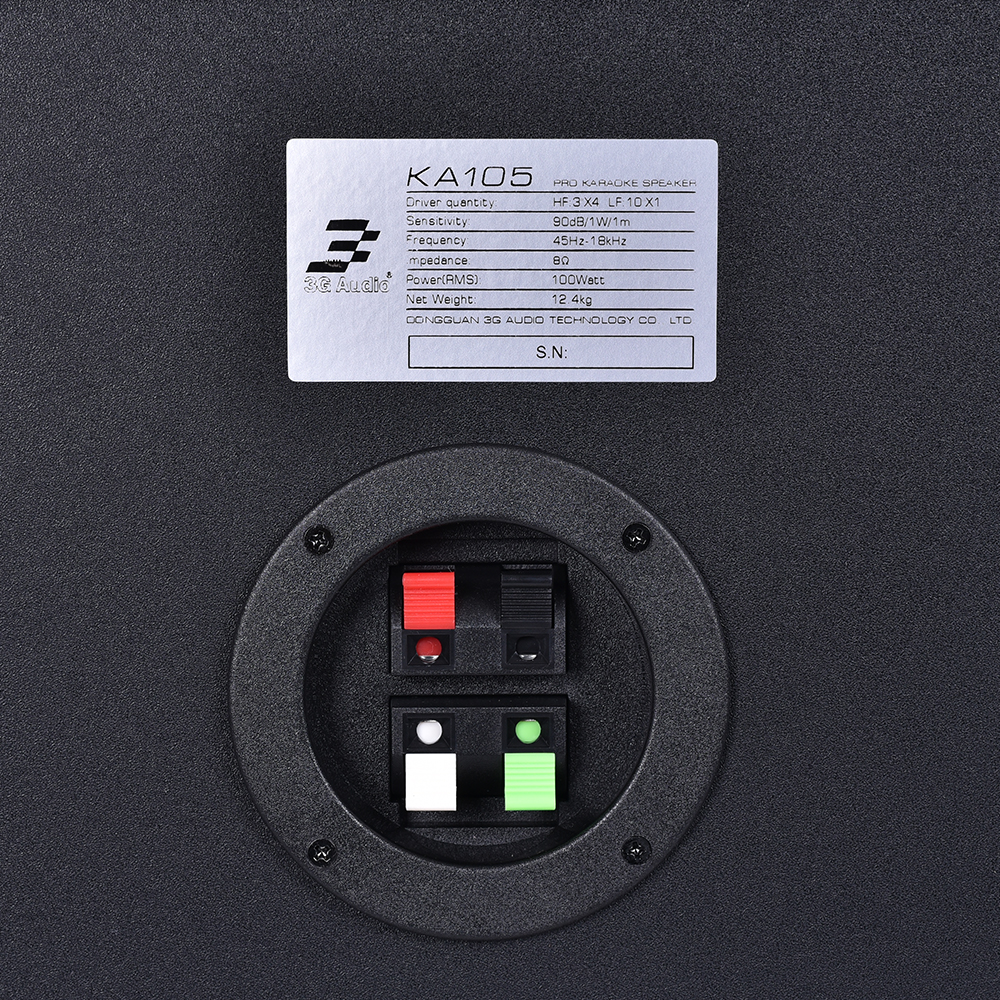

Input Connectors:
1 x terminal plate
Sensitivity (1W @ 1m):
90dB
Processor section
Crossover frequencies:
2.8kHz
Power section
Total Power:
200W(RMS); 400W(MUSIC); 800W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
Medium density fiberboard + Chipboard
Hardware:
2 x M8 hanging point
Grille:
Black PVC leather covering Black grille
Color:
Black
Size
Dimension (W x D x H):
510 x 302 x 302mm / (20.1 x 11.9 x 11.9in)
Package Dimensions (W x D x H):
700 x 362 x 570mm / (27.6 x 14.3 x 22.4in)
Weight
Net Weight:
12.4 kg / 27.3 lb
Gross Weight:
28 kg / 61.7 lb
