Features
2 x 3" paper cone driver
1 x 10" powerful woofer
Frequency Response(-3dB):45Hz-18kHz
Sensitivity: 93dB, Max SPL:119dB
Rated Power: 150W
2 x M8 rigging point
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-18kHz
Max SPL @ 1m:
114dB/120dB(PEAK)
Dispersion (H x V):
125° x 110°
Transducers
Compression driver:
2 x 3" HF
Woofer:
1 x 10" LF
Input/Output section

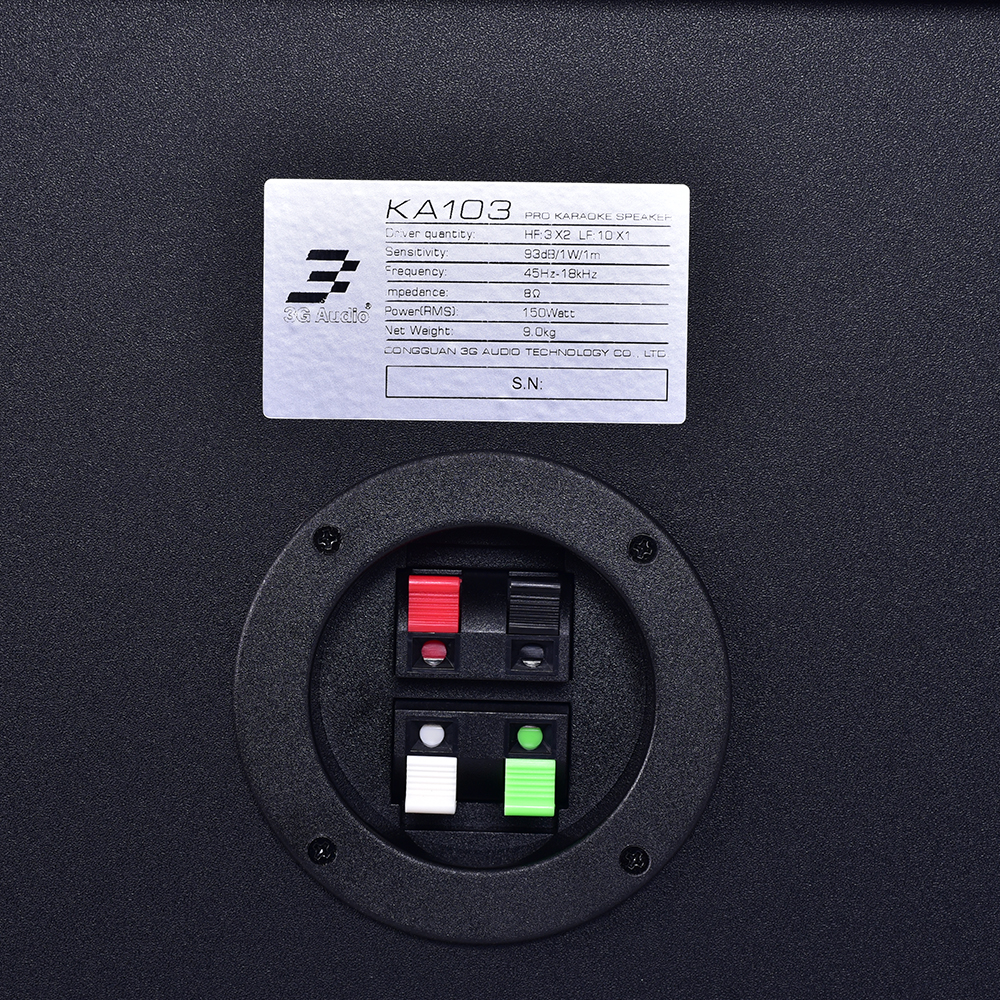

Input Connectors:
1 x terminal plate
Sensitivity (1W @ 1m):
93dB
Power section
Total Power:
150W(RMS); 300W(MUSIC); 600W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
Medium density fiberboard + Chipboard
Hardware:
2 x M8 hanging point
Grille:
Black PVC leather covering Black grille
Color:
Black
Size
Dimension (W x D x H):
510 x 302 x 302mm / (20.1 x 11.9 x 11.9in)
Package Dimensions (W x D x H):
700 x 362 x 570mm / (27.6 x 14.3 x 22.4in)
Weight
Net Weight:
9 kg / 19.8 lb
Gross Weight:
24 kg / 52.9 lb
