Features
2 x 3" Treble
1 x 10" powerful woofer
Frequency Response(-3dB):45Hz-18kHz
Sensitivity: 93dB
Rated Power: 150W
2 x M8 rigging point
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-18kHz
Frequency Response(-10db):
45Hz-20kHz
Max SPL @ 1m:
110dB/116dB(PEAK)
Dispersion (H x V):
125° x 110°

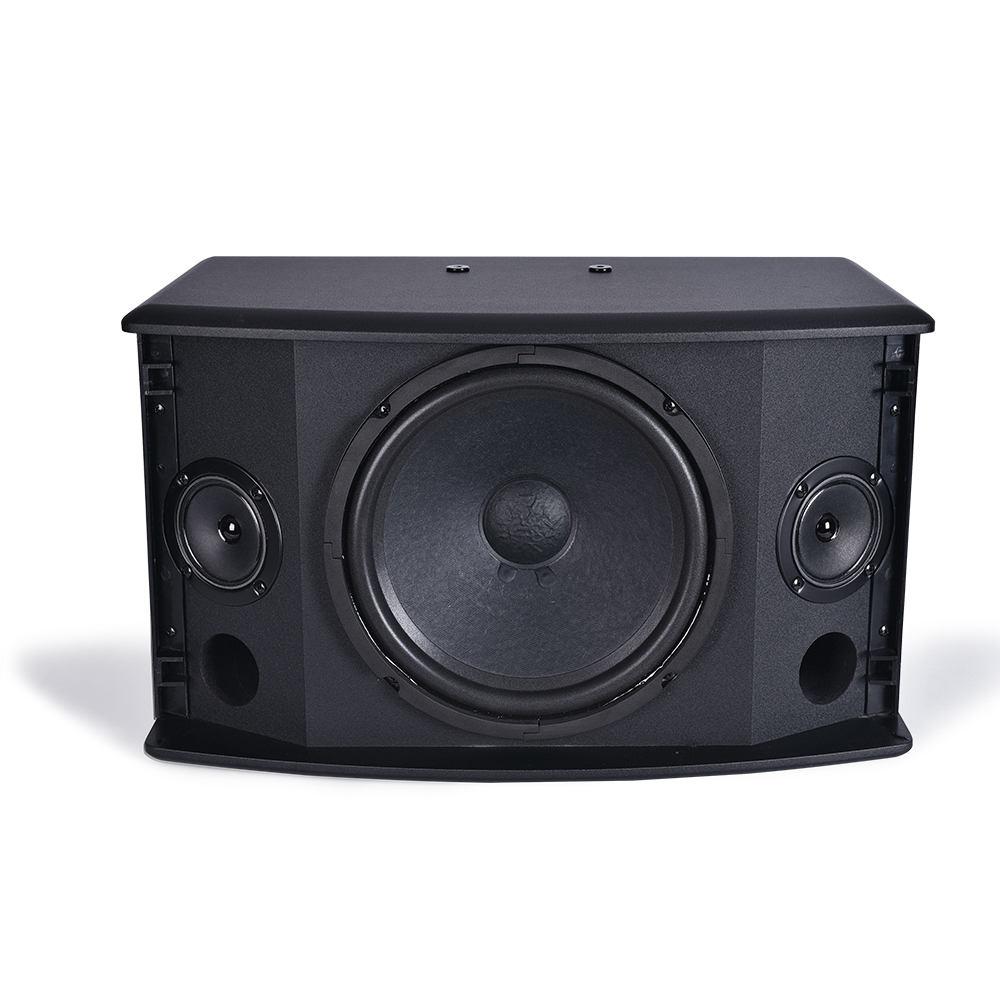

Transducers
Compression driver:
2 x 3" Treble
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
1 x terminal plate
Sensitivity (1W @ 1m):
93dB
Power section
Total Power:
150W(RMS); 300W(MUSIC); 600W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
12mm Birch Plywood
Hardware:
2 x M8 hanging point
Grille:
Black PVC leather covering Black grille
Color:
Black
Size
Dimension (W x D x H):
502 x 278 x 298mm / (19.8 x 10.9 x 11.7in)
Package Dimensions (W x D x H):
670 x 375 x 595mm / (26.4 x 14.8 x 23.4in)
Weight
Net Weight:
9 kg / 19.8 lb
Gross Weight:
24 kg / 52.9 lb
KO-10 Application
KO-10 Installation
KO-10 Parts
KO-10 Cases
KO-10 Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 KO-10 Datasheet | 1.0 |  | 200KB | 2024-11-13 06:52:04 |
| β3_KO-10_Karaoke_Speaker_English_Manual | 1 | | 1101.12KB | 2018-07-12 02:25:39 |
