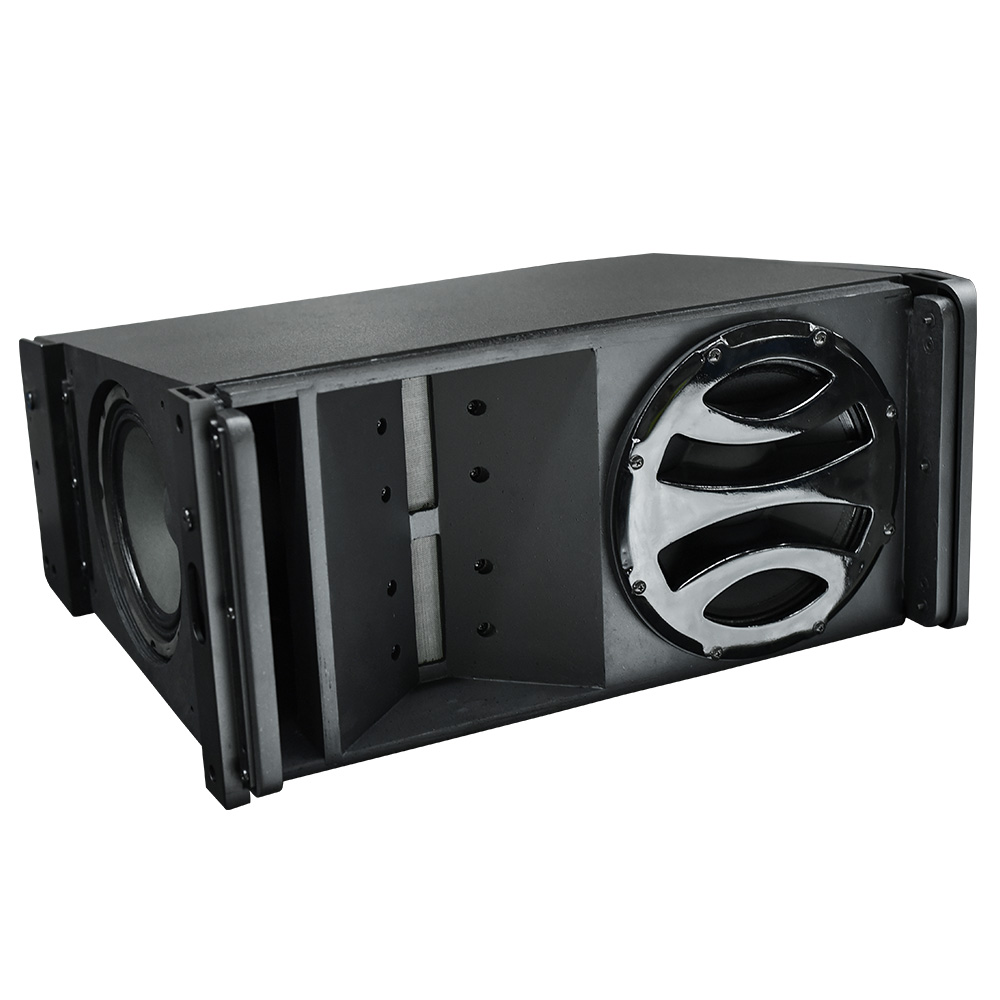

Features
High SPL output and sensitivity
2×8” high power LF transducers
2×1.75” compression HF drivers
1×10” high power MF transducer
2×NL4 connectors
Cabinet design for FOH use
Computer aided design to optimise frequency and phase response
Standard SLA flying frame and SLF1 flying frame combined together allows maximum 16pcs SLA10H array together vertically
Apply Water proof , Anti-collision and Durable polyurethane paint
Suitable for use as a main system with or without sub speaker augmentation

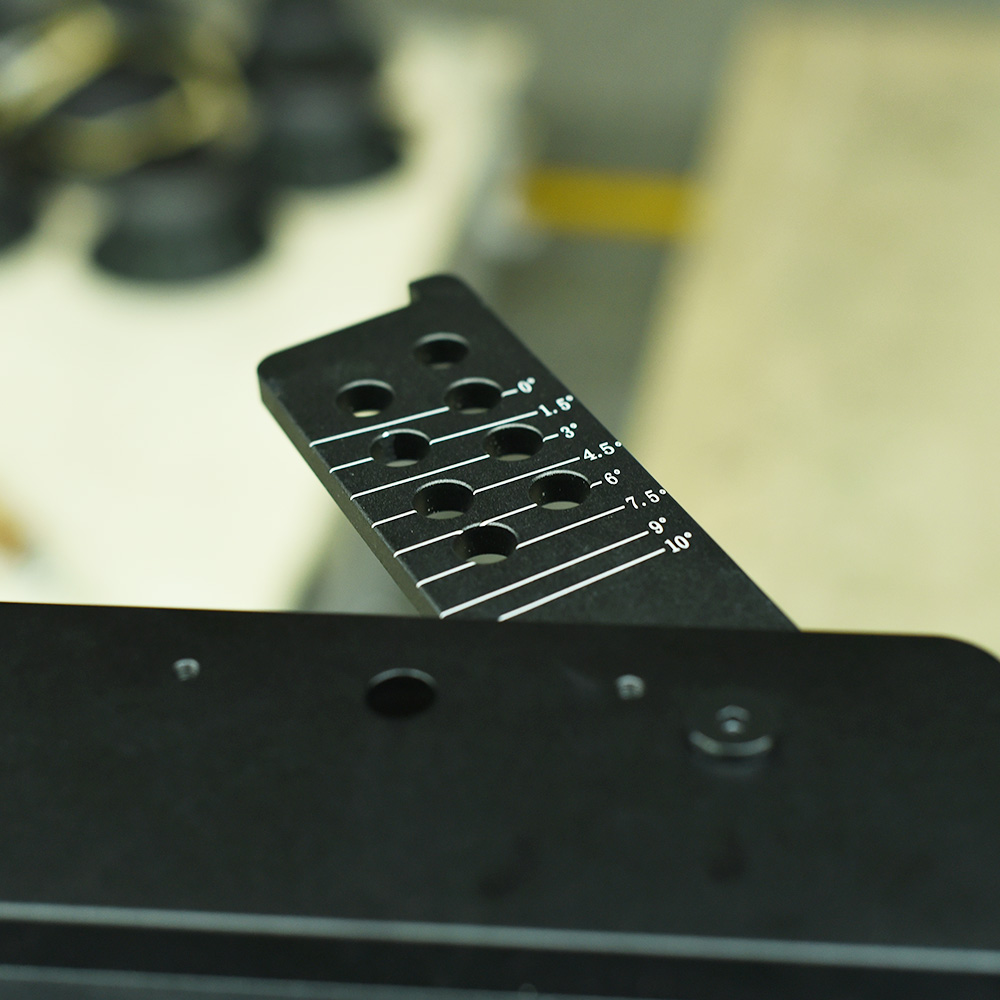

Rigging allows adjustment from 0°- 5°

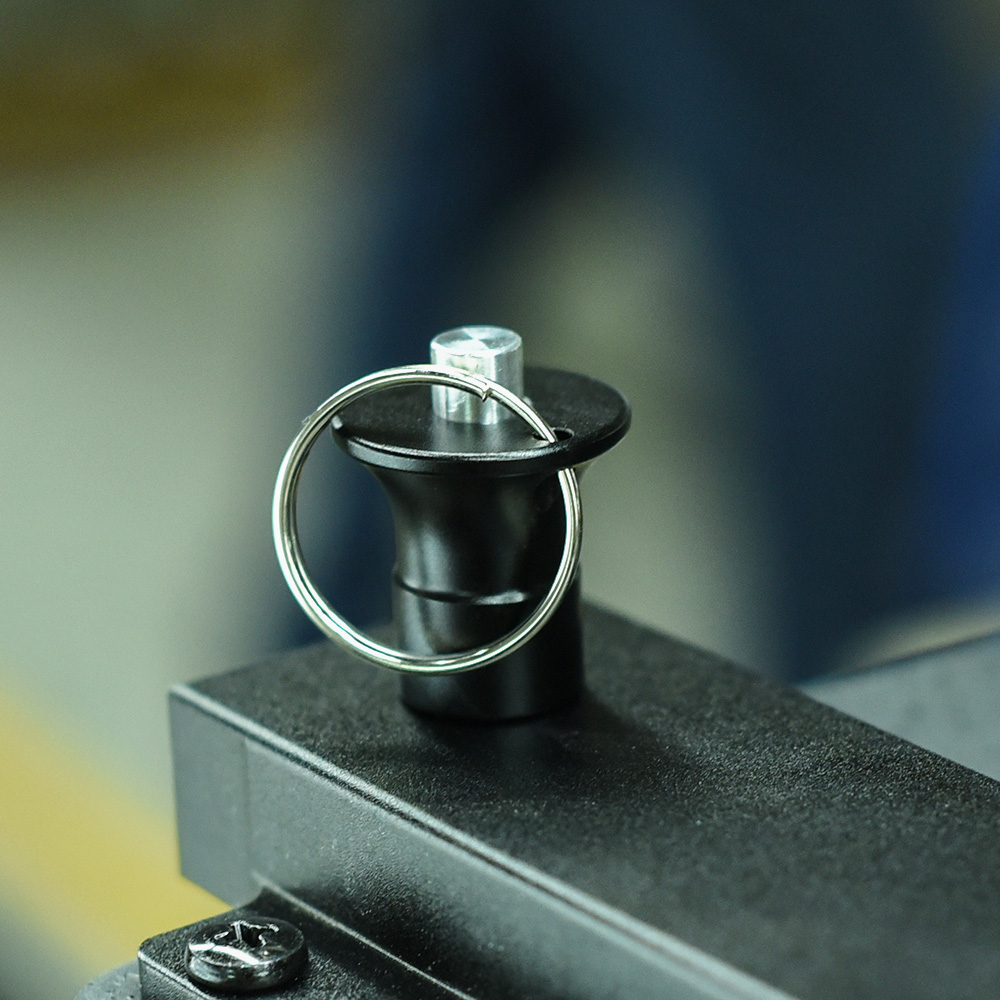

The speaker cabinet include all the flying hardwares
Can be arrayed with SLA212B
Optional SLF1 flying frame
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-20kHz
Max SPL @ 1m:
LF: 110dB/116dB(PEAK); HF: 121dB/127dB(PEAK)
Dispersion (H x V):
100° x 0-10°
Transducers
Compression driver:
2 x 1.75" HF
Midrange:
1 x 10" MF
Woofer:
2 x 8" LF

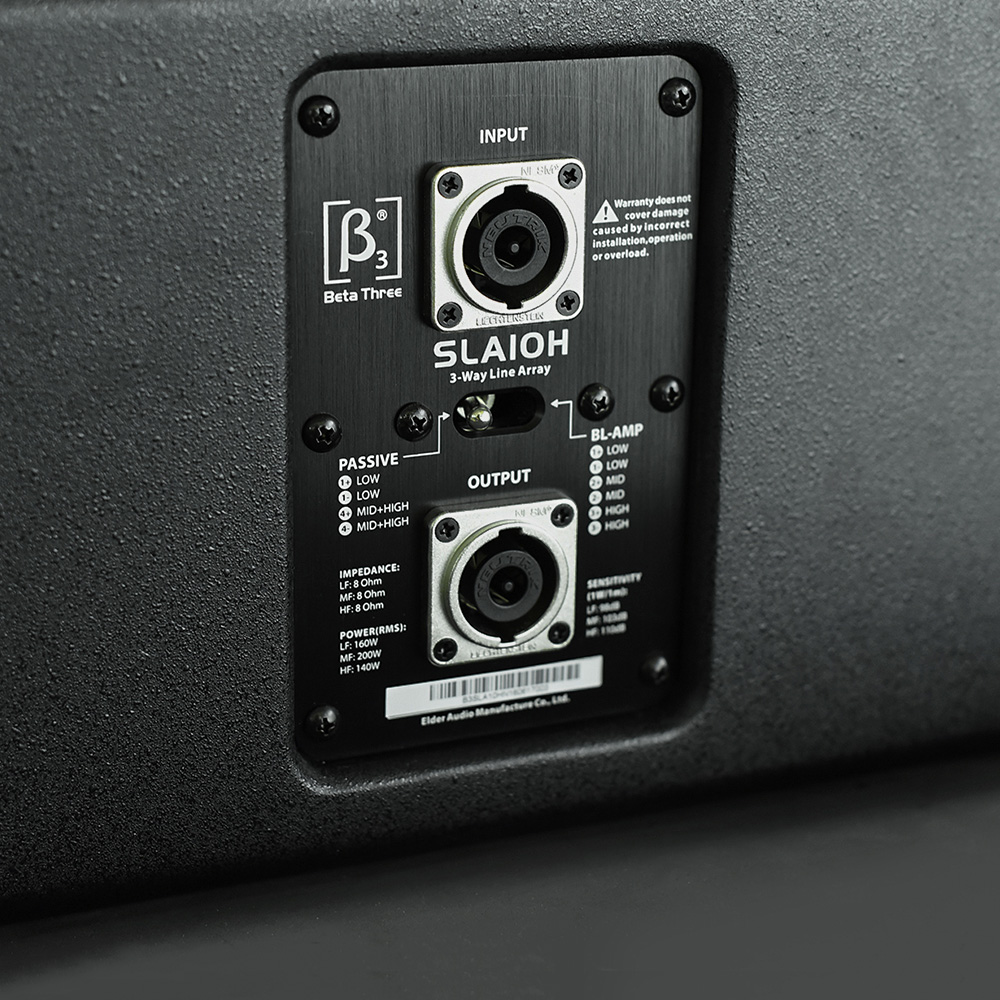

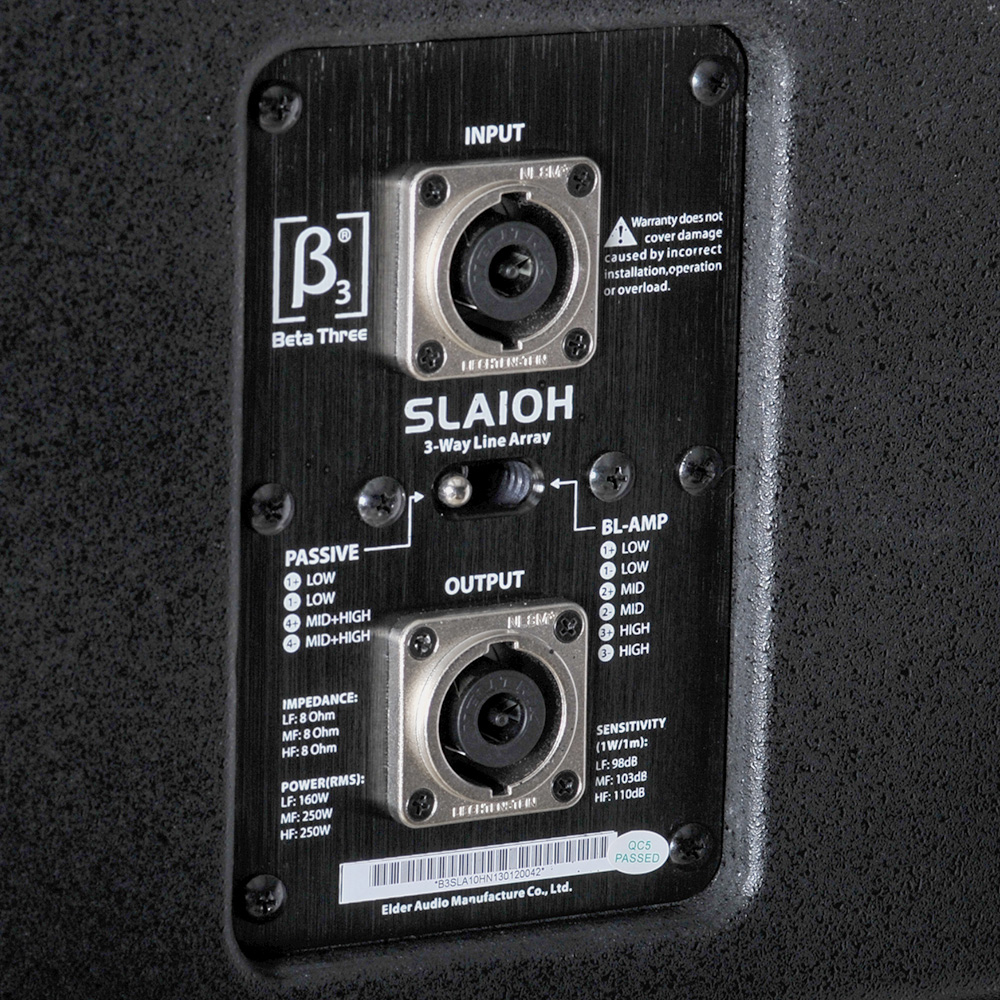

Input/Output section
Input Connectors:
2 x NL8 (LF:1+ 1-;MF:2+ 2-;HF:3+ 3-; MF/HF:4+ 4-)
Sensitivity (1W @ 1m):
LF: 98dB; MF: 103dB; HF: 110dB;
Power section
Total Power:
160W(LF); 200W(MF); 140W(HF)(RMS);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
Trapezoidal cabinet,Plywood
Hardware:
Specialized hardware
Handles:
2 x Plastic Handles
Grille:
Black Polyurethane painting for cabinet & Black Powder coated grille,Grill with cloth.
Color:
Black
Size
Dimension (W x D x H):
665 x 471 x 283mm / (26.2 x 18.5 x 11.1in)
Package Dimensions (W x D x H):
770 x 580 x 395mm / (30.3 x 22.8 x 15.6in)
Weight
Net Weight:
31 kg / 68.3 lb
Gross Weight:
33 kg / 72.8 lb
