Features
- High output SPL and sensitivity
- 1 x 15" high power transducer
- 1 x 34mm diaphragm compression driver
- Heavy duty protective grill and high strength polypropylene precision Injection molded
- Built-in Class D power amplifier module
- Master volume, Bass and Treble control
- Switchable between Mic and Line input
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-20kHz
Max SPL @ 1m:
120dB/126dB(PEAK)
Dispersion (H x V):
90° x 85°
Transducers
Compression driver:
1 x 34mm Compression Driver
Woofer:
1 x 15" LF
Input/Output section
Input Connectors:
1 x XLR
Power section
Total Power:
400W(RMS); 800W(MUSIC); 1600W(PEAK);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 100V-240V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Polypropylene Injection Molding
Hardware:
3 Hanging point

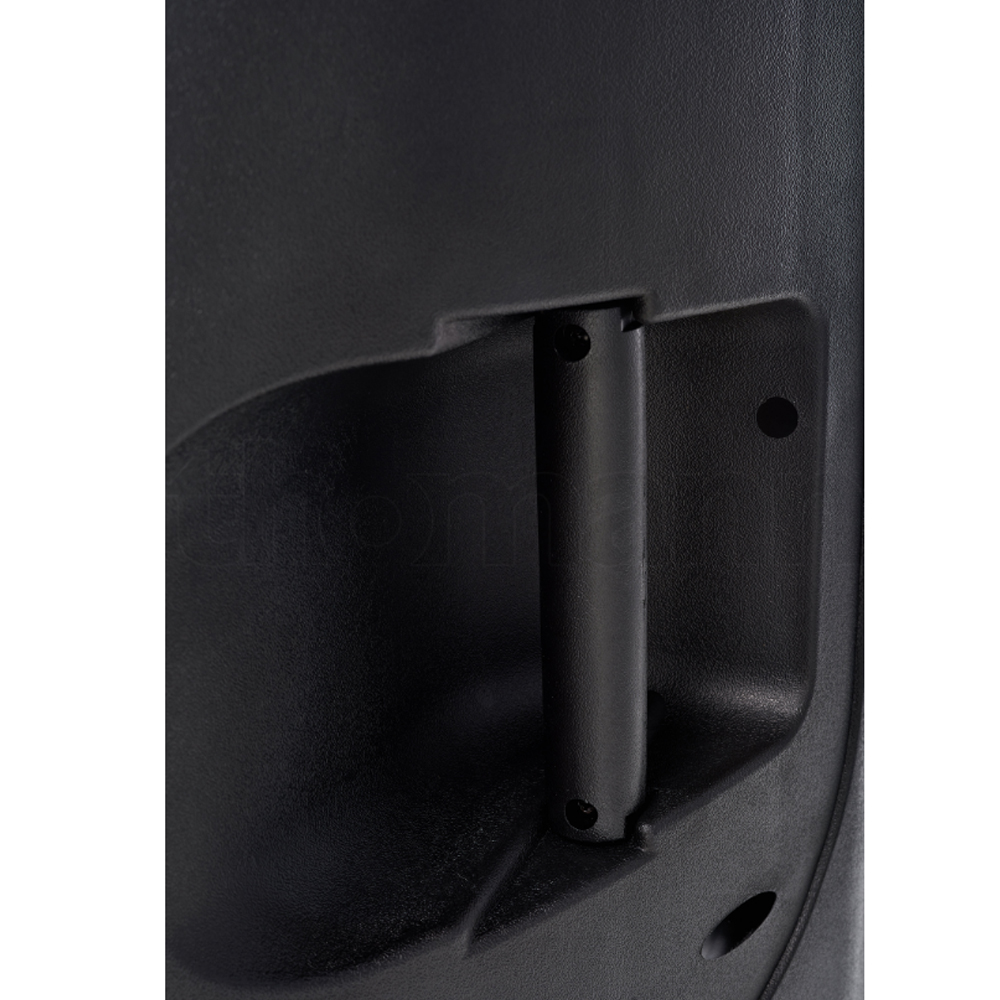

Handles:
Plastic Handles
Grille:
Powdered Coated Grill
Color:
Black
Size
Dimension (W x D x H):
485 x 458 x 700mm / (19.1 x 18 x 27.6in)
Package Dimensions (W x D x H):
550 x 520 x 805mm / (21.7 x 20.5 x 31.7in)
Weight
Net Weight:
23 kg / 50.7 lb
Gross Weight:
26 kg / 57.3 lb
CTM1500S Application
Multi-function hall
Auditorium
Medium-sized Conference Rooms
Church
Performance Places
CTM1500S Installation
CTM1500S Parts
CTM1500S Cases
CTM1500S Collocation
