Features
- High output SPL and sensitivity
- 1 x 12" high power transducer
- 1 x 34mm diaphragm compression driver
- Heavy duty protective grill and high strength polypropylene precision Injection molded
- Built-in Class D power amplifier module
- Master volume, Bass and Treble control
- Switchable between Mic and Line input
- Bluetooth connection available
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-20kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
90° x 85°
Transducers
Compression driver:
1 x 34mm Compression Driver
Woofer:
1 x 12" LF
Input/Output section
Input Connectors:
1 x XLR
Power section
Total Power:
400W(RMS); 800W(MUSIC); 1600W(PEAK);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 100V-240V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Polypropylene Injection Molding

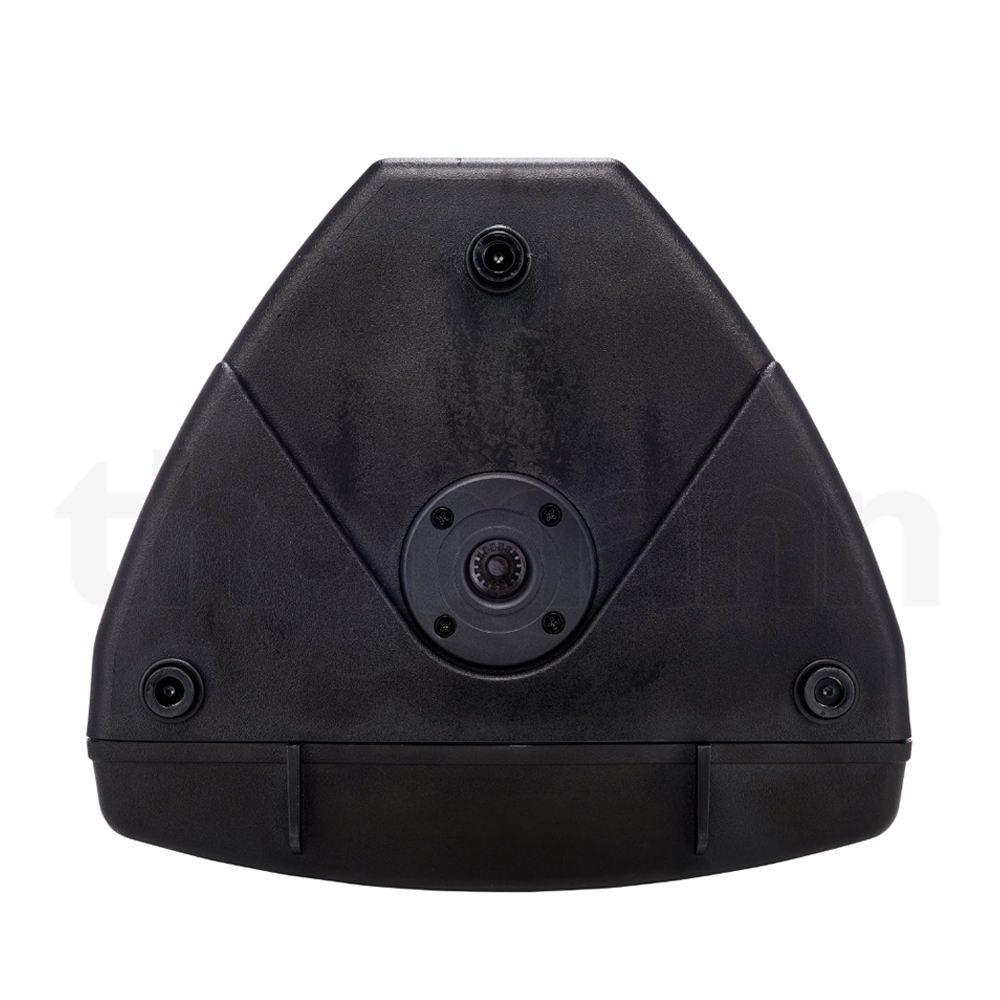

Hardware:
3 Hanging point

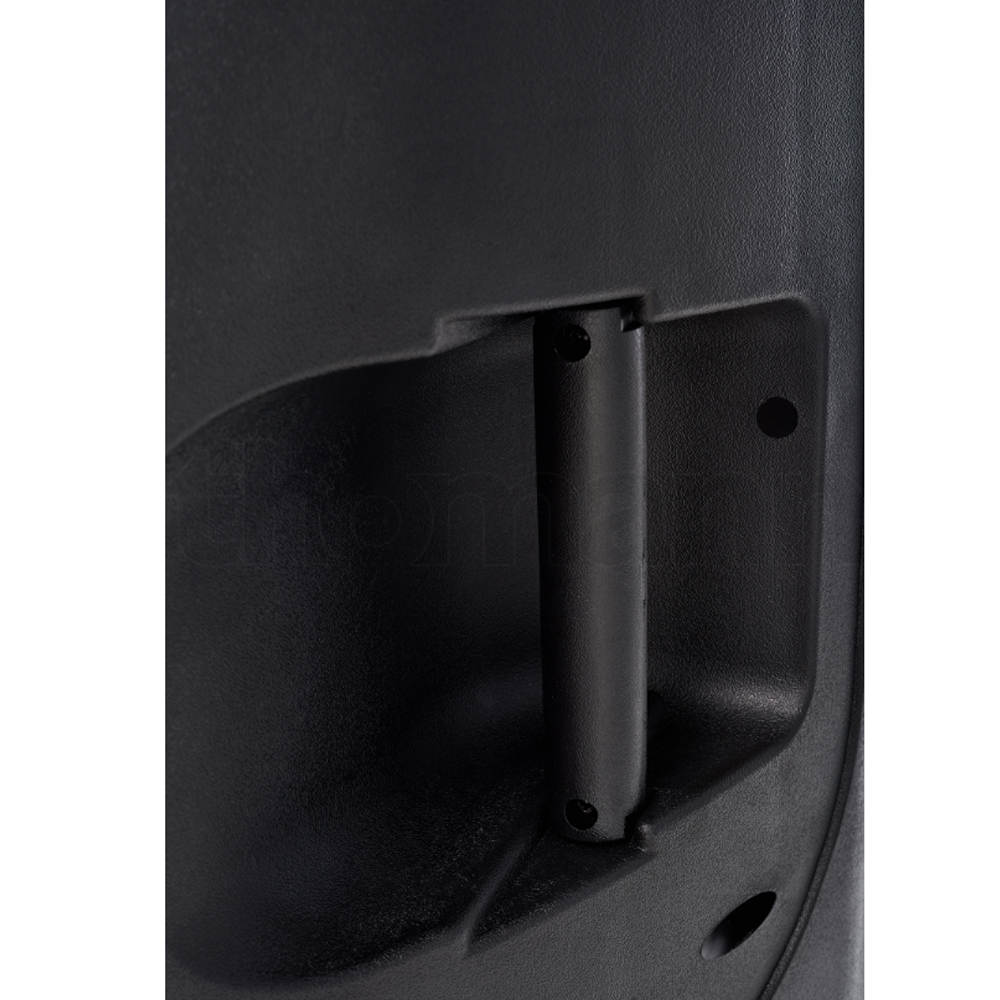

Handles:
Plastic Handles
Grille:
Powdered Coated Grill
Color:
Black
Size
Dimension (W x D x H):
415 x 385 x 600mm / (16.3 x 15.2 x 23.6in)
Package Dimensions (W x D x H):
470 x 440 x 685mm / (18.5 x 17.3 x 27in)
Weight
Net Weight:
16 kg / 35.3 lb
Gross Weight:
18.5 kg / 40.8 lb
CTM1200B Application
Multi-function hall
Auditorium
Medium-sized Conference Rooms
Church
Performance Places
CTM1200B Installation
CTM1200B Parts
CTM1200B Cases
CTM1200B Collocation
