Features
- High output SPL and sensitivity
- 1 x 10" high power transducer
- 1 x 25mm diaphragm compression driver
- Heavy duty protective grill and high strength polypropylene precision Injection molded
- Built-in Class D power amplifier module
- Master volume, Bass and Treble control
- Switchable between Mic and Line input
- Bluetooth connection available
Specifications
Acoustical specifications
Frequency Response(-3db):
60Hz-18kHz
Max SPL @ 1m:
111dB/117dB(PEAK)
Dispersion (H x V):
120° x 120°
Transducers
Compression driver:
1 x 25mm Compression Driver
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
1 x XLR
Power section
Total Power:
150W+50W(RMS);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 100V-240V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Polypropylene Injection Molding
Hardware:

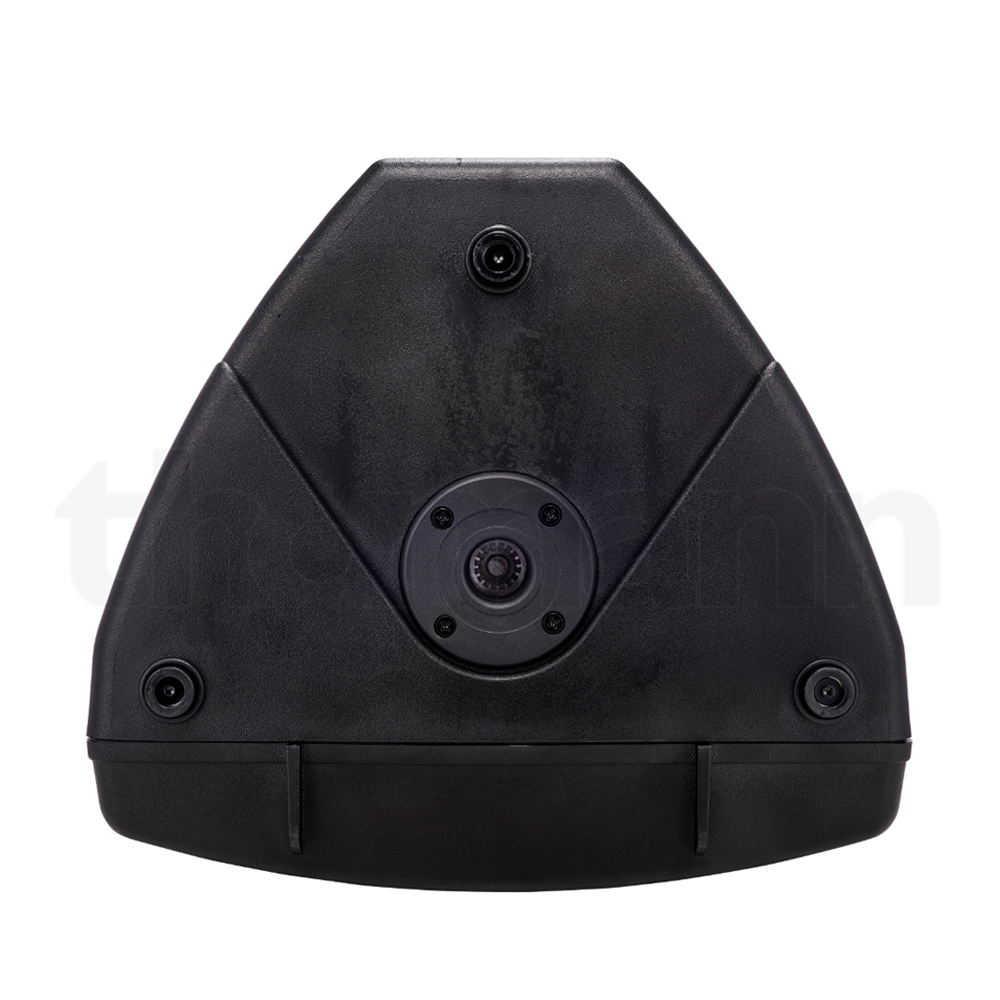

3 Hanging point
Handles:

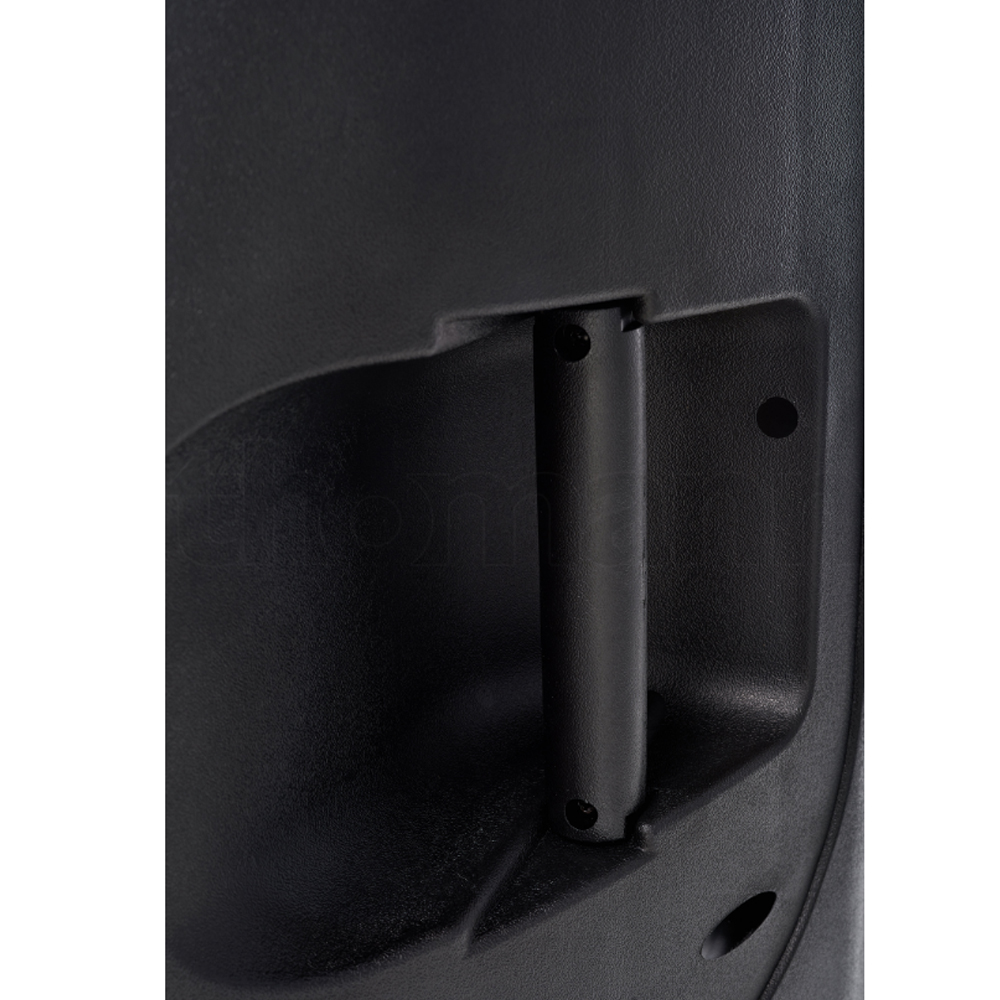

Plastic Handles
Grille:
Powdered Coated Grill
Color:
Black
Size
Dimension (W x D x H):
325 x 308 x 478mm / (12.8 x 12.1 x 18.8in)
Package Dimensions (W x D x H):
380 x 360 x 540mm / (15 x 14.2 x 21.3in)
Weight
Net Weight:
10.4 kg / 22.9 lb
Gross Weight:
11.4 kg / 25.1 lb
CTM1000B Application
Multi-function hall
Auditorium
Medium-sized Conference Rooms
Church
Performance Places
CTM1000B Installation
CTM1000B Parts
CTM1000B Cases
CTM1000B Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 CTM1000B Datasheet | 1.0 |  | 200KB | 2024-11-25 09:19:18 |
| CTM Series Brochure | 1 | | 8800KB | 2020-11-06 17:17:45 |
