Features
- High output SPL and sensitivity
- 1 x 8" high power transducer
- 1 x 25mm diaphragm compression driver
- Heavy duty protective grill and high strength polypropylene precision Injection molded
- Built-in Class D power amplifier module
- Master volume, Bass and Treble control
- Switchable between Mic and Line input
Specifications
Acoustical specifications
Frequency Response(-3db):
65Hz-18kHz
Max SPL @ 1m:
110dB/116dB(PEAK)
Dispersion (H x V):
120° x 120°
Transducers
Compression driver:
1 x 25mm Compression Driver
Woofer:
1 x 8" LF
Input/Output section
Input Connectors:
1 x XLR
Power section
Total Power:
120W+40W(RMS);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 100V-240V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Polypropylene Injection Molding
Hardware:

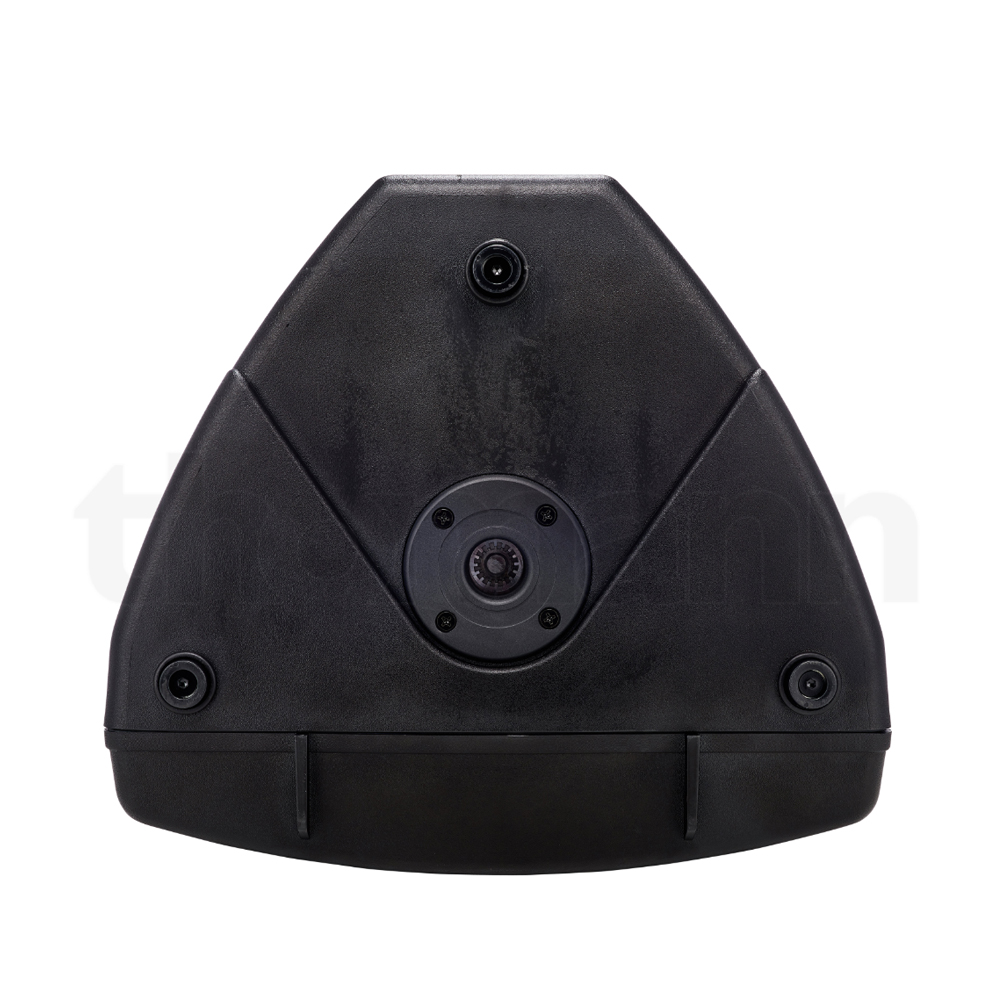

3 Hanging point
Handles:

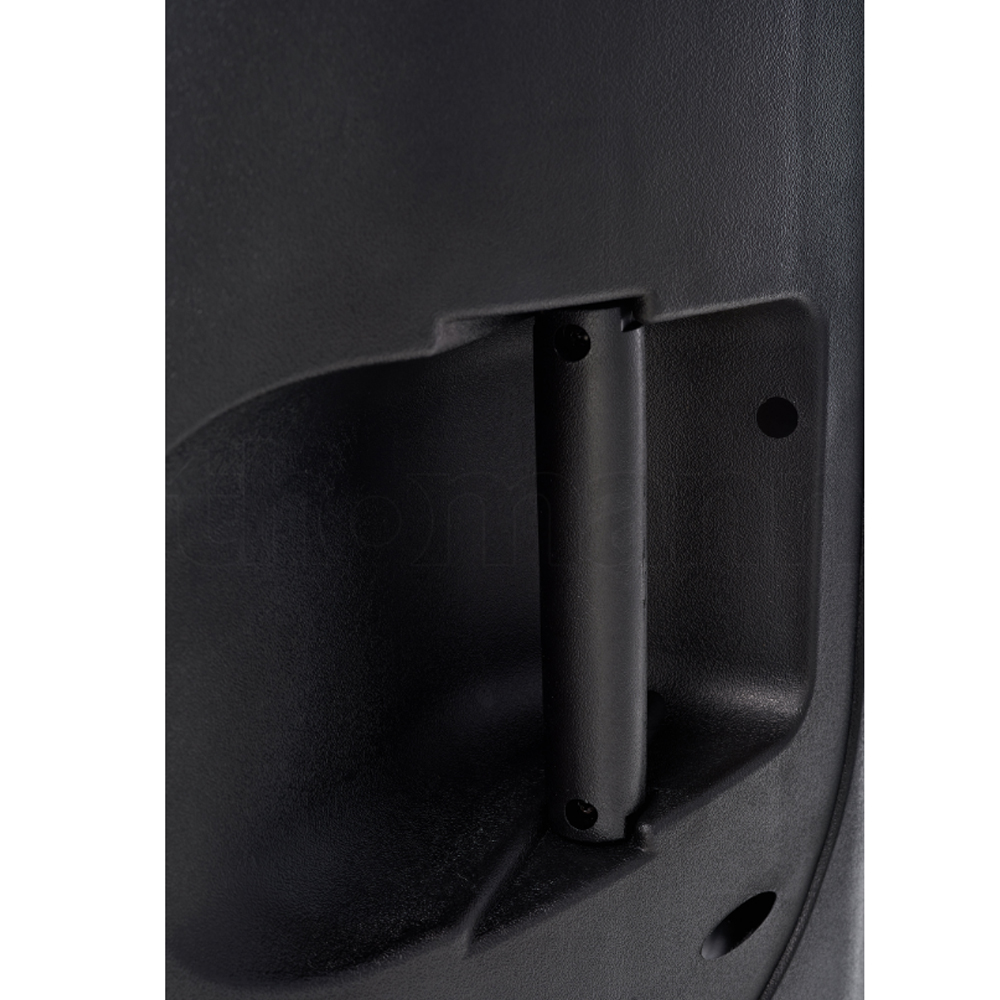

Plastic Handles
Grille:
Powdered Coated Grill
Color:
Black
Size
Dimension (W x D x H):
277 x 257 x 400mm / (10.9 x 10.1 x 15.7in)
Package Dimensions (W x D x H):
360 x 330 x 475mm / (14.2 x 13 x 18.7in)
Weight
Net Weight:
7.7 kg / 17 lb
Gross Weight:
8.7 kg / 19.2 lb
CTM800S Application
Multi-function hall
Auditorium
Medium-sized Conference Rooms
Church
Performance Places
CTM800S Installation
CTM800S Parts
CTM800S Cases
CTM800S Collocation
