Features
Compact,small and high SPL
Specially designed for small touring performance
Portable and easy installation design
Max.SPL 117dB (peak)
Bi-amp module of CLASS D
Bluetooth connection available
Specifications
Acoustical specifications
Frequency Response(-3db):
60Hz-18kHz
Max SPL @ 1m:
111dB/117dB(PEAK)
Dispersion (H x V):
120° x 40°
Transducers
Compression driver:
6 × 2.75"+ 2 × 1" Mid-high units
Woofer:
1× 15" Woofer

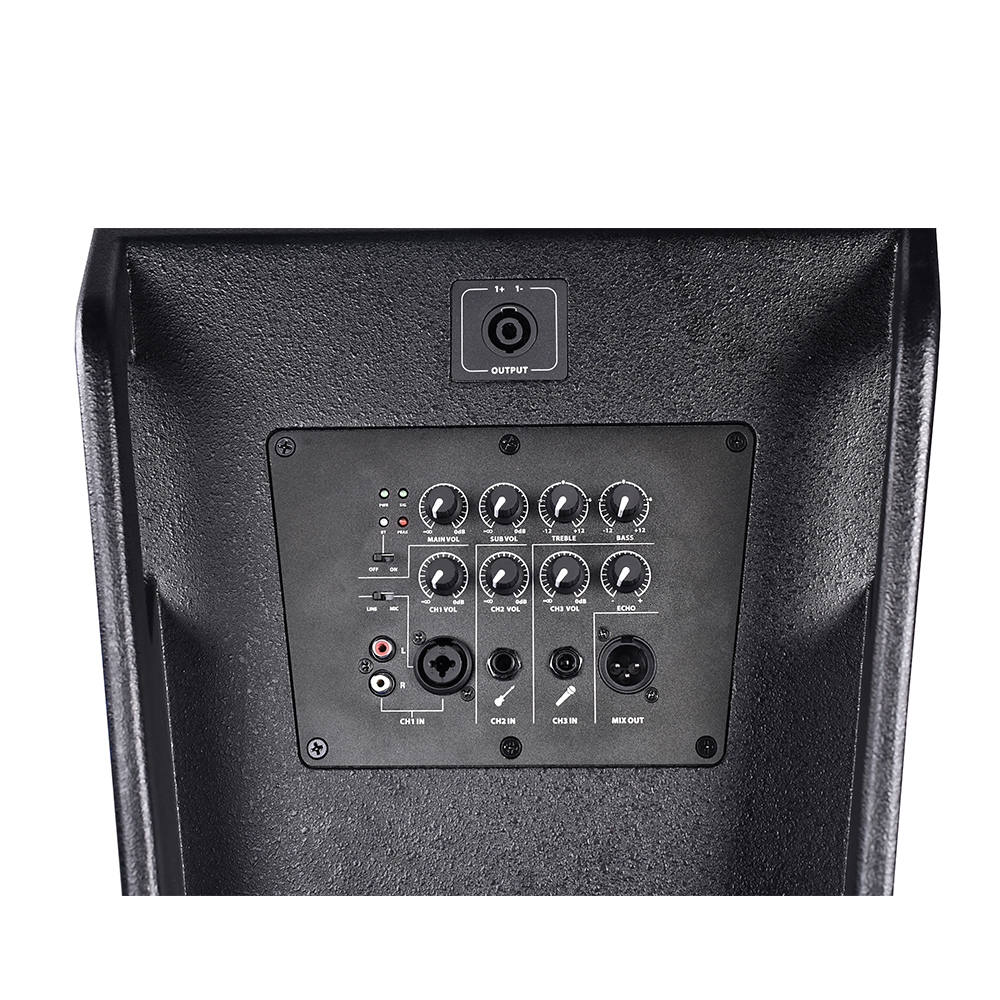

Input/Output section
Input Connectors:
Three channel balanced input XLR/ 6.35、TRS、RCA
Power section
Total Power:
800W(RMS); 1600W(MUSIC); 3200W(PEAK);
Nominal Impedance (Ohm):
4Ω
Cooling:
Forced air-cooled drives
Power consumption(static):
28W
Power consumption(rated):
400W
Voltage range:
AC 220V-240V~, 50/60Hz
Physical specifications
Cabinet/Case Material:
Plywood,column loudspeaker
Handles:
4 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated ，inside is black cotton
Color:
Black
Size
Dimension (W x D x H):
438 x 467 x 1305mm / (17.2 x 18.4 x 51.4in)
Package Dimensions (W x D x H):
595 x 545 x 1655mm / (23.4 x 21.5 x 65.2in)
Weight
Net Weight:
23.6 kg / 52 lb
Gross Weight:
29.7 kg / 65.5 lb
