Features
Compact,small and high SPL
Specially designed for small touring performance
Portable and easy installation design
Max.SPL124dB (peak)
Bi-amp module of CLASS D
Bluetooth connection available
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-18kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
6 × 2" Full-frequency unit
Woofer:
1 x 12" Woofer
Input/Output section
Input Connectors:
Three channel balanced input XLR/ 6.35、TRS、RCA
Power section
Total Power:
400W(RMS); 800W(MUSIC); 1600W(PEAK);
High frequencies:
150W
Low frequencies:
250W
Nominal Impedance (Ohm):
4Ω
Cooling:
Forced air-cooled drives
Power consumption(static):
28W
Power consumption(rated):
400W
Voltage range:
AC 220V-230V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
Plywood,column loudspeaker

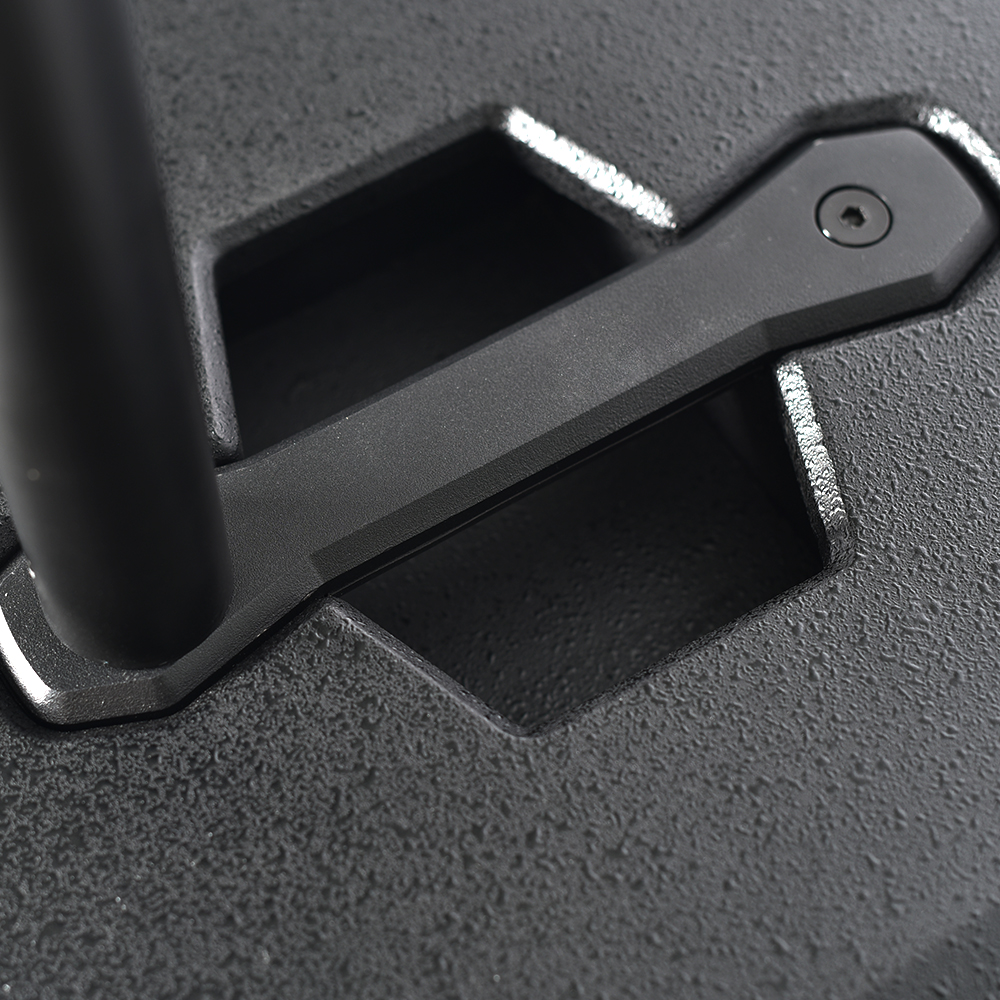

Handles:
1 x Aluminum handle
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated ，inside is black cotton
Color:
Black
Size
Dimension (W x D x H):
350 x 420 x 1876mm / (13.8 x 16.5 x 73.9in)
Package Dimensions (W x D x H):
650 x 445 x 630mm / (25.6 x 17.5 x 24.8in)
Weight
Net Weight:
20.8 kg / 45.9 lb
Gross Weight:
22.2 kg / 48.9 lb
