Features
Double 12" LF drivers inverted low frequency speaker.
Frequency Response 45 Hz 300 Hz (-3dB).
Sensitivity 92 dB, Max Sound Level 122 dB.
RMS Power 900W, Peak Power 3600w.
The cabinet adopts new paints and advanced spraying techniques which greatly enhance the surface resistance.

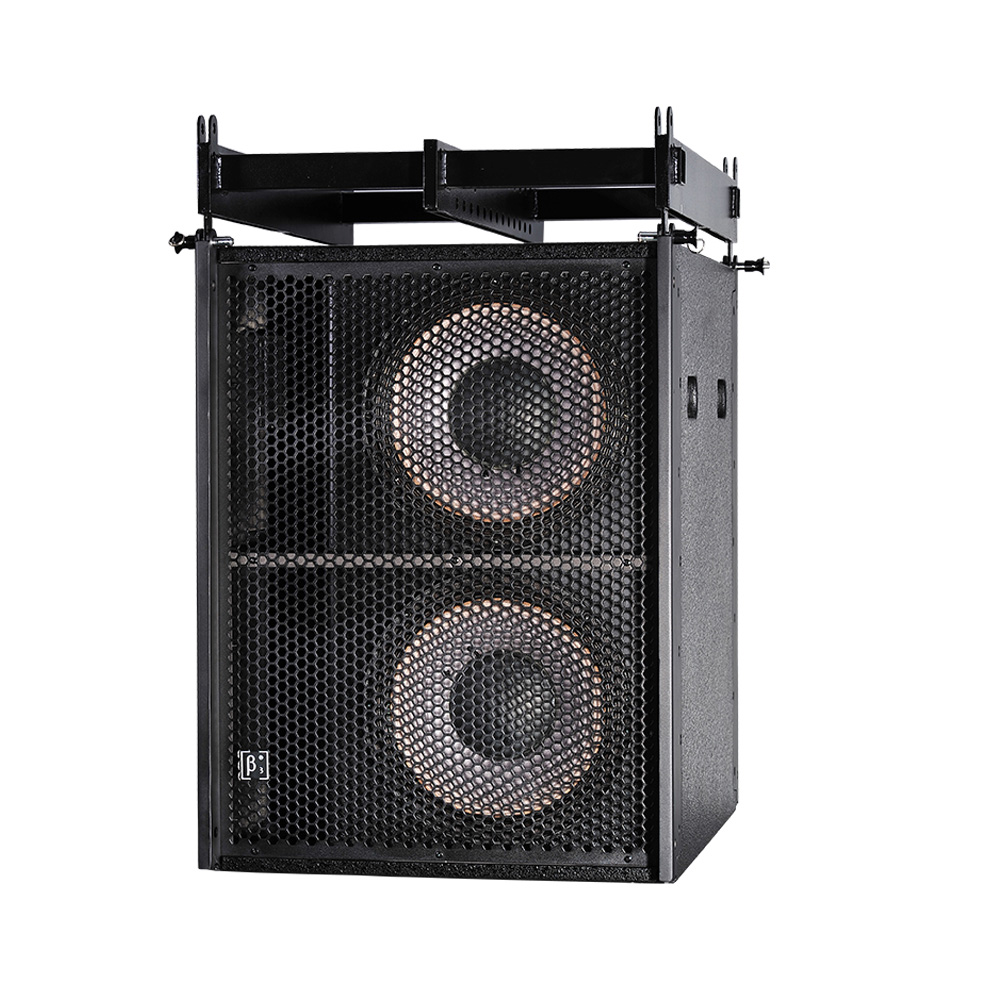

Special designed connection accessories and hangs to combine the application of CL110 and CL212B.Easy assembling .
The phase reversal cabinet design greatly reduce the disturbance to low frequencies and thus enhance the sound quality.
The sound produced by CL212B is clean powerful and elastic.
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-300Hz
Max SPL @ 1m:
122dB/128dB(PEAK)
Transducers
Woofer:
2 x 12" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
92dB
Power section
Total Power:
900W(RMS); 1800W(MUSIC); 3600W(PEAK);
Nominal Impedance (Ohm):
4Ω
Physical specifications
Cabinet/Case Material:
Wedge Cabinet, 18mm Plywood
Hardware:
Special rigging brackets and connection accessories
Handles:
4 x Wooden Handles
Grille:
Polyurethane-based painting. Steel grille is coated by dots to provide strong ultra-Weatherability
Color:
Black
Size

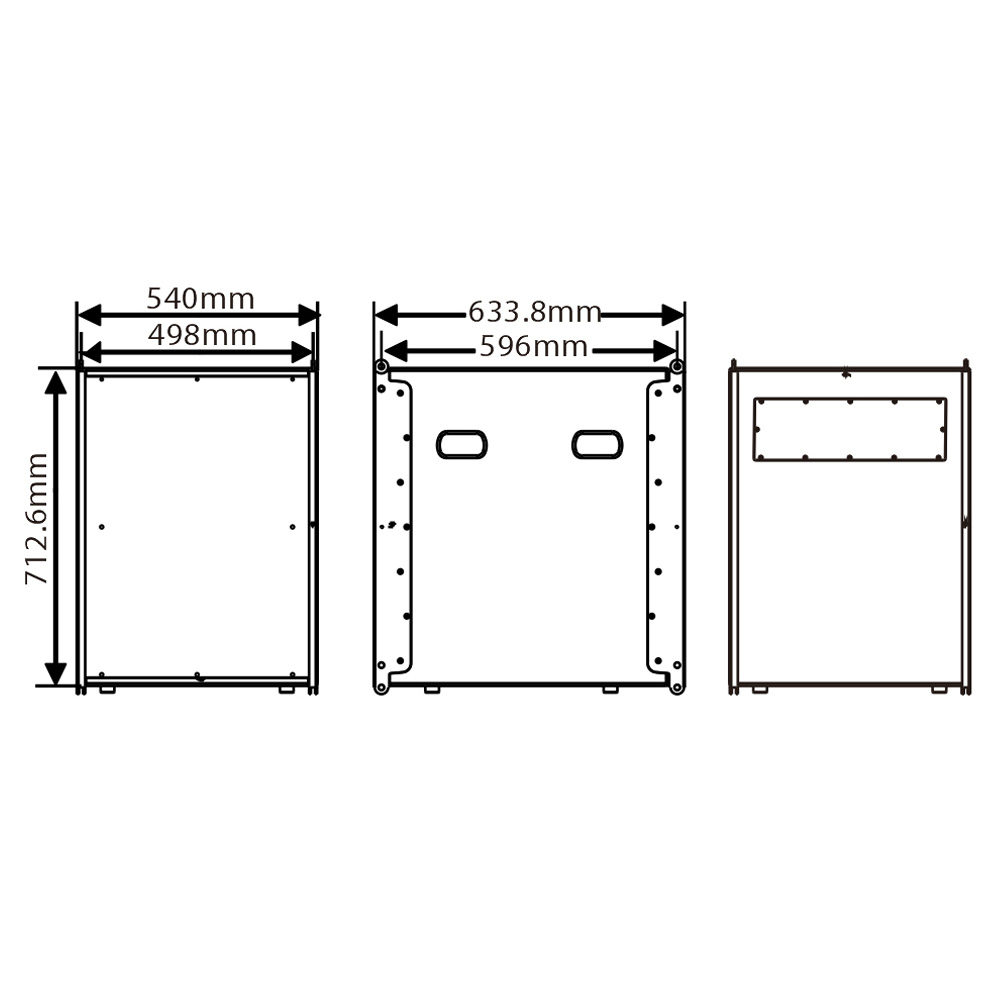

Dimension (W x D x H):
540 x 680 x 713mm / (21.3 x 26.8 x 28.1in)
Package Dimensions (W x D x H):
784 x 670 x 853mm / (30.9 x 26.4 x 33.6in)
Weight
Net Weight:
50 kg / 110.2 lb
Gross Weight:
55 kg / 121.3 lb
CL212B Application
CL212B Installation
CL212B Parts
CL212B Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 CL212B Datasheet | 1.0 |  | 200KB | 2024-12-22 10:17:54 |
| β3_CL212B_PA_English_Manual | 1 | | 1806KB | 2018-12-13 10:49:11 |
