Features
- High SPL and sensitivity
- 1 x 15” high power low frequency transducer
- 1 x 3” titanium diaphragm compression driver
- Built-in power amplifier module
- Master volume control
- XLR input and output connectors
- 120Hz low cut switch
- 80º x 50º controlled coverage pattern
- Computer aided design to optimise frequency and phase response
- Multi purpose cabinet design for FOH or monitor use
- Suitable for use as a main system with or without sub speaker augmentation
- Integral 35mm pole mount receptacle for stand or vertical installation
- Mounting points for permanent installation (wall, ceiling, under balcony)
- Combine with any ΣB or ΣJ Series high power sub speaker for extended low frequency, high quality music reproduction
- Powder coated grill
- Durable Polyurethane textured base paint
- 2 x XLR connectors
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-18kHz
Max SPL @ 1m:
120dB
Dispersion (H x V):
80° x 50°
Transducers
Compression driver:
1 x 3" HF Compression Driver
Woofer:
1 x 15" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
XLR J3P/XLR K3P
Power section
Total Power:
100W HF, 300W LF(RMS);
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Color:
Black
Size

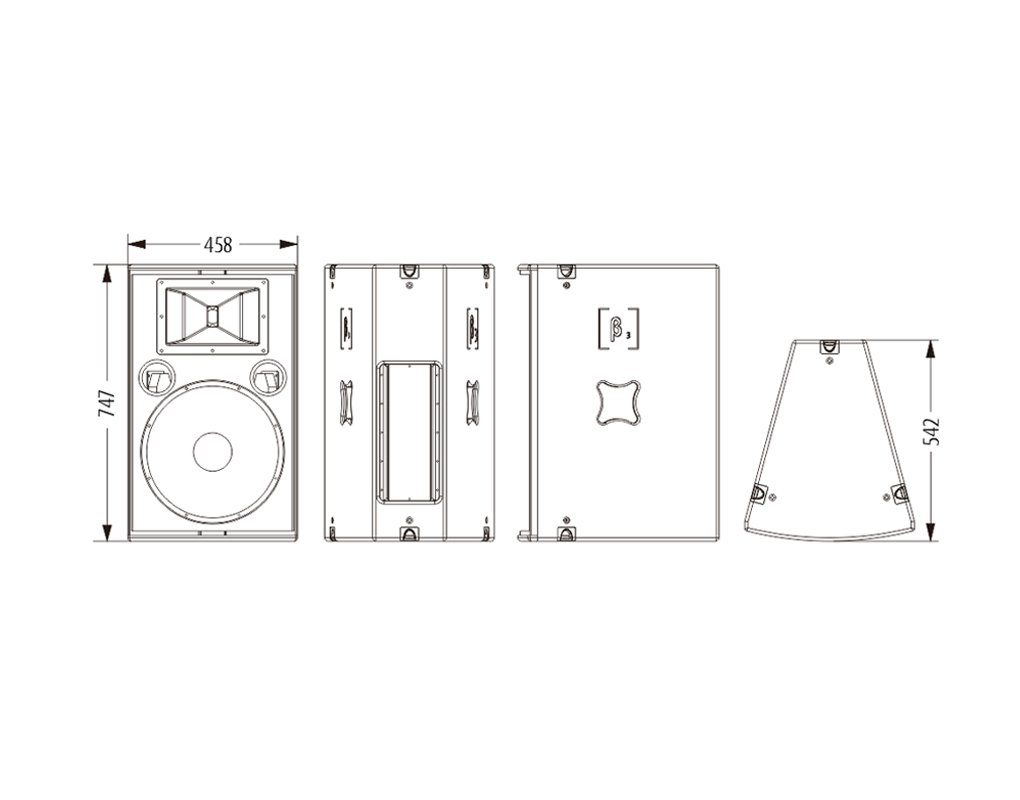

Dimension (W x D x H):
458 x 542 x 747mm / (18 x 21.3 x 29.4in)
Package Dimensions (W x D x H):
652 x 568 x 865mm / (25.7 x 22.4 x 34.1in)
Weight
Net Weight:
37 kg / 81.6 lb
Gross Weight:
42 kg / 92.6 lb
