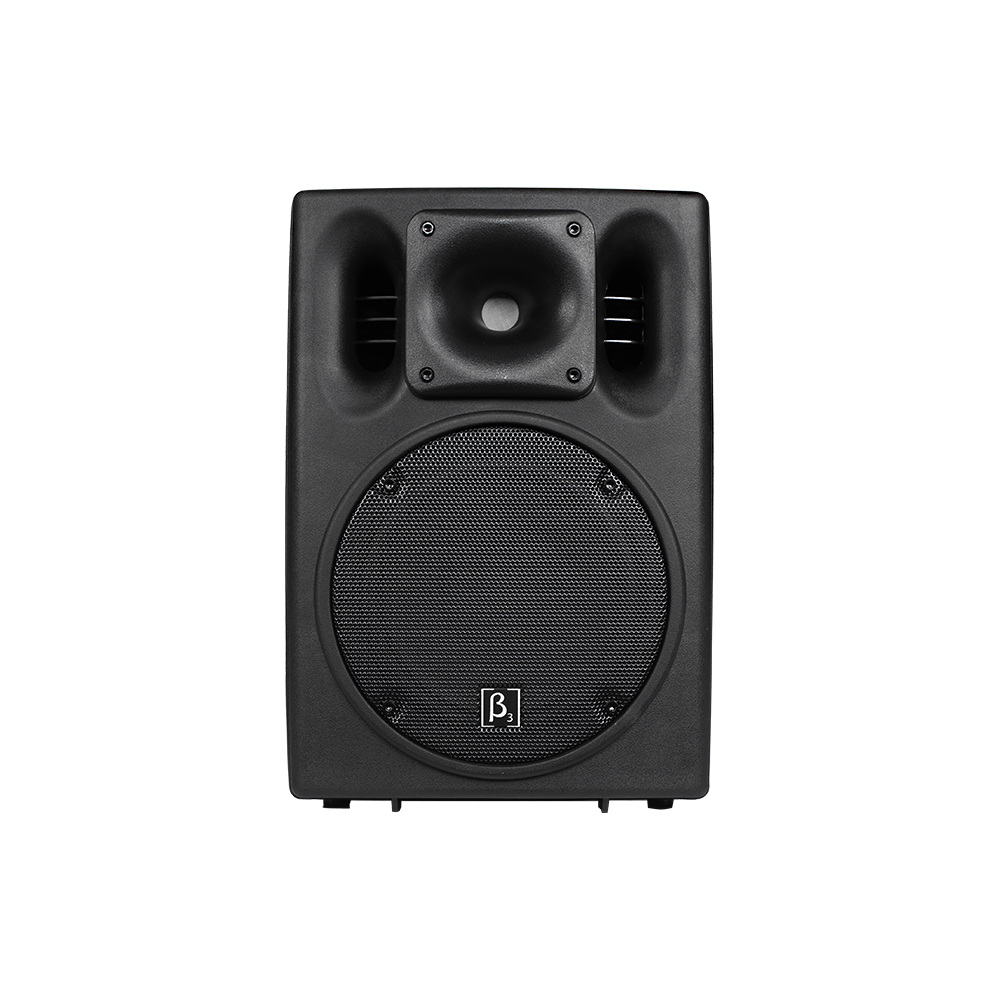

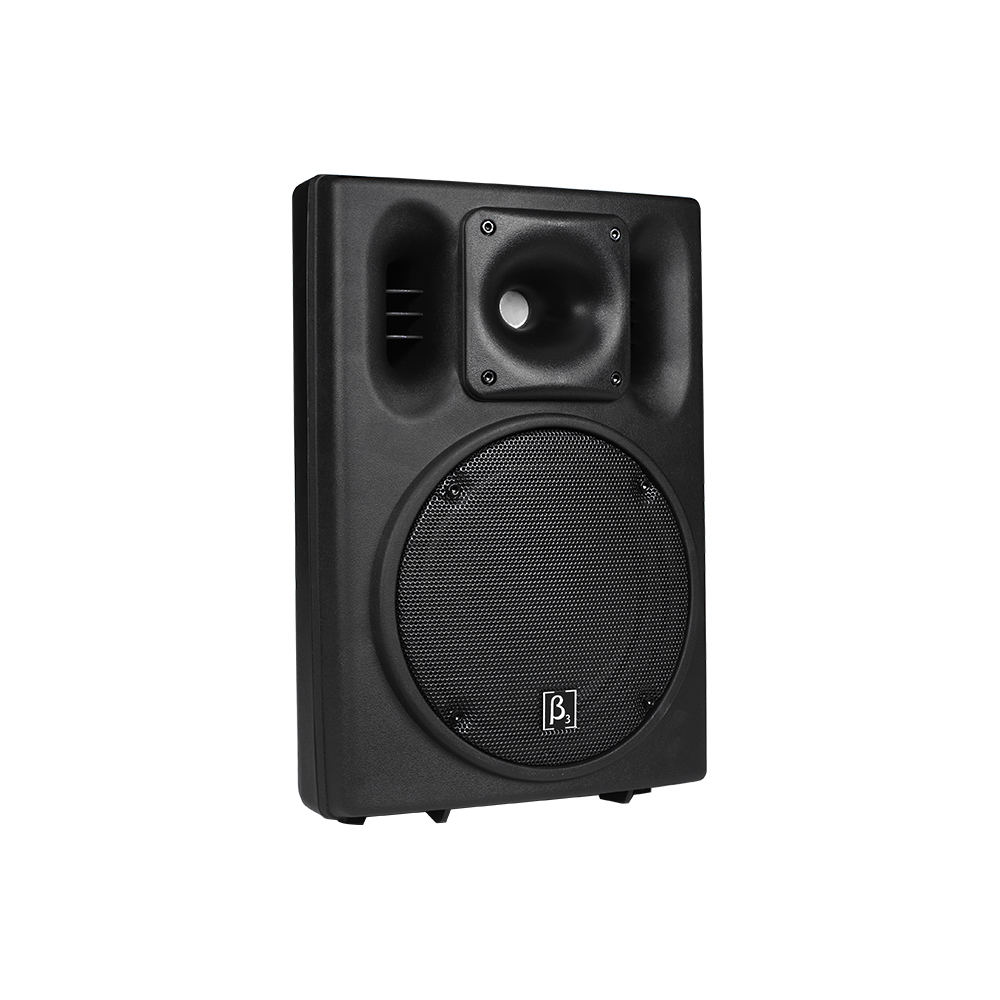

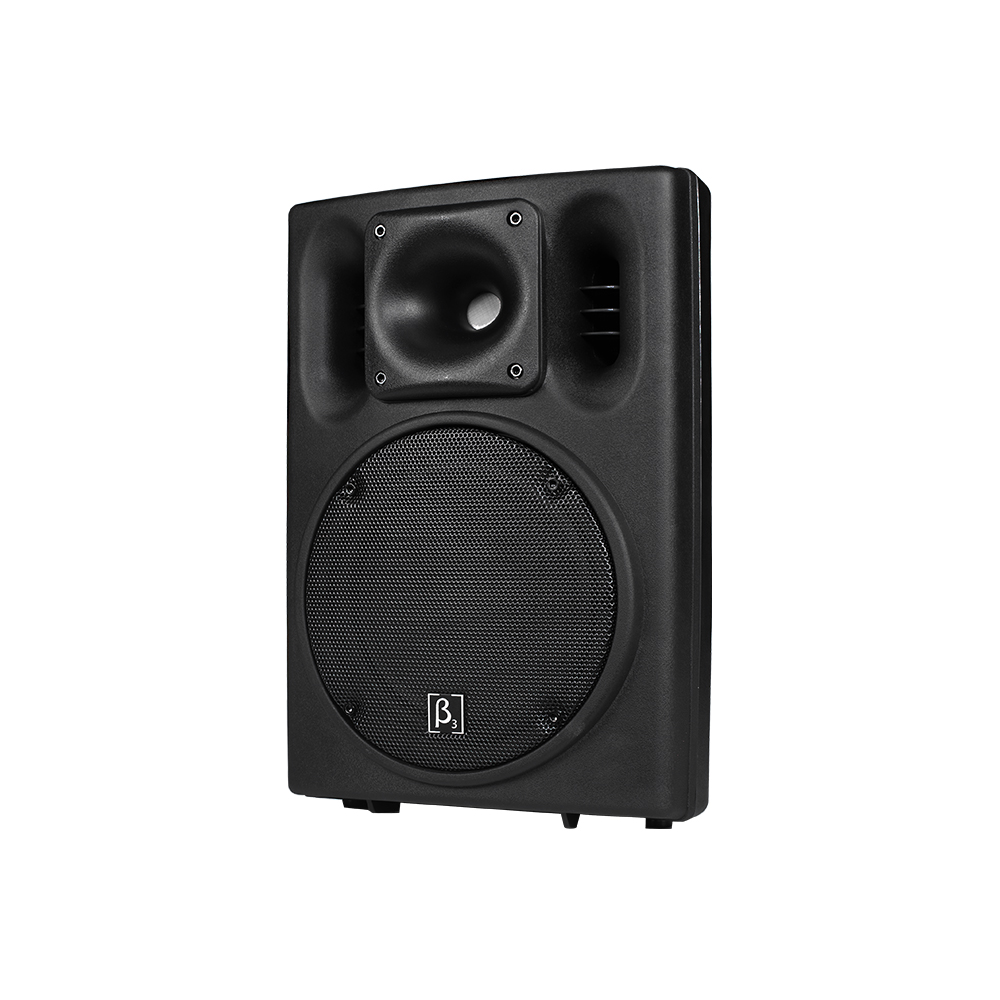

Features
- High output SPL and sensitivity
- 1 x 8” high power transducer with 50mm voice coil
- 1 x 1.3” diaphragm compression driver
- 90º x 60º controlled coverage pattern
- Rotatable Horn
- Built-in Bi-amp power amplifier module
- Master volume control
- Bass and Treble control
- XLR input and output connectors
- Switchable between Mic and Line input
- Heavy duty protective grill
- Injection molded
- 2 x XLR connector
- Cabinet design for FOH and Monitor use
- Suitable for use as a main system with or without sub speakeraugmentation
- Portable system (stand), or permanent installation (wall, ceiling,under balcony)
- Arrays with all active high power U Series sub speakers for extendedlow frequency, high quality music reproduction
- Monitor kit - optiona
Specifications
Acoustical specifications
Frequency Response(-3db):
65Hz-18kHz
Max SPL @ 1m:
104dB/110dB(PEAK)
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 1.3" HF
Woofer:
1 x 8" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
2 x XLR
Power section
Total Power:
150W(RMS); 300W(MUSIC); 600W(PEAK);
Nominal Impedance (Ohm):
8Ω
Cooling:
Internal horn vibration auxiliary air cooling + convective radiation outside the back plate
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
Polypropylene injection moulding
Hardware:
8 x M8 hanging point, SMART pole mount system
Handles:
Two side, one rear
Grille:
Powered coated grill
Color:
Black
Size
Dimension (W x D x H):
277 x 257 x 400mm / (10.9 x 10.1 x 15.7in)
Package Dimensions (W x D x H):
595 x 310 x 460mm / (23.4 x 12.2 x 18.1in)
Weight
Net Weight:
8.6 kg / 19 lb
Gross Weight:
18.6 kg / 41 lb
U8a Application
- Concert
- Flow performance
- Gym
- Theater theatre
- Multi-function hall
- Clubs
- Hotel
- School
U8a Installation
U8a Parts

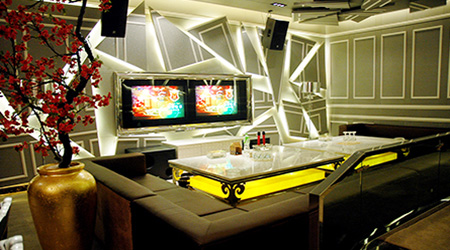

U8a Cases
U8a Collocation
Videos
Downloads
Filename | Version | Language | Size | Updated |
β3 U8a Datasheet | 1.0 | 200KB | 2025-01-02 20:01:59 | |
β3_U8a_Plastic_SpeakerManual | 1 | 621.49KB | 2018-07-12 02:25:39 |
