Features

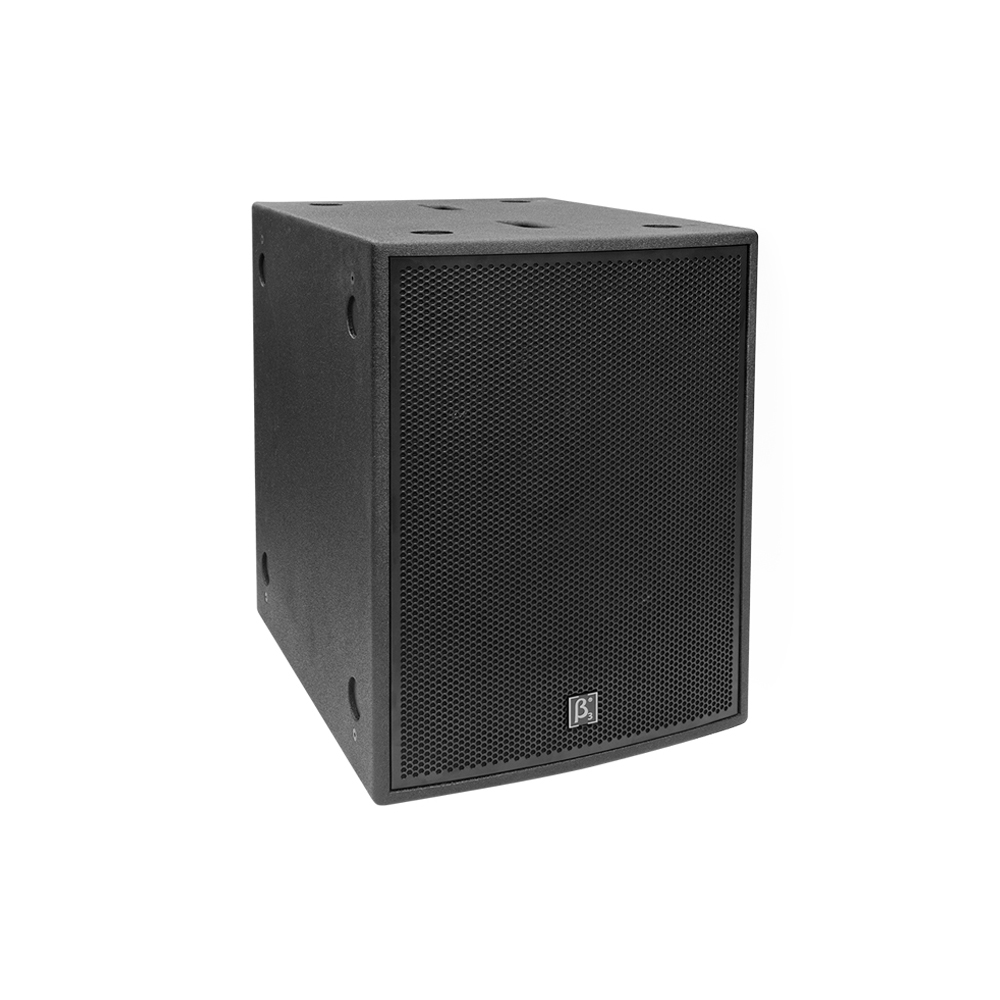

- High Sensitivity LF passive speaker
- 1x18” LF transducer
- High strength cabinet structure
- Powder coated grill
- Computer aided design to optimize frequency and phase response
- suitable for use as a main system with TH306/64 or TH306/96
- Durable Polyurethane textured base paint
- suitable for theatre ,television studio, multi-functional room and performance tudio
Specifications
Acoustical specifications
Frequency Response(-3db):
40Hz-1kHz
Max SPL @ 1m:
122dB/128dB(PEAK)
Transducers
Woofer:
1 x 18" LF
Input/Output section
Input Connectors:
1 x NL4 + binding post
Sensitivity (1W @ 1m):
101dB
Power section
Total Power:
600W(RMS); 1200W(MUSIC); 2400W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
520 x 650 x 680mm / (20.5 x 25.6 x 26.8in)
Package Dimensions (W x D x H):
790 x 760 x 640mm / (31.1 x 29.9 x 25.2in)
Weight
Net Weight:
41.5 kg / 91.5 lb
Gross Weight:
46 kg / 101.4 lb
