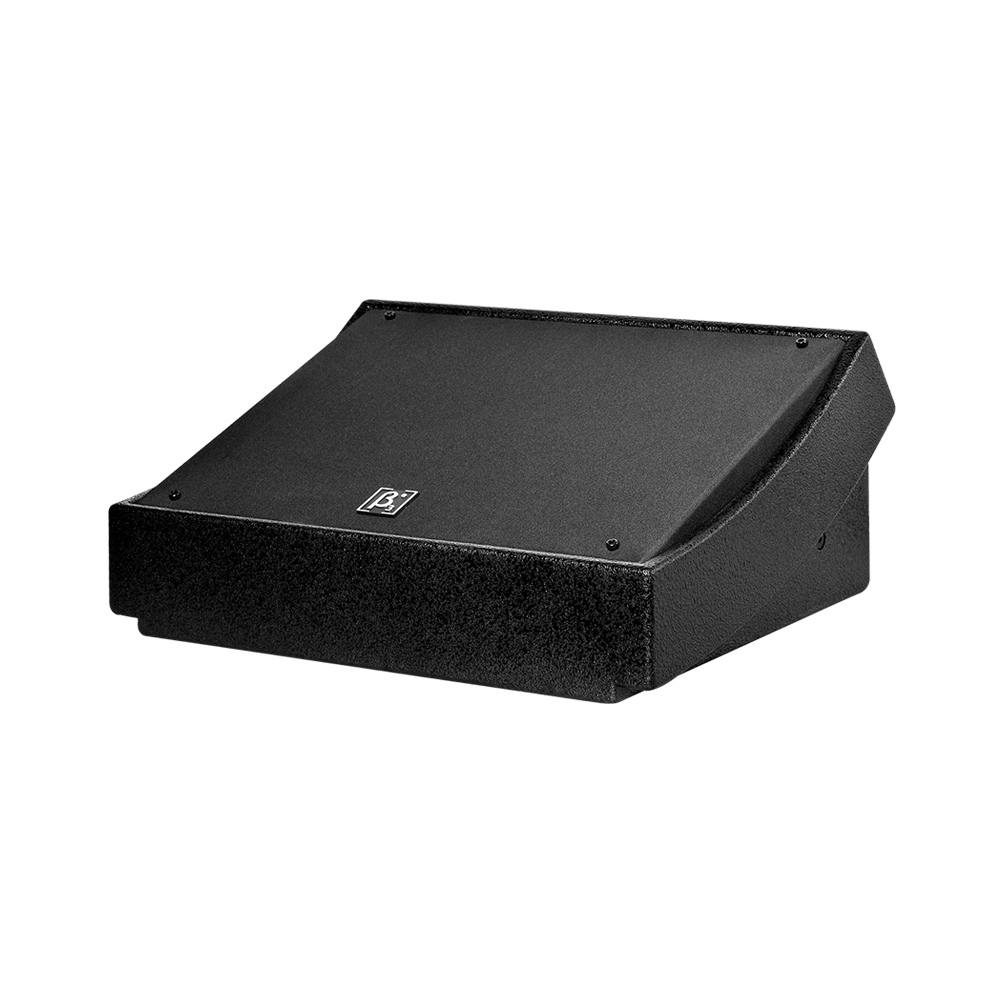

Features
- 8" two-way full range speaker, consisting of 1x8"LF and 1x1" HF.
- Frequency range 70Hz - 18kHz (-3dB)
- 118dB High SPL, 92dB high sensitivity.
- Computer simulating design provide very good Frequency response and phase feature.
- 4 x M6 on the back, 2 x M8 on each side
Specifications
Acoustical specifications
Frequency Response(-3db):
70Hz-18kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
55° x 55°
Transducers
Compression driver:
1 x 25mm HF
Woofer:
1 x 8" LF
Input/Output section
Input Connectors:
Spring clip
Sensitivity (1W @ 1m):
92dB
Processor section
Crossover frequencies:
1.6kHz
Power section
Total Power:
100W(RMS); 200W(MUSIC); 400W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
ladder-shaped. MDF
Hardware:
4 x M6 lifting point on the back, 1 x M8 lifting point at each side
Grille:
surface of cabinet with Black polyurethane, spray surface of grill with black mesh
Color:
Black
Size
Dimension (W x D x H):
452 x 201.4 x 364mm / (17.8 x 7.9 x 14.3in)
Package Dimensions (W x D x H):
455 x 290 x 535mm / (17.9 x 11.4 x 21.1in)
Weight
Net Weight:
9 kg / 19.8 lb
Gross Weight:
11 kg / 24.3 lb
