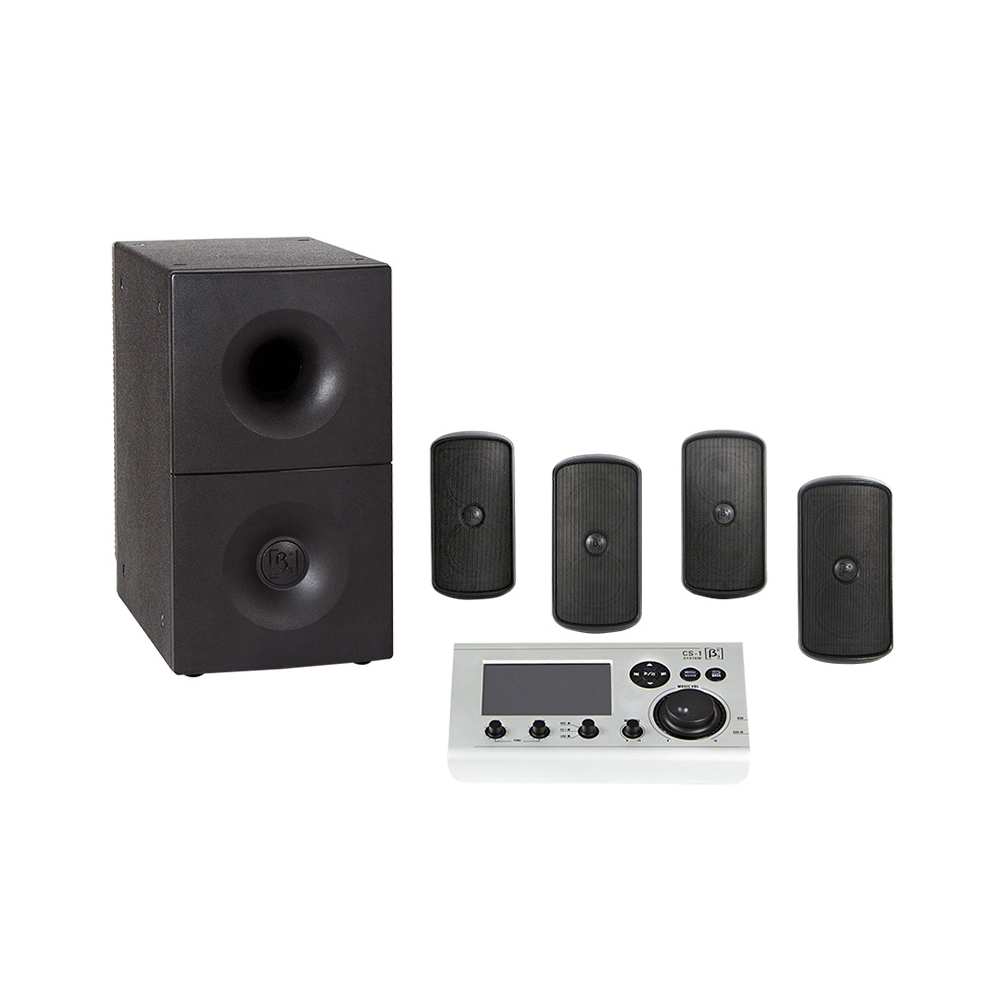

Features
- Innovative AV controller
- Simple operation with excellent quality performance
- Elegant compact modular design
- Multiple systems easily linked together
- High definition video display function
- Onboard 4GB memory to store music/video
- Easily installed system in a box
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-220Hz
Max SPL @ 1m:
106dB/112dB(PEAK)
Transducers

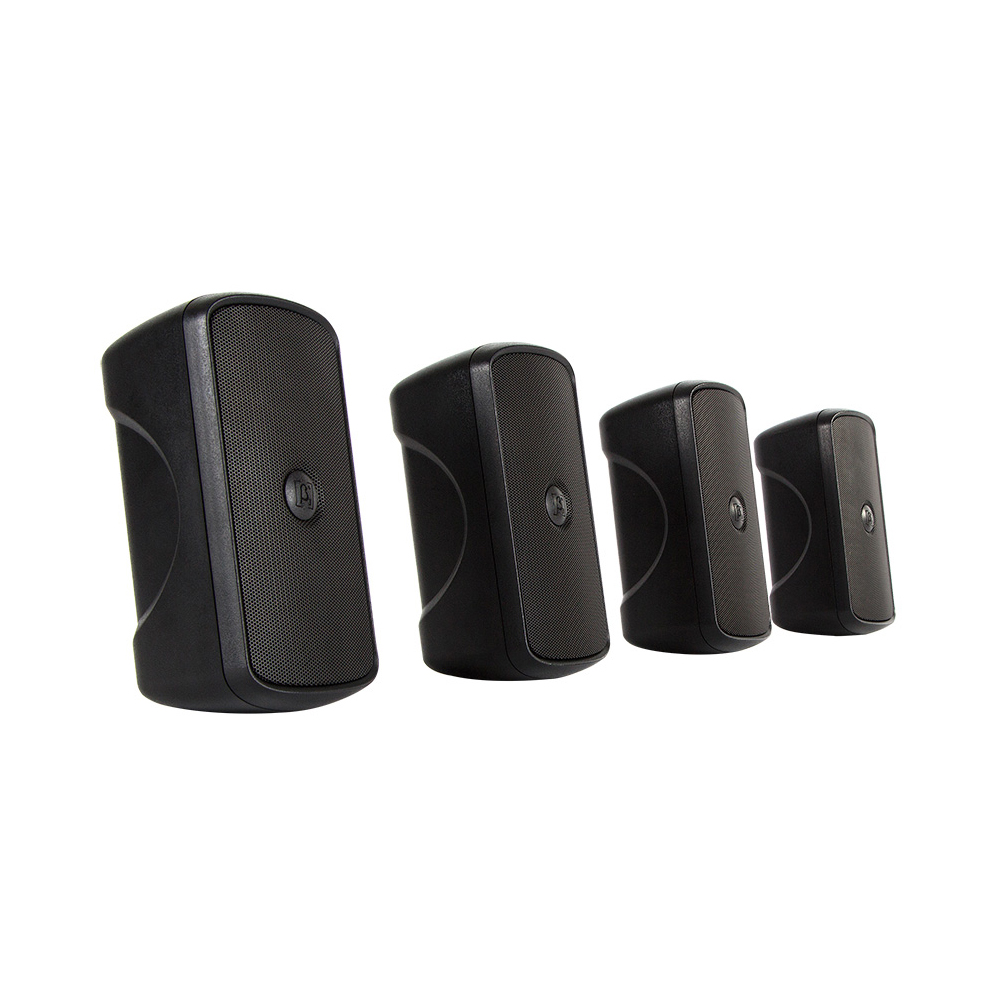

Compression driver:
4 x 2 x 2.75” Full range loudspeaker

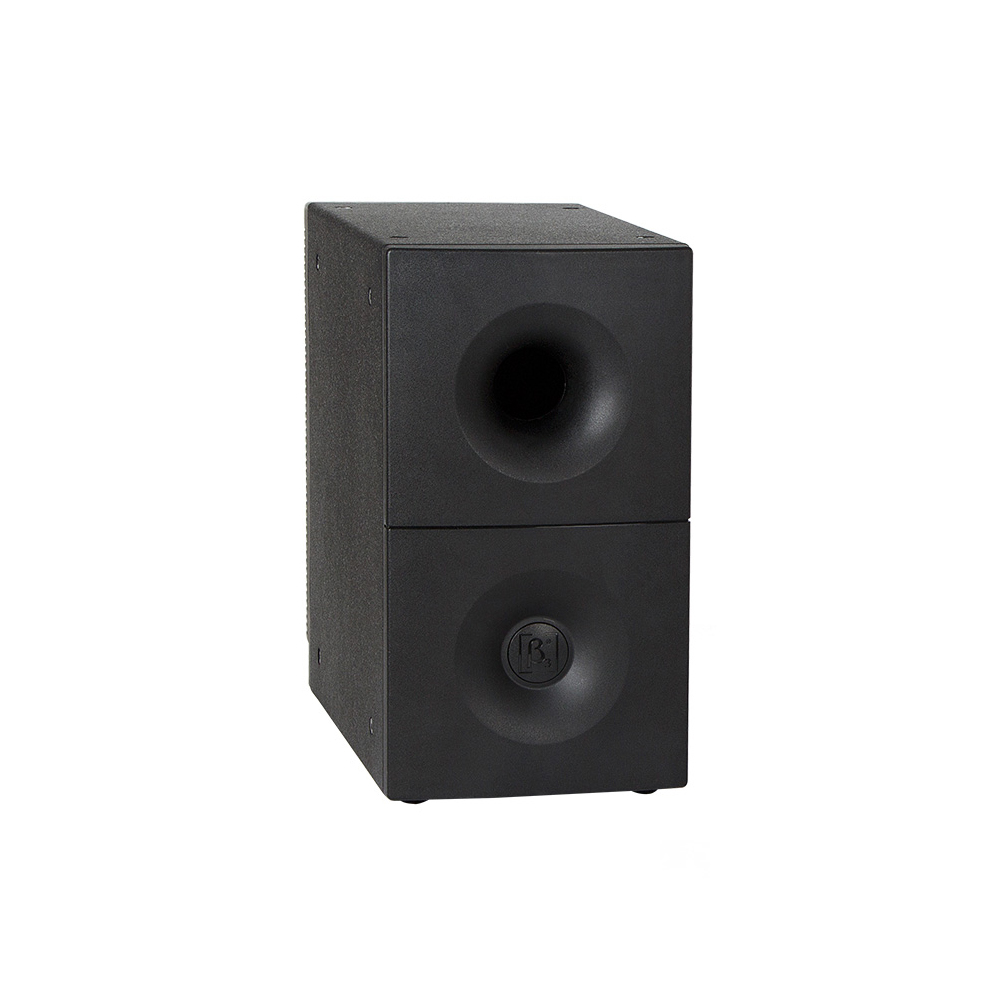

Woofer:
1 x 6" LF
Input/Output section
Input signal:
Unbalanced 10kΩ
Input Connectors:
RJ45
Power section
Total Power:
100W(RMS); 200W(MUSIC); 400W(PEAK);
Nominal Impedance (Ohm):
4Ω
Voltage range:
AC 220V-240V~, 50/60Hz
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
216 x 480 x 400mm / (8.5 x 18.9 x 15.7in)
Package Dimensions (W x D x H):
460 x 570 x 465mm / (18.1 x 22.4 x 18.3in)
Weight
Net Weight:
15.5 kg / 34.2 lb
Gross Weight:
24.5 kg / 54 lb
CS-1 Application
CS-1 Installation

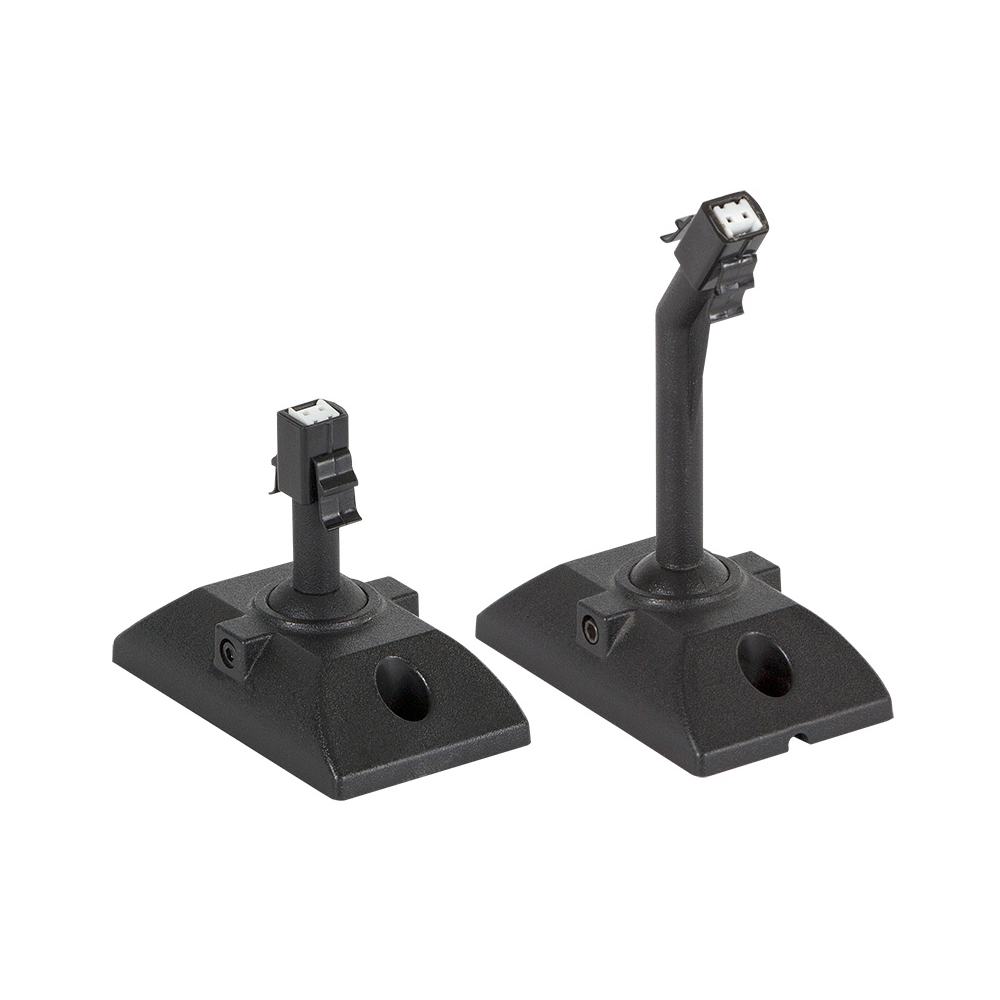

CS-1 Parts
CS-1 Collocation
Downloads
Filename | Version | Language | Size | Updated |
β3 CS-1 Datasheet | 1.0 | 200KB | 2024-12-25 09:39:21 | |
Brochure_CS-1 | 1.0 | 12397KB | 2018-07-12 02:25:39 |
