Features
- Single 18"phase inverted subwoofer.
- Computer aided design to optimize frequency and phase response.
- Frequency response range: 36Hz - 2kHz (-3dB).
- Sensitivity 97dB, MAX.SPL 121dB/127dB(PEAK).
- Rated power 500W, 2000W (PEAK).
Specifications
Acoustical specifications
Frequency Response(-3db):
36Hz-2kHz
Max SPL @ 1m:
121dB/127dB(PEAK)
Transducers
Woofer:
1 x 18" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
97dB
Power section
Total Power:
500W(RMS); 1000W(MUSIC); 2000W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
15mm Birch Plywood
Handles:
4 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size

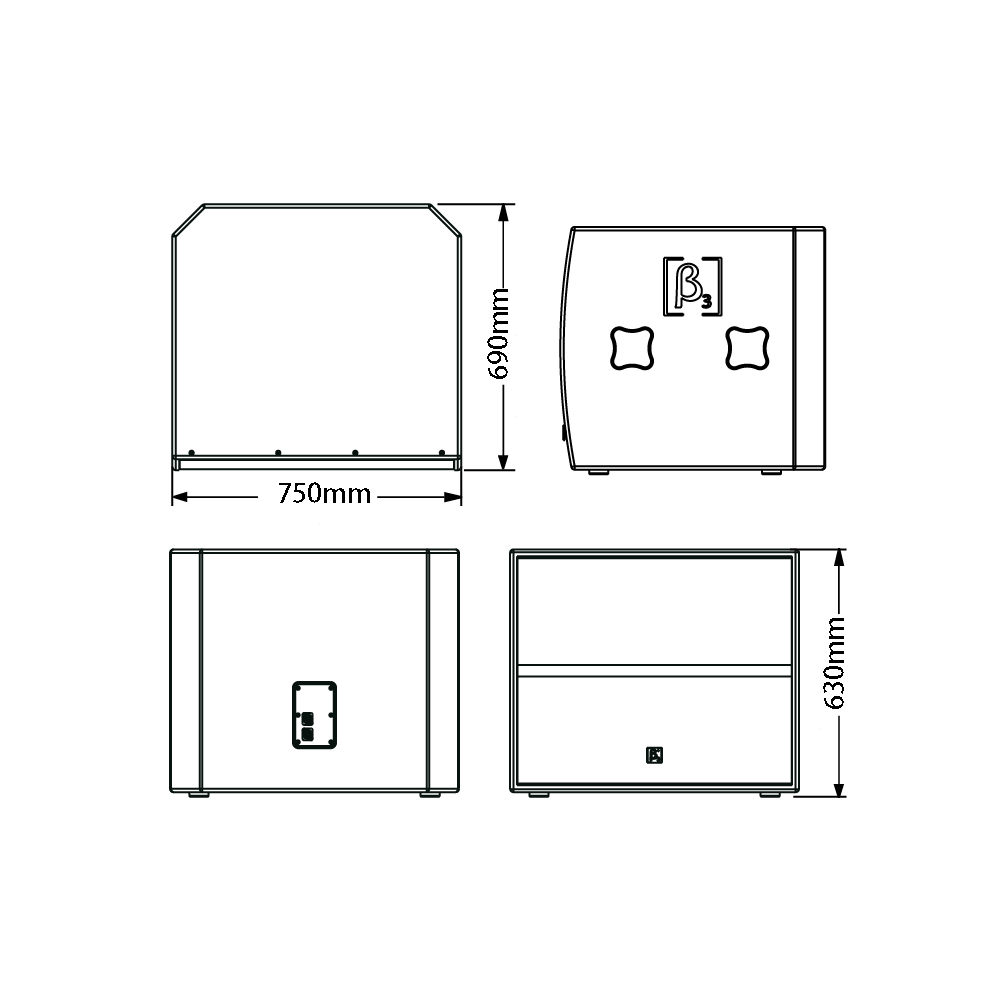

Dimension (W x D x H):
750 x 690 x 630mm / (29.5 x 27.2 x 24.8in)
Package Dimensions (W x D x H):
880 x 800 x 775mm / (34.6 x 31.5 x 30.5in)
Weight
Net Weight:
50.5 kg / 111.3 lb
Gross Weight:
54.5 kg / 120.2 lb
